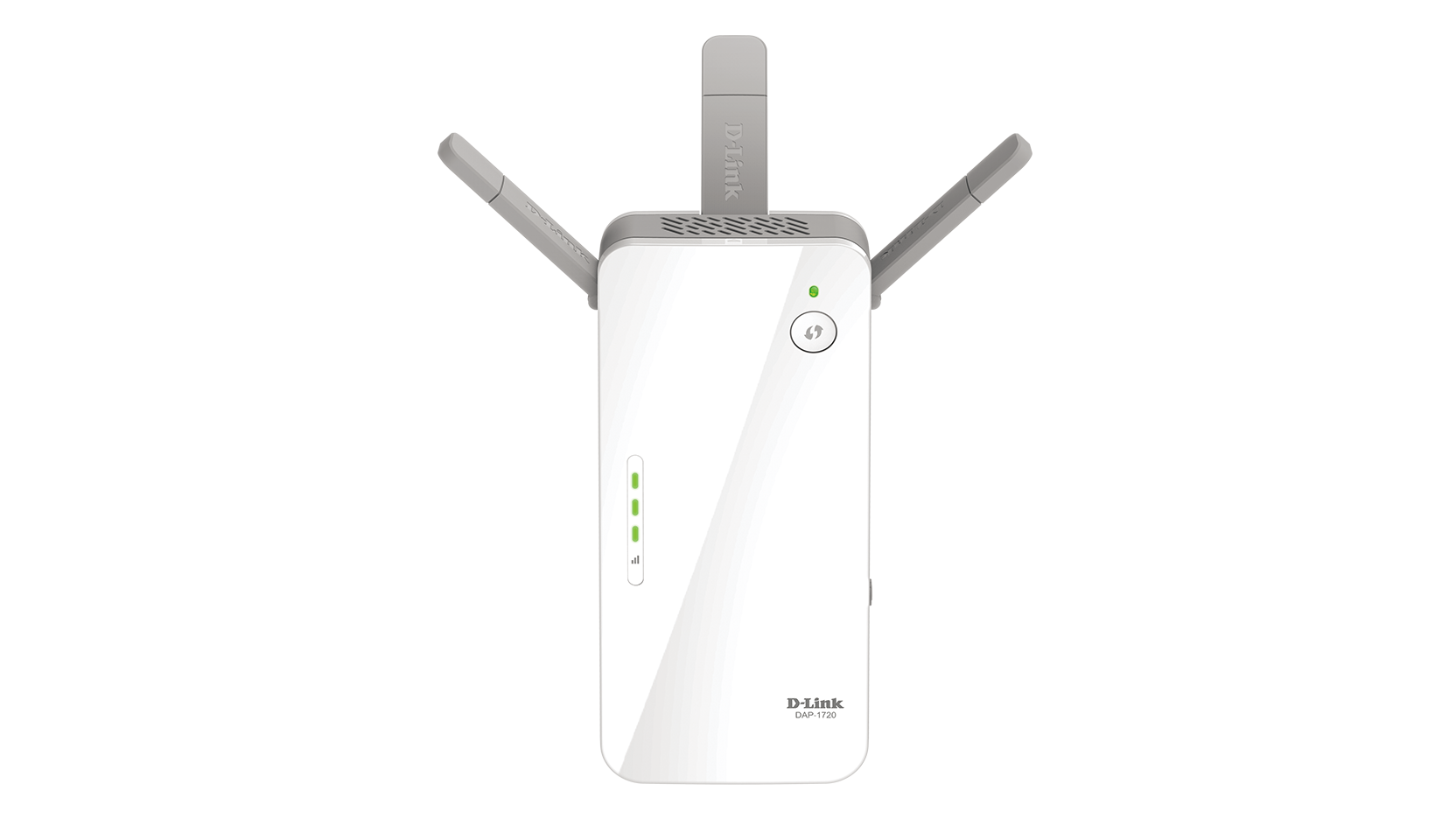

D-Link DAP-1720
AC1750 Wi-Fi Range Extender
Sorry, this product is no longer available, Please contact us for a replacement.
Click here to jump to more pricing!
Overview:
The DAP-1720 AC1750 Wi-Fi Range Extender will extend the coverage of your home’s existing wireless network and eliminate dead zones. With a sleek design and wireless speeds of up to 1,750 Mbps (1,300 Mbps on the 5GHz + 450 Mbps on the 2.4GHz), the DAP-1720 will let you enjoy 4K streaming and online gaming on multiple devices. Featuring a 3 x 3 antenna configuration, the DAP-1720 offers better data rates, fewer dead-spots, more coverage, and increased reliability.
Extend your Home Wireless Coverage
DAP-1720 extends your existing wireless range to hard to reach areas, elimiating dead
zones and improving speed.
Simultaneous Dual Band Wi-Fi Extension
Extends both 2.4 GHz and 5 GHz WiFi for combined speeds up to 1,750 Mbps at the
same time.
Smart Signal Indicator
The Smart Signal Indicator will help you find the best location for placement of the DAP1720
for optimal Wi-Fi coverage throughout your home.
Work with Standard Router or Gateway
Technical Specifications:
Connectivity
• 802.11 a/g/n/ac wireless LAN
• Four 10/100/1000 Gigabit LAN Ports
• 10/100/1000 Gigabit WAN Port
Device Interfaces
• Power Switch
• WPS Button
• Reset Button
LED
• Status/WPS
• Wi-Fi Signal Strength Indicator
Operation Frequencies
• 2.4GHz Band: 2400-2483 MHz ISM Band
• 5GHz Band: 5180-5850 MHz
Operation Channels
• 2.4GHz Band: 1-11 channels
• 5GHz Band: 36-165 channels
Data Signal Rate
• 2.4GHz: 450 Mbps
• 5GHz: 1300 Mbps
Standards
• IEEE802.11ac
• IEEE802.11n
• IEEE802.11g
• IEEE802.11a
Minimum Requirements
• Windows® 10, 8.1, Windows® 8, Windows® 7, or Mac OS® X (v10.7), Ethernet Network Interface, Internet Explorer® 11, Mozilla® Firefox® v28, Google Chrome v33, or Safari v7
Antenna
Three External Antennas
Wireless Security
• Wi-Fi Protected Access (WPA/WPA2)
• WPS(PBC)
Advanced Feature
D-Link One-Touch Extender Setup
Device Management
Web Browser Setup
Physical Dimensions
5.25 x 7.75 x 4.50 inches
Power
Input: 100 to 240 V AC, 50/60 Hz
Temperature
• Operating: 32 to 104 °F
• Storage: -4 to 149 °F
Humidity
• Operating: 0% to 90% non-condensing
• Storage: 5% to 95% non-condensing
Certifications
• FCC Class B
• Wi-Fi Certified
• WPS Setup
Package Contents
• Wireless AC1750 Wi-Fi Range Extender (DAP-1720)
• Quick Installation Guide
• Wi-Fi Configuration Card
Warranty
1-Year Limited Warranty
Documentation:
Download the D-Link DA-1720 Datasheet (PDF).
