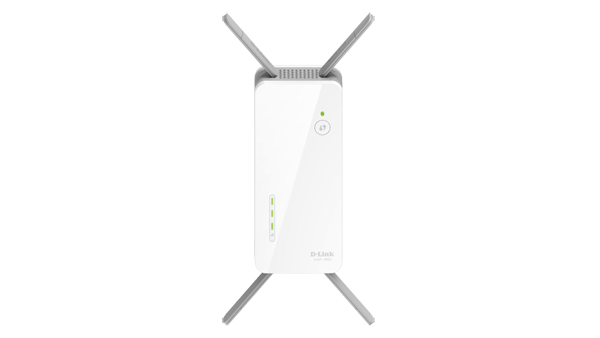

D-Link DAP-1860
AC2600 Wi-Fi Extender

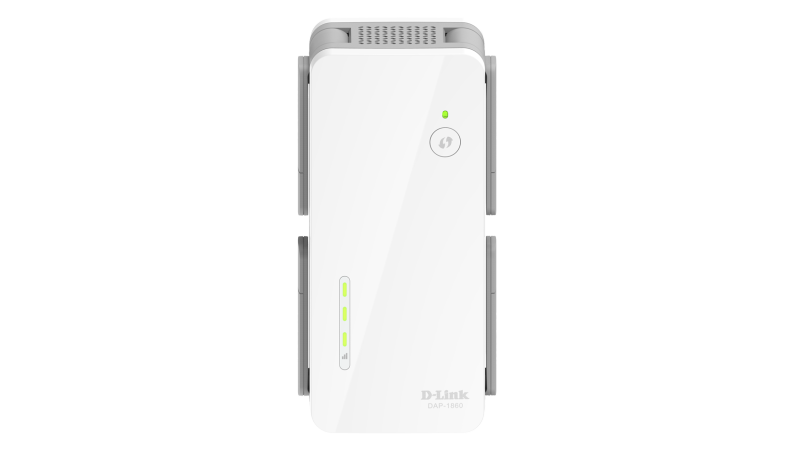

D-Link DAP-1860

Sorry, this product is no longer available, Please contact us for a replacement.



Overview:

The DAP-1860 AC2600 Wi-Fi Range Extender will extend the coverage of your home’s existing wireless network and eliminate dead zones. With a sleek design and wireless speeds of up to 2,532Mbps (1,732 Mbps on the 5GHz + 800Mbps on the 2.4GHz), the DAP-1860 will let you enjoy a fast wireless connection. Featuring a 4x4 antenna configuration, SmartConnect and Smart BeamForming technology, the DAP-1860 offers better data rates, fewer dead-spots, more coverage, and increased reliability. It is ideal for multiple devices, 4K streaming and online gaming.

DAP-1860 AC2600 Wi-Fi Range Extender Features

DAP-1860 AC2600 Wi-Fi Range Extender Features

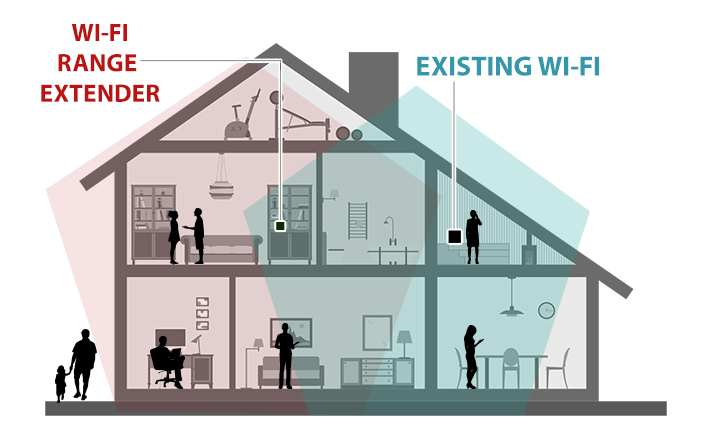

Extend your home wireless coverage

You can extend your wireless network using Wi-Fi or using an Ethernet cable. Either way, you will extend your home’s wireless coverage without worrying about signal strength. Dual-band technology helps reduce interference from nearby wireless transmitters in the home, and also provides backward compatibility with older wireless devices in your network. Ultra fast wireless transfer rates for all of your web browsing, Ultra HD media streaming, and gaming needs. For optimal performance and to take full advantage of the latest AC technology, pair the DAP-1860 with the D-Link Ultra Series routers or the AC1900 Wi-Fi USB adapter (DWA-192).

Extend your home wireless coverage

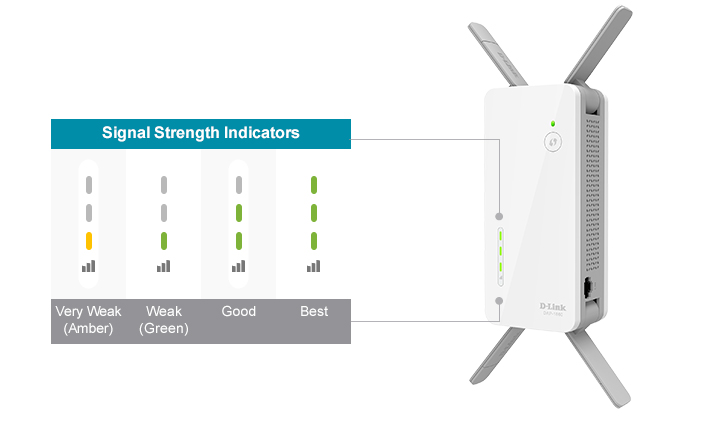

Smart Signal Indicator

The Smart Signal Indicator will help you find the best location for placement of the DAP- 1860 for optimal Wi-Fi coverage throughout your home so you can enjoy more of what you like most in life.

Smart Signal Indicator

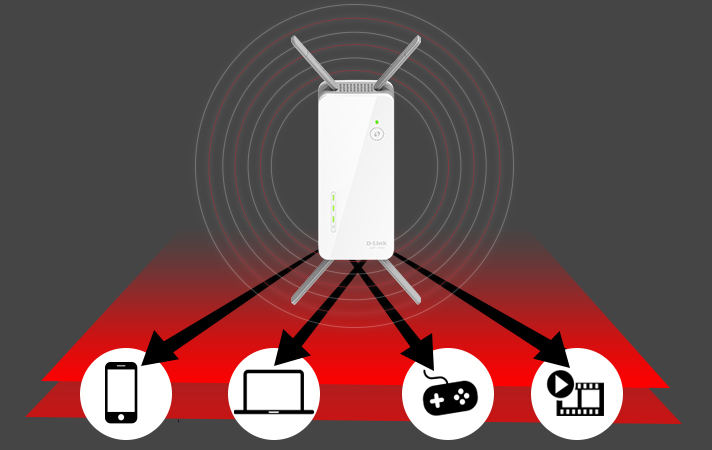

Multi-User MIMO (MU-MIMO)

The DAP-1860 is designed to support MU-MIMO technology that allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently, giving you the fastest Wi-Fi speeds in your home. You can stream HD media faster, transfer large files really fast and play lag-free gaming.

Multi-User MIMO (MU-MIMO)

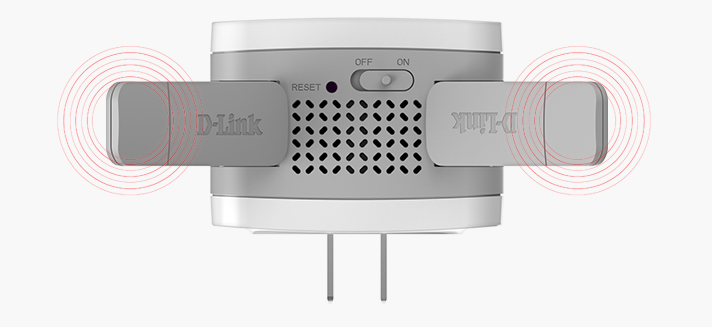

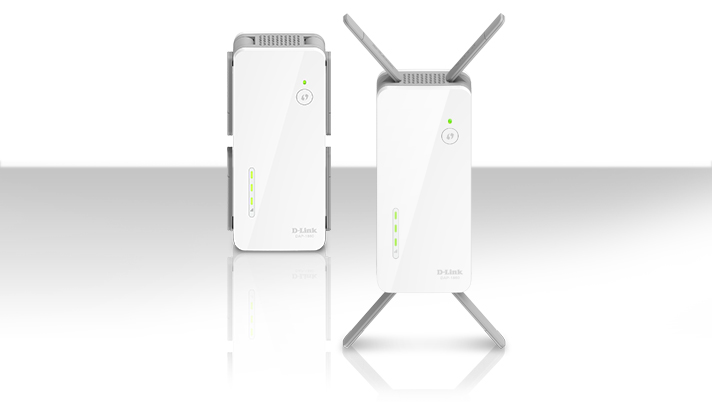

External antennas for more coverage

External antennas help improve Wi-Fi coverage throughout large homes and even backyards. Better Wi-Fi Coverage and more speed.

External antennas for more coverage

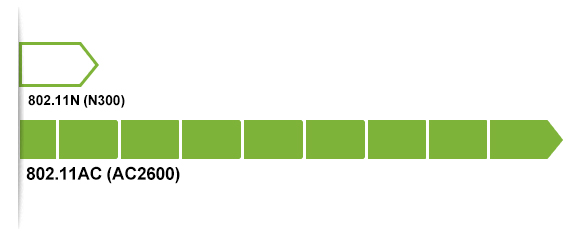

8.5x more speed than N300

AC2600 Wi-Fi delivers up to 8.5x more speed than N300 extenders.

8.5x more speed than N300

Features:

Connectivity

  • MU-MIMO4 technology gives you high speed wireless connectivity for your devices
  • Wireless 802.11n backward compatibility
  • Wireless speeds of up to 2,532 Mbps
  • 4x4 antenna configuration
  • Dual-band connectivity for greater flexibility and reduced interference
  • 1x 10/100/1000 Gigabit Ethernet Port
  • AP mode ideal for homes that are pre-wired for Ethernet or for extended coverage
  • SmartConnect Technology for the best possible band for optimal performance
  • Smart BeamForming tracks your connected devices for enhanced Wi-Fi speed

Security

  • WPA2/WPA wireless encryption
  • Wi-Fi Protected Setup (WPS) for setup with the simple press of a button

Easy to Use

  • One-piece wall plug design is compact, portable, and does not require additional power cables
  • Built-in setup wizard and QRS Mobile app for simple setup and configuration

Technical Specifications:

D-Link DAP-1860 Specifications

D-Link DAP-1860 Specifications
General
Connectivity
  • IEEE 802.11ac/n/g/a wireless LAN
  • 4x4 MIMO Configuration
  • 10/100/1000 Gigabit Ethernet port

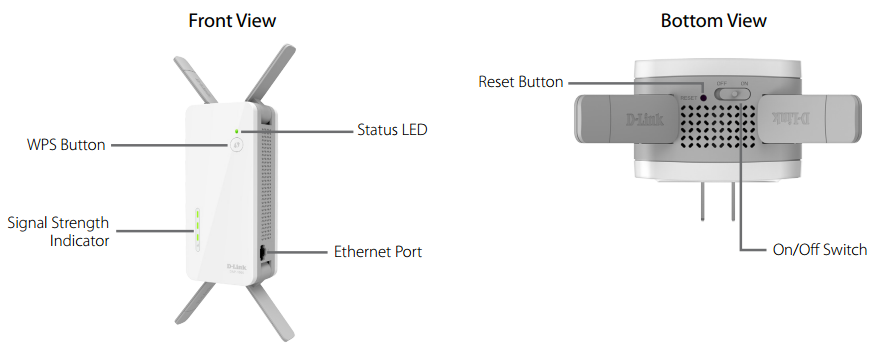

Device Interfaces
  • Power Switch
  • Reset Button
  • WPS Button
LEDs
  • Status/WPS
  • Wi-Fi signal strength indicator
MIMO Configuration
  • 4 transmit
  • 4 receive
Operating Frequencies
  • 2.4GHz Band: 2400 - 2483 MHz ISM Band
  • 5GHz Band: 5180 - 5850 MHz
Operating Channels
  • 2.4GHz Band: 11 channels
  • 5GHz Band: 36-165 channels
Data Signal Rate
  • 2.4GHz: 800Mbps1
  • 5GHz: 1732Mbps1
Standards
  • IEEE 802.11ac
  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.11a
Minimum Requirements
  • Windows 10/8/7/Vista or Mac OS X 10.6 or higher
  • Internet Explorer 10, Firefox 28, Safari 6, or Chrome 28 or higher
  • Wired or wireless network
Antennas Four adjustable external antennas
Functionality
Wireless Security
  • Wi-Fi Protected Access (WPA/WPA2)
  • WPS (PBC)
Advanced Features D-Link One-Touch Extender Setup
Device Management
  • Supports QRS Mobile app (iOS/Android)
  • Web Browser
MU-MIMO MU-MIMO Technology allows high-bandwidth Wi-Fi signal to multiple devices at the same time
SmartConnect SmartConnect Technology allocates the best possible band for optimal performance
Smart BeamForming Smart BeamForming tracks your connected devices for enhanced Wi-Fi speed and range.
Physical
Dimensions 2.75 x 3.00 x 6.25 inches
Weight 14.3 ounces
Power Input: 110 to 240 V AC, 50/60 Hz
Temperature
  • Operating: 32 to 104 °F
  • Storage: -4 to 149 °F
Humidity
  • Operating: 0% to 90% non-condensing
  • Storage: 5% to 95% non-condensing
Certifications
  • FCC
  • WPS Setup
  • Wi-Fi Certified
Dimensions (W x H x D)
  • Camera only: 4.29 x 5.26 x 4.58 inches
  • With mounting bracket: 4.29 x 9.06 x 4.58 inches
Package Contents
  • AC2600 Wi-Fi Range Extender (DAP-1860)
  • Wi-Fi Configuration Card
  • Quick install guide
Warranty
Warranty 1-Year Limited Warranty2

1 Up to 1732 Mbps and 800 Mbps data-rate with 256 QAM compatible wireless clients.
2 1-year limited warranty valid in the U.S. only. For warranty and regulatory information, please visit: http://support.dlink.com/warranty

Product Views:

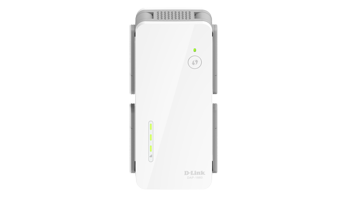

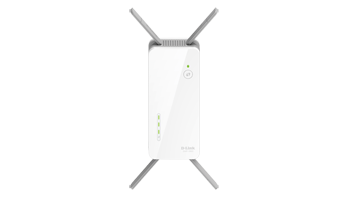

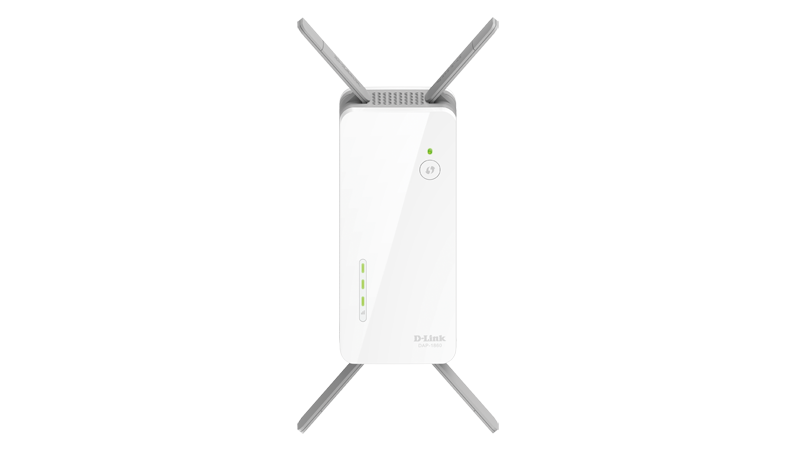

Front Open View Front View
Front Open View Front View

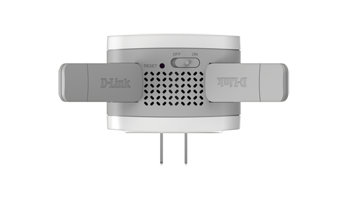

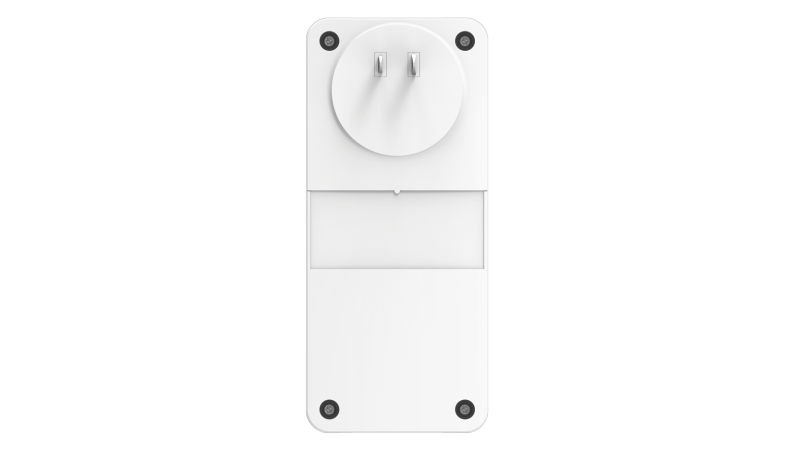

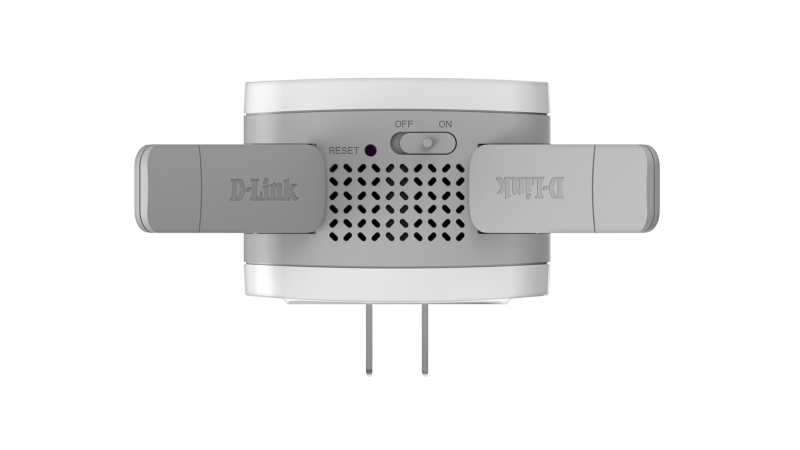

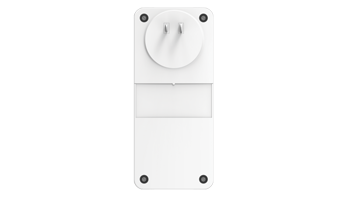

Back View Bottom View
Back View Bottom View

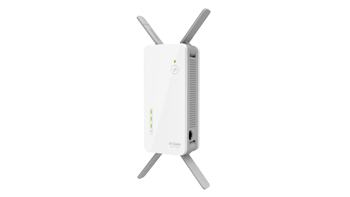

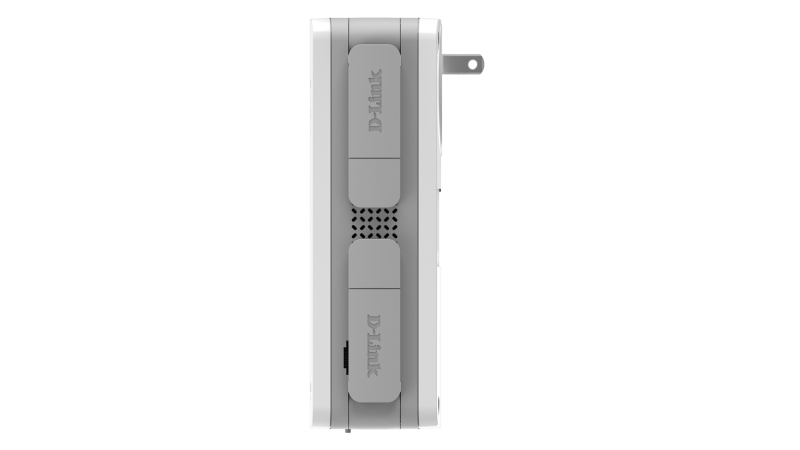

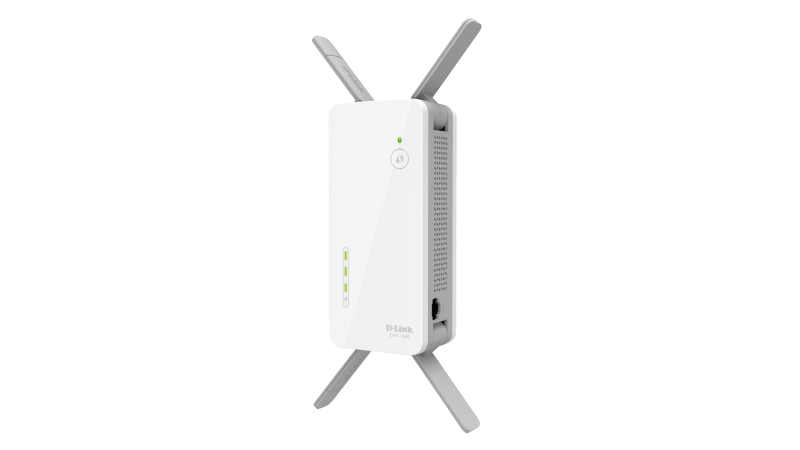

Angle View Side View
Angle View Side View

Documentation:

Download the D-Link DAP-1860 Datasheet (PDF).
