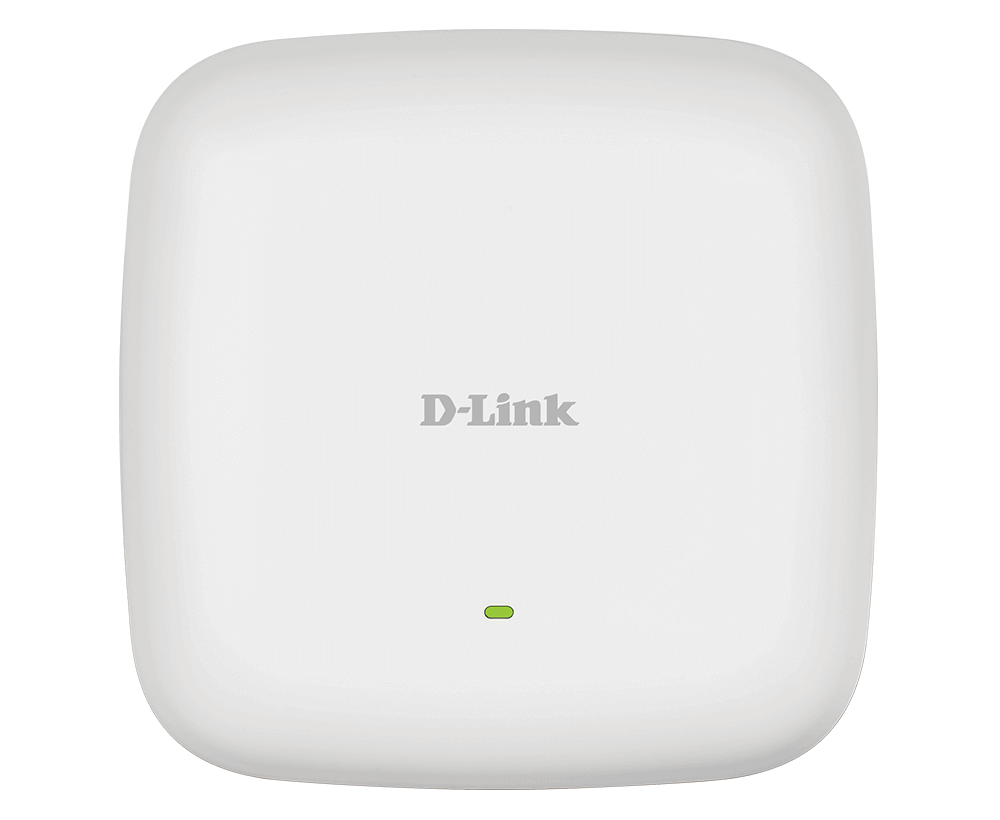

D-Link DAP-2682
Nuclias Connect AC2300 Wave 2 Access Point


D-Link Products
D-Link Wireless Access Points
D-Link Wireless Nuclias Connect AC2300 Wave 2 Access Point
#DAP-2682
List Price: $300.99
Our Price: $231.99

Click here to jump to more pricing!

Overview:

The DAP-2682 Nuclias Connect Wireless AC2300 Wave 2 Dual-Band PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilising the cutting-edge speed of 802.11ac Wave 2. The DAP-2682 delivers maximum combined wireless signal rates of up to 2300 Mbps1 and supports MU-MIMO technology that allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. To maximise total return on investment, the DAP-2682 can be configured to optimise network performance based on any one of its multiple operation modes.

For centralise network management, administrators can use D-Link’s free Nuclias Connect software or Nuclias Connect Hub (DNH-100)4 to configure and manage multiple access points. In addition to streamlining the management process, Nuclias Connect provides network administrators with the means to verify and conduct regular maintenance checks remotely, eliminating the need to send personnel out to physically verify proper operation.

Preloaded with the Nuclias Connect Management Software

D-Link’s Nuclias Connect is a centralized management and analytics solution that brings convenience, control, customizability and cost-effective scaling to small to medium-sized business (SMB) networks. It enables network monitoring, management, and device configuration through a single, easy-to-use software interface.

What’s more – management software comes preloaded, and there are no licensing or support fees. Easily manage your network, anytime, anywhere.

Multi-Mode Makes the Most of your Network Capabilities

In order to achieve optimal network performance, the DAP-2682 has several operational modes tailored to best fit the individual needs of your network. Access Point, Wireless Client, WDS (Wireless Distribution System), and WDS with Access Point modes allow for flexible, customizable deployment whatever your requirements.

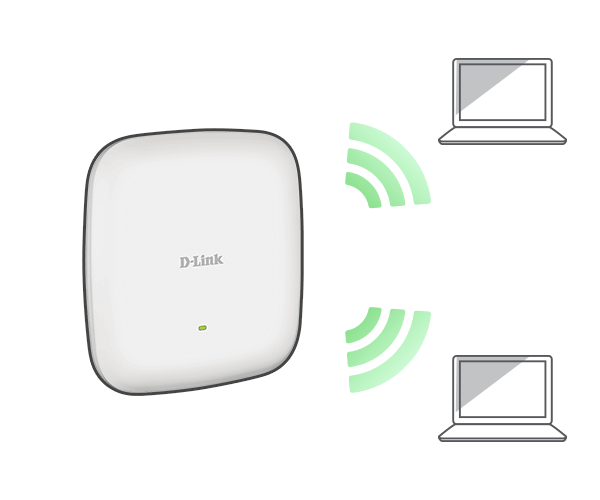

Access Point
Add wireless access to your existing wired network.

Wireless Client
Add wireless functionality to a device which does not have a Wi-Fi adapter.

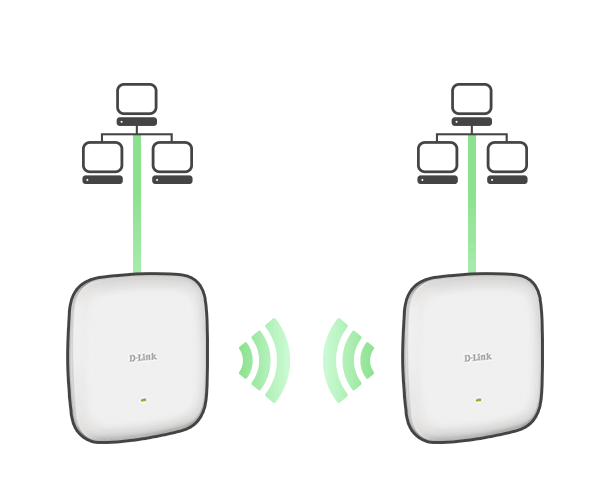

WDS
Wirelessly connect two separate networks.

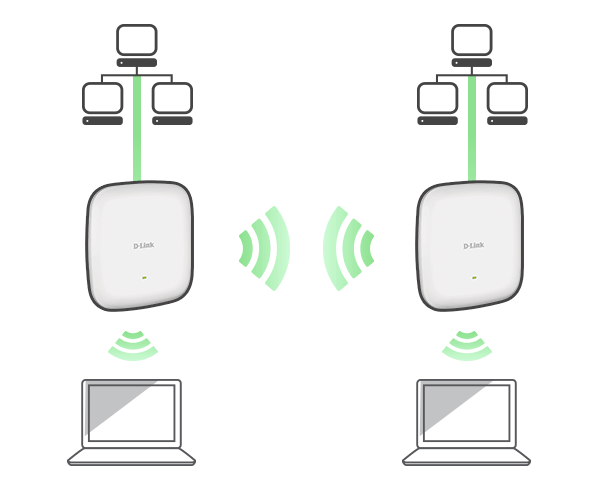

WDS with AP
Wirelessly connect two separate networks while also providing wireless access to both networks.


In a World Where Time is Money, Speed is Essential

Increase employee productivity with access to the data they require at combined speeds of up to 2300 Mbps. The DAP-2682 delivers four times the speed of Wireless N by supporting concurrent dual-band performance, while an added Gigabit LAN port allows for high-capacity backhaul to the wired network.

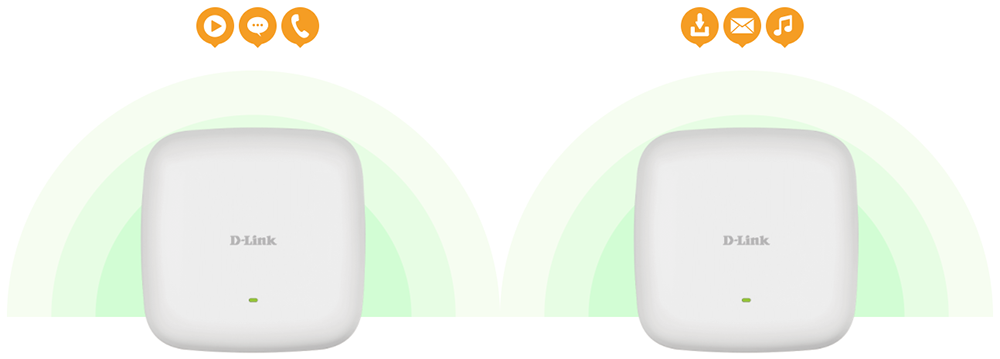

Take a Load Off and Let Your AP do the Hard Work

The DAP-2682’s Load Balancing feature spreads the workload between two or more Access Points to get optimal resource utilization, throughput and response time, while Airtime Fairness helps distribute equal amounts of air time to each connected client. Band Steering auto-connects devices such as smartphones and tablets to the higher-capacity 5 GHz band while allowing 2.4 GHz-only devices to remain. The result is a steady, consistent connection for each user – the perfect balancing act.

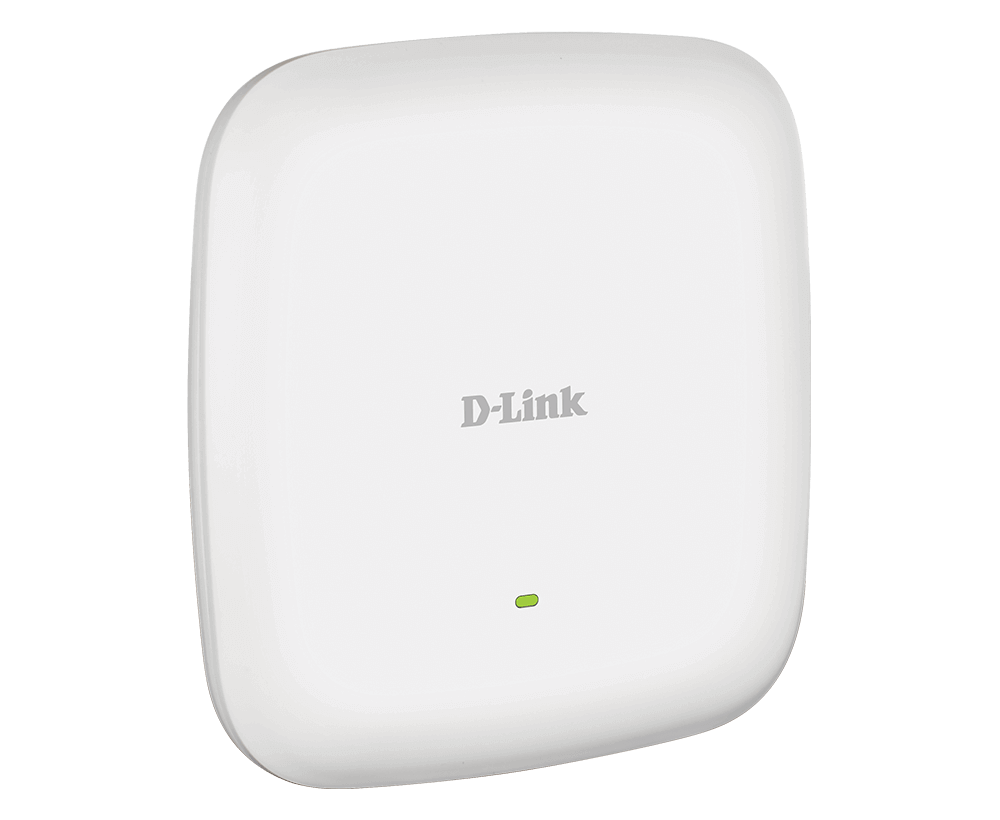

Industrial Design Redefined

The DAP-2682 is designed with aesthetics in mind. Its fresh white housing blends well into any indoor space, while its soft, rounded corners ensure an elegant integration wherever it’s placed.

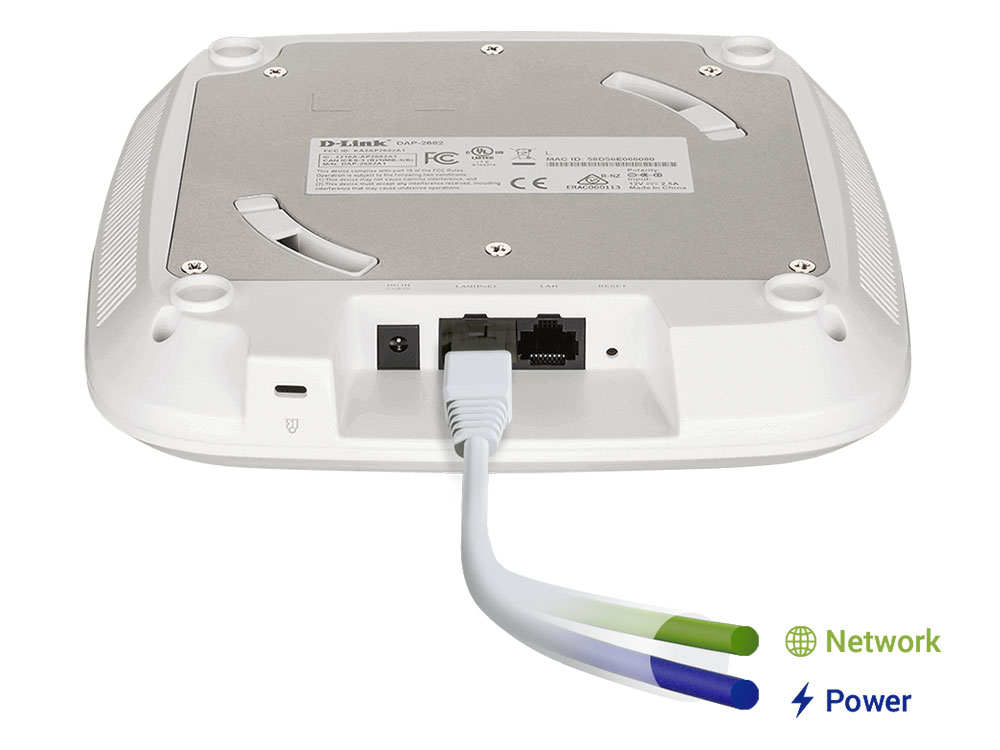

Peak Performance and Discreet Deployment with Power over Ethernet (PoE)

The DAP-2682’s PoE function allows for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.

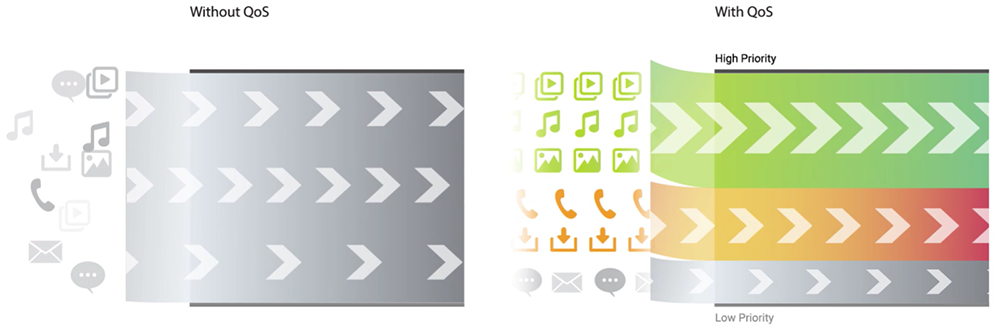

Make Every Second Count with Advanced Quality of Service (QoS)

Not only does the DAP-2682 delivers reliable wireless performance with maximum wireless signal rates of up to 600 Mbps in the 2.4 GHz band and 1700 Mbps in the 5 GHz band it also enhances your network’s Quality of Service (QoS) by cleverly prioritizing different types of traffic through Wi-Fi Multimedia (WMM™). With the use of QoS, WMM™ ensures that applications such as audio, video and voice, that require better throughput and more performance are placed in order of high-to-low priority for an all-round smoother, uninterrupted Wi-Fi experience.


Big Things Start Small

Networks big or small all have to start somewhere, with devices sometimes having to take on duties that would not normally be expected of them. For the DAP-2682 that is not a problem since its stand-alone capabilities mean it can take on multiple roles effortlessly. It can be deployed within a small office or classrooms, for example, to create or expand the capacity of a wireless network.

The Beating Heart of Your Network

At the heart of your network is the DNH-100 Wireless Controller, or ‘The Hub’. It centralizes all aspects of your Access Points’ provisioning and management, allowing them to work together as a team. Features such as self-organizing, self-optimizing and self-healing keep the network performing at its peak.


Features:

High-Performance Connectivity

  • IEEE 802.11ac Wave 2 wireless, Up to 2300 Mbps
  • MU-MIMO with beamforming
  • Band steering
  • Gigabit LAN port

Centralised Management

  • Compatible with Nuclias Connect for centralised network management

Trusted Security Features

  • The latest 128-bit personal/enterprise wireless encryption
  • 64/128-bit WEP
  • MAC address filtering
  • Internal RADIUS server

Convenient Installation

  • Supports 802.3at Power over Ethernet

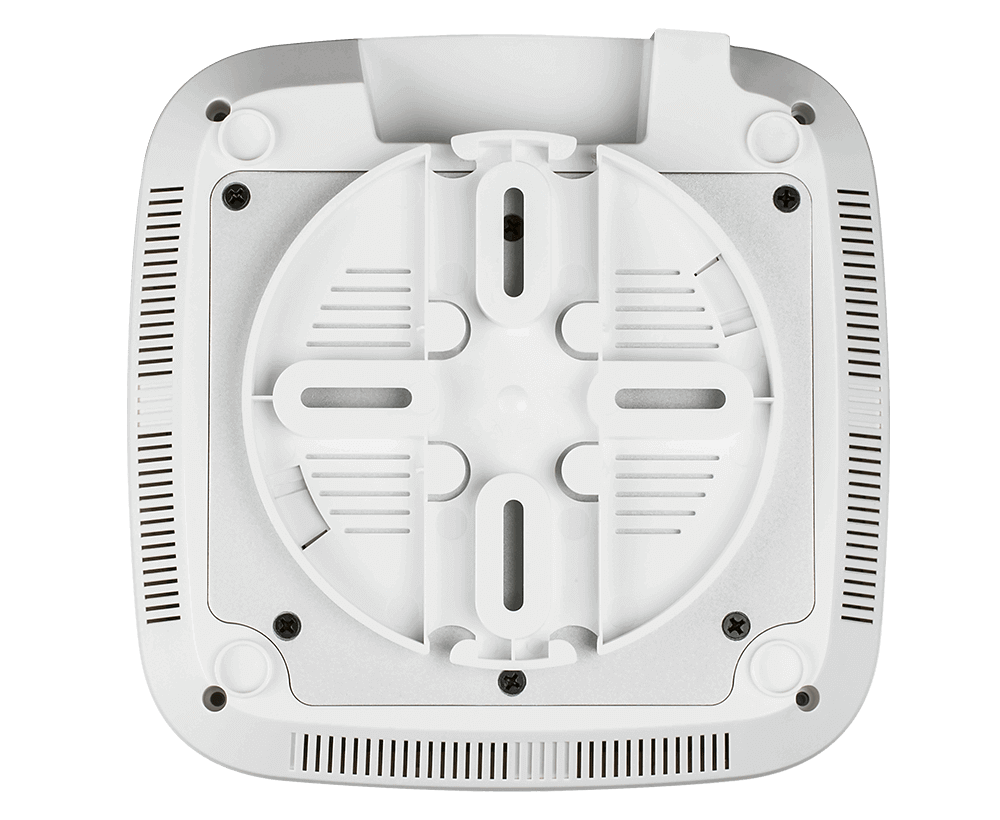

  • Wall and ceiling mounting brackets included

Technical Specifications:


D-Link DAP-2682 Specifications
General
Device Interfaces
  • 802.11a/b/g/n/ac Wave 2 wireless
  • 2 Gigabit LAN port (PoE supported)
Standards
  • IEEE 802.11a/b/g/n/ac
  • IEEE 802.3u/ab
  • IEEE 802.3az Energy-Efficient Ethernet (EEE)
  • IEEE 802.3at Power over Ethernet
Wireless Frequency Range2
  • 2.4 GHz band: 2.4 GHz to 2.4835 GHz
  • 5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz
Antennas 4 x internal dual-band antennas
Antennas Gain
  • 3.7 dBi for 2.4 GHz
  • 4.8 dBi for 5 GHz
Maximum Output Power
  • ETSI: 16 dbm for 2.4GHz
  • ETSI: 24 dbm for 5GHz
Data Signal Rate1
  • 2.4 GHz: Up to 600 Mbps
  • 5 GHz: Up to 1700 Mbps
Functionality
Security
  • The latest 128-bit personal/ enterprise wireless encryption
  • WEP 64/128-bit encryption
  • SSID broadcast disable
  • MAC address access control
  • Internal RADIUS server
Network Management
  • Telnet
  • Secure Telnet (SSH)
  • Web (HTTP)
  • Secure Socket Layer (SSL)
  • Traffic control
  • Nuclias Connect Software
  • Nuclias Connect Hub4
LEDs Power/status
Physical & Environment
Dimensions 190 x 190 x 43.7 mm
Weight 551.6 g without mounting bracket
605.2 g with mounting bracket
Power Supply 12 V / 2.5 A (power adapter not included)
IEEE 802.3at PoE
Maximum Power Consumption 15.5 Watts
Temperature Operating: 0 to 40 °C (32 to 104 °F)
Storage: -20 to 65 °C (-4 to 149 °F)
Humidity Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
Meantime Between Failure (MTBF) 341,897 hours
Certifications FCC, CE3, UL
Nuclias Connect Network Management Features
WLAN Management
Maximum APs per Installation4
  • 1,000 (large scale installations)
  • 100(small scale installaions)
WLAN Management Features
  • AP grouping
  • Multi-tenancy
  • Visualised topology
  • NAT pass-through
  • Setup wizard
  • AP discovery (layer 2 and layer 3)
  • Report system
User Authentication
Guest Portal Captive portal
Authentication Method
  • Local
  • POP3
  • RADIUS
  • LDAP
  • Voucher
Hotspot Features
  • Built-in support for voucher-based authentication
  • Built-in hotspot manager for voucher creation and guest management
  • Rate limiting and bandwidth control for guest and hotspot portal
Wireless Features
RF Management and Control
  • Auto Output Power Control
  • Auto Channel
  • Self-healing around failed APs
Multiple SSIDs per Radio(AP) 8
Advanced Wireless Features
  • Band steering
  • L2 roaming
  • Bandwidth optimisation
  • Airtime fairness
System Management
Management Interface Web-based user interface (HTTPS)
Scheduling
  • Firmware update
  • Configuration update
Supported Devices
Indoor Wireless N Access Points
  • DAP-2230 (Single-Band N300, F/W ver. 2.0)
  • DAP-2310 (Single-Band N300, F/W ver. 2.0)
Indoor Wireless AC Access Points
  • DAP-2360 (Single-Band N300, F/W ver. 2.0)
  • DAP-2610 (Dual-Band Wave 2 AC1300, F/W ver. 2.0)
  • DAP-2620 (Dual-Band Wave 2 AC1200, in-wall design)
  • DAP-2660 (Dual-Band AC1200, F/W ver. 2.0)
  • DAP-2662 (Dual-Band Wave 2 AC1200, WiFi4EU-ready)
  • DAP-2680 (Dual-Band AC1200, F/W ver. 2.0)
  • DAP-2695 (Dual-Band AC1750, F/W ver. 2.0)
Outdoor Access Points
  • DAP-3315 (Single-Band N300, F/W ver. 2.0)
  • DAP-3662 (Dual-Band AC1200, F/W ver. 2.0)
  • DAP-3666 (Dual-Band Wave 2 AC1200, WiFi4EU-ready)

1 Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
2 Please note that operating frequency ranges vary depending on the r egulations of individual countries and jurisdictions.
3 For the EU region, this product is compliant with CE regulations and operates within the following frequency ranges: 2.4 - 2.4835 GHz, 5.150 - 5.250 GHz, 5.250 - 5.350 GHz, and 5.70 - 5.750 GHz.
4 Number of wireless access points supported depends on the specification of the computer on which DNC is installed. To support 1000 APs, a computer with at least an Intel Core i7 with 16 GB RAM and 4 TB hard drive, and 20 Mbps uplink bandwidth is recommended. To support 100 APs, a computer with at least an Intel Core i5 3.2GHz with 8 GB RAM and 2 TB hard drive, and 10 Mbps uplink bandwidth is recommended.

Documentation:

Download the D-Link DAP-2682 Datasheet (PDF).
