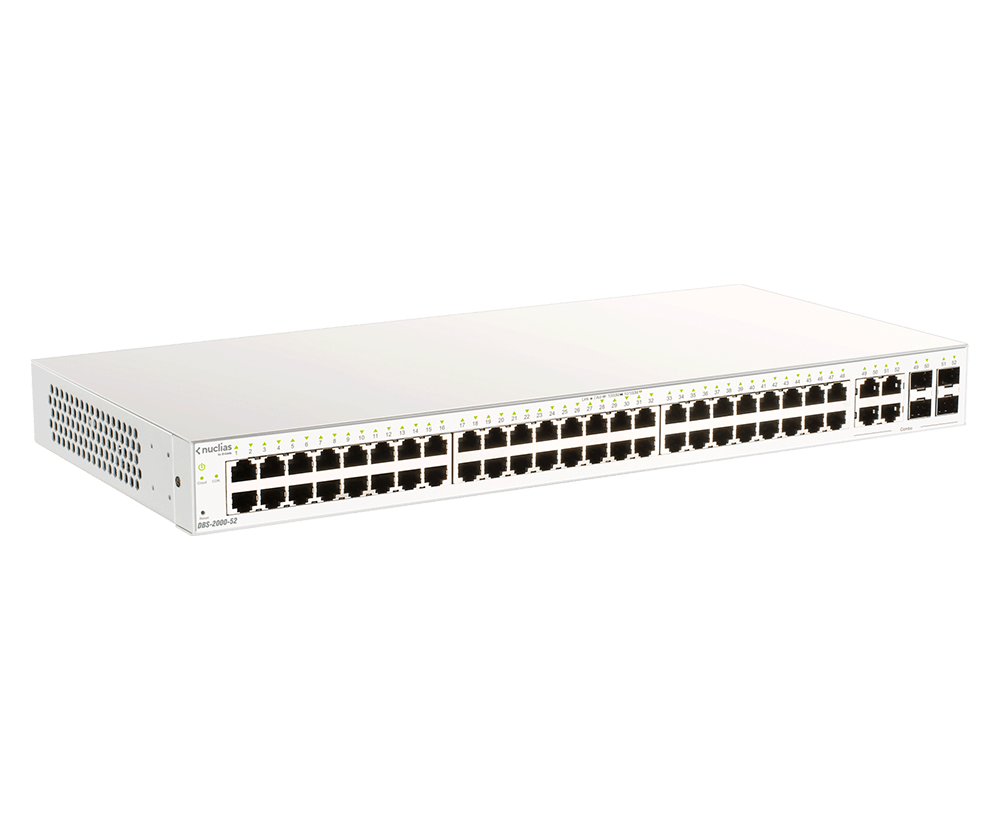

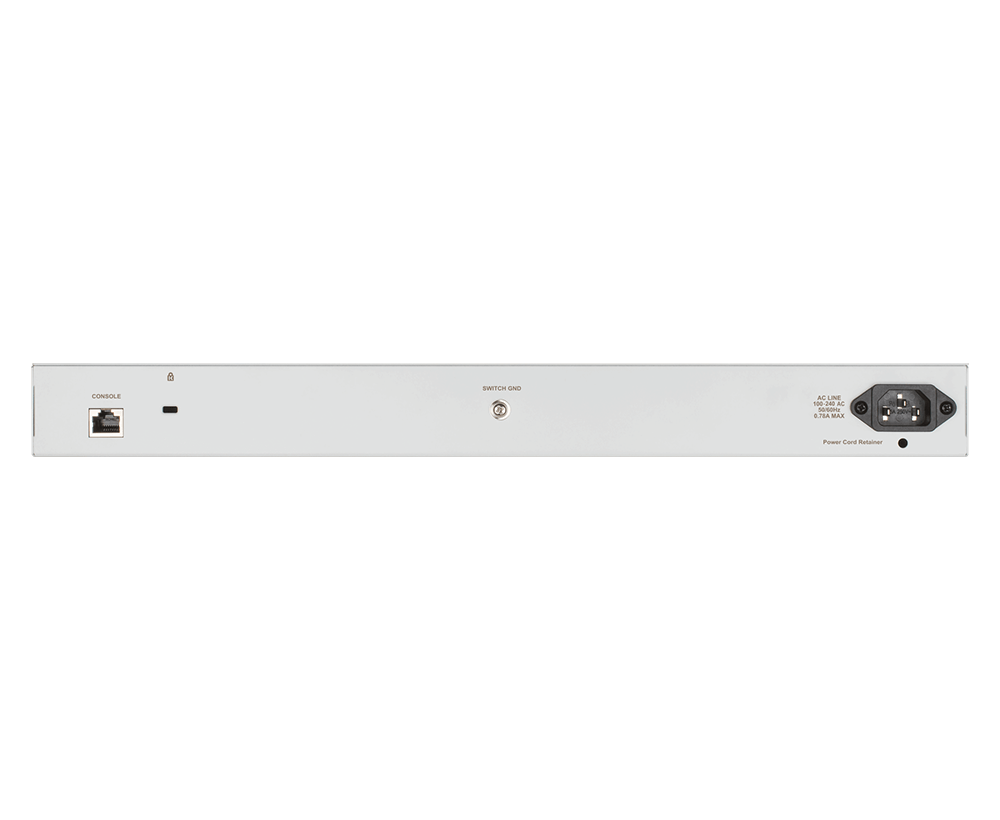

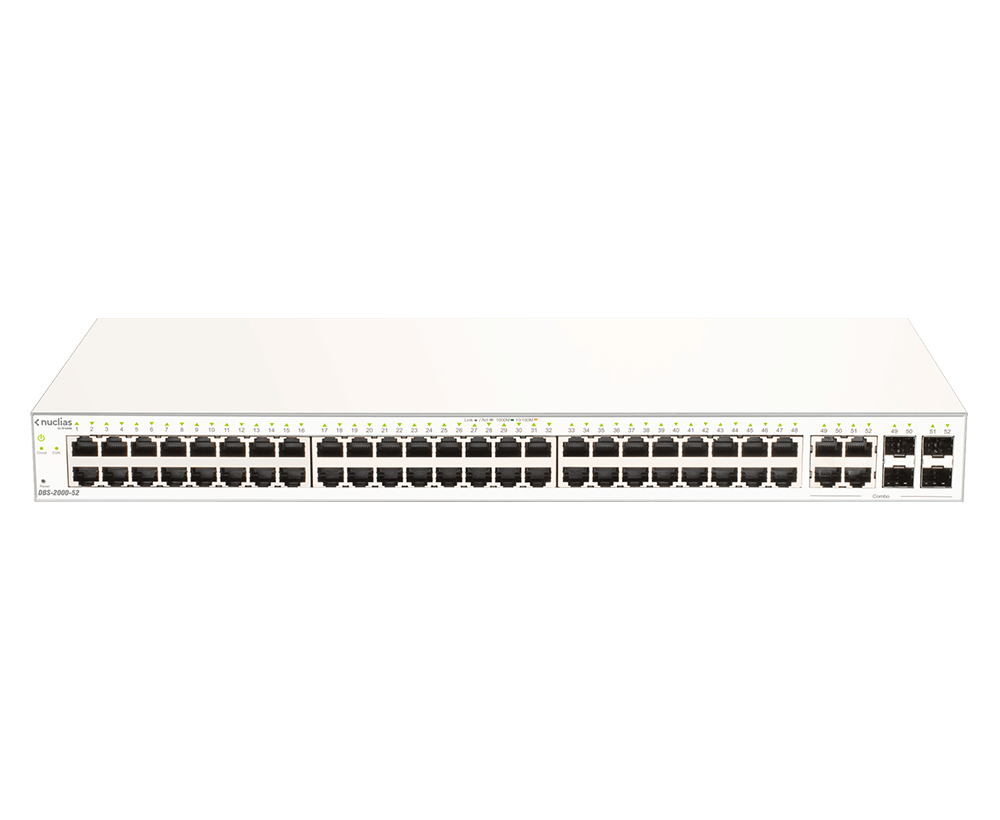

D-Link 52-Port Nuclias Cloud-Managed Switch
Powerful & flexible Cloud-managed networking solution for Small-to-Medium-Sized Businesses (SMBs/SMEs)
List Price:
Our Price: $550.99
Click here to jump to more pricing!
Overview:
D-Link Nuclias is an innovative cloud networking solution that allows you to centrally manage your entire network from anywhere, any time through its intuitive portal interface or mobile app. Featuring a full range of cloud-managed access points and switches supported by zerotouch deployment, Nuclias enables small businesses and enterprises to quickly deploy and build a powerful and versatile global wired and wireless network.
The DBS-2000 Series Nuclias Cloud-Managed Switches are deployed as pre-managed, zeroconfiguration switches controlled through the D-Link Nuclias cloud1. They are best-in-class switches designed specifically for enterprise environments.
Centralized Management With D-Link Nuclias
Designed to be managed through the D-Link Nuclias cloud, DBS-2000 Series switches are easily set up with the help of the intuitive D-Link Nuclias browser-based or mobile app interface. Centralized cloud management allows for zero-touch provisioning, enabling businesses to quickly configure, deploy, maintain, and expand their network remotely. Configuration settings can be set up, managed, and deployed through the cloud anytime, anywhere through any web browser or the dedicated mobile app, meaning devices can be deployed at a remote location without any need for trained on-site staff. Save time by configuring switches of the same model series in bulk. Similarly, if the same set of ports of multiple switches uses the same configuration profile, this port configuration can easily be deployed and updated in bulk.
Hassle-free Administration and Versatile Deployment
Using D-Link Nuclias, businesses can now more effectively organize their entire wireless network, manage multiple switches simultaneously, and monitor live network statistics. With the user-friendly single pane of glass management console, administrators have access to an intuitive way of organizing the network into multiple sites, which simplifies management across multiple areas. With no limitation on the number of devices, businesses can easily cater to the demands of a growing network by simply adding more devices to the network. Overthe-air firmware updates can be automatically pushed to devices through the cloud.
Automated Monitoring and Alerts
Through the intuitive Nuclias dashboard, administrators can remotely view real-time information about the network and get an instant overview of key network statistics such as performance, connectivity, and network usage. Through the dashboard quickly view both switch and access point status information such as link status and number of connected devices. Easily view your switches’ real-time port traffic and connection status. For switches with PoE ports, you can even see real-time power consumption statistics. Administrators can filter and customize the dashboard to display only the necessary information for a more focused experience. Be ahead of any problems with instant push notifications and alerts that can be customized to ensure that administrators can swiftly identify problems and perform immediate troubleshooting.
Enterprise Security
To ensure the safety and reliability of all sensitive traffic, all management data to and from the cloud is separated from regular data using an SSL encrypted out-of-band connection. In addition, Nuclias offers a range of industry standard authentication and authorization methods to control user access. Administrator can configure external RADIUS servers and set up IP and MACbased access control lists to authenticate and authorize clients and create a safe and trusted network environment.
1 Active D-Link Nuclias account and valid device license required.
Features:
Product Highlights
- 48 x 10/100/1000BASE-T ports
- 4 x 10/100/1000BASE-T ports
- Zero-Touch Deployment
- Cloud Management w/99.9% SLA
- WPA/WPA2/WPA3 Encryption
- Innovative D-Link Green Energy-saving features
- Intuitive Web Portal for comprehensive switch management
- Multilingual Support
D-Link Nuclias Cloud Management
- Centralised cloud-based management
- Zero-touch deployment
- Intuitive web and app-based interface
- Real-time at-a-glance network information
- Management of multiple sites and devices through single pane of glass
- Over-the-air firmware updates through the cloud
- Instant alerts and notifications
Best-in-class Built for Enterprise Switches
- Energy-Efficient Ethernet (EEE)
- PoE+ support with up to 30 W per port
- Supports 802.1D Spanning Tree (STP) and 802.1w Rapid Spanning Tree (RSTP)
- 802.3ad Link Aggregation
- Loopback protection and IGMP snooping
- Access Control Lists (ACLs)
Nuclias by D-Link:
Cloud Networking, Refreshed
The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.
Nuclias by D-Link is a complete cloud-managed networking solution for small to medium-sized organisations with one or more sites.
Cloud networking, easy and simple, as it should be
Our Nuclias Cloud solution allows any organization with any level of IT resources to quickly and easily deploy, configure, manage, monitor, troubleshoot, and scale their networks remotely – via web browser or app.
- Zero-touch Deployment
- Hassle-free Management
- Unlimited Scalability
Configure and manage your network over the Cloud
Zero-touch deployment of Access Points, Switches and other Nuclias Cloud-enabled devices can be done by non-technical personnel, with configuration and ongoing management carried out remotely via computer or tablet, anywhere.
- SMBs/SMEs - Deploy an efficient network built for the future. Easily manage multiple sites, and generate detailed reports.
- Retail Chains - Add your business logo to the fully customizable captive portal to build brand awareness.
- Hospitality - Guest access via Social Login, up-to-date reporting, or organized by date, time, and client.
- Education - Deploy devices quickly and efficiently, and manage them remotely from the Cloud.
Cloud network management with ease
Nuclias Cloud is designed for businesses who lack in-house IT skills. Network self-healing, airtime fairness, and load balancing minimize complaints and outages. Network expansion is a snap, updates are easy, and management can be entirely outsourced to a Managed Service Provider (MSP) – it’s that simple.
- No additional training needed
- Unlimited scalability of supported Cloud-enabled devices
- Efficient centralized Cloud-based management
- Devices still work even when not connected to the Cloud
- 99.9% Service Level Agreement reliability
Zero-Touch Deployment with Cloud-Based Management
With Nuclias Cloud, there’s no need to send out an engineer for installation. With Zero-Touch Deployment, all you need to do with a new onsite device is connect it. All configuration can be remotely managed via the Cloud. Firmware upgrade is done over the air. Set up the update schedule on the web portal, and firmware upgrade is carried out for assigned sites and devices, as scheduled.
Preconfigure
Everything from profile details to access controls are preconfigured to meet your business’s unique needs.
Deliver
When your Nuclias Cloud network device is delivered, you can start its installation, immediately.
Connect
Simply connect to the Internet, and all your settings are dispatched to your devices via Nuclias Cloud, automatically.
Know your business network, like never before
Easily manage your network on the go. Get an instant overview of live usage and your network health. Delegate access to your sites. And see maps that show the location of your devices (via Google Maps).
- Intuitive statistics and reports of network usage across time and locations that enable business insight
- Customizable portal for brand awareness
- Take as much or as little interest in your network as you want
Stay connected, anywhere
Easily access Nuclias Cloud via app or web browser, anywhere with Internet access. Monitor and manage your network devices remotely. Receive alerts as needed.
Network Integrity
Role & Privilege-Based Access Control
Assign different privileges to users within or outside of the organization to manage and monitor network and guest access.
End-to-End Encryption
All communications over Nuclias Cloud are secured through WebSocket over SSL.
Branded Experience
Add your logo to your Wi-Fi login screen via Nuclias Cloud's captive portal functionality.
Nuclias Cloud is built on a tried and trusted platform
With Nuclias Cloud, 99.9% availability is guaranteed, with 24x7 automated failure detection, and cross-timezone support for rapid escalation across multiple teams, and multilingual access. Performance is optimized by servers that automatically scale to meet performance demands.
Main Features
- Zero-touch provisioning
- Role-based administration
- Auditable change logs
- Authentication via customisable captive portal, 802.1x and RADIUS server
- Social login for Wi-Fi access supported
- Advanced traffic report and data analysis
- Intuitive web-based interface with multilingual support
- Automatic monitoring and alerts
- Over-the-web firmware upgrades
- Searchable network-wide event log
- Intuitive VLAN Configuration
- Cloud based RF Optimisation
Specifications:
| D-Link DBS-2000 Series Specifications | ||||||
|---|---|---|---|---|---|---|
| DBS-2000-10MP | DBS-2000-28 | DBS-2000-28MP | DBS-2000-28P | DBS-2000-52 | DBS-2000-52MP | |
| General | ||||||
| Interfaces |
|
|
|
|
|
|
| Port Functions |
|
|||||
| Performance | ||||||
| Switching Capacity | 20 Gbps | 56 Gbps | 56 Gbps | 56 Gbps | 104 Gbps | 104 Gbps |
| Max. Forwarding Rate | 14.88 Mpps | 41.7 Mpps | 41.7 Mpps | 41.7 Mpps | 77.4 Mpps | 77.4 Mpps |
| MAC Address Table Size | 8K Entries | 8K Entries | 8K Entries | 8K Entries | 16K Entries | 16K Entries |
| Packet Buffer | 4.1 Mbits | 4.1 Mbits | 4.1 Mbits | 4.1 Mbits | 12 Mbits | 12 Mbits |
| Flash Memory | 32 MB | 32 MB | 32 MB | 32 MB | 32 MB | 32 MB |
| PoE | ||||||
| PoE Standard | IEEE 802.3at IEEE 802.3af |
N/A | IEEE 802.3at IEEE 802.3af |
IEEE 802.3at IEEE 802.3af |
N/A | IEEE 802.3at IEEE 802.3af |
| PoE Capable Ports | Ports 1 to 8 | N/A | Ports 1 to 24 | Ports 1 to 24 | N/A | Ports 1 to 48 |
| PoE Power Budget | 130 W 30 W max. per port |
N/A | 370 W 30 W max. per port |
193 W 30 W max. per port |
N/A | 370 W 30 W max. per port |
| Power Consumption | ||||||
| Standby Mode | 4.3 W / 100 V 5.2 W / 240 V |
6.49 W / 100 V 6.55 W / 240 V |
18.5 W / 100 V 17.1 W / 240 V |
19.6 W / 100 V 16.6 W / 240 V |
13.7 W / 100 V 13.9 W / 240 V |
32 W / 100 V 31.6 W / 240 V |
| Maximum Power Consumption | 152.3 W (PoE on) 9.4 W (PoE off) |
17.32 W | 446.1 W (PoE on) 29.8 W (PoE off) |
263.9 W (PoE on) 30.6 W (PoE off) |
34.85 W | 478.9 W (PoE on) 54.4 W (PoE off) |
| Physical & Environmental | ||||||
| Power Input | 100 to 240 V AC, 50/60 Hz internal power supply | 100 to 240 V AC, 50/60 Hz internal power supply | 100 to 240 V AC, 50/60 Hz internal power supply | 100 to 240 V AC, 50/60 Hz internal power supply | 100 to 240 V AC, 50/60 Hz internal power supply | 100 to 240 V AC, 50/60 Hz internal power supply |
| MTBF | 1,274,005 hours | 992,594 hours | 277,967 hours | 469,262 hours | 400,667 hours | 236,406 hours |
| Acoustics | 0 dB(A) | 0 dB(A) | 51.7 dB(A) | 51.7 dB(A) | 0 dB(A) | 52.4 dB(A |
| Heat Dissipation | 519.51 BTU/hr | 59.09 BTU/hr | 1521.99 BTU/hr | 900.36 BTU/hr | 118.92 BTU/hr | 1634.01 BTU/hr |
| Weight | 1.77 kg (3.90 lbs) | 2.15 kg (4.74 lbs) | 3.94 kg (8.68 lbs) | 3.75 kg (8.27 lbs) | 3.46 kg (7.63 lbs) | 6.26 kg (13.80 lbs) |
| Dimensions | 330 x 180 x 44 mm (12.09 x 7.09 x 1.73 in) |
440 x 140 x 44 mm (12.09 x 5.51 x 1.73 in) |
440 x 250 x 44 mm (12.09 x 9.84 x 1.73 in) |
440 x 250 x 44 mm (12.09 x 9.84 x 1.73 in) |
440 x 210 x 44 mm (12.09 x 8.27 x 1.73 in) |
440 x 430 x 44 mm (12.09 x 16.93 x 1.73 in) |
| Ventilation | Fanless | Fanless | 2 x Fans | 2 x Fans | Fanless | 3 x Fans |
| Operating Temperature | -5 to 50 °C (23 to 122 °F) | |||||
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) | |||||
| Operating Humidity | 0% to 95% non-condensing | |||||
| Storage Humidity | 0% to 95% non-condensing | |||||
| Certifications | ||||||
| Safety | UL, CB, LVD, BSMI, CCC | |||||
| EMI/EMC | CE, FCC, VCCI, BSM | |||||
Software Features
VLAN
- 802.1Q Tagged VLAN
- Management VLAN
- Voice VLAN
- VLAN Group
- Supports 256 static VLAN groups
Security
- SSL
- DHCP Server Screening
- Port Security
- Access Control List (ACL)
- Max # of Entries: 768
L2 Features
- Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
- Jumbo Frames
- IGMP Snooping
- IGMP v1/v2/v3 awareness Snooping
- Supports 256 Groups
- Cable Diagnostics
- LLDP
- Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.3ad Link Aggregation
Management
- Cloud-based through Nuclias
- Nuclias mobile app
Green Technology
- Compliant with RoHS 6
- Time-based PoE
Documentation:
Download the D-Link DBS-2000 Series Datasheet (PDF).
