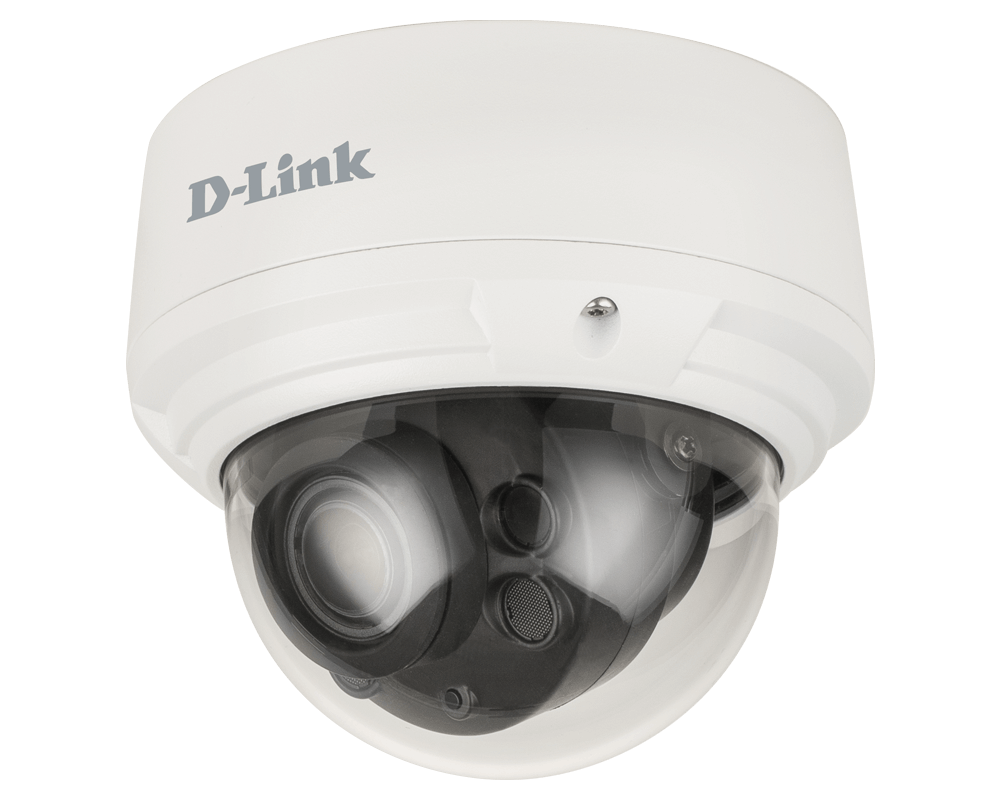

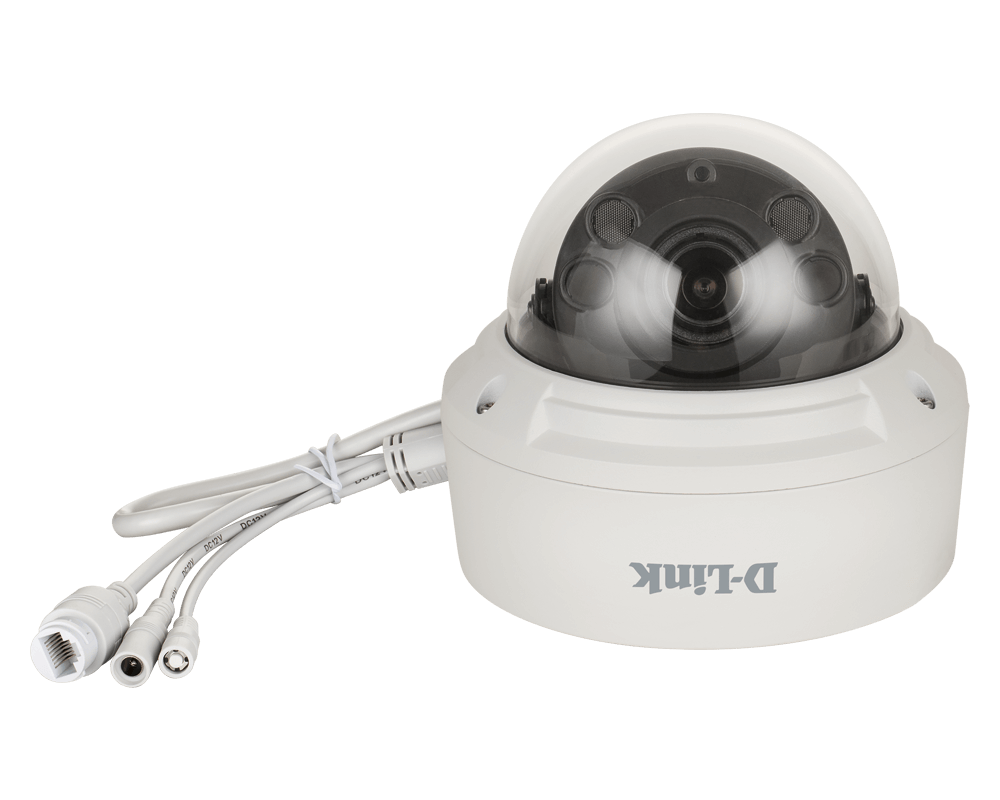

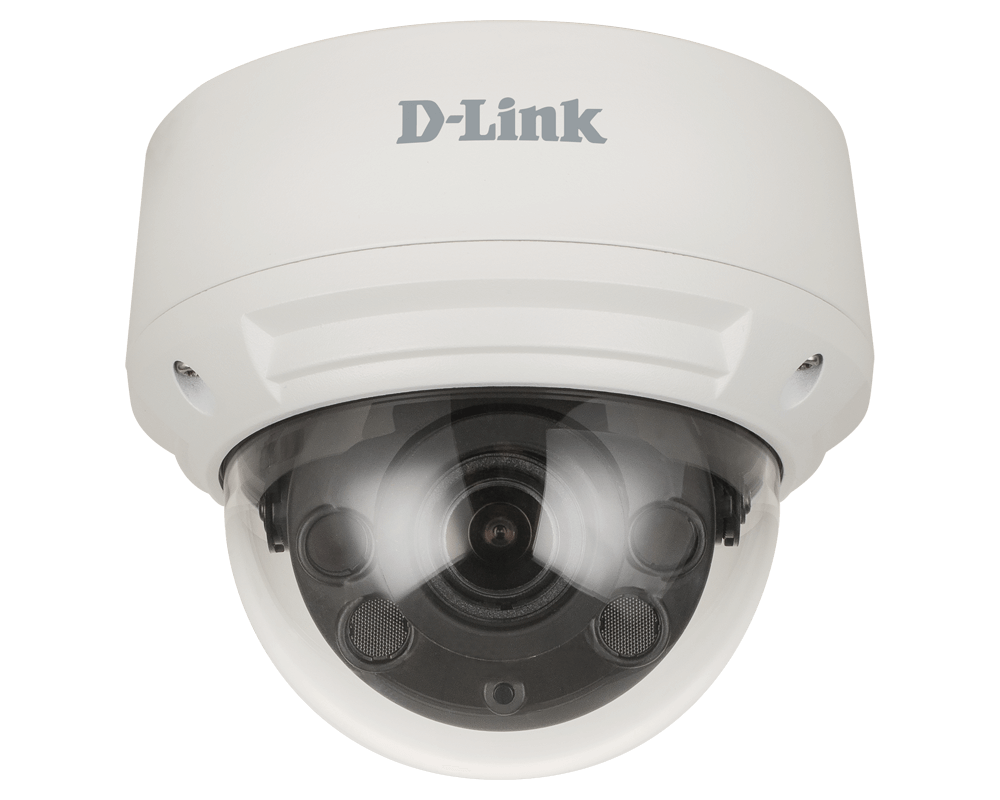

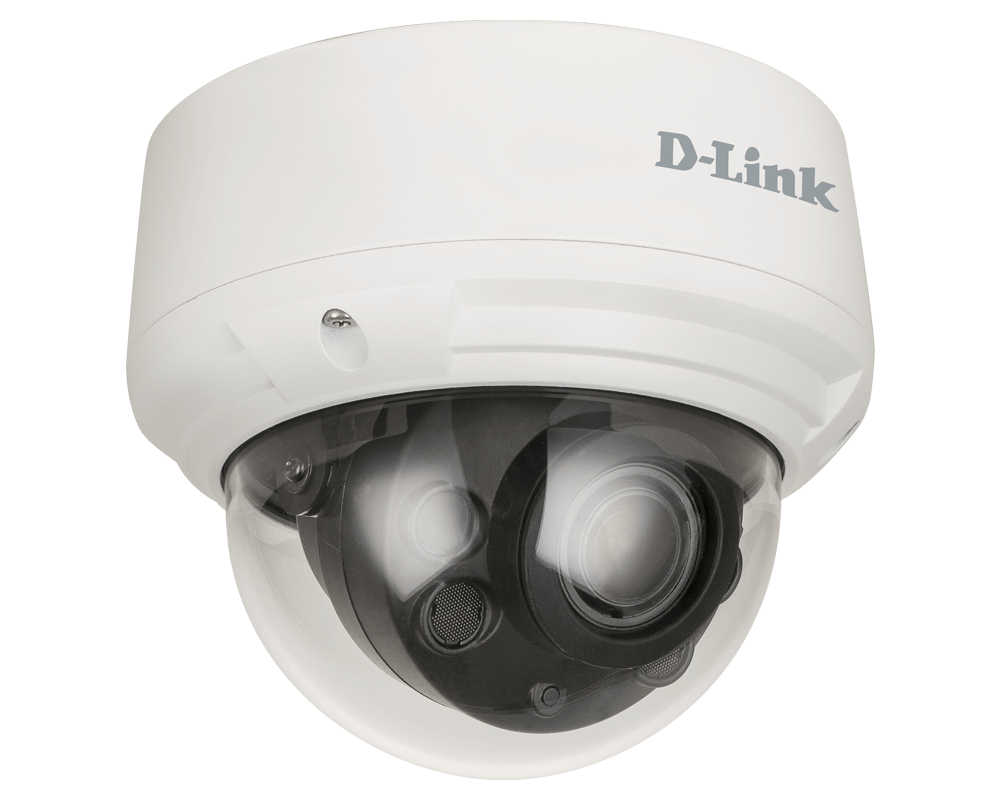

D-Link DCS-4618EK
Vigilance 8 Megapixel H.265 Outdoor Dome Camera

D-Link Products

D-Link Vigilance Series

Vigilance 8 Megapixel H.265 Vandal-proof Outdoor PoE Dome Camera

#DCS-4618EK
List Price: ~~$584.99~~
Our Price: $555.74

Click here to jump to more pricing!

Overview:

The D-Link DCS-4618EK Vigilance 8 Megapixel H.265 Outdoor Dome Camera is a high definition professional surveillance solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 1/3” megapixel progressive scan CMOS sensor with onboard WDR image enhancement to deliver truly superior quality video in all conditions. The all-in-one rugged design makes this camera extremely reliable and ideal for deployment in surveillance applications without the need for additional accessories.

1/2.5” 8-megapixel progressive CMOS sensor captures high-quality footage
Resolution of up to 3840 x 2160 at 20 fps
Motorized varifocal lens allows easy remote adjustment for the perfect field of view
Wide Dynamic Range (WDR) image enhancement improves footage quality in high contrast lighting conditions
H.265 compression strikes the perfect balance between high image quality and bandwidth efficiency
Motion Detection not only saves bandwidth, it also makes reviewing footage much less burdensome
Block out or mask sensitive areas with the Privacy Mask
Built-in IR LED illuminator with a 30m range for surveillance even in the dead of night
Vandal-resistant design with an IK10 rating and IP66 for environment protection
Fast Ethernet port with PoE facilitates easy integration to your network
All aspects of your camera are easily managed with the free D-ViewCam™ Video Management Software

High-Quality Streaming & Recording

To maximize bandwidth efficiency and improve image quality, the DCS-4618EK provides real-time video compression using the H.265, H.264, and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. Video resolutions of up to 3840 x 2160 provide clear details, and noise reduction and support for simultaneous video streams improves quality in case forensic work is required for evidence. Additional support for motion detection, event management features, and ePTZ allow for implementation in a wide variety of surveillance applications such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.

Versatile Monitoring in All Environments

The DCS-4618EK features WDR image enhancement to deliver improved image quality in conditions with uneven or difficult lighting, so you can identify subjects that are backlit or in brightly-lit areas. In low-light situations, the IR-cut filter automatically slides out of the way to use all available light. The DCS-4618EK also has built-in IR LED illuminators with a 30-meter range, allowing the camera to keep watch even in complete darkness. IP66 certification ensures the camera is completely protected from dust and water in any environment and IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera. These features work together to give you a reliable surveillance camera capable of monitoring indoors or outdoors 24/7.

Features:

IP66 Compliant

Water-resistant and dust-tight housing with operating temperature range of -30 to 50 °C

Night Vision

Optimized for increased image quality in low-light environments

30 Meter Illumination

See up to 30 meters in the dark with a built-in IR-cut filter and IR LED

Wide Dynamic Range

Improved image quality in high-contrast conditions with WDR

PoE Capable

Supports 802.3af PoE for flexible and simple installation

microSD Card 1

Equipped with a microSD card slot for local storage

Exceptional Video Quality

1/2.5” 8 Megapixel progressive CMOS sensor
Resolution of up to 3840 x 2160 at 20 fps
Wide Dynamic Range image enhancement
H.265 compression strikes the perfect balance between high image quality and bandwidth efficiency
Motion detection, corridor mode, and privacy mask

Outdoor Placement

Built-in IR LED illuminator with a 30-meter range for use in dark areas
Range of mounting options for flexible placement
Rugged IP66 weatherproof housing
IK10 vandal-proof housing protects the camera from intruders

Flexibility

microSD card slot for onboard storage¹
10/100 Fast Ethernet port with Power over Ethernet (PoE) ensures easy and flexible integration into your network

Specifications:

Camera

Camera Hardware Profile

1/2.5” 8-megapixel progressive CMOS sensor
30 meter IR illumination distance
Minimum illumination:
- Color: 0.02 lux @(F1.4, AGC ON)
- B/W: 0 lux @(IR LED ON)
Built-in Infrared-Cut Removable (ICR) Filter module
18x digital zoom
Minimum object distance 0.5 m
Focal length: 3.3mm - 12mm
Aperture: F1.4
Angle of view:
- (H) 108.6° - 35°
- (V) 56° - 21°
- (D) 125° - 42°
3-axis adjustment angle (non-motorized):
- Pan: 355°
- Tilt: 10° - 90°
- Rotate: 355°

Camera Housing

IP66 certified weatherproof housing
Supports IK10 standard

Image Features

Configurable image size/quality/frame rate/bit rate
Time stamp and text overlays
Configurable shutter speed/brightness/saturation/contrast/sharpness/3D filter
Configurable motion detection area
Configurable privacy mask zones
Auto White Balance (AWB)
Auto Gain Control (AGC)
Wide Dynamic Range (WDR)
Corridor mode

Video Compression

Simultaneous H.265/H.264/MJPEG format compression
JPEG for still images

Max. Video Resolution and Frame Rate

3840 x 2160 at up to 20 fps

External Device Interface

microSD card slot¹
Reset button
10/100 Base-TX Fast Ethernet port (supports 802.3af PoE Class 3)

Network

System Management

Event Management

Motion detection
Multiple event notifications
Event notification and uploading of snapshots via e-mail or FTP
Event video recording via microSD card, D-ViewCam, D-Link NVR or ONVIF-compliant NAS

Remote Management

Remote management via D-ViewCam software
Remotely take snapshots/video clips and save to a local hard drive
Configuration interface accessible via a web browser

System Requirements for Web Interface

Operating System: Microsoft Windows
Browser: Internet Explorer 11 for full function; Chrome and Firefox (MJPEG only)

D-ViewCam System Requirements

Operating System: Windows 10
Protocol: Standard TCP/IP

D-ViewCam

Supports all management functions provided in the web interface
Scheduled motion trigger or manual recording options
Remote management of up to 64 cameras
Viewing of up to 64 cameras on one screen

General

Weight

750 g ± 5%

Power Requirement

100 to 240 V AC, 50/60 Hz (Input)
12 V DC 1.5 A (Output)

Power Consumption

8 W ± 5% (PoE)

Temperature

Operating: -30 to 50 °C (-22 to 122 °F)
Storage: -20 to 70˚ C (-4 to 158 °F)

Operating/Storage Humidity

Max. 90% non-condensing

Dimensions

130 mm x 130 mm x 112 mm (5.1 in x 5.1 in x 4.4 in)

Certifications

CE, FCC, RCM

Documentation:

Download the D-Link DCS-4618EK Datasheet (PDF).

¹microSD card not included. Supports capacity up to 256 GB.
