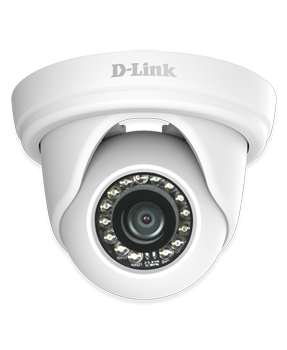

D-Link DCS-4802E
Vigilance Full HD Outdoor Mini Dome Network Camera

D-Link DCS-4802E

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

VigilanceOverview:

The D-Link DCS-4802E Vigilance Full HD Outdoor Mini Dome Network Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 1/3” megapixel progressive scan CMOS sensor with digital WDR image enhancement to deliver balanced video in varying lighting conditions. The compact rugged design makes this camera ideal for deployment in a wide variety of surveillance applications. The unique design with 3-axis adjustment allows for precise positioning of the lens, supporting 360° Pan, 360° Rotation, and 75° Tilt.

High-Quality Streaming & Recording

To maximize bandwidth efficiency and improve image quality, the DCS-4802E provides realtime video compression using the H.264 and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.

Continuous Monitoring

The DCS-4802E’s digital wide dynamic range (WDR) video enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify subjects that are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use all available light. The DCS-4802E also has built-in IR LED illuminators with a 60 foot range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day.

Flexible Connectivity

The DCS-4802E has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling.

Five Year Warranty

D-Link stands behind the quality of the DCS-4802E with an included limited 5-year warranty. An optional extended warranty doubles the warranty to 10 years and adds next business day hardware replacement.*

*5-Year Warranty is for U.S. only

Features:

2 Megapixel Full HD Video

  • 1/3” megapixel progressive CMOS sensor
  • Full HD resolution (1920 x 1080)
  • Digital Wide Dynamic Range
  • H.264 & MJPEG codec support for streaming and recording
  • Motion detection
  • Privacy mask
  • 3D filtering reduces noise in low-light environments

Indoor or Outdoor Placement

  • Built-in IR LED illuminator with a 60 foot range for use in dark areas
  • Range of mounting options for flexible placement
  • 3-axis adjustment allows for precise positioning of lens
  • Rugged IP66 weatherproof housing

Network

  • Power over Ethernet (PoE) provides easy and flexible integration into your network
  • ONVIF compliant

Technical Specifications:

D-Link DCS-4802E Specifications
Camera
Hardware Profile
  • 1/3” 2 Megapixel Progressive CMOS Sensor
  • 60 ft IR Illumination Distance
  • Minimum illumination
    • 1 Lux Color mode
    • 0.55 Lux Black and White mode
    • 0 Lux Black and White mode with IR LED on
  • Automatic Infrared-Cut Filter module for night viewing
  • 10x digital zoom
  • Minimum object distance: 8"
  • Focal length: 2.8mm
  • Aperture F2.0
  • Angle of view
    • (H) 96°
    • (V) 54°
    • (D) 108°
  • Adjustment angle (non-motorized)
    • Pan: 360°
    • Tilt:  75°
    • Rotation: 360°
Camera Housing IP66 compliant weatherproof housing
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • Configurable privacy mask zones
  • Configurable exposure time, brightness, saturation, contrast, contrast, sharpness, digital WDR and 3D filter
Video Compression
  • Simultaneous H.264/MJPEG triple format compression
  • H.264 multicast streaming
  • JPEG for still images
Video Resolution
  • 16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360
  • 4:3 - 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 592, 640 x 480
Frame Rate Up to 30 fps
External Device Interface
  • 10/100 BASE-TX Ethernet port
  • Supports 802.3af PoE Class 2
Network
Network Protocols
  • IPv6
  • IPv4
  • ARP
  • TCP/IP
  • UDP
  • ICMP
  • DHCP client
  • NTP client (D-Link)
  • DNS client
  • DDNS client (D-Link)
  • SMTP client
  • FTP client
  • HTTP / HTTPS
  • Samba client
  • PPPoE
  • UPnP/UPnP port forwarding
  • RTP / RTSP/ RTCP
  • IP filtering
  • CoS
  • QoS/DSCP
  • SNMP
  • Bonjour
  • ONVIF compliant
Security
  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption
System Management
System Requirements for Web Interface Browser: Internet Explorer 8 or higher, Firefox, Chrome, Safari
Event Management
  • Motion detection
  • Event notification and uploading of snapshots/video clips via e-mail or FTP
  • Supports multiple SMTP and FTP servers
  • Multiple event notifications
  • Multiple recording methods for easy backup
Remote Management
  • Take snapshots/video clips and save to local hard drive or NAS via web browser
  • Configuration interface accessible via web browser
OS Support Windows 2000/XP/Vista/Windows 7/iPhone/iPad/Android
D-ViewCam System Requirements
  • Operating System: Microsoft Windows 8/7/Vista
  • Web Browser: Internet Explorer 7 or higher
  • Protocol: Standard TCP/IP
D-ViewCam Software Functions
  • Remote management/control of up to 32 cameras
  • Supports all management functions provided in web interface
  • Viewing of up to 32 cameras on one screen
  • Scheduled motion triggered, or manual recording options
General Specifications
Weight 0.82 lbs (370 grams) ±5%
Power over Ethernet 802.3af Class 2
Power Adapter (not included)
  • Input: 100 to 240V AC, 50/60 Hz
  • Output: 12V DC 1.5A
Power Consumption 5.2 Watts ±5%
Operating Temperature -22° to 124° F (-30° to 50° C)
Storage Temperature -4 to 158° F (-20° to 70° C)
Operating Humidity 20% to 80% non-condensing
Storage Humidity 5% to 95% non-condensing
Certifications
  • CE (Class A)
  • CE LVD
  • FCC (Class A)
  • C-Tick
Dimensions
  • Diameter: 4.45” (113 mm)
  • Heigth: 3.35” (85 mm)
Warranty
Warranty 5-Year Warranty1

1 5-YearWarranty available only in the USA.

Product Views:

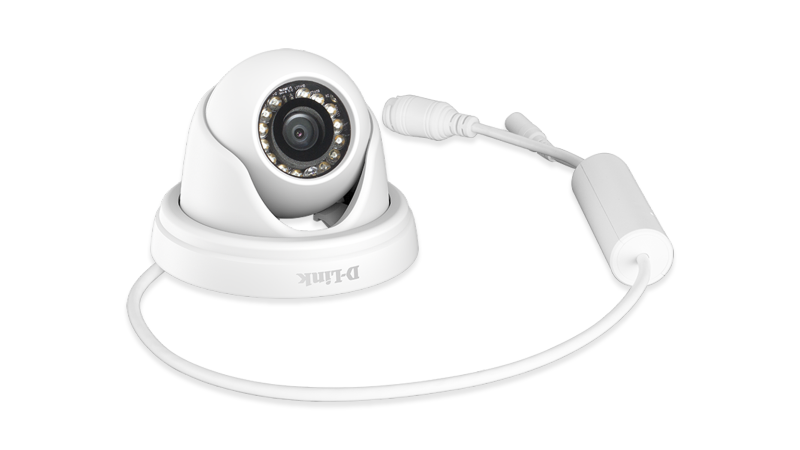

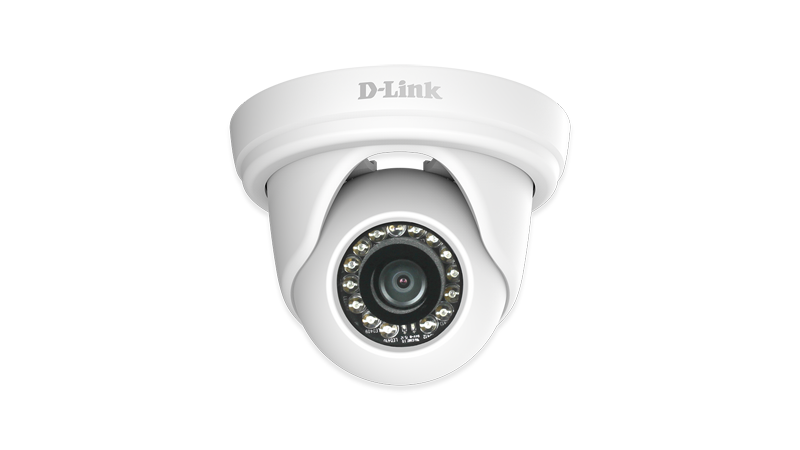

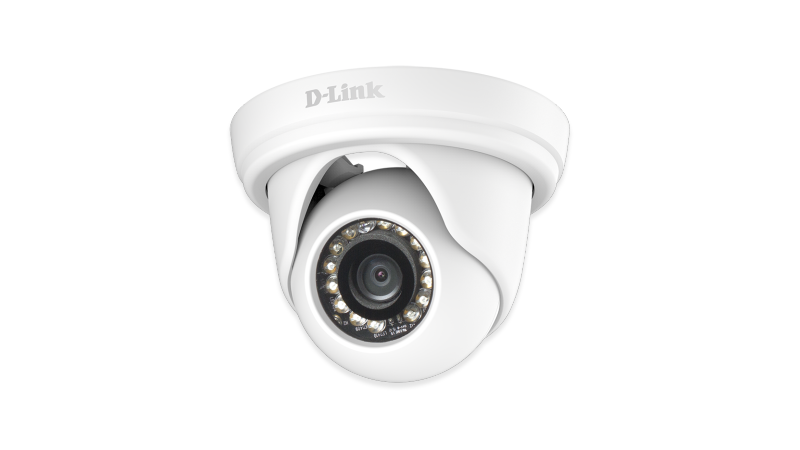

Front View Left Angle View With Cable

Documentation:

Download the D-Link DCS-4802E Datasheet (PDF).
