D-Link DES-1005P
5-Port Fast Ethernet Unmanaged Metal Desktop Switch with 1 PoE Port

DES-1005P 5-Port Fast Ethernet Unmanaged Metal Desktop Switch with 1 PoE Port

D-Link Products
D-Link Unmanaged Ethernet Switches
5-Port 10/100 Unmanaged Desktop Switch with 4 PoE Ports, 60W PoE Budget
#DES-1005P
List Price: $69.99
Our Price: $66.49

Click here to jump to more pricing!

Overview:

The D-Link DES-1005P 5-port 10/100 Unmanaged Desktop Switch with one PoE Port allows you to easily connect a Power over Ethernet (PoE) device such as a wireless access point (AP), IP camera, or IP phone to your existing network. The switch also gives you the opportunity to add additional Ethernet devices such as computers, printers, and Network Attached Storage (NAS) onto your network. This compact PoE switch operates quietly, making it ideal for use in virtually any room or office.

Power Over Ethernet (PoE)

The first port of the DES-1005P supports the IEEE 802.3af PoE standard. The port supplies a total PoE budget of 15.4 watts, allowing users to attach any IEEE 802.3af compliant device to the DES-1005P. Use PoE for applications that are far from power outlets or when you want to minimize the clutter of extra cables.

Conserves Energy

The DES-1005P makes use of D-Link Green™ eco-friendly technology, providing energy savings, reduced power consumption, and a longer product life without sacrificing operational performance or functionality. This switch helps to conserve energy through methods such as Link Status and Cable Length Detection. The Link Status feature automatically powers down ports that have no link, allowing the switch to save substantial amounts of energy by cutting power for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjust power usage accordingly, helping you save energy without affecting networking performance. In addition, the fan-less design extends the switch’s life and also reduces noise.

Auto MDI/MDIX Crossover

All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted pair Ethernet cables.

Features

High-Speed Networking

  • Five 10/100 Mbps Fast Ethernet Ports
  • Full/half-duplex for Ethernet/Fast Ethernet speeds

Power over Ethernet

  • IEEE 802.3af compliant PoE on port 1
  • 15.4W PoE power budget

Reliability

  • IEEE 802.3x flow control
  • Store-and-forward switching scheme
  • Fanless – silent operation

Easy Setup

  • Plug-and-play installation
  • Auto MDI/MDIX crossover for all ports

Technical Specifications:

D-Link DES-1005P Specifications
General
Number of Ports Five 10/100 Mbps Ports including one PoE enabled
Switching Capacity 1Gbps
Standards IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS
PoE Features Supports IEEE 802.3af
Supplies up to 15.4 watts of power to PD
Data Transfer Rates Ethernet:
  • 10 Mbps (half duplex)
  • 20 Mbps (full duplex)
Fast Ethernet:
  • 100 Mbps (half duplex)
  • 200 Mbps (full duplex)
Network Cables 10BASE-T:
  • UTP CAT 3, 4, 5/5e (100 m max)
  • EIA/TIA-586 100-ohm STP (100 m max)
100BASE-TX
  • UTP CAT 5/5e (100 m max.)
  • EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange Auto MDI/MDIX adjustment for all ports
LED Indicators Per port: Link/Activity/Speed/PoE Status
Per device: Power/PoE Max
Transmission Method Store-and-forward
MAC Address Table 2k Entries per device
MAC Address Learning Automatic update
Packet Filtering/Forwarding Rates Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
RAM Buffer 64 KBytes per device
D-Link Green IEEE 802.3az Energy Efficient Ethernet (EEE)
Link status detection power saving
Cable length detection power saving
Physical
Power Inputs Switching 48 V/0.5 A Level V power adapter
Power Consumption Power On (Standby):
DC input: 0.9 watt
AC input: 1.8 watts

Maximum (PoE Off):
DC input: 2.05 watts
AC input: 2.7 watts

Maximum (PoE On):
DC input: 17.29 watts
AC input: 20.2 watts
MTBF 324,616 hours
Operating Temperature 32 to 104 °F (0 to 40 °C)
Storage Temperature 104 to 158 °F (-40 to 70 °C)
Storage Humidity 0% to 95% RH non-condensing
Dimensions 5.5 x 3.3 x 1.1 inches (140 x 85 x 28 mm)
Certifications FCC Class B
ICES-003 Class B
cUL
Warranty
Warranty Limited Lifetime1

1 Limited Lifetime Warranty available only in the USA. All references to speed are for comparison purposes only.

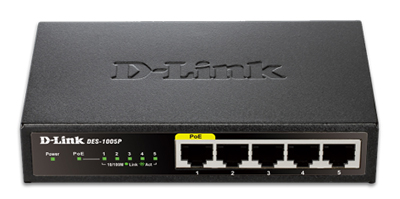

Product View:

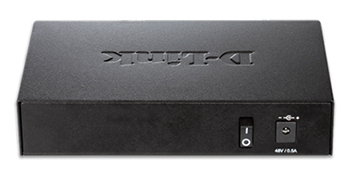

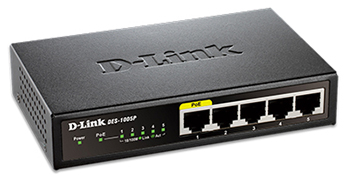

D-Link DES-1005P Side View D-Link DES-1005P Back View
D-Link DES-1005P Side View D-Link DES-1005P Back View

Documentation:

Download the D-Link DES-1005P Datasheet (PDF).
