D-Link DES-108
8 Port 10/100 Unmanaged Metal Desktop Switch

D-Link DES-105/DES-108

D-Link Products
D-Link Unmanaged Ethernet Switches
8-Port 10/100 Desktop Switch
Unmanaged, Metal Chassis
#DES-108
List Price: $30.99
Our Price: $29.44

Click here to jump to more pricing!

Overview:

The DES-108 8 Port 10/100 Unmanaged Metal Desktop Switch provides a quick, easy and economical way to add high speed networking to home offices, small and medium businesses. With data transfer speeds of upto 200 Mbps the DES-105/DES-108 is ideal for fast file transfers. It provides five or eight ports for easy expansion of your network for connecting printers, scanners, storage, and backup devices to any network.

Effortless High Speed Networking

Features easy access auto sensing 10/100 front Ethernet ports with two LED indicators per port to quickly distinguish link status and speed. The DES-105/DES-108 switch also supports Auto MDI/MDIX Crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. Support for IEEE 802.1p QoS is included, which organizes and prioritizes time-sensitive and important data for efficient delivery.

Think Green

The DES-108 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, at which time the switch will automatically power down the idle port, saving a substantial amount of power.

IEEE 802.1p QoS

QoS prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.

Environmentally Friendly

The DES-108 switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. It is built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an EnergyStar Level V qualified power adapter all with recyclable packaging making this product truly environmental friendly.

Features

  • Inexpensive Fast Ethernet solution for SOHO, small and medium businesses.
  • Five/Eight 10/100 Mbps Fast Ethernet ports
  • Rugged Metal Housing
  • Auto MDI/MDIX crossover for all ports
  • Store-and-forward switching scheme
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • IEEE 802.3x Flow Control
  • Supports Jumbo Frames
  • Supports 802.1p QoS
  • RoHS compliant
  • Plug-and-play installation

Technical Specifications:

D-Link DES-105/DES-108 Specifications
  DES-105 DES-108
Switching Capacity 1.0 Gbps 1.6 Gbps
Standards
  • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x Flow Control
  • IEEE 802.1p QoS
  • IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol CSMA/CD
Data Transfer Rates
  • Ethernet:
    • 10 Mbps (half duplex)
    • 20 Mbps (full duplex)
  • Fast Ethernet:
    • 100 Mbps (half duplex)
    • 200 Mbps (full duplex)
Network Cables
  • 10BASE-T:
    • UTP CAT 3, 4, 5/5e (100 m max.)
    • EIA/TIA-586 100-ohm STP (100 m max.)
  • 100BASE-TX:
    • UTP CAT 5/5e (100 m max.)
    • EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange Auto MDI/MDIX adjustment for all ports
LED Indicators
  • Per port: Link/Activity
  • Per device: Power
Transmission Method Store-and-forward
MAC Address Table 2K 1K
MAC Address Learning Automatic update
Packet Filtering/Forwarding Rates
  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port
RAM Buffer
  • 384 KBytes per device
  • 768 KBytes per device
Jumbo Frames 2048 Bytes
QoS 4 Queues, strict mode
General Specifications
DC Input External 5 V/0.55 A Level “V” Power Adapter
Power Consumption
  • Power On (Standby):
    • DC input: 0.15 watts
    • AC input: 0.25 watts
  • Maximum:
    • DC input: 0.85 watts
    • AC input: 2.17 watts
  • Power On (Standby):
    • DC input: 0.25 watts
    • AC input: 0.3 watts
  • Maximum:
    • DC input: 1.3 watts
    • AC input: 2.4 watts
Heat Dissipation
  • Power On (Standby) AC input: 0.853 BTU/h
  • Maximum DC input: 2.9002 BTU/h
  • Power On (Standby) AC input: 1.0236 BTU/h
  • Maximum DC input: 4.4356 BTU/h
MTBF 1,398,635 hours 863,878 hours
Operating Temperature 32 to 104 ˚F (0 to 40 ˚C)
Storage Temperature 14 to 158 ˚F (-10 to 70 ˚C)
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing
Dimensions 3.9 x 3.8 x 1.1 inches (100 x 98 x 28 mm) 6.3 x 4 x 1.1 inches (162 x 102 x 28 mm)
Weight 0.57 lbs (256 grams) 0.90 lbs (412 grams)
Certifications
  • FCC Class B
  • ICES-003 Class B
  • CE Class B
  • C-Tick Class B
  • VCCI Class B
  • cUL
  • CB
Warranty
Warranty Limited Lifetime1

1 Limited Lifetime Warranty available only in the USA. All references to speed are for comparison purposes only.

Product View:

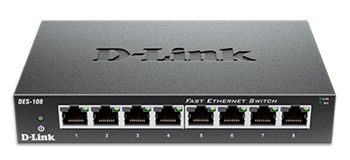

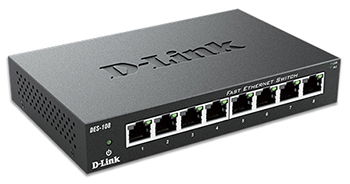

D-Link DES-108 Front View D-Link DES-108 Side View
D-Link DES-108 Front View D-Link DES-108 Side View

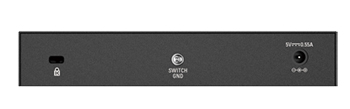

D-Link DES-108 Back View
D-Link DES-108 Back View

Documentation:

Download the D-Link DES-105/DES-108 Datasheet (PDF).
