D-Link DGS-1005G
5-Port Gigabit Desktop Switch

D-Link DGS-1005G

D-Link Products
D-Link Unmanaged Gigabit Switches
5-Port Gigabit Unmanaged Desktop Switch
Jumbo Frames, External Power, D-Link Green
#DGS-1005G
List Price: $29.99
Our Price: $28.49

Click here to jump to more pricing!

Overview:

D-Link Green

The D-Link 5-Port Gigabit Switch transfers data at blazing gigabit speeds, boosting your network performance when running bandwidth-intensive applications or gaming. Environmentally friendly, the 5-Port Gigabit Switch adjusts power usage and reduces energy consumption without affecting operational performance.

Connect All of Your Devices with Gigabit Speed
Expand your wired home network with the D-Link® 5-Port Gigabit Desktop Switch (DGS-1005G). By connecting the DGS-1005G to your router, you can add up to four more computers to your home network with Fast Ethernet connectivity. Add devices like your gaming console, printer, print server, Network-Attached Storage (NAS) or network camera with a simple Ethernet cable.

Compact Design
This Desktop Switch fits virtually anywhere because of its compact size. Its power connector and ports are conveniently located in the rear to avoid messy cables on the desk.

Effortless High Speed Networking

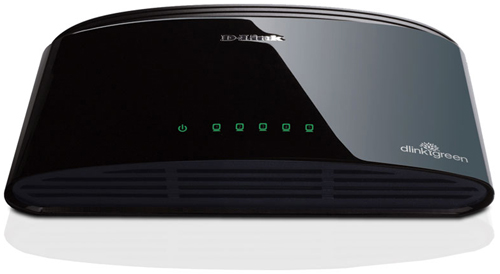

Features easy access auto sensing Gigabit front Ethernet ports with a LED indicator for each port to quickly distinguish link status and activity. The DGS-1005G switch also supports Auto MDI/MDIX Crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables to get you the maximum speed possible for each device connected to your network.

Plug and Play Installation
The D-Link 5-Port Gigabit Desktop Switch is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free. But we know that setting up your switch is only the beginning; you can also easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multi-player gaming environment.

Conserves Energy

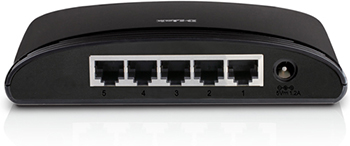

Back View The DGS-1005G 5-port Gigabit Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link activity, allowing the switch to save energy by cutting power usage for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths and adjust power usage accordingly, helping you save energy without effecting networking performance.

IEEE 802.1P QoS
QoS prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media, VoIP calls, and online gaming.

* Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic and network overhead, lower actual data throughtput rate.

Technical Specifications:

D-Link DGS-1005G Specifications
Key Features
  • Built-in D-Link Green Technology
  • Inexpensive Gigabit solution for Home/SOHO
  • 5 10/100/1000 Mbps Gigabit ports
  • 10 Gbps switching fabric
  • Auto MDI/MDIX crossover for all ports
  • Secure store-and-forward switching scheme
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • IEEE 802.3x Flow Control
  • Supports 9,000 Byte Jumbo Frames
  • Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
  • Supports Cable Diagnostics Function
  • RoHS compliant
  • Plug-and-play installation
Standards
  • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x Flow Control
  • IEEE 802.1p QoS
Protocol CSMA/CD
Data Transfer Rates
  • Ethernet:
    • 10 Mbps (half duplex)
    • 20 Mbps (full duplex)
  • Fast Ethernet:
    • 100 Mbps (half duplex)
    • 200 Mbps (full duplex)
  • Gigabit Ethernet:
    • 2000 Mbps (full duplex)
Topology Star
Network Cables
  • 10BASE-T:
    • UTP CAT 3, 4, 5/5e (100 m max.)
    • EIA/TIA-586 100-ohm STP (100 m max.)
  • 100BASE-TX, 1000BASE-T:
    • UTP CAT 5/5e (100 m max.)
    • EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange Auto MDI/MDIX adjustment for all ports
Led Indicators
  • Per port: Link/Activity/Speed
  • Per device: Power
Transmission Method Store-and-forward
Mac Address Table 4K entries per device
Mac Address Learning Automatic update
Packet Filtering/Forwarding Rates
  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port
  • Gigabit Ethernet: 1,488,000 pps per port
Ram Buffer 128 KBytes per device
DC Input External 5V/1.2A Power Adapter
Power Consumption
  • Power On (Standby):
    • DC input: 0.4 watts
    • AC input: 1.1 watts
  • Maximum:
    • DC input: 3.2 watts
    • AC input: 4.5 watts
Heat Dissipation
  • Power On (Standby):
    • AC input: 3.751 BTU/h
  • Maximum:
    • AC input: 15.345 BTU/h
MTBF 861,516 hours
Temperature
  • Operating: 32 to 104 ˚F (0 to 40 ˚C)
  • Storage: 14 to 158 ˚F (-10 to 70 ˚C)
Humidity
  • Operating: 10% to 90% RH Non-Condensing
  • Storage: 5% to 90% RH Non-Condensing
Device Dimensions (W x D x H) 5.7 x 4.0 x 1.3 inches (144.2 x 100.2 x 32.6 mm)
Certifications
  • FCC Class B
  • ICES-003 Class B
  • CE Class B
  • C-Tick Class B
  • VCCI Class B
  • cUL
  • CB
Warranty Limited Lifetime*

* Limited Lifetime Warranty available only in the USA and Canada if purchased on or after June 1, 2010.

All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

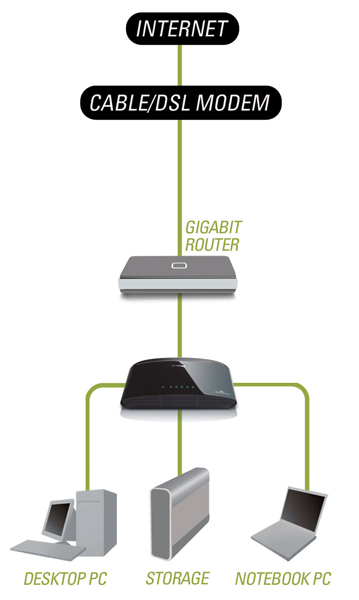

Diagram:

DGS-1005G Diagram

Documentation:

Download the D-Link DGS-1005G Datasheet (PDF).
