D-Link DGS-1016C
16-Port Gigabit Unmanaged Desktop/Rackmount Switch

D-Link Products
D-Link Unmanaged Gigabit Switches
16-Port Gigabit Unmanaged Desktop/Rackmount Switch
#DGS-1016C
List Price: $114.99
Our Price: $109.24

Click here to jump to more pricing!

Overview:

The DGS-1016C and DGS-1024C 10/100/1000 Mbps unmanaged switches are economical, plug-and-play networking switch solutions for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. They provide 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

Upgrade to Gigabit Networking

With data transfer speeds of up to 2000 Mbps at full-duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto-MDI/MDIX crossover makes connections a cinch; just plug in your cables and you’re ready to go.

Conserve Energy

The DGS-1016C and DGS-1024C support IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switches can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.

Reliable Plug and Play Installation

The DGS-1016C and DGS-1024C are plug-and-play devices that require no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. IEEE 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.

Smooth Streaming

These switches support QoS, which prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.

Technical Specifications:

Device Interfaces

  • 16 x 10/100/1000 Mbps LAN ports

Standards

  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3x Flow Control
  • IEEE 802.1p QoS
  • IEEE 802.3az Energy-Efficient Ethernet (EEE)

Switching Capacity

  • 32 Gbps

Advanced Features

  • Auto-MDI/MDIX crossover for all ports
  • Secure store-and-forward switching scheme
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • Supports 9,216 bytes jumbo frames
  • Back pressure at half-duplex operation
  • Wire-speed reception and transmission
  • Auto-negotiation for each port
  • Quality of Service (8 queues, strict mode)

Data Transfer Rates

  • Ethernet:
    • 10 Mbps (half duplex)
    • 20 Mbps (full duplex)
  • Fast Ethernet:
    • 100 Mbps (half duplex)
    • 200 Mbps (full duplex)
  • Gigabit Ethernet:
    • 2000 Mbps (full duplex)

Transmission Method

  • Store-and-forward

MAC Address Table Size

  • 8,000 entries

Packet Filtering/Forwarding Rates

  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port
  • Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

  • 512 KB per device

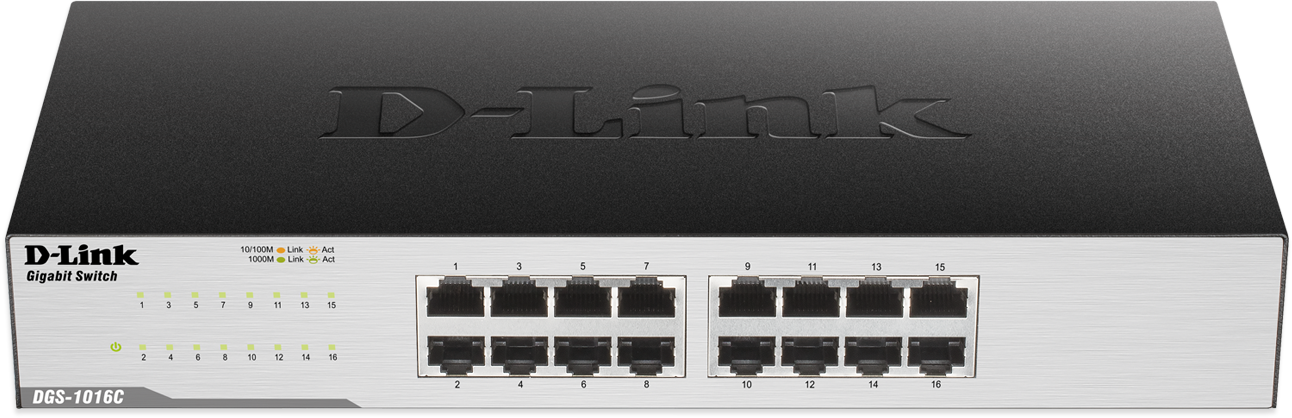

LED Indicators

  • Per port: Link/Activity/Speed
  • Per device: Power

Media Interface Exchange

  • Auto MDI/MDIX adjustment for all ports

Dimensions

  • 280 x 126 x 44 mm (11.02 x 4.96 x 1.73 in)

Weight

  • 0.87 kg (1.92 lbs)

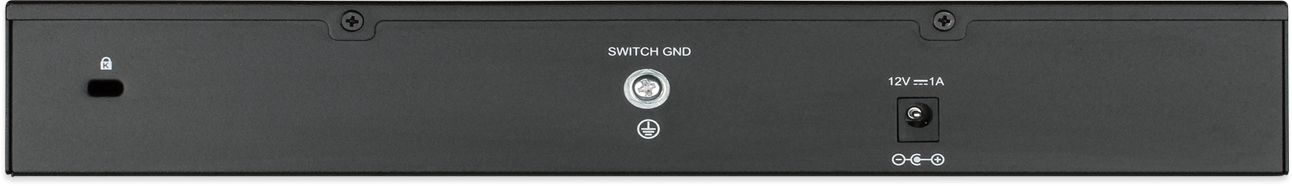

Power Inputs

  • 12 V / 1 A

Power Consumption

  • Standby: 4.1 W
  • Maximum:  11.7 W

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -40 to 70 °C (-40 to 158 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

MTBF

  • 218,743 hours

Maximum Heat Dissipation

  • 39.92 BTU/h

Emissions (EMI)

  • CE Class A
  • FCC Class A
  • VCCI Class A
  • BSMI
  • CCC

Safety

  • UL
  • CB
  • LVD
  • BSMI
  • CCC

Warranty

  • 5-Year Limited Warranty1

Documentation:

Download the D-Link DGS-1016C and DGS-1024C Datasheet (PDF).
