D-Link DGS-1024D
24-Port Gigabit Unmanaged Desktop/Rackmount Switch


D-Link DSG-1024D appliance
D-Link Products
D-Link Unmanaged Gigabit Switches
24-Port Gigabit Switch
Desktop/Rackmountable, D-Link Green
#DGS-1024D
List Price: $184.99
Our Price: $175.74

Click here to jump to more pricing!

Overview:

The D-Link 16-Port Gigabit Unmanaged Desktop or Rackmount Switch and the 24-Port Gigabit Unmanaged Desktop or Rackmount Switch each offer an economical way for SOHO and small to medium businesses (SMB) to deploy an energy-efficient switch that features the increased bandwidth of Gigabit ports.

Gigabit on Every Port

The 16/24-Port Gigabit Unmanaged Desktop or Rackmount Switch series brings the speed of Gigabit Ethernet to each and every port for a truly high-speed network. If your network has a mix of legacy and modern computing capabilities, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.

Easy to Install and Maintain

These switches were designed for Plug-and-Play and hassle-free installation. Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables when connecting to another switch or hub. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000Mbps) and intelligently adjusts for compatibility and optimal performance. Diagnostic LEDs and cable diagnostics allow for quick detection and correction of network problems.

Conserves Energy

The 16/24-Port Gigabit Unmanaged Desktop or Rackmount Switch series helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjusts power usage accordingly, helping you save energy without affecting networking performance.

Limited Lifetime Warranty

D-Link offers a Limited Lifetime Warranty on the DGS-1016D/1024D unmanaged switches to further its commitment to product quality and long-term customer confidence.

Think Green

The 16/24-Port Gigabit Unmanaged Desktop or Rackmount Switch series makes use of D-Link Green Ethernet technology, providing more energy savings and a longer product life, without sacrificing operational performance or functionality. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimize the use of harmful substances.

Features

Physical

  • 16 or 24 Gigabit Ethernet ports for fast network speeds
  • Desktop or rackmountable metal housing
  • Fanless design for silent operation

Performance

  • IEEE 802.3x Flow Control
  • Auto MDI/MDI-X crossover for all ports
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • 9216 Byte Jumbo Frames (DGS-1016D) and 9600 Byte Jumbo Frames (DGS-1024D)

Energy Efficiency

  • Innovative D-Link Green Ethernet Technology conserves energy
  • Link status detection reduces power usage
  • Cable length detection uses energy more efficiently
  • 802.3az EEE hardware implementation reduces power consumption significantly
  • RoHS compliant

Easy Installation

  • Plug-and-play installation saves you time

Technical Specifications:

D-Link DGS-1016D/DGS-1024D Specifications
General
Number of Ports Sixteen 10/100/1000 Gigabit ports Twenty-four 10/100/1000 Gigabit ports
Standards
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x Flow Control
Data Tranfer Rates
  • Ethernet:
    • 10 Mbps (half duplex)
    • 20 Mbps (full duplex)
  • Fast Ethernet:
    • 100 Mbps (half duplex)
    • 200 Mbps (full duplex)
  • Gigabit Ethernet:
    • 2000 Mbps (full duplex)
Network Cables
  • 10BASE-T:
    • UTP CAT 3, 4, 5/5e (100 m max)
    • EIA/TIA-586 100-ohm STP (100 m max)
  • 100BASE-TX, 1000BASE-T:
    • UTP CAT 5/5e (100 m max)
    • EIA/TIA-568 100-ohm STP (100 m max)
Functionality
D-Link Green Features
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Link status detection power saving
  • Cable length detection power saving
  • RoHS Compliance
Media Interface Exchange Auto MDI/MDIX
Transmission Method Store-and-Forward switching method
MAC Address Table 8K MAC addresses
RAM Buffer 512 KBytes RAM for data buffering
Jumbo Frames 9216 Bytes 9600 Bytes
Switching Capacity 32 Gbps 48 Gbps
Port Packet Filtering
  • 10M: 14,880 pps
  • 100M: 148,800 pps
  • 1000M: 1,488,000 pps
Physical
LEDs
  • Power LED
  • 16 Link/Activity/Speed LEDs (one per port)
  • Power LED
  • 24 Link/Activity/Speed LEDs (one per port)
Power Inputs 100 to 240V AC Input
Power Consumption
  • Standby: 4.48 watts
  • Maximum: 9.84 watts
  • Standby: 6.5 watts
  • Maximum: 13.5 watts
Heat Dissipation
  • Standby: 15.2768 btU/h
  • Maximum: 33.5544 btU/h
  • Standby: 22.165 btU/h
  • Maximum: 44.035 btU/h
MTBF 795,539 hours 633,536 hours
Dimensions 11.02 x 4.92 x 1.73 inches (280 x 125 x 44 mm) 11.02 x 7.09 x 1.73 inches (280 x 180 x 44 mm)
Weight 2.34 lbs (1.06 kg) 3.66 lbs (1.66 kg)
Operating Temperature 32 to 104 °F (0 to 40 °C)
Storage Temperature 14 to 158 °F (-10 to 70 °C)
Humidity 5% to 90% non-condensing
Certifications
  • FCC Class A
  • ICES-003 Class A
  • CE Class A
  • C-Tick Class A
  • CB
  • cUL
Warranty Information
Warranty Limited Lifetime Warranty

Product Views:

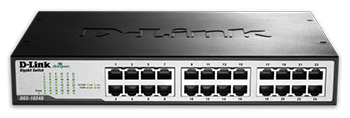

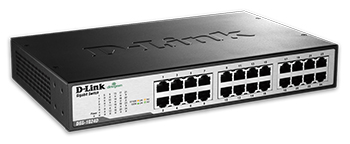

D-Link DGS-1024D Front View D-Link DGS-1024D Side View
D-Link DGS-1024D Front View D-Link DGS-1024D Side View

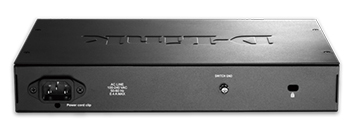

D-Link DGS-1024D Back View
D-Link DGS-1024D Back View

Documentation:

Download the D-Link DGS-1024D Datasheet (PDF).
