D-Link DGS-105GL
5-Port Gigabit Metal Unmanaged Desktop Switch
List Price:
Our Price: $21.00
Click here to jump to more pricing!
Overview:
The DGS-105GL 5-Port Gigabit Unmanaged Desktop Switch is expand residential and home office environments with fast and reliable wired connections for high-bandwidth devices.
Slim Dimensions, Hefty Performance
The DGS-105GL 5-Port Gigabit Unmanaged Desktop Switch is ideal for home offices or small to medium-sized businesses (SMB) to add a quick and easy Gigabit upgrade to the network. Fully IEEE 802.3az-compliant with advanced energy-saving features, the DGS-105GL packs full functionality and Gigabit performance into a slim yet sturdy metal design.
Energy Saving Technology
Quality of Service
5 Gigabit Ports
Plug and Play
Fanless Design
Good for the Planet, Good for your Budget
The eco-friendly DGS-105GL is compliant with Energy-Efficient Ethernet (IEEE 802.3az) standards to save energy and reduce heat emissions without sacrificing performance and functionality. When low-traffic or idle interface ports are detected, the DGS-105GL automatically transitions them into a low-power state, substantially reducing overall device power consumption.

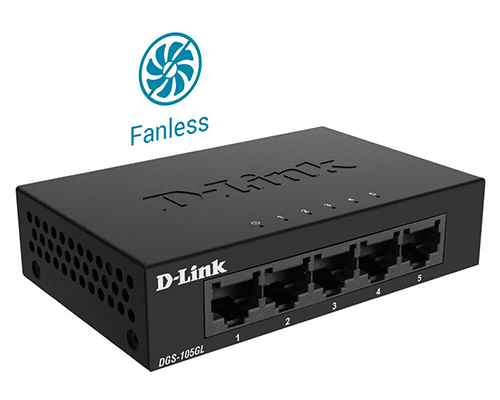

Ready To Serve For Years To Come
The DGS-105GL features a fanless design for silent operation, reduced energy consumption, and enhanced reliability by eliminating a common point of failure for an extended product life.

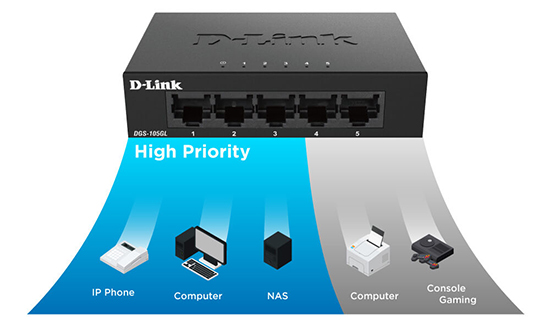

Prioritize What’s Important with Quality of Service
Quality of Service (QoS) support enhances your network’s efficiency. QoS cleverly prioritizes network traffic so that time-sensitive data—such as VoIP or data to and from your NAS—is unaffected even during bursts of high-volume traffic. This allows for an all-round smoother, uninterrupted network experience.

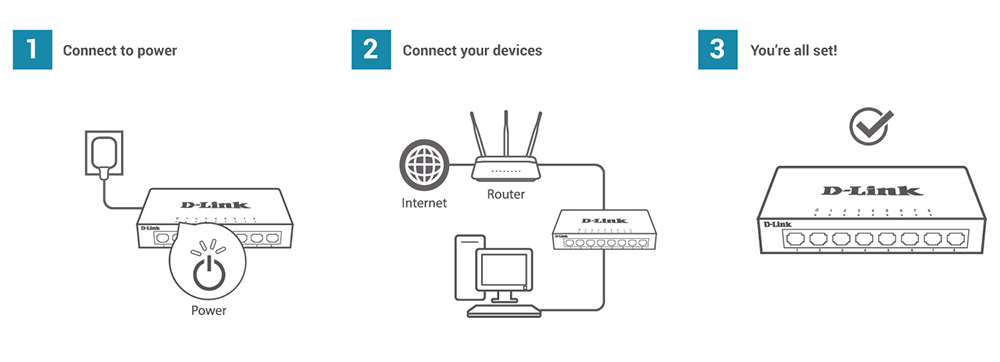

Setup That Doesn’t Dent Your Productivity
Expanding your network shouldn’t take a whole morning of navigating complex setup software. Simply place the DGS-105GL on a desktop or conveniently wall mount, connect it to your network via Ethernet cables and you’re set.
Simple Plug and Play
Features:
High-Speed Connectivity
- Five Gigabit Ethernet LAN ports for high-speed wired connections
Compact Design
- The solid, compact, metal case is designed for durability
Energy-Efficient and Eco-Friendly
- Reduces power to a port when no link to that port is detected
- Energy efficient design reduces heat generated and allows the switch to run silently
- Supports IEEE 802.3az Energy-Efficient Ethernet (EEE)
Easy Setup
- Plug-and-play installation
Technical Specifications:
| D-Link DGS-105GL Specifications | |
|---|---|
| General | |
| Device Interfaces | 5 x 10/100/1000 Mbps LAN ports |
| Standards |
|
| Functionality | |
| Switching Capacity | 10 Gbps switching fabric |
| Transmission Method | Store-and-forward |
| MAC Address Table Size | 2K entries |
| Packet Filtering /Forwarding Rates |
|
| RAM Buffer | 512 KB per device |
| Physical | |
| LED Indicators |
|
| Dimensions | 100 x 64 x 24 mm (3.94 x 2.52 x 0.94 inches) |
| Weight | 160 g |

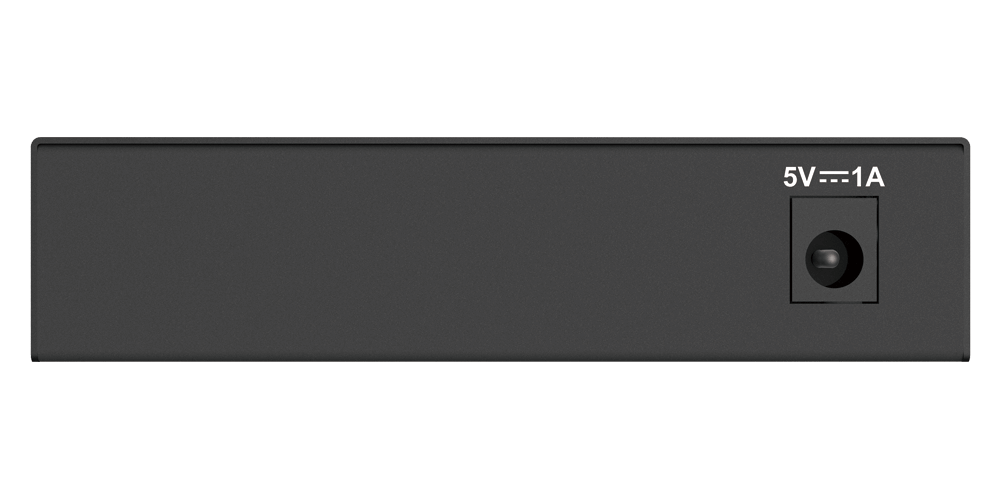

| Power Input | DC 5 V / 1 A |
| Power Consumption | Maximum: 3.55 watts |
| Temperature |
|
| Humidity |
|
| MTBF | 1,455,562 hours |
| Maximum Heat Dissipation | 12.11 BTU/h |
| Emissions (EMI) |
|
Documentation:
Download the D-Link DGS-105GL and DGS-108GL Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
List Price:
Our Price: $21.00
