D-Link DGS-108GL
8-Port Gigabit Metal Unmanaged Desktop Switch

D-Link Products
D-Link Unmanaged Gigabit Switches
D-Link DGS-108GL 8-Port Gigabit Metal Unmanaged Desktop Switch
#DGS-108GL
List Price: $29.99
Our Price: $24.00

Click here to jump to more pricing!

Overview:

The DGS-108GL 8-Port Gigabit Unmanaged Desktop Switch is expand residential and home office environments with fast and reliable wired connections for high-bandwidth devices.

Slim Dimensions, Hefty Performance

The DGS-108GL 8 Port Gigabit Unmanaged Desktop Switch is ideal for home offices or small to medium-sized businesses (SMB) to add a quick and easy Gigabit upgrade to the network. The DGS-108GL packs full functionality and Gigabit performance into a slim yet sturdy metal design.


Energy Saving Technology


Quality of Service


5 Gigabit Ports


Plug and Play


Fanless Design



Good for the Planet, Good for your Budget

The eco-friendly DGS-108GL is compliant with Energy-Efficient Ethernet (IEEE 802.3az) standards to save energy and reduce heat emissions without sacrificing performance and functionality. When low-traffic or idle interface ports are detected, the DGS-108GL automatically transitions them into a low-power state, substantially reducing overall device power consumption.

Ready To Serve For Years To Come

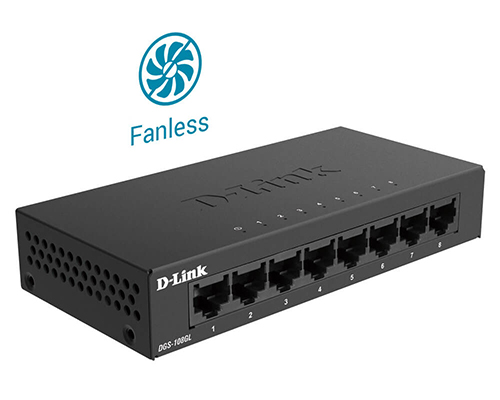

The DGS-108GL features a fanless design for silent operation, reduced energy consumption, and enhanced reliability by eliminating a common point of failure for an extended product life.

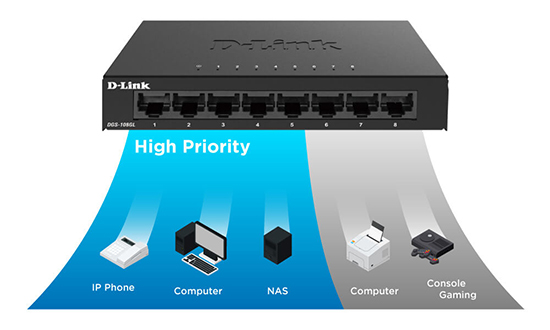

Prioritize What’s Important with Quality of Service

Quality of Service (QoS) support enhances your network’s efficiency. QoS cleverly prioritizes network traffic so that time-sensitive data—such as VoIP or data to and from your NAS—is unaffected even during bursts of high-volume traffic. This allows for an all-round smoother, uninterrupted network experience.

Setup That Doesn’t Dent Your Productivity

Expanding your network shouldn’t take a whole morning of navigating complex setup software. Simply place the DGS-108GL on a desktop or conveniently wall mount, connect it to your network via Ethernet cables and you’re set.

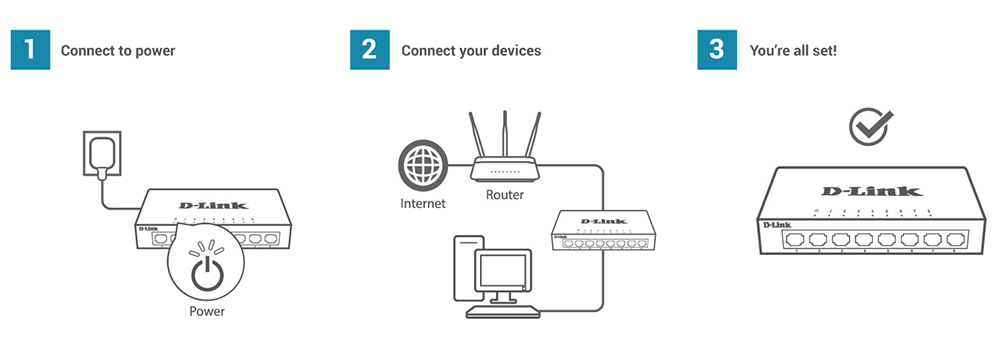

Simple Plug and Play

Features:

High-Speed Connectivity

  • Eight Gigabit Ethernet LAN ports for high-speed wired connections

Compact Design

  • The solid, compact, metal case is designed for durability

Energy-Efficient and Eco-Friendly

  • Reduces power to a port when no link to that port is detected
  • Energy efficient design reduces heat generated and allows the switch to run silently
  • Supports IEEE 802.3az Energy-Efficient Ethernet (EEE)

Easy Setup

  • Plug-and-play installation

Technical Specifications:

D-Link DGS-108GL Specifications
General
Device Interfaces 8 x 10/100/1000 Mbps LAN ports
Standards
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3x Flow Control
  • IEEE 802.1p QoS
  • IEEE 802.3az Energy-Efficient Ethernet (EEE)
Functionality
Switching Capacity 16 Gbps switching fabric
Transmission Method Store-and-forward
MAC Address Table Size 4K entries
Packet Filtering /Forwarding Rates
  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port
  • Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer 512 KB per device
Physical
LED Indicators
  • Per port: Link/Activity
  • Per device: Power
Dimensions 140 x 67 x 26 mm (5.51 x 2.64 x 1.02 inches)
Weight 240 g
Power Input DC 5 V / 1 A
Power Consumption Maximum: 4.31 watts
Temperature
  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -10 to 70 °C (14 to 158 °F)
Humidity
  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing
MTBF 1,402,428 hours
Maximum Heat Dissipation 14.70 BTU/h
Emissions (EMI)
  • CE
  • FCC
  • RoHS

Documentation:

Download the D-Link DGS-105GL and DGS-108GL Datasheet (PDF).
