DGS-1100 V2 Series Smart Managed 8-Port PoE Gigabit Switch
A powerful switch with a feature set making it as flexible as you need it to be, great for a variety of deployments

DGS-1100 V2 Series Smart Managed 8-Port PoE Gigabit Switch

D-Link Products

D-Link Smart Gigabit Switches

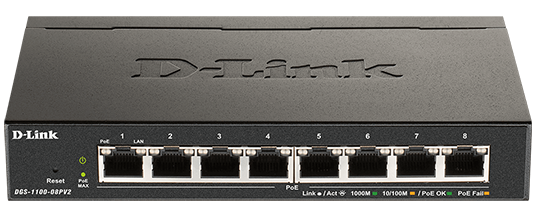

DGS-1100 V2 Series 8-Port PoE Gigabit Smart Managed Switch

#DGS-1100-08PV2
List Price: ~~$150.99~~
Our Price: $143.44

Overview:

The DGS-1100 Series is a range of switches designed to meet the requirements of small, medium, and enterprise businesses. Support for multiple PoE standards make the DGS-1100 Series ideal for IP surveillance deployments. Advanced management features, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to meet your networking requirements.

Powerful Switching for your Business

The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Easy to Use & Easy to Install

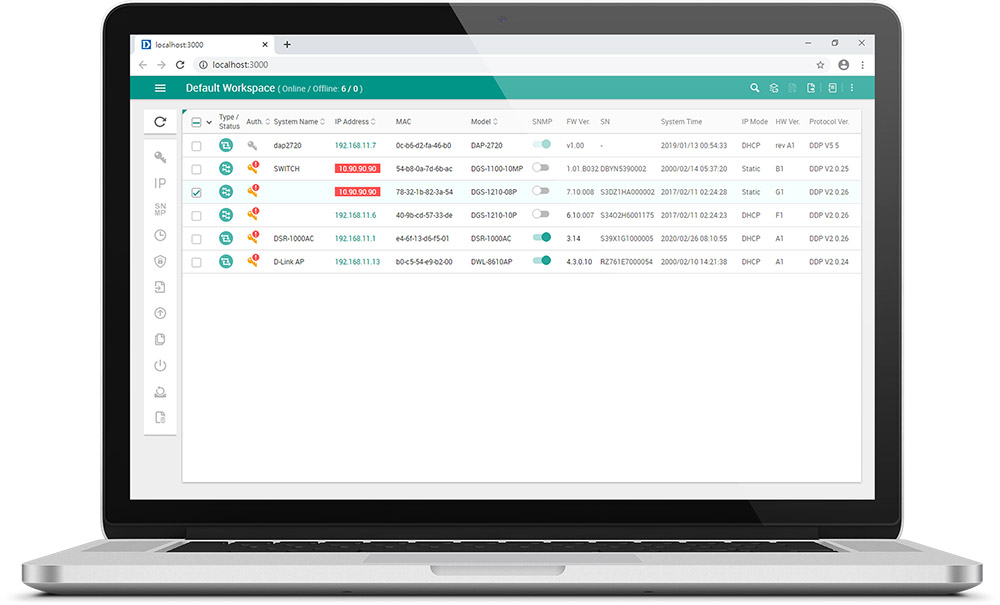

D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

Green Technology

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

PD Alive Actively Mitigates Downtime

Round-the-clock surveillance footage is vital. If you have cameras attached to your network, you may have thought technical difficulties were a given. However, the PD-Alive feature actively mitigates device downtime. If a device is not working as expected, the switch can automatically reset them and get them back online. No need to turn them on and off again in the middle of the night.

Features:

8 x 10/100/1000 Mbps PoE ports
Fanless design for silent operation
Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
Innovative energy saving features are good for your budget, as well as the environment
Get up and going quickly with streamlined first-time setup and ongoing management

Technical Specifications:

DGS-1100 V2 Series

Technical Specifications
General	DGS-1100-05V2	DGS-1100-05PDV2	DGS-1100-08V2	DGS-1100-08PV2
Hardware Version	A1
Size	Desktop
Number of Ports	• 5 x 10/100/1000 Mbps	• 2 x 10/100/1000 Mbps (PoE) • 3 x 10/100/1000 Mbps	• 8 x 10/100/1000 Mbps	• 8 x 10/100/1000 Mbps (PoE)
Port Functions	• IEEE 802.3 for Ethernet • IEEE 802.3u for Fast Ethernet • IEEE 802.3ab for Gigabit Ethernet • IEEE 802.3af (for DGS-1100-05PD) • IEEE 802.3at (for DGS-1100-08P) • Auto-negotiation • Supports half/full-duplex operation (half at 10/100 Mbps, full at 1000 Mbps) • Auto MDI/MDIX • IEEE 802.3x Flow Control supports full-duplex mode • IEEE 802.3az compliant
Performance
Switching Capacity	10 Gbps	10 Gbps	16 Gbps	16 Gbps
Maximum Forwarding Rate	7.44 Mpps	7.44 Mpps	11.9 Mpps	11.9 Mpps
MAC Address Table Size	2K entries	2K entries	4K entries	4K entries
Packet Buffer	1 Mbits	1 Mbits	1.5 Mbits	1.5 Mbits
Flash Memory	2 Mbytes
PoE
PoE Standard	-	IEEE 802.3af	-	IEEE 802.3af/802.3at
PoE Capable Ports	-	Ports 1 to 2	-	Ports 1 to 8
PoE Power Budget	-	• PoE Passthrough: • 18 W with 802.3at input • 8 W with 802.3af input	-	• 64 W • 30W per PoE port max
Power Consumption
Standby Mode	1.39 W	1.728 W	1.93 W	2.0 W
Maximum Power Consumption	3.42 W	24.08 W (PoE on) 3.24 W (PoE off)	4.94 W	77.9 W (PoE on) 4.6 W (PoE off)
Physical
Power Input	100 to 240 V AC, 50 to 60 Hz external power adapter	• 802.3af/at PoE power only via PD port 5 • No power supply	100 to 240 V AC, 50 to 60 Hz external power adapter	100 to 240 V AC, 50 to 60 Hz external power adapter
MTBF	1,562,055 hours	2,357,475 hours	1,456,992 hours	786,841 hours
Acoustics	0 dB(A)
Heat Dissipation	11.67 BTU/hr	N/A	16.85 BTU/hr	265.85 BTU/hr
Weight	0.23 kg (0.51 lbs)	0.38 kg (0.84 lbs)	0.34 kg (0.75 lbs)	0.43 kg (0.95 lbs)
Dimensions	100.5 x 82 x 28 mm (3.6 x 3.3 x 1.1 in)	150 x 97 x 28 mm (5.9 x 3.8 x 1.1 in)	145 x 82 x 28 mm (5.7 x 3.3 x 1.1 in)	171 x 97.8 x 28.6 mm (6.7 x 3.9 x 1.1 in)
Ventilation	Fanless
Operating Temperature	0 to 40 °C (32 to 104 °F)
Storage Temperature	-40 to 70 °C (-40 to 158 °F)
Operating Humidity	0% to 90% non-condensing
Storage Humidity	0% to 95% non-condensing
EMI	FCC Class B, CE Class B, VCCI Class B, BSMI
Safety	cUL, CE LVD, CB, BSMI

Documentation:

Download the D-Link DGS-1100 V2 Series Datasheet (PDF).
