DGS-1100 Series Smart Managed 24-Port Gigabit Switch including 12 PoE Ports
A powerful switch with a feature set making it as flexible as you need it to be, great for a variety of deployments

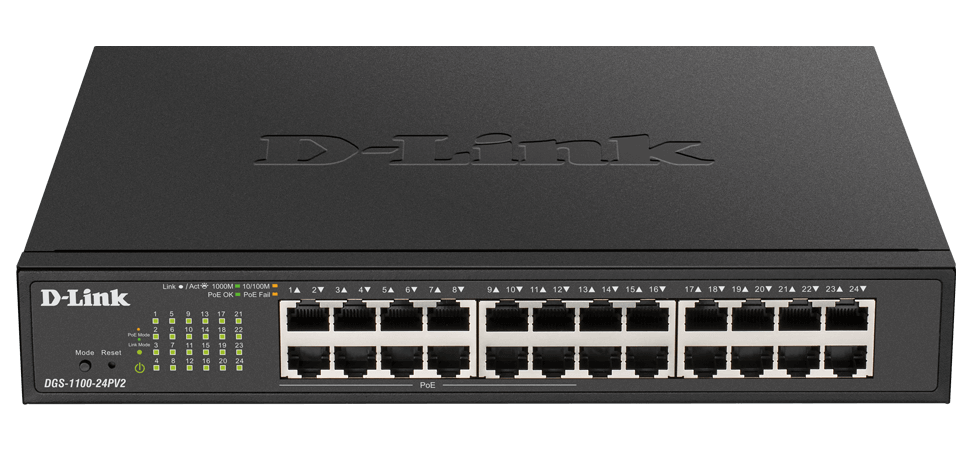

D-Link DGS-1100-24PV2

D-Link Products
D-Link Smart Gigabit Switches
DGS-1100 V2 Series 24-Port Gigabit Smart Managed Switch
#DGS-1100-24PV2
List Price: $344.99
Our Price: $246.51

Click here to jump to more pricing!

Overview:

Powerful Switching

Powerful Switching for your Business

The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.


Easy to Use & Easy to Install

D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

Easy to install

Green Technology

Green Technology

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

Features:

A powerful switch with a feature set making it as flexible as you need it to be, great for a variety of deployments

  • 24 x 10/100/1000BASE-T ports
  • Fanless design for silent operation
  • Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
  • Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
  • Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security¬†
  • IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
  • Innovative energy saving features are good for your budget, as well as the environment
  • Get up and going quickly with streamlined first-time setup and ongoing management

Technical Specifications:


DGS-1100 V2 Series

Technical Specifications

General

DGS-1100-16V2

DGS-1100-24V2

DGS-1100-24PV2

Hardware Version

A1

Size

• 11-inch desktop (rackmount kit included), 1U height

Number of Ports

• 16 x 10/100/1000 Mbps

• 24 x 10/100/1000 Mbps

• 12 x 10/100/1000 Mbps (PoE)

• 12 x 10/100/1000 Mbps





Port Functions

• IEEE 802.3 for Ethernet • Auto-negotiation

• IEEE 802.3u for Fast Ethernet • Auto MDI/MDIX

• IEEE 802.3ab for Gigabit Ethernet • IEEE 802.3x Flow Control supports full-duplex mode

• IEEE 802.3z for Gigabit fiber • Supports half/full-duplex operation

• IEEE 802.3af/at (DGS-1100-24PV2 ports 1 to 12 only) (full/half at 10/100 Mbps, full at 1000 Mbps)

• IEEE 802.3az compliant

Performance

Switching Capacity

• 32 Gbps

• 48 Gbps

• 48 Gbps

Maximum Forwarding Rate

• 23.81 Mpps

• 35.71 Mpps

• 35.71 Mpps

MAC Address Table Size

8K Entries

Packet Buffer

4.1 Mbits

Flash Memory

16 Mbytes

PoE

PoE Standard

-

-

• IEEE 802.3af/802.3at

PoE Capable Ports

-

-

• Ports 1 to 12

PoE Power Budget

-

-

• 100 W (30 W max. per PoE port)

Power Consumption

Standby Mode

• 3.4 W

• 4.5 W

• 8.8 W

Maximum Power Consumption

• 10.1 W

• 15.9 W

• 131.5 W (PoE on)

• 19.5 W (PoE off)

Physical

Power Input

100 to 240 V AC, 50 to 60 Hz internal power supply

MTBF

• 710,519 hours

• 424,762 hours

• 255,003 hours

Acoustics

0 dB(A)

Heat Dissipation

• 34.46 BTU/hr

• 54.3 BTU/hr

• 107.5 BTU/hr

Weight

• 1.21 kg (2.67 lbs)

• 1.32 kg (2.91 lbs)

• 2.00 kg (4.41 lbs)

Dimensions

• 280 x 180 x 44 mm (11.02 x 7.08 x

1.73 inches)

• 280 x 180 x 44 mm (11.02 x 7.08 x

1.73 inches)

• 280 x 230 x 44 mm (11.02 x 9.05 x 1.73

inches)

Ventilation

Fanless

Operating Temperature

-5 to 50 °C (23 to 122 °F)

Storage Temperature

-40 to 70 °C (-40 to 158 °F)

Operating Humidity

0% to 95% non-condensing

Storage Humidity

0% to 95% non-condensing

EMI

FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI, CCC

Safety

cUL, CE LVD, CB, BSMI, CCC


Documentation:

Download the D-Link DGS-1100 V2 Series Datasheet (PDF).
