DGS-1100 Series Smart Managed 24-Port Gigabit Switch
A powerful switch with a feature set making it as flexible as you need it to be, great for a variety of deployments

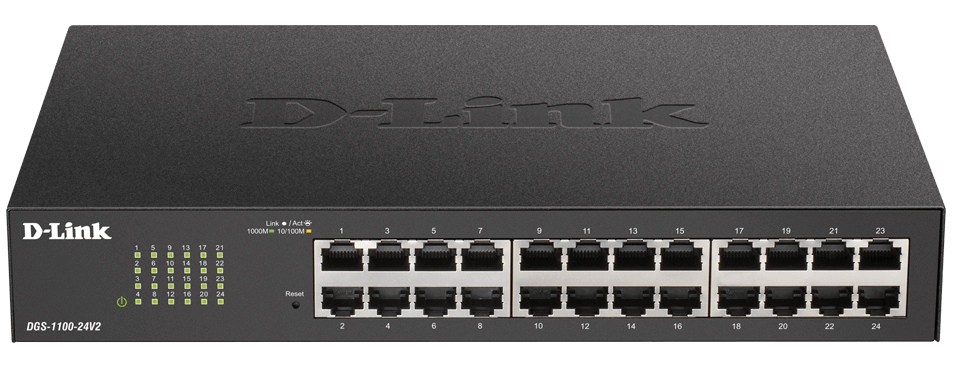

D-Link DGS-1100-24V2

D-Link Products

D-Link Smart Gigabit Switches

DGS-1100 V2 Series 24-Port Gigabit Smart Managed Switch

#DGS-1100-24V2
List Price: ~~$194.99~~
Our Price: $185.24

Click here to jump to more pricing!

Overview:

Powerful Switching for your Business

The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Easy to Use & Easy to Install

D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

Green Technology

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

Features:

A powerful switch with a feature set making it as flexible as you need it to be, great for a variety of deployments

24 x 10/100/1000BASE-T ports
Fanless design for silent operation
Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
Innovative energy saving features are good for your budget, as well as the environment
Get up and going quickly with streamlined first-time setup and ongoing management

Technical Specifications:

DGS-1100 V2 Series

Technical Specifications
General	DGS-1100-16V2	DGS-1100-24V2	DGS-1100-24PV2
Hardware Version	A1
Size	• 11-inch desktop (rackmount kit included), 1U height
Number of Ports	• 16 x 10/100/1000 Mbps	• 24 x 10/100/1000 Mbps	• 12 x 10/100/1000 Mbps (PoE) • 12 x 10/100/1000 Mbps
Port Functions	• IEEE 802.3 for Ethernet • Auto-negotiation • IEEE 802.3u for Fast Ethernet • Auto MDI/MDIX • IEEE 802.3ab for Gigabit Ethernet • IEEE 802.3x Flow Control supports full-duplex mode • IEEE 802.3z for Gigabit fiber • Supports half/full-duplex operation • IEEE 802.3af/at (DGS-1100-24PV2 ports 1 to 12 only) (full/half at 10/100 Mbps, full at 1000 Mbps) • IEEE 802.3az compliant
Performance
Switching Capacity	• 32 Gbps	• 48 Gbps	• 48 Gbps
Maximum Forwarding Rate	• 23.81 Mpps	• 35.71 Mpps	• 35.71 Mpps
MAC Address Table Size	8K Entries
Packet Buffer	4.1 Mbits
Flash Memory	16 Mbytes
PoE
PoE Standard	-	-	• IEEE 802.3af/802.3at
PoE Capable Ports	-	-	• Ports 1 to 12
PoE Power Budget	-	-	• 100 W (30 W max. per PoE port)
Power Consumption
Standby Mode	• 3.4 W	• 4.5 W	• 8.8 W
Maximum Power Consumption	• 10.1 W	• 15.9 W	• 131.5 W (PoE on) • 19.5 W (PoE off)
Physical
Power Input	100 to 240 V AC, 50 to 60 Hz internal power supply
MTBF	• 710,519 hours	• 424,762 hours	• 255,003 hours
Acoustics	0 dB(A)
Heat Dissipation	• 34.46 BTU/hr	• 54.3 BTU/hr	• 107.5 BTU/hr
Weight	• 1.21 kg (2.67 lbs)	• 1.32 kg (2.91 lbs)	• 2.00 kg (4.41 lbs)
Dimensions	• 280 x 180 x 44 mm (11.02 x 7.08 x 1.73 inches)	• 280 x 180 x 44 mm (11.02 x 7.08 x 1.73 inches)	• 280 x 230 x 44 mm (11.02 x 9.05 x 1.73 inches)
Ventilation	Fanless
Operating Temperature	-5 to 50 °C (23 to 122 °F)
Storage Temperature	-40 to 70 °C (-40 to 158 °F)
Operating Humidity	0% to 95% non-condensing
Storage Humidity	0% to 95% non-condensing
EMI	FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI, CCC
Safety	cUL, CE LVD, CB, BSMI, CCC

Documentation:

Download the D-Link DGS-1100 V2 Series Datasheet (PDF).
