D-Link DGS-1210-10
10-Port Gigabit Web Smart Switch including 2 Gigabit SFP ports

D-Link DGS-1210-10

D-Link Products
D-Link Smart Gigabit Switches
DGS-1210 Series Smart Managed 10-Port Gigabit Switch
including 2 Gigabit SFP Ports
List Price: $150.99
Our Price: $143.44

Click here to jump to more pricing!


D-Link Green

The DGS-1210 Series is the latest generation of D-Link Gigabit Web Smart Switches featuring D-Link Green 3.0 technology. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configuration features ensures your network remains protected after an upgrade from IPv4 to IPv6. By offering multiple management options, these switches allow quick deployment, infrastructure expansion, and seamless upgrades. Targeting small and medium sized businesses, the DGS-1210 Web Smart switches provide functionality, security, and manageability for a fraction of the standard cost of ownership.

The DGS-1210 Series switches support 8, 16, 24, or 48 10/100/1000BASE-T ports. In addition, each switch supports 2 or 4 Gigabit SFP ports for optical connections using multimode or singlemode SFP transceivers.

PoE Support
One model in the DGS-1210 series family, the DGS-1210-28P, delivers Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. It supports 802.3at on its first four ports (30W max per port) and supports 802.3af on ports 5 through 24 (15.4W max. per port.) Its total power budget is 185W. Using the product’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet. The switches also support time-based PoE – an option that allows administrators to set a time window that determines when each port’s PoE power is turned on and off.

Energy Saving
The DGS-1210 Series switches are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low with no setup required. For environments not fully supporting the standard, these switches offer advanced power-saving settings including port shutoff and standby, LED shutoff, and system hibernation based on custom time profiles. The time profiles can also be applied to the PoE switches so that unnecessary power consumption can be saved during off hours. The switches can also detect the length of connected cables to automatically reduce power usage on shorter cable connections.

Easy Management
The D-Link Web Smart Switch series is designed for easy management. All configurations can be made through a Web interface regardless of the host PC’s operating system. Furthermore, the web UI contains ten language options to make operations more straightforward. In the intial installation, the Smart Console Utility will automatically discover all D-Link Smart switches in the network, allowing administrators to assign IP addresses and subnet masks quickly. It also allows simultaneous firmware upgrades to multiple switches, saving a great deal of time. Important management commands, such as download firmware or configuration file, can be completed using batch operations for multiple switches.

Auto Surveillance VLAN and Voice VLAN
The D-link Web Smart series automates the process of setting up IP surveillance and VoIP devices on a network. Auto Surveillance VLAN consolidates data and surveillance video transmission through the network, sparing businesses the expense of maintaining dedicated facilities. ASV also protects the quality of real-time video by grouping IP surveillance devices on a single high priority VLAN. This ensures that surveillance video streams will not be affected when ordinary data traffic is at a high level. Similarly, the Auto Voice VLAN guarantees clear quality and efficient transmission for all voice communication.

Extensive Layer 2 Features
Equipped with a complete lineup of L2 features, these switches include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature designed primarily for administrators and customer service representatives, can rapidly discover the type of error and determine the cable quality.

Secure your Network
D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from illegal MAC or IP addresses. ARP Spoofing Prevention prevents malicious intruders from sending massive fake ARP messages through a manipulated source. This protects important data from being stolen by Man-in-the-Middle attacks, and prevents wasting CPU cycles on these packets. For added security, the DHCP Server Screening feature blocks rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

Limited Lifetime Warranty
D-Link offers a Limited Lifetime Warranty on the DGS-1210 Series Web Smart switches to further its commitment to product quality and long-term customer confidence. The Limited Lifetime Warranty applies for as long as the original customer owns the product or five (5) years after product discontinuance, whichever occurs first.



  • Access Control List
  • D-Link Safeguard Engine
  • Port Security
  • ARP Spoofing Prevention
  • Smart IP-MAC-Port Binding
  • DHCP Server Screening


  • IPv4/ IPv6 Dual Stack
  • Web GUI (supports 10 languages)
  • SmartConsole utility
  • SNMP and RMON
  • Simplified CLI through Telnet


  • Supports IEEE 802.1p QoS
  • Supports DSCP

Advanced Features

  • Auto Surveillance VLAN
  • Auto Voice VLAN
  • Port or VLAN-based Loopback Detection
  • Cable Diagnostics

Technical Specifications:

D-Link DGS-1210 Specificatins
  DGS-1210-10 DGS-1210-20 DGS-1210-28 DGS-1210-52
Number of Ports
  • 8 10/100/1000 Mbps
  • 2 SFP
  • 16 10/100/1000 Mbps
  • 4 SFP
  • 24 10/100/1000 Mbps
  • 4 SFP
  • 48 10/100/1000 Mbps
  • 4 SFP
Port Standard & Functions
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX (Fast Ethernet)
  • IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
  • IEEE 802.3x Flow Control for Full-Duplex Mode
  • Auto-negotiation
Network Cables
  • UTP Cat. 5, Cat. 5e (100 m max.)
  • EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex
  • Full/half duplex for 10/100 Mbps speeds
  • Full duplex for Gigabit speed
Media Interface Exchange Auto or configurable MDI/MDIX
Switching Capacity 20 Gbps 40 Gbps 56 Gbps 104 Gbps
Transmission Method Store-and-forward
MAC Address Table 16,000 entries per device
MAC Address Update
  • Up to 256 static MAC entries
  • Enable/disable auto-learning of MAC addresses
Maximum 64 bytes packet forwarding rate 14.88 Mpps 29.8 Mpps 41.7 Mpps 77.4 Mpps
Packet Buffer Memory 1.5 MB 1.5 MB 1.5 MB 3.0 MB
Physical & Environmental
AC Input 100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption 13.59 W 16.09 W 22.45 W 38.27 W
Standy Power Consumption 9.3 W/110 V, 9.4 W/240 V 8.59 W/110 V, 8.80 W/240 V 17.65 W/110 V, 17.84 W/240 V 29.44 W/110 V, 29.49 W/240 V
Fan Quantity 0 0 0 Two smart fans
Acoustics 0 dB(A) 0 dB(A) 0 dB(A) Low speed: 39.8 dB(A) High speed: 49.2 dB(A)
Heat Dissipation 46.37 BTU/hr 54.91 BTU/hr 76.55 BTU/hr 130.58 BTU/hr
Operating Temperature 23 to 122 ˚F (-5 to 50 ˚C)
Storage Temperature -4 to 158 ˚F (-20 to 70˚C)
Operating Humidity 0% to 95% non-condensing
Storage Humidity 0% to 95% non-condensing
Dimensions (W x D x H) 11.02 x 4.96 x 1.73 inches (280 x 126 x 44 mm) •
19” standard rack mounting width, 1U height
11.02 x 7.09 x 1.73 inches (280 x 180 x 44 mm)
19” standard rack mounting width, 1U height
17.32 x 5.51 x 1.73 inches (440 x 140 x 44 mm)
19” standard rack mounting width, 1U height
17.32 x 8.27 x 1.73 inches (440 x 210 x 44 mm)
19” standard rack mounting width, 1U height
Weight 3.39 lbs (1.54 kg) 2.82 lbs (1.28 kg) 3.68 lbs (1.67 kg) 5.69 lbs (2.58 kg)
Diagnostic LEDs
  • Power (per device)
  • Link/Activity/Speed (per 10/100/1000 Mbps port)
  • Link/Activity/Speed (per SFP port)
  • Power (per device)
  • Link/Activity/Speed (per 10/100/1000 Mbps port)
  • Link/Activity/Speed (per SFP port)
  • Fan (per device)
MTBF 360,844 hours 317,412 hours 540,000 hours 481,624 hours
  • FCC Class A
  • CE Class A
  • ICES-003
  • VCCI Class A
  • C-Tick
  • BSMI
  • cUL
  • CE LVD
Software Features
L2 Features
  • MAC Address Table
    • 16,000 entries
  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • IGMP Snooping
    • IGMP v1/v2 Snooping
    • Supports 256 IGMP groups
    • Supports at least 64 static multicast addresses
    • IGMP per VLAN
    • Supports IGMP Snooping Querier
  • Loopback Detection
  • Spanning Tree Protocol
    • 802.1D STP
    • 802.1w RSTP
  • 802.3ad Link Aggregetion
    • DGS-1210 28/28P: Maximum of 14 groups/8 ports per group
    • DGS-1210 52/52MP: Maximum of 26 groups/8 ports per group
    • DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group
  • LLDP
  • Jumbo Frame
    • Up to 9,216 bytes
  • Spanning Tree Protocol
    • 802.1D STP
    • 802.1w RSTP
  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • Port Mirroring
    • One-to-One
    • Many-to-One
    • Supports Mirroring for Tx/Rx/Both
  • Multicast Filtering
    • Forwards all unregistered groups
    • Filters all unregistered groups
  • Configurable MDI/MDIX
    • MLD snooping v1/v2 (256 groups)
  • 802.1Q
  • VLAN Group
    • Max 256 static VLAN groups
    • Max 4094 VIDs
  • Management VLAN
  • Asymmetric VLAN
  • Auto Voice VLAN
    • Max. 10 user defined OUI
    • Max. 8 default OUI
  • Auto Surveillance VLAN
QoS (Quality of Service)
  • 802.1p Quality of Service
  • 8 Queues per port
  • Queue Handling
    • Strict
    • Weighted Round Robin (WRR)
  • Bandwidth Control
    • Port-based (Ingress/Egress, min. granularity 64 Kb/s)
  • QoS based on:
    • 802.1p Priority Queues
    • DSCP
    • ToS
    • IPv6 Traffic Class
    • TCP/UDP port
L3 Features
  • IP Interface
    • Supports 1 interface
  • IPv6 Neighbor Discovery (ND)
Access Control List
  • Max. 50 access list
  • Max. 768 rules shared by IPv4, MAC and IPv6
  • Each rule can only be associated with a single port
  • ACL based on
    • 802.1p priority
    • VLAN
    • MAC address
    • Ether type
    • IP address
    • DSCP
    • Protocol type
    • TCP/UDP port number
    • IPv6 Traffic Class
  • Broadcast/Multicast/Unicast Storm Control
  • D-Link Safeguard Engine
  • DHCP Server Screening
  • IP-MAC-Port Binding (Smart Binding)
    • Supports 512 address binding entries
    • ARP Inspection
    • ARP + IP Inspection
    • Supports DHCP Snooping
  • 802.1X Port-based Access Control
  • ARP Spoofing Prevention
    • Max. 64 entries
  • Traffic Segmentation
  • SSH v2
  • SSL
    • Supports v1/v2/v3
  • Port Security
    • Supports up to 64 MAC addresses per port
  • Duplicate address detection
  • 802.1X Authentication
    • Supports local/RADIUS database
    • Supports port-based access control
    • Supports EAP, OTP, TLS, TTLS, PEAP
    • IPv6 RADIUS Server
    • Support MD5 authentication
  • Cable Diagnostics
  • Factory Reset
MIB/RFC Standards
  • RFC 783 TFTP
  • RFC 951 BootP/DHCP Client
  • RFC 1157 SNMP v1, v2, v3
  • RFC 1213 MIB II
  • RFC 1215 MIB Traps Convention
  • RFC 1350 TFTP
  • RFC 1493 Bridge MIB
  • RFC 1769 SNTP
  • RFC 1542 BootP/DHCP Client
  • RFC 1901 SNMP v1, v2, v3
  • RFC 1907 SNMP v2 MIB
  • RFC 1908 SNMP v1, v2, v3
  • RFC 2131 BootP/DHCP Client
  • RFC 2138 RADIUS Authentication
  • RFC 2139 RADIUS Authentication
  • RFC 2233 Interface Group MIB
  • RFC-2246 SSL
  • RFC 2475
  • RFC 2570 SNMP v1, v2, v3
  • RFC 2575 SNMP v1, v2, v3
  • RFC 2598 CoS
  • RFC 2618 RADIUS Authentication
  • RFC 2819 RMON v1
  • RFC 2865 RADIUS Authentication
  • RFC 3164 System Log
  • RFC 3195 System Log
  • RFC 3411-17 SNMP
  • D-Link Private MIB
  • Zone Defense MIB
  • 2233 Interface Group MIB
  • Web-based GUI
  • D-Link Network Assistant Utility
  • Compact CLI
  • Telnet Server
  • TFTP Client
  • Configurable MDI/MDIX
  • SNMP
    • Supports v1/v2c/v3
  • SNMP Trap
  • Backup/Upgrade firmware
  • Smart Wizard
  • Upload/Download Configuration file
  • System Log
    • Max. 500 log entries
  • BootP/DHCP Client
  • SNTP
  • ICMP v6
  • IPv4/v6 Dual Stack
  • DHCP Auto Configuration
  • Time Setting
    • SNTP
  • RMONv1
  • Trusted Host
D-Link Green 3.0 Technology
  • Power Saving by:
    • Link Status
    • Time-based PoE: PoE ports can be turned on/off by port or system through schedule
    • LED Shutoff
    • System Hibernation
    • Port Shutoff

Product Views:

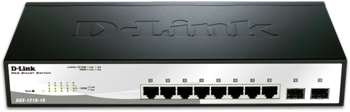

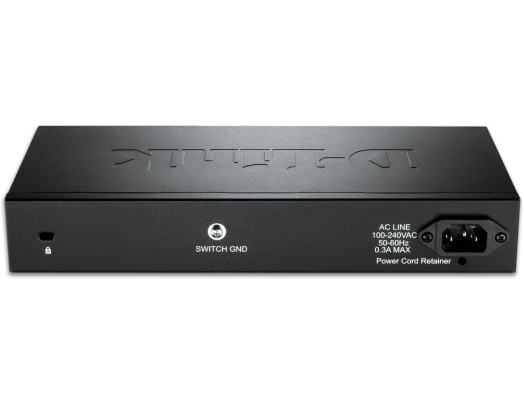

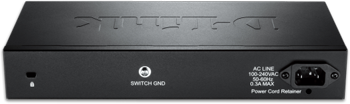

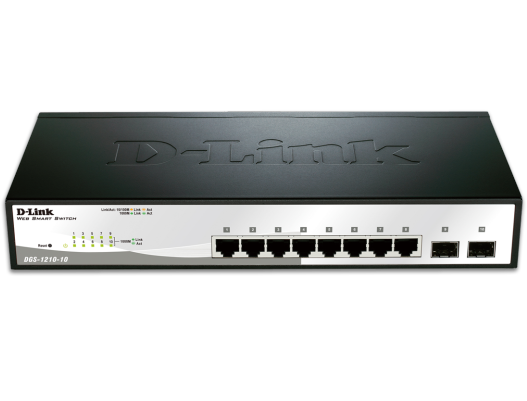

D-Link DGS-1210-10 Front View D-Link DGS-1210-10 Back View
D-Link DGS-1210-10 Front View D-Link DGS-1210-10 Back View


Download the D-Link DGS-1210 Series Datasheet (PDF).
