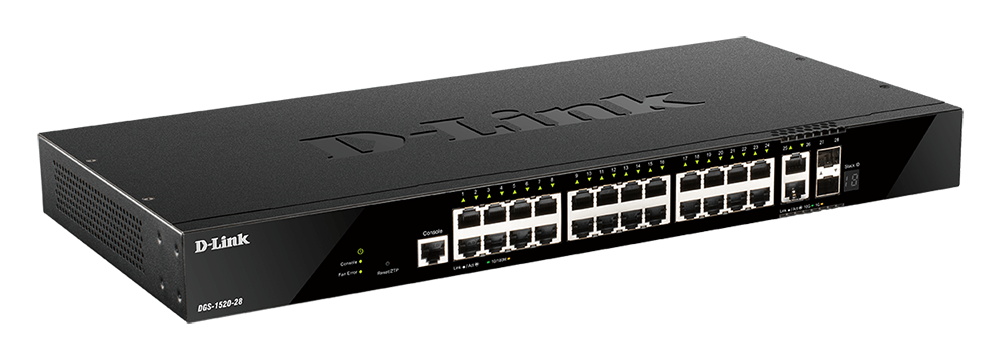

D-Link DGS-1520-28
28-Port Gigabit Smart Managed Switch With 2 10G SFP+ and 2 10GBASE-T Ports

D-Link DGS-1520-28

D-Link Products
D-Link Smart Gigabit Switches
DGS-1520 Series Smart Managed 28-Port Gigabit Switch including 2 10G SFP+ and 2 10GBASE-T Ports
#DGS-1520-28
List Price: $1025.99
Our Price: $713.99

Click here to jump to more pricing!

Overview:

The DGS-1520 Series, a new generation of Lite Layer 3 Stackable Smart Managed Switches, includes four 10 GB ports for uplink or stacking up to a total of eight switches with a total of 80 Gigabit stacking bandwidth. Designed for effortless multi-site network deployments with Zero Touch Provisioning, the DGS-1520 Series is also powerful enough for server and storage applications. For unrestricted Wi-Fi 6 edge device capabilities, PoE models offer four 2.5 GB Base-T ports for Multi-Gigabit connectivity. For SMBs with expanding networks and significant bandwidth growth, the DGS-1520 effortlessly adds highly cost-effective 10 GB connectivity to ensure seamless aggregation between access and core layers.


Stackable Smart Gigabit
Stack up to eight switches for high-density Gigabit aggregation

Zero Touch Provisioning
Effortless multi-site deployment

Multi-Gigabit Ports
Four 2.5 GB Base-T ports for Wi-Fi 6 APs (PoE models)

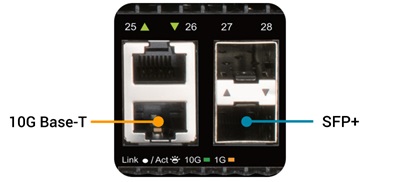

Flexible Stacking or Uplink
10 GB Base-T and/or SFP+ (fiber) ports for stacking or uplink


High Capacity
Up to 188 Gbps switching capacity per switch

PoE Capable
Up to 370 W PoE output per switch

Power Redundancy
Connect with DPS-520 for power redundancy (non-PoE models)

Advanced Manageability
Supports dynamic routing and selective Q-in-Q tagging


High Availability

The DGS-1520 Series brings reliable, yet affordable, Gigabit connectivity with four 10-Gigabit ports (two 10G Base-T and two 10G SFP+) for high-speed uplink or stacking. Boost your network performance, simplify your network infrastructure, improve bandwidth and reduce cabling complexity.

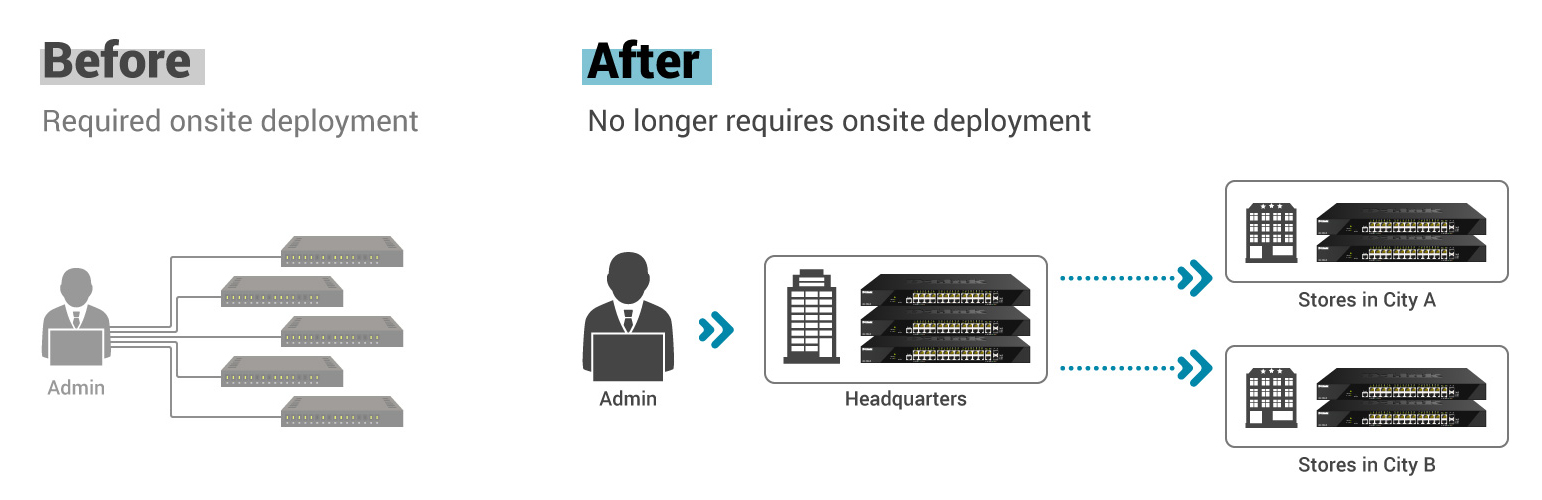

Zero Touch Provisioning

Zero Touch provisioning is perfect for multi-site network expansions. Simply preconfigure your network settings in a centralized location, then install the DGS-1520 switches for effortless deployments.

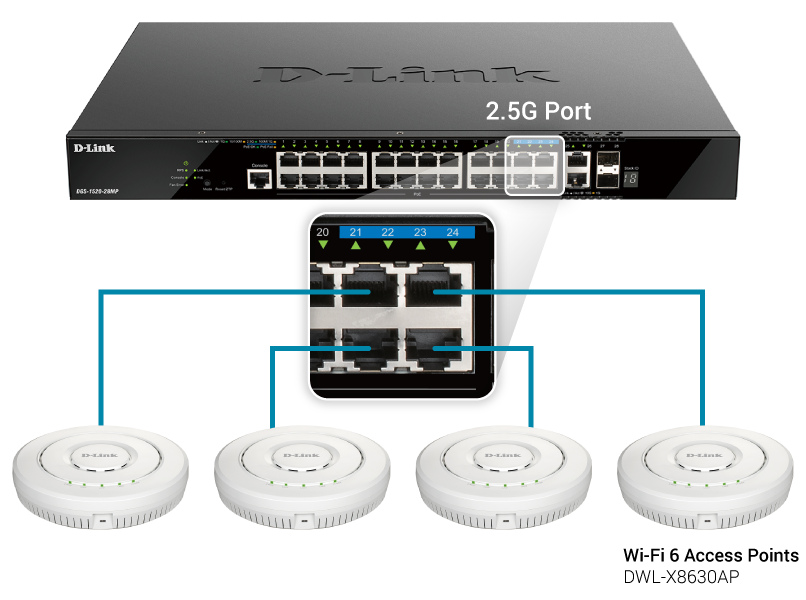

Multi-Gigabit Support

Multi-Gigabit ports on the DGS-1520 Series switch (PoE models only) support 100 MB / 1 GB / 2.5 GB speeds to maximize various device capabilities, such as Wi-Fi 6 (802.11ax) access points, which can often exceed single Gigabit speeds.

* For DGS-1520-28MP & DGS-1520-52MP only


Powerful Stacking Capability

Stack up to eight DGS-1520 switches with a total of 80 GB stacking bandwidth using hybrid mode (copper and/or fiber), increasing flexibility, scalability, and cost effectiveness for SMBs.

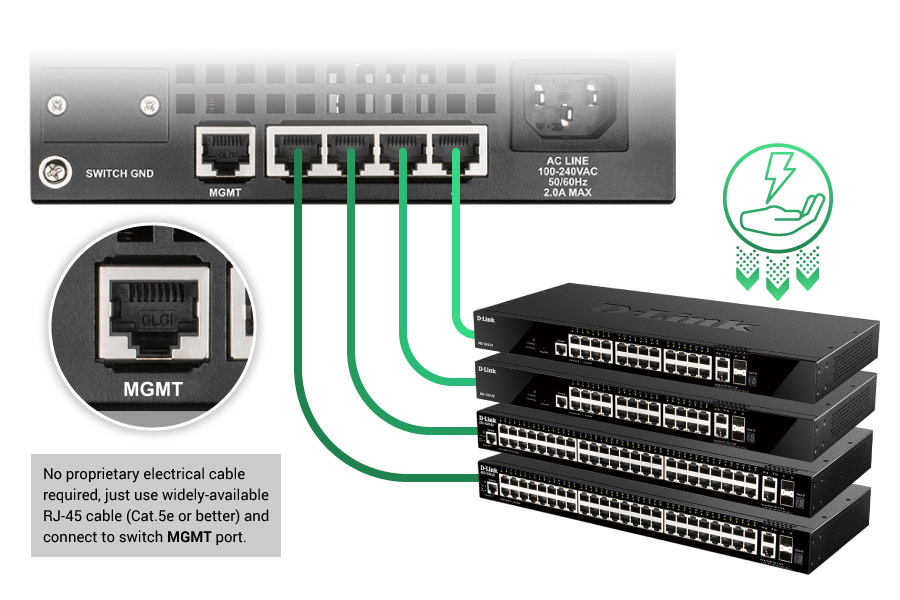

Minimize Outages with Power Redundancy

For a more resilient network infrastructure, connect up to four DGS-1520 switches (non-PoE models only) with the DPS-520 PoE redundant power supply system through the management port and actively back-up four devices to significantly reduce power redundancy costs.

  • Auto Discovery: Automatically detect power requirements of connected PD devices.
  • RPS Port Priority: Enables administrators to define RPS failover policy.
  • Status Reporting: Administrators can connect via web browser to remotely monitor DPS-520 status.

Low Network Latency, High PoE Budget

High Gigabit-port density with up to 188 GB total switching capacity, and up to 30 W per port with 370 W total PoE budget to power your PoE-enabled devices.

*DGS-1520-28MP/52MP

Enhanced Manageability for Peace of Mind

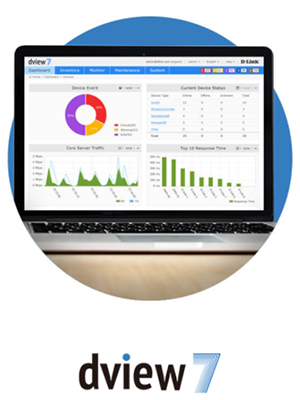

D-View 7
For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.

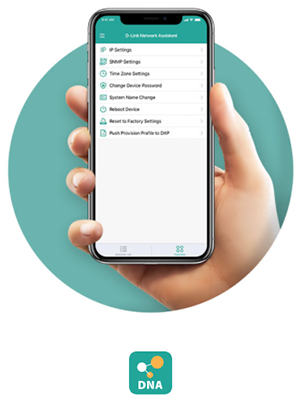

D-Link Network Assistant
Built upon a highly-intuitive user interface, the D-Link Network Assistant (DNA) simplifies device configuration using the D-Link Discovery Protocol, auto-detecting supported devices and displaying them for port-level configurations.


Features:

High Availability and Flexibility

  • 24 or 48 x 10/100/1000Base-T ports
  • 20 or 44 x 10/100/1000Base-T PoE and 4 x 2.5GBase-T PoE ports
  • 2 x 10GBase-T and 2 x SFP+ uplink ports

High Bandwidth Stacking

  • Physical Stacking of up to 8 units
  • 2 x 10GBase-T and/or 2 x SFP+
  • 80 Gbps physical stacking bandwidth

Advanced L2 features

  • RSPAN
  • Selective Q-in-Q

Advanced L3 features

  • IGMP v1/v2/v3
  • MLD v1/v2
  • PIM-SM/DM/SSM
  • Static Route
  • RIP/RIPng
  • OSPF

Reliability and Resiliency

  • Ethernet Ring Protection Switching (ERPS)
  • Virtual Router Redundancy Protocol (VRRP)
  • Redundant Power Supply (RPS) support

Management, Provisioning and Automation

  • D-View 7
  • D-Link Network Assistant (DNA)
  • Zero Touch Provisioning (ZTP)

Diagram:

Application Scenario

Technical Specifications:

D-Link DGS-1520 Series Specifications
  DGS-1520-28 DGS-1520-28MP DGS-1520-52 DGS-1520-52MP
General
Hardware Version A1 A1 A1 A1
Console Port 19” standard rack width, 1U height
Interfaces 24 x 10/100/1000Base-T Ports
2 x 10GBase-T Ports
2 x 10G SFP+ Ports
20 x 10/100/1000Base-T PoE Ports
4 x 2.5GBase-T PoE Ports
2 x 10GBase-T Ports
2 x 10G SFP+ Ports
48 x 10/100/1000Base-T Ports
2 x 10GBase-T Ports
2 x 10G SFP+ Ports
44 x 10/100/1000Base-T PoE
4 x 2.5GBase-T PoE Ports
2 x 10GBase-T Ports
2 x 10G SFP+ Ports
Standards
  • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
  • IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
  • IEEE 802.3az Energy-Efficient Ethernet (EEE)
  • IEEE 802.3x Flow Control
  • IEEE 802.3ae 10 Gigabit Ethernet
  • IEEE 802.3af/at
Media Interface Exchange Auto or configurable MDI/MDIX
LED
  • Power/Stacking ID/Fan (per device)
  • Link/Activity/Speed (per 10/100/1000 Mbps port, per 2.5G PoE port, per Gigabit SFP port, per 10G SFP+ port)
Functionality
Switching Capacity 128 Gbps 140 Gbps 176 Gbps 188 Gbps
Transmission Method Store-and-forward
MAC Address Table Up to 16,384 entries per device
Static MAC Addresses Up to 512 static MAC entries
Maximum Forwarding Rate 95.24 Mbps 104.16 Mbps 130.95 Mbps 139.88 Mbps
PoE Standard N/A IEEE802.3at,
IEEE802.3af
N/A IEEE802.3at,
IEEE802.3af
PoE Power Budget N/A 370 W, 740 W (with RPS) N/A 370 W, 740 W (with RPS)
Physical & Environmental
Power Input 100 to 240 VAC
Maximum Power Consumption 30.4 W 453.3 W (PoE On);
45.2 W (PoE Off )
51.2 W 459.5 W (PoE On);
66.3 W (PoE Off )
Standy Power Consumption 20.9 W/100 V;
21.5 W/240 V
37.2 W/100 V;
37.3 W/240 V
25.5 W/100 V;
26.8 W/240 V
39.8 W/100 V;
40.7 W/240 V
Acoustic 51.8 dB(A) 57.1 dB(A) 56.8 dB(A) 56.7 dB(A)
Heat Dissipation 103.7 BTU/hr 1545.8 BTU/hr 174.6 BTU/hr 1635.1 BTU/hr
MTBF 468252 Hours 333946 Hours 364888 Hours 328174 Hours
Operating Temperature -5 to 50 °C (23 to 122 °F)
Storage Temperature -40 - 70 °C (-40 - 158 °F)
Operating Humidity 10% to 95% non-condensing
Storage Humidity 5% to 95% non-condensing
Dimensions (W x D x H) 441 x 207.4 x 44 mm
(17.36 x 8.17 x 1.73 in)
441 x 308.5 x 44 mm
(17.36 x 12.15 x 1.73 in)
441 x 207.4 x 44 mm
(17.36 x 8.17 x 1.73 in)
441 x 308.5 x 44 mm
(17.36 x 12.15 x 1.73 in)
Weight 2.33 kg (5.14 lbs) 4.29 kg (9.46 lbs) 2.78 kg (6.13 lbs) 4.80 kg (10.58 lbs)
Certifications CE Class A, FCC Class A, IC Class A, RCM Class A, VCCI Class A, BSMI Class A
Software Features
Stackability
  • MAC Address Table
    • 10GBase-T and SFP+
    • Up to 8 units per stack
    • Up to 80 Gbps stacking bandwidth
    • Ring/chain topology support
  • Virtual stacking
    • D-Link Single IP Management (SIM)
    • Up to 32 units per virtual stack
L2 Features
  • MAC Address Table: 16,384 entries
  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • Jumbo Frames up to 12,288 Bytes
  • 802.1AX/802.3ad Link Aggregation
    • Max. 32 groups per device, 8 ports per group
  • Spanning Tree Protocols
    • 802.1D STP
    • 802.1w RSTP
    • 802.1s MSTP
    • BPDU Filtering
    • Root Guard
    • Loop Guard
  • Loopback Detection
  • Port Mirroring
    • Supports One-to-One, Many-to-One
    • Supports Mirroring for both Tx/Rx
    • Supports 4 mirroring groups
  • Flow mirroring
    • Supports Ingress Mirroring only
  • VLAN Mirroring
  • RSPAN
  • L2 Protocol Tunneling
  • Ethernet Ring Protection Switching (ERPS) v1/v2
L2 Multicasting
  • IGMP Snooping
    • IGMP v1/v2/v3 Snooping
    • Supports 512 IGMP groups
    • Host-based IGMP Snooping Fast Leave
    • Supports 128 static IGMP groups
    • Per VLAN IGMP Snooping
    • Data Driven Learning
    • IGMP Snooping Querier
    • Report Suppression
  • MLD Snooping
    • MLD v1/v2 Snooping
    • Support 256 MLD Groups
    • Host-based MLD Snooping Fast Leave
    • Supports 64 static MLD groups
    • MLD Snooping Querier
    • Per VLAN MLD Snooping
    • MLD Proxy Reporting
VLAN
  • VLAN Group
    • Max. 4K VLAN groups
    • Max. 1~4094 VIDs
  • GVRP
    • Max. 4K dynamic VLAN groups
  • Double VLAN (Q-in-Q)
    • Port-based Q-in-Q
  • Selective Q-in-Q
  • 802.1Q
  • Auto Surveillance VLAN
  • Port-based VLAN
  • 802.1v Protocol-based VLAN
  • Voice VLAN
  • MAC-based VLAN
  • Subnet-based VLAN
  • VLAN translation
  • Multicast VLAN (ISM VLAN for IPv4/IPv6)
  • Asymmetric VLAN
  • Private VLAN
  • VLAN Trunking
  • Super VLAN
L3 Features
  • IPv4 ARP Entries: 8192
    • 256 Static ARP
  • IPv6 ND Entries:4096
    • 128 Static ND Entries
  • IP Interface
    • Supports 16 interfaces
  • Gratuitous ARP
  • Loopback Interface
  • Proxy ARP
    • Support local ARP proxy
  • VRRP v2/v3
  • IP Helper
L3 Routing
  • Supports 1024 hardware routing entries shared by IPv4/IPv6
    • 1 entry consumed by each IPv4 route
    • 2 entries consumed by each IPv6 route
  • Supports up to 4096 hardware L3 forwarding entries shared by IPv4/IPv6
    • 1 entry consumed by each IPv4 route
    • 2 entries consumed by each IPv6 route
  • IPv4/IPv6 Static Route
    • Max. 512 IPv4 entries
    • Max. 256 IPv6 entries
  • Equal-Cost Multi-Path Route (ECMP)
  • Weighted-Cost Multi-Path Route (WCMP)
  • IPv4/IPv6 Default Route
  • Policy-based Route (PBR)
  • Null Route
  • Route Preference
  • Route Redistribution
  • RIPv1/v2/ng
  • OSPF
    • OSPF v2/v3
    • OSPF passive interface
    • Stub/NSSA area
    • Supports Equal-Cost Multi-Path Route (ECMP)
    • Text/MD5 authentication
L3 Multicasting
  • IGMP v1/v2/v3
  • IGMP Proxy
  • MLD v1/v2
  • MLD proxy
  • DVMRP v3
  • PIM Sparse-Dense Mode (PIM-SDM)
  • PIM-SM/DM/SSM for IPv4/IPv6
QoS (Quality of Service)
  • 802.1p
  • 8 queues per port
  • Queue Handling
    • Strict Priority
    • Weighted Round Robin (WRR)
    • Strict + WRR
    • Weighted Deficit Round Robin (WDRR)
  • Congestion Control
    • Weighted Random Early Detection (WRED)
    • 802.1Qbb Priority-based Flow Control (PFC) [10G ports only]
  • Policy Map
    • Remark 802.1p priority
    • Remark IP precedence/DSCP
    • Rate limiting
    • Time based QoS
  • CoS based on
    • Switch port
    • Inner/Outer VID
    • Inner/Outer 802.1p Priority
    • MAC address
    • Ether type
    • IP address
    • DSCP
    • ToS/IP preference
    • Protocol type
    • TCP/UDP port
    • IPv6 traffic class
    • IPv6 flow label
  • Bandwidth Control
    • Port-based (ingress/egress, min. granularity 8 Kbps)
    • Flow-based (ingress/egress, min. granularity 8 Kbps)
    • Per queue bandwidth control (min. granularity 8 Kb/s)
  • Three Color Marker
    • CIR/PIR minimum granularity: 8 kbps
    • trTCM
    • srTCM
Access Control List (ACL)
  • ACL based on
    • 802.1p priority
    • VID
    • MAC address
    • Ether Type
    • LLC
    • VLAN
    • IP address
    • IP preference/ToS
    • DSCP mask
    • Protocol type
    • TCP/UDP port number
    • IPv6 Traffic Class
    • IPv6 Flow Label
  • Time-based ACL
  • CPU Interface Filtering
  • Max. ACL entries:
    • Ingress (hardware entries): 1536
    • Egress (hardware entries): 512
    • VLAN Access Map Numbers: 2048
Security
  • Port Security
    • Supports up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control
  • D-Link Safeguard Engine
  • DHCP Server Screening
  • IP Source Guard
  • DHCP Snooping
  • IPv6 Snooping
  • Dynamic ARP Inspection (DAI)
  • DHCPv6 Guard
  • IPv6 Route Advertisement (RA) Guard
  • IPv6 ND Inspection
  • Duplicate Address Detection (DAD)
  • ARP Spoofing Prevention
    • Max. 64 entries
  • L3 Control Packet Filtering
  • Unicast Reverse Path Forwarding (URPF)
  • Traffic Segmentation
  • SSL
    • Supports TLS 1.0/1.1/1.2
    • Supports IPv4/IPv6 access
  • SSH
    • Supports SSH v2
    • Supports IPv4/IPv6 access
  • BPDU Attack Protection
  • DOS Attack Prevention
Authentication, Authorization, and Accounting (AAA)
  • Guest VLAN
  • 802.1X Authentication
    • Supports port/host-based access control
    • Identity-driven Policy Assignment
    • Dynamic VLAN Assignment
  • Web-based Access Control (WAC)
    • Supports port/host-based access control
    • Identity-driven Policy Assignment
    • Dynamic VLAN Assignment
  • MAC-based Access Control (MAC)
    • Supports port/host-based access control
    • Identity-driven Policy Assignment
    • Dynamic VLAN Assignment
  • RADIUS and TACACS+ Authentication
  • Authentication Database Failover
  • Compound Authentication
  • Privilege Level for Management Access
  • Trusted Host
  • RADIUS/TACACS+ Accounting
Green Features
  • Energy-Efficient Ethernet (EEE)
  • Power saving by link status
  • Power saving by LED shut-off
  • Power saving by port shut-off
  • Power saving by system hibernation
  • Time-based PoE (PoE models only)
Operation, Administration and Maintenance (OAM)
  • Cable Diagnostics
  • Optical Transceiver Digital Diagnostic
  • Monitoring (DDM)
Management
  • Web-based GUI
    • Support IPv4/IPv6 access
    • Support SSL (HTTPS)
  • Command Line Interface (CLI)
  • Telnet Server/Client for IPv4/IPv6
  • TFTP Client for IPv4/IPv6
  • DNS Client for IPv4/IPv6
  • Secure FTP Server/Client for IPv4/IPv6
  • SNMP
    • Supports v1/v2c/v3
    • Support for IPv4/IPv6 access
  • SNMP Trap
  • System Log for IPv4/IPv6 Syslog Server
  • sFlow
  • Multiple Images & Configurations
  • RMON v1:
    • Supports 1,2,3,9 groups
  • RMON v2:
    • Supports ProbeConfig group
  • LLDP/LLDP-MED
  • BootP/DHCP Client
  • DHCP Auto-Configuration/Auto Image
  • DHCP/DHCPv6 Local Relay
  • DHCP Relay Option 60/61/62/125
  • Flash File System
  • D-Link Discover Protocol (DDP)
  • Debug command
  • Support IPv4/v6 SNTP Server
  • NTPv3/v4
  • Password recovery/encryption
  • DHCP server
    • Support for IPv4/IPv6 address assignment
  • Command Logging
  • SMTP
  • DHCPv6 Prefix Delegation (PD)
  • Ping/ Traceroute for IPv4/IPv6
  • Microsoft Network Load Balancing (NLB)
  • PD Alive (PoE Models Only)
  • Zero Touch Provisioning (ZTP)
Warranty Information
Warranty Limited Lifetime

Product Views:


DGS-1520-28 Front View
DGS-1520-28 Side View

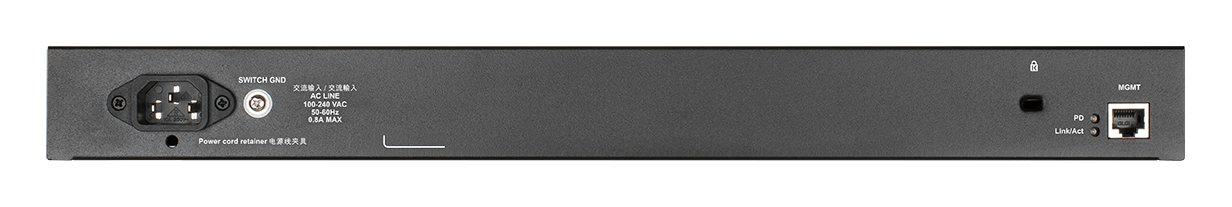

DGS-1520-28 Back View

Documentation:

Download the D-Link DGS-1520 Series Datasheet (PDF).

Pricing Notes:

D-Link Products
D-Link Smart Gigabit Switches
DGS-1520 Series Smart Managed 28-Port Gigabit Switch including 2 10G SFP+ and 2 10GBASE-T Ports
#DGS-1520-28
List Price: $1025.99
Our Price: $713.99
email subscribe

Enjoy Exclusive Weekly Deals from Virtual Graffiti
