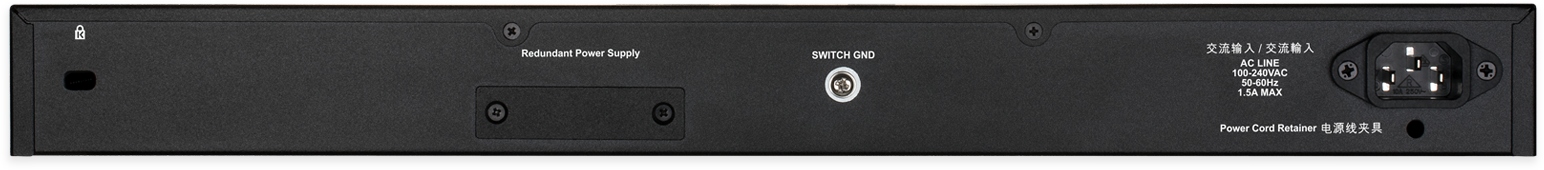

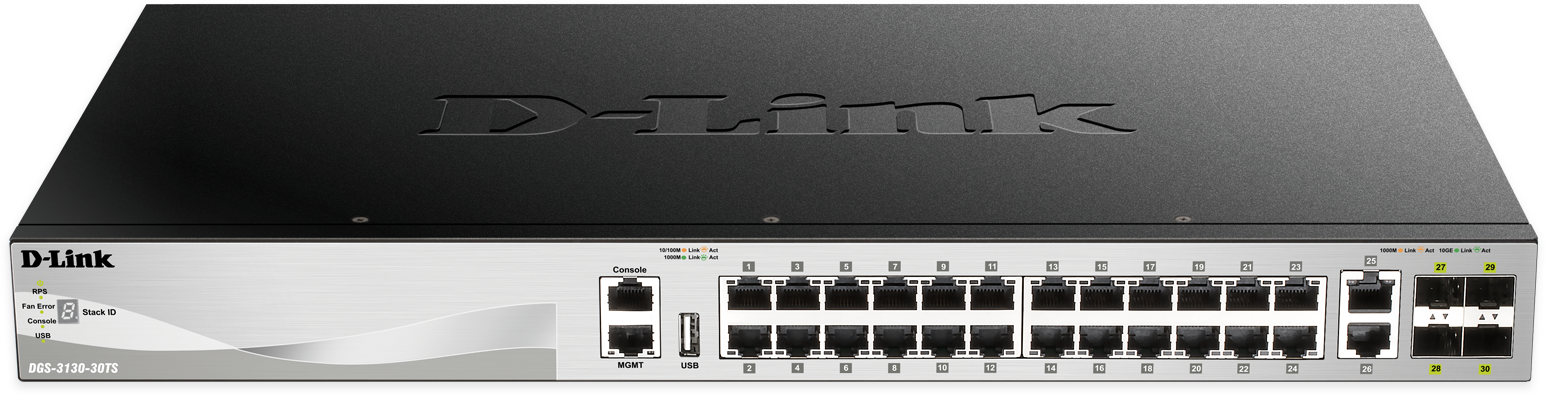

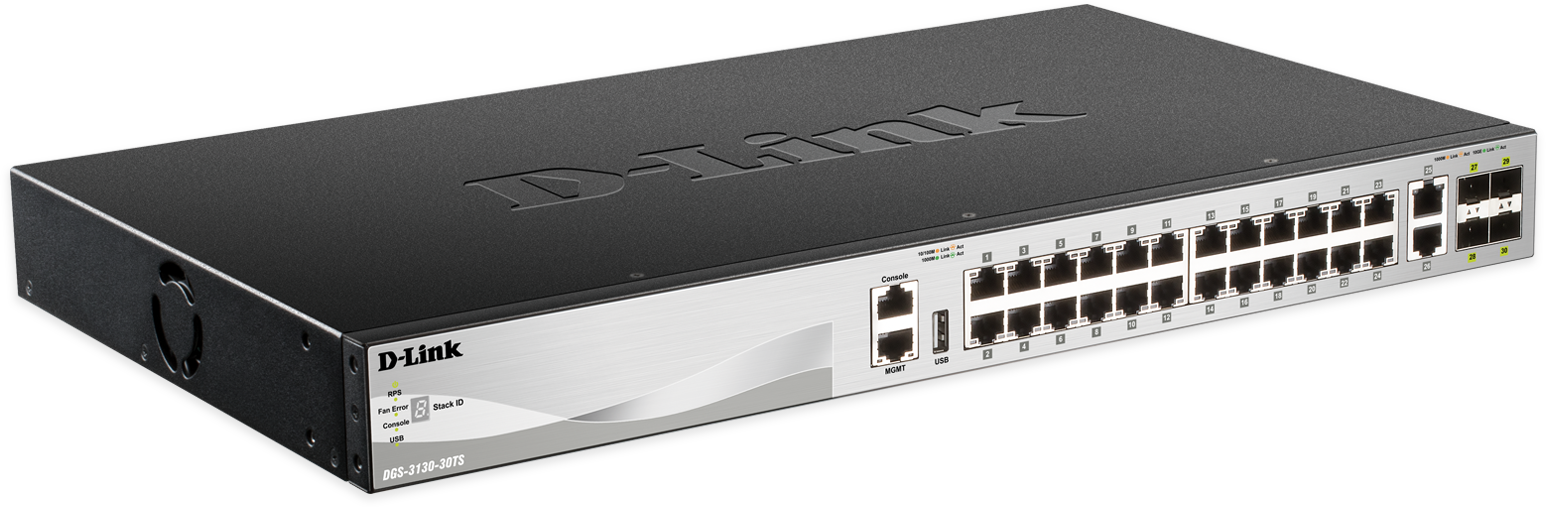

D-Link DGS-3130-30TS
30-Port L2+ Fully Managed Gigabit Switch

D-Link Products
D-Link Managed Layer 2+ Gigabit Switches
DGS-3130 Series 30-Port L2+ Fully Managed Gigabit Switch
#DGS-3130-30TS
List Price: $1,195.99
Our Price: $1,136.19

Click here to jump to more pricing!

Overview:

The DGS-3130 Series is a range of Lite Layer 3 Stackable Managed Switches designed to help connect end-users in a secure enterprise or metro Ethernet access network. These switches support multicast and enhanced security features, making them an ideal Gigabit access layer solution. The DGS-3130-30TS/54TS provide 24 or 48 10/100/1000 Mbps Gigabit Ethernet ports. The DGS-3130-30PS/54PS provide 24 or 48 10/100/1000 Mbps Power over Ethernet (PoE) Gigabit Ethernet ports. The DGS-3130-30S/54S provide 24 or 48 SFP Gigabit Ethernet ports. Each 10/100/1000 Mbps port on the DGS-3130-30PS/54PS supports the IEEE 802.3af and IEEE 802.3at PoE standards. The default power budget for these models is 370 watts and can be expanded to 740 watts with the DPS-700 redundant power supply. The switches are also equipped with a USB 2.0 port, allowing the user to boot images and upload configuration files directly, as well as conveniently save syslog files to an USB 2.0 storage device.

Enhanced Network Reliability

The DGS-3130 Series targets enterprises and metro Ethernet applications, and customers who require a high level of network security and maximum uptime. All the models in the DGS-3130 Series support an external redundant power supply to ensure continued operation. In addition, these switches incorporate essential reliability features to enhance network resilience, including 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP), and 802.1s Multiple Spanning Tree (MSTP), Loopback Detection (LBD), and Broadcast Storm Control. ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) minimizes the recovery time to 50 ms. For load sharing and redundancy backup in a switch cascading/server attachment configuration, the DGS-3130 Series provides dynamic 802.3ad Link Aggregation Port Trunking.

Comprehensive Security Features

The DGS-3130 Series provides users with security features such as Multi-layer and Packet Content Access Control Lists (ACL), Storm Control, and IP-MAC-Port Binding (IMPB) with DHCP Snooping. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and define the port number to enhance user access control. With the DHCP Snooping feature, the switch automatically learns IP/MAC pairs by snooping DHCP packets and saving them to the IMPB white list.

Easy Access Control Policies

The DGS-3130 Series supports authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and easy deployment. After authentication, individual policies such as VLAN membership, QoS policies, and ACL rules can be assigned to each host. In addition, the switch also supports Microsoft® NAP (Network Access Protection). NAP is a policy enforcement technology that helps customers protect network assets from compromised computers by enforcing compliance with network health policies.

Power over Ethernet Support

The DGS-3130-30PS and DGS-3130-54PS support industry standard IEEE 802.3at power over Ethernet across all Gigabit copper ports. They feature a total power budget of 370 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices. The PoE power budget can be increased to 740 W when the DPS-700 redundant power supply is used in conjunction. Power over Ethernet helps simplify deployment of surveillance devices and access point infrastructures by reducing cable clutter, eliminating the need for dedicated power supplies, and allowing PoE devices to be installed in remote locations.

Versatile Traffic Management

The DGS-3130 Series implements a rich set of multi-layer QoS/CoS features to help ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority. Traffic Shaping features guaranteed bandwidth for these services when the network is busy. L2 Multicast support enables the DGS-3130 Series to handle growing IPTV applications. Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth and to provide better security to the backbone network. The ISM VLAN profiles allow administrators to bind or replace the pre-defined multicast registration information to subscriber ports quickly and easily.

Lifetime Warranty and NBD Replacement

D-Link offers a Lifetime Warranty and Next Business Day (NBD) hardware replacement on the DGS-3130 Series Lite Layer 3 Stackable Managed Switches to further its commitment to product quality and long-term customer confidence.2

Features:

  • Stackable Fully Managed Switch
  • 24 x 10/100/1000 RJ45 ports
  • 2 x 10GBASE-T RJ45 ports
  • 4 x 10GbE SFP+ ports
  • Embedded 6 kV surge protection on all Gigabit Ethernet ports
  • L3 Features include VRRP, Static Route and RIPv1/v2/ng

Technical Specifications:

General

Hardware version = A

Ports:

DGS-3130-30TS
• 24 x 10/100/1000BASE-T ports
• 2 x 10GBASE-T ports
• 4 x 10G SFP+ ports

DGS-3130-30S
• 24 x SFP ports
• 2 x 10GBASE-T ports
• 4 x 10G SFP+ ports

DGS-3130-30PS
• 24 x 10/100/1000BASE-T PoE ports
• 2 x 10GBASE-T ports
• 4 x 10G SFP+ ports

DGS-3130-54TS
• 48 x 10/100/1000BASE-T ports
• 2 x 10GBASE-T ports
• 4 x 10G SFP+ ports

DGS-3130-54S
• 48 x SFP ports
• 2 x 10GBASE-T ports
• 4 x 10G SFP+ ports

DGS-3130-54PS
• 48 x 10/100/1000BASE-T PoE ports
• 2 x 10GBASE-T ports
• 4 x 10G SFP+ ports

Optional Redundant Power Supply

DGS-3130-30TS / DGS-3130-30S
• DPS-500A

DGS-3130-54TS / DGS-3130-54S
• DPS-500A

DGS-3130-30PS / DGS-3130-54PS
• DPS-700

Console Port
10/100/1000BASE-T RJ-45 port for out-of-band CLI management

Management Port
10/100/1000BASE-T RJ-45 port for out-of-band IP management

Stacking Ports = 4

Stacking Cost1
DGS-3130-30TS = 1
DGS-3130-30S = 1
DGS-3130-30PS = 1
DGS-3130-54TS = 2
DGS-3130-54S = 2
DGS-3130-54PS = 2

USB Ports
1 x USB 2.0 Type A port

Performance

Switching Capacity
DGS-3130-30TS = 168 Gbps
DGS-3130-30S = 168 Gbps
DGS-3130-30PS = 168 Gbps
DGS-3130-54TS = 216 Gbps
DGS-3130-54S = 216 Gbps
DGS-3130-54PS = 216 Gbps

64-Byte Packet Forwarding Rate
DGS-3130-30TS = 125 Mpps
DGS-3130-30S = 125 Mpps
DGS-3130-30PS = 125 Mpps
DGS-3130-54TS = 161 Mpps
DGS-3130-54S = 161 Mpps
DGS-3130-54PS = 161 Mpps

Packet Buffer Memory
DGS-3130-30TS = 2 MB
DGS-3130-30S = 2 MB
DGS-3130-30PS = 2 MB
DGS-3130-54TS = 4 MB
DGS-3130-54S = 4 MB
DGS-3130-54PS = 4 MB

Power over Ethernet (DGS-3130-30PS and DGS-3130-54PS only)

PoE Standards
IEEE 802.3af / IEEE 802.3at

PoE Ports
DGS-3130-30PS = ports 1 to 24
DGS-3130-54PS = ports 1 to 48

PoE Budget
370 W (740 W with DPS-700 RPS)

Physical & Environmental

MTBF (Hours)

DGS-3130-30TS = 900,546 hours
DGS-3130-30S = 487,153 hours
DGS-3130-30PS = 409,054 hours
DGS-3130-54TS = 478,258 hours
DGS-3130-54S = 520,861 hours
DGS-3130-54PS = 356,876 hours

Acoustics

DGS-3130-30TS = Max: 52.5 dB / Min: 33.5 dB
DGS-3130-30S = Max: 54 dB / Min: 41.1 dB
DGS-3130-30PS = Max: 53.4 dB / Min: 40.4 dB
DGS-3130-54TS = Max: 51.9 dB / Min: 32.7 dB
DGS-3130-54S = Max: 54 dB / Min: 37.5 dB
DGS-3130-54PS = Max: 54.2 dB / Min: 36.8 dB

Heat Dissipation

DGS-3130-30TS = 104.65 BTU/h
DGS-3130-30S = 281.16 BTU/h
DGS-3130-30PS = 1609.41 BTU/h (with 370 W PoE load) / 3043.97 BTU/h (with 740 W PoE load)
DGS-3130-54TS = 172.72 BTU/h
DGS-3130-54S = 446.99 BTU/h
DGS-3130-54PS = 1662.6 BTU/h (with 370 W PoE load) / 3097.24 BTU/h (with 740 W PoE load)

Power Input
100 to 240 VAC, 50 to 60 Hz

Max Power Consumption

DGS-3130-30TS = 30.76 W
DGS-3130-30S = 82.4 W
DGS-3130-30PS = 471.67 W (with 370 W PoE load) / 892.1 W (with 740 W PoE load)
DGS-3130-54TS = 50.62 W
DGS-3130-54S = 131 W
DGS-3130-54PS = 487.26 W (with 370 W PoE load) / 907.71 W (with 740 W PoE load)

Dimensions (W xD x H)

DGS-3130-30TS = 440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in)
DGS-3130-30S = 440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in)
DGS-3130-30PS = 440 x 350 x 44 mm (17.32 x 13.78 x 1.73 in)
DGS-3130-54TS = 440 x 290 x 44 mm (17.32 x 11.42 x 1.73 in)
DGS-3130-54S = 440 x 350 x 44 mm (17.32 x 13.78 x 1.73 in)
DGS-3130-54PS = 440 x 350 x 44 mm (17.32 x 13.78 x 1.73 in)

Weight

DGS-3130-30TS = 2.98 kg (6.57 lbs)
DGS-3130-30S = 3.21 kg (7.08 lbs)
DGS-3130-30PS = 4.66 kg (10.27 lbs)
DGS-3130-54TS = 3.72 kg (8.20 lbs)
DGS-3130-54S = 4.52 kg (9.96 lbs)
DGS-3130-54PS = 5.14 g (11.33 lbs)

Ventilation

DGS-3130-30TS = 1 x Smart fan
DGS-3130-30S = 3 x Smart fans
DGS-3130-30PS = 3 x Smart fans
DGS-3130-54TS = 2 x Smart fans
DGS-3130-54S = 5 x Smart fans
DGS-3130-54PS = 4 x Smart fans

Operation Temperature
0°C to 50°C (32°F to 122°F)

Storage Temperature
-40°C to 70°C (-40°F to 158°F)

Operating Humidity
10% to 90% RH

Storage Humidity
% to 90% RH

Emission (EMI)
FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI, CCC

Safety
CB, cUL, BSMI, CCC

Software Features

Stackability
Physical stacking
• Stacking Lite
• Up to 9 units per stack or up to 12 stacking cost per stack1
Virtual stacking
• D-Link Single IP Management (SIM)
• Up to 32 units per virtual stack

L2 Features
MAC Address Table: 16K (16,384) entries
Flow Control
• 802.3x Flow Control
• HOL Blocking Prevention
Jumbo Frames up to 9 Kbytes
802.3ad Link Aggregation
• Max. 32 groups per device, 8 Gigabit ports per group
Spanning Tree Protocols
• 802.1D STP
• 802.1w RSTP
• 802.1s MSTP
• BPDU Filtering
• Root Restriction
Loopback Detection
Port Mirroring
• One-to-One
• Many-to-One
• Flow-based
• RSPAN Mirroring
Ethernet Ring Protection Switching (ERPS)
• Single ring topology

L2 Multicasting
IGMP Snooping
• IGMP v1/v2/v3 Snooping
• Supports 1024 IGMP groups
• Port/Host-based IGMP Snooping Fast Leave
Limited IP Multicast
• Up to 24 IGMP filtering profiles, 128 ranges per profile
Double VLAN Q-in-Q
• Port-based Q-in-Q
• Selective Q-in-Q
MLD Snooping
• MLD v1/v2 Snooping
• Support 1024 MLD Groups
• Host-based MLD Snooping Fast Leave

VLAN
VLAN Group
• Max. 4K VLAN groups
GVRP
• Max. 4K dynamic VLAN groups
802.1Q Tagged VLAN
Port-based VLAN
802.1v Protocol VLAN
Voice VLAN
MAC-based VLAN
VLAN translation
ISM VLAN
Asymmetric VLAN
Private VLAN
VLAN Trunking
Super VLAN

QoS (Quality of Service)
802.1p
8 queues per port
Queue Handling
• Strict Priority
• Weighted Round Robin (WRR)
• Strict + WRR
Supports following actions for flows
• Remark 802.1p Priority Tag
• Remark TOS/DSCP Tag
• Bandwidth Control
CoS based on
• Switch port
• VLAN ID
• 802.1p priority queues
• MAC address
• IPv4 address
• DSCP
• Protocol type
• TCP/UDP port
• User-defined packet content
• IPv6 address
• IPv6 traffic class
• IPv6 flow label
Bandwidth Control
• Port-based (ingress/egress, min. granularity 8 Kbps)
• Flow-based (ingress/egress, min. granularity 8 Kbps)
Three Color Marker
• CIR/PIR minimum granularity: 8 kbps
• Two Rate Three Color Marker (trTCM), CBS/PBS
• Single Rate Three Color Marker (srTCM), CBS/EBS

Access Control List (ACL)
ACL based on
• 802.1p priority
• VLAN ID
• MAC address
• Ether Type
• IPv4 address
• DSCP
• Protocol type
• TCP/UDP port number
• User-defined packet content
• IPv6 address
• IPv6 flow label
• IPv6 traffic class
Supports up to 2048 ingress access entries
Supports up to 512 egress access entries
Time-based ACL
CPU Interface Filtering

Security Features
SSH v2
SSL v1/v2/v3
Port Security
• Up to 64 MAC addresses per port
IP-MAC Port Binding
DHCP Snooping
Supports up to 500 address binding entries
Broadcast/Multicast/Unicast Storm Control
Traffic segmentation
D-Link Safeguard Engine
NetBIOS/NetBEUI Filtering
IPv6 ND Snooping
DHCP Server Screening
ARP Spoofing Prevention
DoS Attack Prevention
BPDU Attack Protection
ARP Packet Inspection
IP Packet Inspection

AAA
802.1X:
• Port-based Access Control
• Host-based Access Control
• Identity-driven Policy (VLAN, ACL or QoS) Assignment
• Authentication Database Failover
Web-based Access Control (WAC):
• Port-based Access Control
• Host-based Access Control
• Identity-driven Policy (VLAN, ACL or QoS) Assignment
• Authentication Database Failover
MAC-based Access Control (MAC):
• Port-based Access Control
• Host-based Access Control
• Identity-driven Policy (VLAN, ACL or QoS) Assignment
• Authentication Database Failover
Guest VLAN
Microsoft® NAP
• Support 802.1X NAP
• Support DHCP NAP
RADIUS Accounting
RADIUS and TACACS+ authentication for switch access
Four levels of User Account Control

Green Features
Compliant with RoHS
Power saving by Link Status
Power saving by cable length
Time-based PoE
IEEE 802.3az Energy-Efficient Ethernet (EEE)

OAM
Cable diagnostics
Hardware-based Dying Gasp
802.3ah Ethernet Link OAM

Management
Web-based GUI
Command Line Interface (CLI)
Telnet Server
Telnet Client
TFTP Client
DNS Client
Secure FTP Server
ZModem
SNMP v1/v2c/v3
SNMP Traps
System Log
sFlow
Multiple images Multiple Configurations
RMON v1:
• Supports 1,2,3,9 groups
RMON v2:
• Supports ProbeConfig group
LLDP
BootP/DHCP Client
DHCP Auto-Configuration
DHCP Relay
DHCP Client Option 12
DHCP Relay Option 18, 37, 82
Flash File System
PPPoE Circuit-ID Tag Insertion CPU monitoring
Debug command
SNTP
NTP
Password recovery
Password encryption
Trusted Host
ICMPv6
DHCP server

L3 Features
Max. 16 IP interfaces
ARP Proxy
IPv6 Neighbour Discovery (ND)
VRRP

L3 Routing
Static Route
• Max. 512 IPv4 entries
• Max. 512 IPv6 entries
RIPv1/v2/ng

L3 Multicasting
IGMP Filtering
• Port-based filtering
• VLAN-based filtering

MIB
• RFC 1213 MIB II
• RFC 4188 Bridge MIB
• RFC 1157, 2571-2576 SNMP MIB
• RFC 1907 SNMPv2 MIB
• RFC 1757, 2819 RMON MIB
• RFC 2021 RMONv2 MIB
• RFC 1398, 1643, 1650, 2358, 2665 Ether-like MIB
• RFC 2674 802.1p MIB RFC 2233, 2863 IF MIB
• RFC 2618 RADIUS Authentication Client MIB
• RFC 2620 RADIUS Accounting Client MIB
• RFC 2925 PING & TRACEROUTE MIB
• RFC 2674, 4363 802.1p MIB
• RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
• RFC 1215 MIB Traps Convention
• RFC 1212 Concise MIB Definitions
• RFC 1215 MIB Traps Convention
• RFC 1157, 2571-2576 SNMP MIB
• RFC 4022 MIB for TCP
• RFC 4113 MIB for UDP
• RFC 4293 IPv6 SNMP Mgmt Interface MIB
• RFC 2737 Entity MIB (version 2)

RFC Standard Compliance
• RFC 768 UDP
• RFC 791 IP
• RFC 792, 2463, 4443 ICMP
• RFC 793 TCP
• RFC 826 ARP
• RFC 3513, 4291, IPv6 Addressing Architecture
• RFC 2893, 4213 IPv4/IPv6 dual stack function
• RFC 2463, 4443 ICMPv6
• RFC 2462, 4862 IPv6 Stateless Address Auto Configuration
• RFC 2464 IPv6 Ethernet and definition
• RFC 1981 Path MTU Discovery for IPv6
• RFC 2460 IPv6
• RFC 2461, 4861 Neighbor Discovery for IPv6
• RFC 783 TFTP
• RFC 2068 HTTP
• RFC 1492 TACACS
• RFC 2866 RADIUS Accounting
• RFC 2474, 3260 DiffServ
• RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
• RFC 2571, 2572, 2573, 2574, SNMP
• RFC 854 Telnet
• RFC 951, 1542 BootP

Ordering Information

• DGS-3130-30TS 24 10/100/1000BASE-T ports, 2 10GBASE-T ports, and 4 10G SFP+ port Lite L3 Stackable Managed Switch
• DGS-3130-30S 24 SFP ports, 2 10GBASE-T ports, and 4 10G SFP+ port Lite L3 Stackable Managed Switch
• DGS-3130-30PS 24 10/100/1000BASE-T PoE ports, 2 10GBASE-T ports, and 4 10G SFP+ port Lite L3 Stackable Managed Switch
• DGS-3130-54TS 48 10/100/1000BASE-T ports, 2 10GBASE-T ports, and 4 10G SFP+ port Lite L3 Stackable Managed Switch
• DGS-3130-54S 48 SFP ports, 2 10GBASE-T ports, and 4 10G SFP+ port Lite L3 Stackable Managed Switch
• DGS-3130-54PS 48 10/100/1000BASE-T PoE ports, 2 10GBASE-T ports, and 4 10G SFP+ port Lite L3 Stackable Managed Switch

Optional 10GbE SFP+ Transceivers
• DEM-431XT 10GBASE-SR Multimode SFP+ Optical Transceiver, 0 to 70C
• DEM-432XT 10GBASE-LR Single-mode SFP+ Optical Transceiver, 0 to 70C

Optional Gigabit SFP Transceivers
• DEM-310GT 1000BASE-LX Single-mode SFP Optical Transceiver, 0 to 70C
• DEM-311GT 1000BASE-SX Multimode SFP Optical Transceiver, 0 to 70C
• DGS-712 1000BASE-T to SFP Transceiver

Optional 10GbE SFP+ Direct Attach Copper Cables
• DEM-CB100S 10GbE SFP+ 1m Direct Attach Cable
• DEM-CB300S 10GbE SFP+ 3m Direct Attach Cable

Optional Redundant Power Supplies
• DPS-500A AC Redundant Power Supply
• DPS-700 AC Redundant Power Supply for PoE Models

Documentation:

Download the D-Link DGS-3130 Series Datasheet (PDF).

1 When stacking the DGS-3130-30TS/30S/30PS models, the stacking cost is 1 per unit. The maximum units per stack is 9.
When stacking the DGS-3130-54TS/54S/54PS models, the stacking cost is 2 per unit. The maximum units per stack is 6.
When stacking different models in the same stack, switches can be stacked up to a maximum of 12 stacking cost per stack. For example: 2 x DGS-3130-30TS (2 stacking cost) + 2 x DGS-3130-30S (2 stacking cost) + 4 x DGS-3130-54TS (8 stacking cost) consumes a total stacking cost of 12 (2+2+8).

2 Lifetime Warranty available in U.S.A. only. Lifetime Warranty void when not purchased from Authorized US D-Link Reseller. Please visit us.dlink.com for list of Authorized US Resellers.

Pricing Notes:

D-Link Products
D-Link Managed Layer 2+ Gigabit Switches
DGS-3130 Series 30-Port L2+ Fully Managed Gigabit Switch
#DGS-3130-30TS
List Price: $1,195.99
Our Price: $1,136.19
