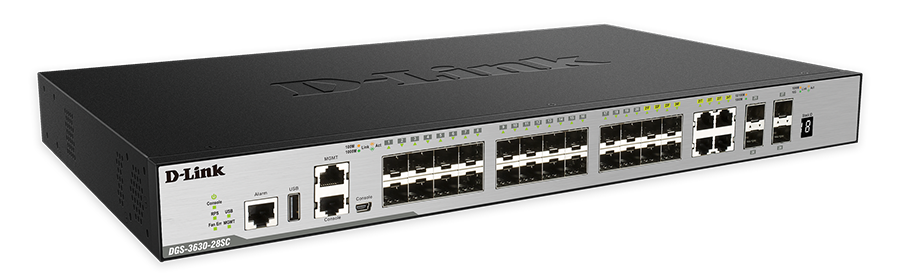

D-Link DGS-3630-28SC
28-Port Layer 3 Stackable Managed Gigabit Switch including 4 10GbE Ports

D-Link DGS-3630-28SC

D-Link Products
D-Link Managed Switches
DGS-3630 Series 28-Port L3 Fully Managed Gigabit SFP Switch
List Price: $2,810.99
Our Price: $2,670.44

Click here to jump to more pricing!


Product Highlights

  • High Performance
    Gigabit access ports and 10 Gigabit uplinks provide high bandwidth connections for clients, servers, and storage
  • Flexible Software
    Upgradeable software image provides a flexible approach to software management
  • High Availability
    Up to 9 physical switches can be stacked to create a single virtual switch, providing fault tolerance and increasing network reliability

The DGS-3630 Series Layer 3 Stackable Managed Switches are designed for Small Medium Businesses (SMBs), Small Medium Enterprises (SMEs), larger Enterprises, and ISPs. They deliver high performance, flexibility, fault tolerance, and advanced software features for maximum return on investment. With Gigabit Ethernet RJ45 and SFP ports, 10 GbE SFP+ ports, advanced security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches. High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications.

Standard and Enhanced Software Images
The DGS-3630 Series switches include the Standard Image (SI) software, and for additional functionality, they may be upgraded to Enhanced Image (EI) with a separately ordered license upgrade. The Standard Image provides core SMB and SME functionality, such as L2 switching, entry-level routing, L2 multicast, advanced QoS, Operations, Administration, and Maintenance (OAM), and robust security features. The Enhanced Image includes all the features from the Standard Image, and also supports full L3 routing for Enterprise integration, including OSPF, BGP, VRF-Lite and L3 multicast.

This approach allows I.T. managers to deploy a lower cost L2/L2+ solution today, and upgrade to a L3 solution in the future if networking needs change and a full dynamic routing solution is required.

High Availability and Flexibility
The DGS-3630 Series switches support stacking technology, which combines multiple switches to form a single physical or virtual stack. This increases redundancy over multiple physical units, simplifies management, and provides a single IP address to manage all members in the stack. Up to 9 switches can be stacked using Direct Attach Copper (DAC) or fiber optic cables to make up to 432 Gigabit Ethernet ports available, allowing switching capacity to be increased with demand. The Switch Resource Management (SRM) feature allows the hardware table size to be changed, so that switch functions can be optimized based on the use of the switch. There are 3 modes: IP Mode, LAN Mode, and L2 VPN Mode, which modify the size of the Layer 2 and 3 tables for optimum efficiency.

Security, Performance and Availability
The DGS-3630 Series switches provide a complete set of security features including multi-layer Access Control Lists (ACLs) and 802.1X user authentication via TACACS+ and RADIUS. The DGS-3630 switches also offer extensive VLAN support, including GVRP and 802.1Q VLAN to enhance security and performance. A robust set of QoS features help ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network. The D-Link Safeguard Engine increases the switches’ reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.

D-Link Green Technology
The DGS-3630 Series switches feature D-Link Green technology, which includes a power-saving mode, smart fan feature, reduced heat dissipation, and cable length detection. The power-saving feature automatically powers down ports that have no link or link partner, and ensures that LEDs are shut off when not needed. The smart fan3 feature allows for the built-in fans to automatically turn on only at a certain temperature, providing continuous, reliable, and ecofriendly operation of the switch.

Versatile Management
The DGS-3630 Series switches can be managed by the D-Link Network Assistant Utility, an industry-standard Command Line Interface (CLI), and an intuitive web-based Graphical User Interface (GUI) that enables administrators to set up and remotely manage their networks. Support for SNMP allows centralized management of a large number of devices, and out-of-band management is available via a dedicated console port. A mini-USB console port allows the DGS-3630 Series switches to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images. The DHCP auto-configuration and auto-image features can also be used to deploy multiple switches automatically, saving costs with larger deployments.

Lifetime Warranty and NBD Replacement
D-Link offers a Lifetime Warranty and Next Business Day (NBD) hardware replacement on the DGS-3630 Series of Layer 3 Stackable Managed Gigabit Switches to further its commitment to product quality and long-term customer confidence..


High Availability and Flexibility

  • 20/44 10/100/1000BASE-T ports or 20 SFP ports
  • 4 Combo 10/100/1000BASE-T/SFP ports
  • 4 10-Gigabit SFP+ uplink ports
  • Switch Resource Management (SRM) for flexible management of system resources
  • 6 kV surge protection on all RJ45 access ports


  • Redundant Power Supply (RPS) support
  • IEEE 802.1D/802.1w/802.1s Spanning Tree
  • Loopback Detection (LBD)
  • Ethernet Ring Protection Switching (ERPS)

High Bandwidth Stacking

  • Physical stacking up to 9 units, 432 GbE ports
  • Supports long-distance stacking over fiber
  • 80 Gbps per device physical stacking bandwidth

Operations, Administration and Maintenance

  • IEEE 802.3ah Ethernet First Mile (EFM)
  • IEEE 802.1ag/ITU-T Y.1731 OAM

Easy Management

  • RJ45/mini-USB console port
  • Management and alarm ports
  • USB port for firmware and configuration files
  • Easy-to-use web GUI
  • Industry standard CLI

Software Features:

Software Features
Standard Image (SI)
Stackability Physical stacking
  • Up to 80G stacking bandwidth
  • Up to 9 switches in a stack
  • Ring/chain topology support
Virtual Stacking/clustering of up to 32 units
  • Supports D-Link single IP Management
  • Up to 20 Gbps stacking bandwidth
L2 Features MAC Address Table : up to 68K entries2
Flow Control
  • • 802.3x Flow Control when using Full Duplex
  • HOL Blocking Prevention
Spanning Tree Protocol
  • • 802.1D STP
  • 802.1w RSTP
  • 802.1s MSTP
  • Root Guard
  • Loop Guard
Jumbo Frame: up to 12 KBytes
802.1AX Link Aggregation
  • • Max. 32 groups per device, 8 ports per group
ERPS (Ethernet Ring Protection Switching) version 2
Port Mirroring
  • Supports One-to-One, Many-to-One
  • Supports Mirroring for Tx/Rx/Both
  • Supports 4 mirroring groups
Flow Mirroring
  • Supports Mirroring for Rx
VLAN Mirroring
L2 Protocol Tunneling
VLAN 802.1Q
802.1v Protocol-based VLAN
Double VLAN (Q-in-Q)
  • Port-based Q-in-Q
  • Selective Q-in-Q
Port-based VLAN
MAC-based VLAN
Subnet-based VLAN
Private VLAN
VLAN Group
  • Max. 4K VLAN groups
  • Max. 4094 VIDs
Multicast VLAN (ISM VLAN for IPv4/IPv6)
Voice VLAN
Auto Surveillance VLAN
VLAN Trunking
GVRP: Up to 4K dynamic VLANs
Asymmetric VLAN
L2 Multicast MLD Snooping
  • MLD v1/v2 Snooping
  • Supports up to 4K MLD groups2
  • Host-based MLD Snooping Fast Leave
  • Supports 64 static MLD groups
  • MLD Snooping Querier
  • Per VLAN MLD Snooping
  • MLD Proxy Reporting
IGMP Snooping
  • IGMP v1/v2/v3
  • Supports up to 8K MLD groups2
  • Supports 64 static IGMP groups
  • Per VLAN IGMP Snooping
  • IGMP Snooping Querier
  • Host-based IGMP Snooping Fast Leave PIM Snooping
L3 Features IPv4 ARP/IPv6 ND: support up to 32K/16K2
  • 512 Static ARP
Gratuitous ARP
IP Interface
  • Supports 256 interfaces
Loopback Interface
Proxy ARP
  • Support local ARP proxy
IPv6 Tunneling
  • Static
  • GRE
  • 6to4
VRRP v2/v3
IP Helper
L3 Routing Supports 16K hardware routing entries shared by IPv4/IPv6
  • 1 entry consumed by each IPv4 route
  • 2 entries consumed by each IPv6 route
Supports up to 32K hardware L3 forwarding entries shared
by IPv4/IPv62
  • 1 entry consumed by each IPv4 route
  • 2 entries consumed by each IPv6 route
Static Route
  • Max. 512 IPv4 entries
  • Max. 256 IPv6 entries
IPv4/IPv6 Default Route
PBR (Policy-based Route)
Null Route
Route Preference
Route Redistribution
Graceful Restart (GR) Helper
BFD (Bidirectional Forwarding Detection)
  • IPv4/v6 Static Route
  • RIP
  • VRRP
L3 Mulitcast IGMP/MLD Filtering
QoS (Quality of Service) 802.1p
8 queues per port
Queue Handling
  • Strict Priority (SP)
  • Weighted Round Robin (WRR)
  • Strict + WRR
  • Weighted Deficit Round Robin (WDRR)
Congestion Control
  • Weighted Random Early Detection (WRED)
    802.1Qbb Priority-based Flow Control (PFC) for 10 GbE port
Bandwidth Control
  • Port-based (Ingress/Egress, min. granularity 8 Kb/s)
  • Flow-based (Ingress/Egress, min. granularity 8 Kb/s)
  • Per queue bandwidth control (min. granularity 8 Kb/s)
Policy Map
  • Remark 802.1p priority
  • Remark IP precedence/DSCP
  • Time based QoS
CoS based on:
  • Switch Port
  • Inner/ outer 802.1p Priority
  • Inner/ outer VID
  • MAC address
  • Ether Type
  • IP address
  • ToS/IP Preference
  • DSCP
  • Protocol Type
  • TCP/UDP port
  • IPv6 Traffic Class
  • IPv6 Flow Label
    Three Color Marker
  • trTCM
  • srTCM
ACL (Access Control List) ACL based on:
  • 802.1p priority
  • VID
  • MAC address
  • EtherType
  • LLC
  • VLAN
  • IP address
  • IP preference/ToS
  • DSCP mask
  • Protocol type
  • TCP/UDP port number
  • IPv6 Traffic Class
  • IPv6 Flow Label
Max. ACL entries:
  • Ingress (hardware entries): 4K
  • Egress (hardware entries): 1K
  • VLAN Access Map Numbers: 3K
    Time-based ACL
Green Energy Effeciency Ethernet (EEE)
Power Saving By Link Status
Power Saving By Cable Length
Power Saving By LED Shut-Off
Power Saving By Port Shut-Off
Power Saving By System Hibernation
Security Port Security
  • Supports up to 12K MAC addresses per port/VLAN/ system
Broadcast/Multicast/Unicast Storm Control
D-Link Safeguard Engine
DHCP Server Screening
Dynamic ARP Inspection
IP Source Guard
DHCP Snooping
IPv6 Snooping
Dynamic ARP Inspection (DAI)
DHCPv6 Guard
IPv6 Route Advertisement (RA) Guard
IPv6 ND Inspection
Duplicate Address Detection (DAD)
ARP Spoofing Prevention
  • Max. 64 entries
L3 Control Packet Filtering
Unicast Reverse Path Forwarding (URPF)
Traffic Segmentation
  • Supports TLS 1.0/1.1
  • Supports IPv4/IPv6 access
  • Supports SSH v2
  • Supports IPv4/IPv6 access
BPDU Attack Prevention
DOS Attack Prevention
NetBIOS/NetBEUI filtering
AAA 802.1X Authentication
  • Supports Port/Host-based access control
  • Identity-driven Policy Assignment
  • Dynamic VLAN Assignment
  • Bandwidth Control Assignment
  • ACL Assignment
Web-based Access Control (WAC)
  • Supports Port/Host-based access control
  • Identity-driven Policy Assignment
  • Dynamic VLAN Assignment
  • Bandwidth Control Assignment
  • ACL Assignment
  • Support IPv4/IPv6 access
  • Support HTTPS
Compound Authentication
MAC-based Access Control (MAC)
  • Supports Port/Host-based access control
  • Identity-driven Policy Assignment
  • Dynamic VLAN Assignment
  • Bandwidth Control Assignment
  • ACL Assignment
Guest VLAN
Microsoft® NAP
  • Support 802.1X NAP
  • Support DHCP NAP
Privilege Level for Management Access
RAIDUS and TACACS+ Authentication
Authentication Database Failover
OAM (Operations, Administration and Maintenance) Cable Diagnostics
802.3ah Ethernet Link OAM
D-Link Unidirectional Link Detection (DULD)
Dying gasp
802.1ag Connectivity Fault Management (CFM)
Y.1731 OAM
Optical Transceiver Digital Diagnostic Monitoring (DDM)
Management NTPv3/v4
Precision Time Protocol (PTP)
Web-based GUI
  • Support IPv4/IPv6 access
  • Support SSL (HTTPS)
Command Line Interface (CLI)
Telnet Server for IPv4/IPv6 access
Telnet Client for IPv4/IPv6
  • Support v1/v2c/v3
  • Support IPv4/IPv6 access
TFTP Client for IPv4/IPv6
FTP Client for IPv4/IPv6
IPv4 SFTP Server
System Log for IPv4/IPv6 Syslog Server
  • Supports 1,2,3,9 groups
  • Supports ProbeConfig group
Command Logging
D-Link Discover Protocol (DDP)
DHCP Client option 12
DHCP Auto-configuration
DHCP Auto-image
DHCP Relay option 60/61/62/18/37/125
DHCP/DHCPv6 Local Relay
DHCP Server
  • Support IPv4/IPv6 address assignment
DHCPv6 Prefix Delegation (PD)
Multiple Images/ Multiple Configurations
DNS Relay for IPv4/IPv6
DNS Client for IPv4/IPv6
Debug Command
Password Recovery/ Encryption
Ping/ Traceroute for IPv4/IPv6
Microsoft® Network Load Balancing (NLB)
Switch Resource Management (SRM)
D-Link License Management System (DLMS)
Enhanced Image (EI) (includes all SI features plus the following)
L3 Routing BGP
  • BGPv4/v4+
  • 4bytes AS
  • Text/MD5 for BGPv4
  • IPv4 Static Route
  • RIPv1/v2
  • OSPFv2
  • BGPv4
Bidirectional Forwarding Detection (BFD) for OSPF
  • OSPF v2/v3
  • OSPF passive interface
  • Stub/NSSA area
  • OSPF equal cost route
  • Text/MD5 for OSPFv2
L3 Mulitcast IGMPv1/v2/v3
SSM Mapping for IPv4/IPv6
Multicast Source Discovery Protocol (MSDP)
MIB/IETF Standards
  • RFC1065, RFC1066, RFC1155, RFC1156, RFC2578 MIB
  • RFC1212 Concise MIB Definitions
  • RFC1213 MIBII
  • RFC1215 MIB Traps Convention
  • RFC1493, RFC4188 Bridge MIB
  • RFC1157, RFC2571, RFC2572, RFC2573, RFC2574,
    RFC2575, RFC2576 SNMP MIB
  • RFC1442, RFC1901, RFC1902, RFC1903, RFC1904,
    RFC1905, RFC1906, RFC1907, RFC1908, RFC2578,
    RFC3418, RFC3636 SNMPv2 MIB
  • RFC271, RFC1757, RFC2819 RMON MIB
  • RFC2021 RMONv2 MIB
  • RFC1398, RFC1643, RFC1650, RFC2358, RFC2665,
    RFC3635 Ether-like MIB
  • RFC2668 802.3 MAU MIB
  • RFC2674, RFC4363 802.1p MIB
  • Interface Group MIB
  • RFC2618 RADIUS Authentication Client MIB
  • RFC4022 MIB for TCP
  • RFC4113 MIB for UDP
  • RFC2620 RADIUS Accounting Client MIB
  • TFTP uploads and downloads (D-Link MIB)
  • Trap MIB (D-Link MIB)
  • RFC4293 IPv6 MIB
  • RFC4293 ICMPv6 MIB
  • Entity MIB
  • RIPv2 MIB
  • IPv4 Multicast Routing MIB
  • PIM MIB for IPv4
  • IP Forwarding Table MIB
  • RFC4293 IPv6 SNMP Mgmt Interface MIB
  • DDM MIB (D-Link MIB)
  • Private MIB
  • MIB for D-Link Zone Defense
  • RFC791 IP
  • RFC768 UDP
  • RFC793 TCP
  • RFC792 ICMPv4
  • RFC2463, RFC4443 ICMPv6
  • RFC826 ARP
  • RFC1338, RFC1519 CIDR
  • RFC2474, RFC3168, RFC3260 Definition of the DS Field in the IPv4 and IPv6 Headers
  • RFC1321, RFC2284, RFC2865, RFC2716, RFC1759, RFC3580, RFC3748 Extensible Authentication Protocol (EAP)
  • RFC2571 SNMP Framework
  • RFC2572 SNMP Message Processing and Dispatching
  • RFC2573 SNMP Applications
  • RFC2574 User-based Security Model for SNMPv3
  • RFC1981 Path MTU Discovery for IPv6
  • RFC2460 IPv6
  • RFC2461, RFC4861 Neighbor Discovery for IPv6
  • RFC2462, RFC4862 IPv6 Stateless Address Autoconfiguration
  • RFC2464 IPv6 over Ethernet and definition
  • RFC2767 Dual Stack Hosts using the ‘Bump-In-the-Stack’ Technology
  • RFC3513, RFC4291 IPv6 Addressing Architecture
  • RFC2893, RFC4213 IPv4/IPv6 dual stack function
  • RFC3484 Default Address Selection for Internet Protocol version 6

Technical Specifications:

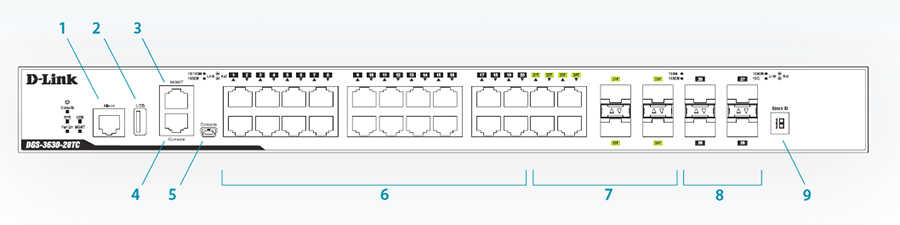

  1. Alarm RJ45 (8 pins) port provides external alarm detection.
  2. USB USB 2.0 Type-A port provides additional storage space for portable firmware images and configuration files.
  3. MGMT RJ45 Management port. IP-based, 10/100/1000 Out-of-Band port for Telnet, web, or SNMP management. Can be used to configure the switch without being connected to the network.
  4. Console RJ45 console port. Used to connect to the switch CLI for configuration, management, and monitoring. Special console cable (included) with DB9 interface connects the switch to the PC serial port (COM).
  5. Console Mini-USB console port. Can be used to connect to the switch CLI for configuration, management, and monitoring.
  6. Gigabit Ports Depends on model: 20 x 10/100/1000 RJ45, 44 x 10/100/1000 RJ45 ports, or 20 x 100/1000 SFP ports
  7. Combo Ports 4 Combo ports. Can either operate as RJ45 (10/100/1000) ports or SFP (100/1000) ports.
  8. 10GbE Ports 4 SFP/SFP+ ports can operate at 1 Gbps and 10 Gbps speeds. Used for uplinks/stacking.
  9. Stack ID Displays Switch stacking number.
  DGS-3630-28TC DGS-3630-28SC DGS-3630-52TC
  • 10/100/1000BASE-T Ports
20 44
  • Gigabit SFP Ports
  • Combo Ports (10/100/1000BASE-T or SFP)
4 4 4
  • 10 Gigabit SFP+ Ports
4 4 4
Console Port RJ45 and Mini USB console ports for out-of-band CLI management
Management Port 10/100/1000BASE-T RJ45 Ethernet for out-of-band IP management
Alarm Port RJ45 RJ45 RJ45
USB Port USB 2.0 Type A USB 2.0 Type A USB 2.0 Type A
Optional Redundant Power Supply DPS-500A DPS-500A DPS-500A
Optional Redundant Power Supply DPS-500A DPS-500A DPS-500A
Switch Capacity 128 Gbps 128 Gbps 176 Gbps
Packet Forwarding Rate 95.24 Mpps 95.24 Mpps 130.95 Mpps
Packet Buffer 4 MBytes 4 MBytes 4 MBytes
MAC Address Table 68K entries2 68K entries2 68K entries2
IPv4 Routing Table 16K entries 16K entries 16K entries
IPv6 Routing Table 7K entries 7K entries 7K entries
IPv4 Forwarding Table 32K entries2 32K entries2 32K entries2
IPv6 Forwarding Table 16K entries2 16K entries2 16K entries2
Jumbo Frame Size 12 KBytes 12 KBytes 12 KBytes
Physical and Environmental
MTBF 300,190 hours 280,612 hours 263,936 hours
Acoustics 52.7 dB(A) 56 dB(A) 53.9 dB(A)
Heat Dissipation 145 BTU/hr 217 BTU/hr 212 BTU/hr
Power Input 100 to 240 VAC, 50/60 Hz
Max Power Consumption 42.4 W 63.6 W 62.0 W
Standby Power Consumption 28.1 W 30.1 W 36.0 W
Dimensions 17.4 x 10.2 x 1.73 inches (441 x 260 x 44 mm)
Weight 8.25 lbs (3.74 kg) 8.36 lbs (3.79 kg) 8.91 lbs (4.04kg)
Ventilation 2 Smart Fans3
Operating Temperature 23°F to 122°F (-5°C to 50°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Operating Humidity 10% to 95% RH
Storage Humidity 5% to 95% RH
Safety Certifications cUL, CB, CE, CCC, BSMI
1 Stacking cable and USB flash card not included.
2 Based on maximum value of Switch Resource Management (SRM).
3 By default, the fan speed is low. When the temperature inside the chassis is over 36°C, the fans switch to high speed until the temperature drops below 33°C.
4 Limited Lifetime Warranty available in USA only.


Download the D-Link DGS-3630 Series Datasheet (PDF).

Pricing Notes:

D-Link Products
D-Link Managed Switches
DGS-3630 Series 28-Port L3 Fully Managed Gigabit SFP Switch
List Price: $2,810.99
Our Price: $2,670.44
D-Link License Upgrades
DGS-3630-28SC SI to EI License Upgrade
List Price: $345.99
Our Price: $328.69
