D-Link DIR-2680-W
D-Fend AC2600 Wi-Fi Router
Sorry, this product is no longer available, Please contact us for a replacement.
Overview:
The DIR-2680 is the ideal networking solution for the ever expanding smart home network that combines a Wi-Fi router with smart home protection, parental controls and anti-virus.
Features:
D-Fend Security powered by McAfeeTM
- Keep your kids safer online with comprehensive parental controls via the D-Fend1 app
- End-to-end protection with the McAfee Secure Home Platform2 that automatically helps to protect every device connected to your network
- Free installations of McAfee LiveSafeTM antivirus software3 for your computers, tablets and smartphones
Performance and Connectivity
- 802.11ac wireless specification delivers blazing fast wireless connectivity with increased range and reliability
- One 10/100/1000 Gigabit Ethernet WAN port for fast-paced Internet access
- Three Gigabit Ethernet LAN ports per unit to give you high-speed wired connectivity
- One SuperSpeed USB 3.0 port to share media from a storage device
Voice Assistant Compatibility
- Command D-Fend and your router’s functionality4 with your voice through Amazon Alexa
- Setup Wi-Fi guest zone and turn your wi-fi on and off without having to go into the UI
Technical Specifications
| DIR-2680 Technical Specifications | |
|---|---|
| General | |
| Device Interfaces(per unit) | IEEE 802.11 ac/n/g/b/a wireless LAN 1 x USB 3.0 port 3 x Gigabit LAN ports 1 x Gigabit WAN port |
| LEDs | Status LED |
| Antenna Type | Internal |
| Data Signal Rate | 2.4 GHz
|
| Functionality | |
| Wi-Fi Encryption | WPA/WPA2 (Wi-Fi Protected Access) |
| Advanced Features | Web-based setup wizard Quality of Service (QoS) IPv6 compatible MU-MIMO (Wi-Fi) Wi-Fi Protected Setup - Push-Button Configuration (WPS-PBC) D-Link Wi-Fi app compatible |
| Physical | |
| Dimensions (L x W x H) | 160 x 160 x 160 mm (62.9 x 62.9 x 62.9 in) |
| Weight (per unit) | 855 g |
| Power Input | 12 V / 3 A |
| Power Consumption | 36 W |
| Temperature | Operating: 0 to 40 °C (32 to 104 °F) Storage: -20 to 65 °C (-4 to 149 °F) |
| Humidity | Operating: 10% to 90% non-condensing Storage: 5% to 90% non-condensing |
| Certifications | FCC IC CE RCM |
Product Views:
|
 |

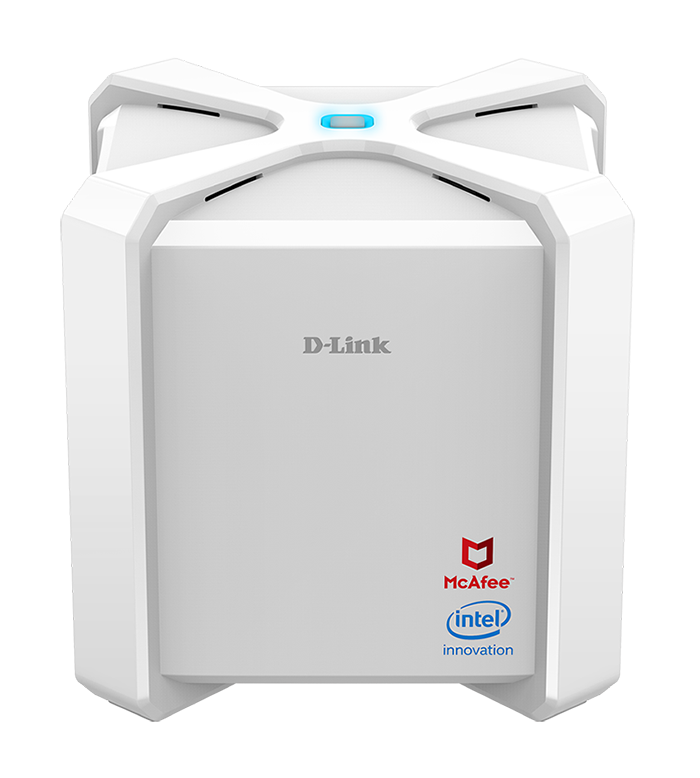

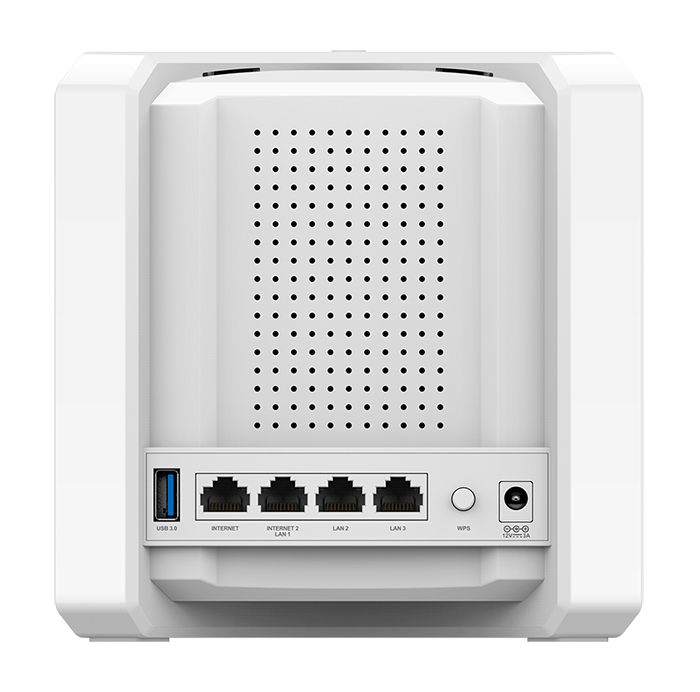

| D-Link DIR-2680 Front View | D-Link DIR-2680 Back View |
 |
 |

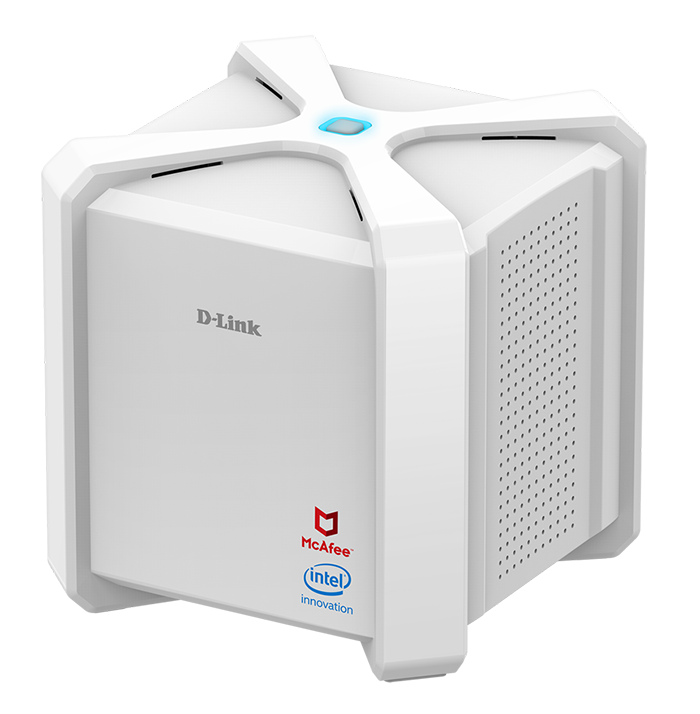

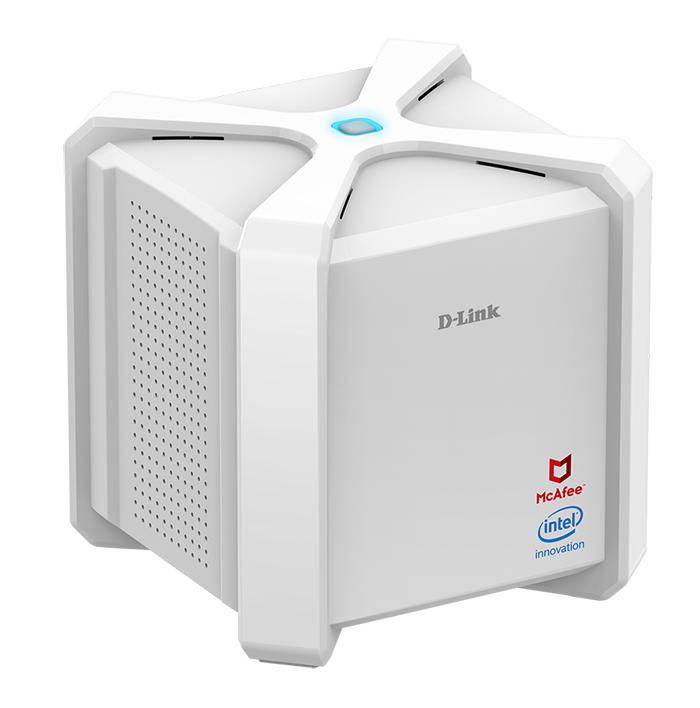

| D-Link DIR-2680 Angle Left View | D-Link DIR-2680 Right View |
Documentation:
Download the D-Link DIR-2680-US-W Datasheet (PDF).
