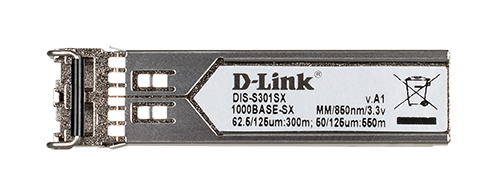

D-Link DIS-S301SX
Mini‑GBIC SFP to 1000BaseSX Multi‑Mode 550M Fibre Transceiver

Features

• Hot Pluggable
• MSA Compliant
• RoHS Compliant

Standard

Compliant Standard

• IEEE802.3z
• 1000BASE-SX

Transceiver Type

• SFP

Fiber Channel FC-PI standard

• 100-M6-SN-I/100-M5-SN-I

Fiber Media support

• Multi-Mode

Distance

• 62.5/125um: 300m
• 50/125um: 550m

Speed

• 1.25Gbps

Interface

Connector

• Duplex LC Connector

Single/bi Direction

• Single-direction

Wavelength

• 850nm

Output Optical Power (TX Optical Power)

• MAX.: -3dBm
• MIN.: -8 dBm

Input Optical Power (RX Optical Power)

• MAX.: - 3 dBm
• MIN.: - 22 dBm

Sensitivity

•  -22dBm

Cable Type

• Multi-mode 50/125um or 62.5/125um fibre

Operating

Power

•  3.3V

Max Input Current

• 300mA

Power Budget (MIN Power Budget)

• 14d B

MAX Power Budget

• 19d B

Heat Generated

• 1.782kJ/h

MTBF (hours)

• 224,167 hours

Physical & Environment

Operation Temperature

• -40~85℃

Storage Temperature

• -40~85℃

Humidity (Operating)

• 5%~95%

Humidity (Storage)

• 5%~95%

Dimension ( W x D x H )

• 13.7 x 55.4 x 8.5mm

Weight(g)

• 20g

Bail latch colour

• Black

Emission (EMI) and Safety Certifications

EMI

• CE, FCC, VCCI

Safety

• LVD, EN60825-1, EN 60825-2
