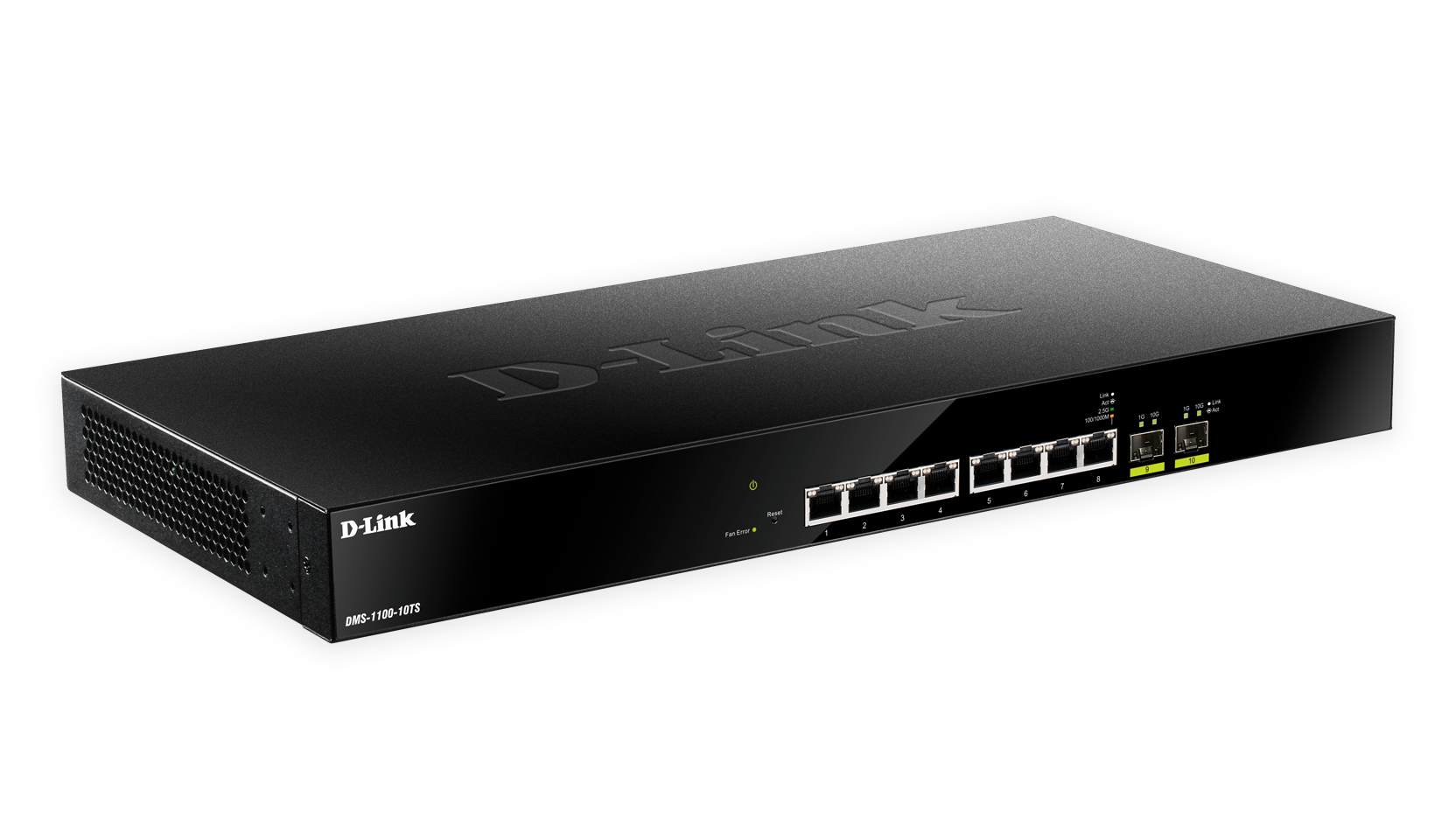

D-Link DMS-1100-10TS
8-Port Multi-Gigabit Ethernet Smart Managed Switch with 2 10GbE SFP+ ports

D-Link DMS-1100-10TS

D-Link Products
D-Link Smart Gigabit Switches
DMS-1100 Series Smart Managed 10-Port Multi-Gigabit Switch
including 2 10-Gigabit SFP+ Ports
#DMS-1100-10TS
List Price: $778.99
Our Price: $740.04

Click here to jump to more pricing!

Overview:

D-Link Green

The D-Link DMS-1100 Series 2.5 Gigabit Ethernet Smart Managed Switches are a cost-effective 2.5 Gigabit switch series capable of servicing a range of network needs in any type of business. Featuring eight 2.5 Gigabit access ports and two 10 Gigabit SFP+ uplink ports, these switches are ideal for deploying high-performance 802.11ac Wave 2 access points using 2.5 Gigabit connections, while providing 10 Gigabit wire-speed uplinks for optimal bandwidth when accessing the larger local area network.

Seamless Integration and Future Proof
The DMS-1100 switches support IEEE 802.3bz and are fully backwards compatible with 802.3ab Gigabit Ethernet to deliver 2.5 Gigabit speed over commonly deployed Cat 5e cables over distances up to 100 meters.

Driven by the increasing popularity of 802.11ac Wave 2 access points and the emerging trend of 2.5 Gigabit LAN connections, 2.5 Gigabit technology will ultimately replace Gigabit as the standard for Ethernet connectivity. With backwards compatibility for older standards, the DMS-1100 Series can be flawlessly integrated into existing Gigabit Ethernet network infrastructures while simultaneously making networks future-proof for the next generation of 2.5 Gigabit connectivity.

Complete Layer 2 and Troubleshooting Features
The DMS-1100 switches come with a complete lineup of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The switches also feature loopback detection and cable diagnostics to help network administrators identify and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Versatile Management
The DMS-1100 switches support a variety of management options. An intuitive, web-based Graphical User Interface (GUI) enables administrators to easily set up and remotely manage their networks, greatly reducing switch deployment time.

These switches also come with the D-Link Network Assistant (DNA) utility that simplifies the configuration of devices supporting the D-Link Discovery Protocol. This utility allows network administrators to discover multiple D-Link Smart Managed Switches within the same L2 network segment and displays them on screen for instant access. With this utility, users do not need to change the IP address of their PC. It further allows for simultaneous configuration and basic setup of all discovered devices, including password changes and firmware upgrades.

The DMS-1100 Series also supports D-View. D-View is a network management system that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security.

Power over Ethernet Support
The DMS-1100-10TS supports industry standard IEEE 802.3at power over Ethernet across all eight copper ports. It features a total power budget of 240 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices. Power over Ethernet simplifies deployment of surveillance devices and access point infrastructures by reducing cable clutter, and eliminating the need for dedicated power supplies to allow PoE devices to be installed in remote locations.

Lifetime Warranty and NBD Replacement
D-Link offers a Lifetime Warranty and Next Business Day (NBD) hardware replacement on the DMS-1100 Series 2.5 Gigabit Ethernet Smart Managed switches to further its commitment to product quality and long-term customer confidence.2

1 This feature will be supported in a future firmware release.
2 Lifetime Warranty available in U.S.A. only. Lifetime Warranty void when not purchased from Authorized US D-Link Reseller. Please visit us.dlink.com for list of Authorized US Resellers.

Features:

Advanced Features

  • Physical Stacking of up to 6 devices via 2 10G ports
  • Ethernet Ring Protection Switching (ERPS)
  • Static Routing
  • Auto Surveillance VLAN
  • Auto Voice VLAN
  • Loopback Detection
  • LLDP/LLDP-MED

Security Features

  • Access Control List (ACL)
  • D-Link Safeguard Engine
  • BPDU Attack Protection
  • ARP Spoofing Prevention
  • IP-MAC-Port Binding
  • DoS Attack Prevention
  • Clientless MAC/Web Access Control

Intuitive Management

  • Web-based Graphical User Interface - Standard Mode or Surveillance Mode
  • Built-in SNMP MIB for remote network management systems
  • Comprehensive CLI support
  • Manageability for both IPv4/IPv6 environments
  • Dual image support
  • D-Link Network Assistant (DNA) utility for easy installation and maintenance
  • Console interface for out-of-band managment

Green Technology

  • IEEE 802.3az Energy Efficient Ethernet
  • D-Link Green 3.0 power-saving features

Technical Specifications:

Technical Specifications

General

Hardware version
 • Rev A

Number of Ports:
 • 8 x 100/1000/2.5GBASE-T (RJ45)
 • 2 x 10GbE (SFP+)

Port Standards & Functions
 • IEEE 802.3u 100BASE-TX
 • IEEE 802.3ab 1000BASE-T
 • IEEE 802.3z 1000BASE-X
 • IEEE 802.3bz 2.5GBASE-T
 • IEEE 802.3ae 10G over fiber
 • IEEE 802.3az
 • IEEE 802.3af/at (DMS-1100-10TP only)

Network Cables for 2.5GBASE-T
  • Cat 5e (100 m max)

Media Interface Exchange
 • Auto MDI/MDIX adjustment for all twisted-pair ports

Performance

Switching Capacity
 • 80 Gbps

Maximum Packet Forwarding Rate
• 59.52 Mpps

Transmission Method
 • Store-and-forward

MAC Address Table
 • Up to 16,000 entries per device

PoE (DMS-1100-10TP only)

PoE Standards
 • IEEE 802.3af/at

Ports
 • Ports 1 to 8

PoE Budget
 • 240 W

Physical & Environmental

AC Input
 • 100 to 240 VAC

Maximum Power Consumption
 • DMS-1100-10TS:  33.7 W
 • DMS-1100-10TP:  293.4 W (PoE on); 38.1 W (PoE off)

Standby Power Consumption
 • DMS-1100-10TS:  21.6 W
 • DMS-1100-10TP:  27.3 W

Operating Temperature
 • 23˚F to 122˚F (-5˚C to 50˚C)

Storage Temperature
 • -40˚F to 158˚F (-40˚C to 70˚C)

Operatng Humidity
 • 0% to 95% non-condensing

Storage Humidity
 • 0% to 95% non-condensing

Dimensions
 • DMS-1100-10TS:
     • 17.32 x 8.27 x 1.73 in. (440 x 210 x 44 mm)
     • 19” standard rack mounting width; 1U
 • DMS-1100-10TP:
     • 17.32 x 9.84 x 1.73 in. (440 x 250 x 44 mm)
     • 19” standard rack mounting width; 1U

Weight
 • DMS-1100-10TS:
     • 5.58 lbs (2.53 kg)
 • DMS-1100-10TP:
     • 7.56 lbs (3.43 kg)

Ventilation
 • 1 Smart fan

MTBF
 • 378,023 hours
 • 676,329 hours

Diagnostic LEDs
 • Link/Activity/Speed (Per 2.5GBASE-T port)
 • Link/Activity/Speed (Per 10G SFP+ port)
 • POWER
 • FAN error
 • PoE status (DMS-1100-10TP only)

Certifications
 • CE, FCC, C-Tick, VCCI, BSMI, CCC

Safety
 • cUL, CB, CE, CCC, BSMI

Software Features

L2 Features
 • Flow control
      • 802.3x Flow control
      • HOL Blocking Prevention
 • Jumbo frames up to 9216 Bytes
 • IGMP Snooping
      • IGMP v1/v2/v3 Snooping
      • Supports 192 groups (shared with MLD Snooping)
      • IGMP Snooping Querier
      • IGMP Snooping Fast Leave
 • MLD Snooping
      • MLD snooping v1/v2
      • Supports 192 groups (shared with IGMP Snooping)
      • MLD Snooping Querier
      • MLD Snooping Fast Leave
 • 802.3ad Link Aggregation:
      • Support 8 groups per device and 8 ports per group
 • Loopback Detection v4.07
 • LLDP/LLDP-MED
 • Port Mirroring
      • One-to-One
      • Many-to-One
      • Mirror based on Tx
      • Mirror based on Rx
 • Statistics
      • Tx Ok
      • Tx Error
      • Rx Ok
      • Rx Error
 • Spanning Tree Protocol
      • 802.1D STP
      • 802.1w RSTP
 • Ethernet Ring Protection Switching
      • G.8032 ERPS single ring
      • 16 max nodes per ring

VLAN
 • 802.1Q tagged VLAN
 • Port-based VLAN
 • Auto Surveillance VLAN 2.01
 • Voice VLAN
 • Asymmetric VLAN
 • VLAN Group
      • Supports 4094 static VLAN groups
      • Max. 4094 VIDs

Quality of Service (QoS)
 • 802.1p Quality of Service
      • 8 queues per port
      • Strict Priority Queue (SPQ)
      • Weighted Round Robin (WRR)
      • Deficit Round Robin (DRR)
      • Port-based bandwidth control (rate limiting)
 • Port-based bandwidth control
      • Ingress bandwidth control
      • Egress bandwidth control

Security
 • D-Link Safeguard
 • Traffic segmentation
 • Broadcast/Multicast/Unknown Unicast Storm Control
 • DoS attack prevention
 • SSLv3/TLS 1.2
      • IPv4 support
      • IPv6 support

Operations, Administration and Management (OAM)
 • Cable Diagnostics
 • Factory Reset

Authentication, Authorization, and Accounting (AAA)
 • Trusted Host

Management
 • Web-based GUI (supports IPv4/IPv6)
 • Smart Wizard
 • Client-based D-Link Network Assistant (DNA)
 • SNTP
 • SNMP
      • Supports v1/v2c
 • SNMP trap
 • System log
 • DHCP/BootP client
 • TFTP client
 • D-Link Discovery Protocol (DDP)
 • Dual images
 • Dual configurations
 • Ping

Green Technology
 • Power saving features
      • LED shutoff
      • Link status
      • Port shutoff
      • System hibernation
 • Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE)

MIB/RFC Standards
 • RFC768 UDP
 • RFC791 IP
 • RFC792 ICMP
 • RFC793 TCP
 • RFC826 ARP
 • RFC1213 MIB II
 • RFC768 UDP
 • RFC791 IP
 • RFC792 ICMP
 • RFC793 TCP
 • RFC826 ARP
 • RFC1213 MIB II

Ordering Information
Model number / Description / Warranty
 • DMS-1100-10TS / 8-port 2.5GBASE-T and 2-port 10G SFP+ Smart Managed Switch / Lifetime
 • DMS-1100-10TP / 8-port 2.5GBASE-T PoE and 2-port 10G SFP+ Smart Managed PoE Switch, 240W PoE Budget / Lifetime

Optional 10GbE SFP+ Transceivers

 • DEM-431XT 10GBASE-SR Multimode SFP+ Optical Transceiver, 0 to 70C
 • DEM-431XT-DD 10GBASE-SR Multimode SFP+ Optical Transceiver with DDM, 0 to 70C
 • DEM-432XT 10GBASE-LR Single-mode SFP+ Optical Transceiver, 0 to 70C
 • DEM-432XT-DD 10GBASE-LR Single-mode SFP+ Optical Transceiver with DDM, 0 to 70C

Optional Gigabit SFP Transceivers

 • DEM-310GT 1000BASE-LX Transceiver, single-mode, 10 km
 • DEM-311GT 1000BASE-SX Transceiver, multimode, 550 m
 • DGS-712 1000BASE-T to SFP Transceiver

Optional SFP+ Direct Attach Copper Cables

 • DEM-CB100S 10-GbE SFP+ 1m Direct Attach Cable
 • DEM-CB300S 10-GbE SFP+ 3m Direct Attach Cable



1 This feature will be supported in a future firmware release.
2 Lifetime Warranty available in U.S.A. only. Lifetime Warranty void when not purchased from Authorized US D-Link Reseller. Please visit us.dlink.com for
list of Authorized US Resellers.

Product Views:

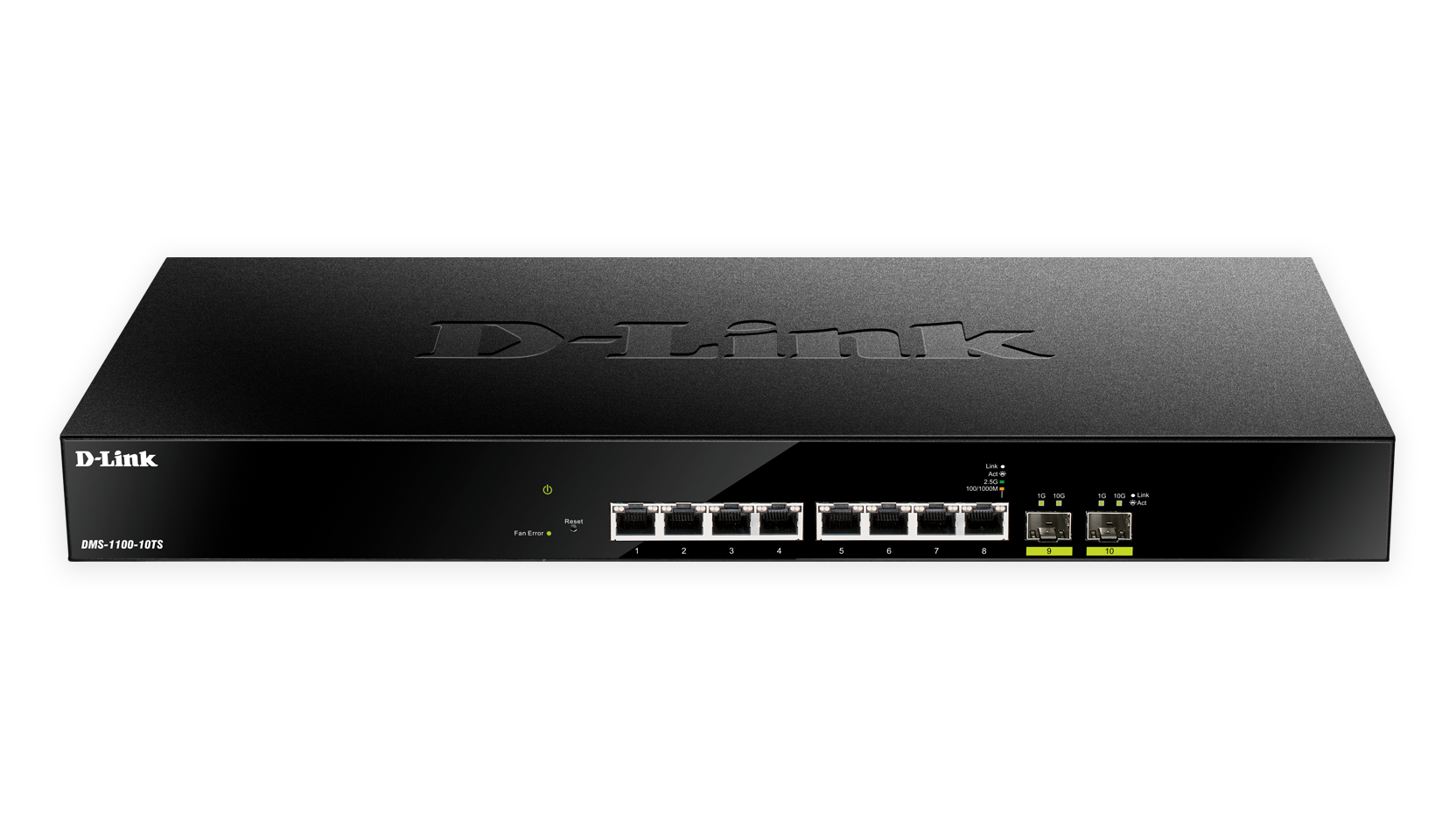

D-Link DMS-1100-10TS Front View

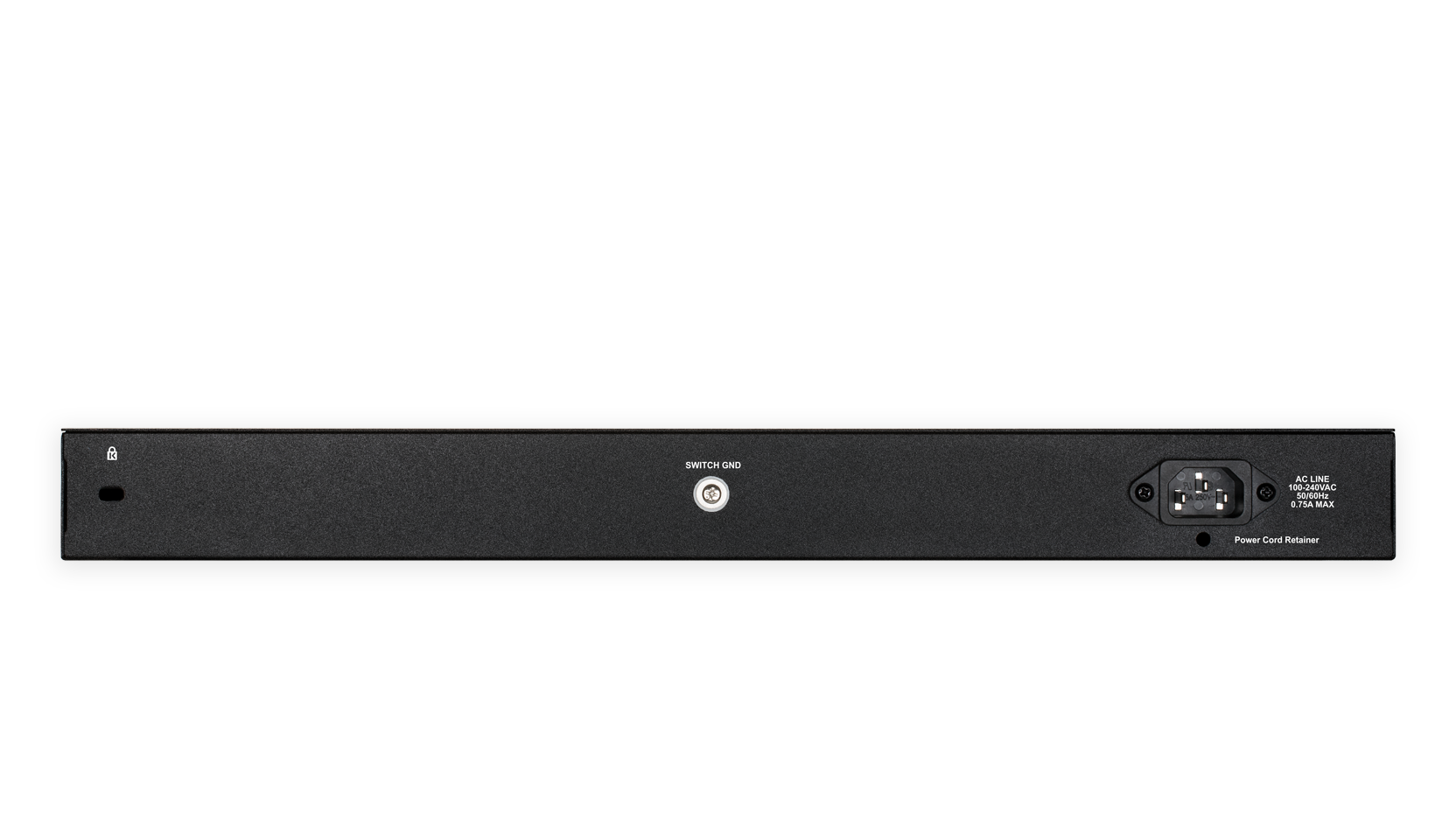

D-Link DMS-1100-10TS Back View
D-Link DMS-1100-10TS Front View D-Link DMS-1100-10TS Back View

Documentation:

Download the D-Link DMS-1100 Series Datasheet (PDF).
