D-Link DUB-E100
High Speed USB 2.0 Fast Ethernet Adapter
Sorry, this product is no longer available, Please contact us for a replacement.
Overview:
Fast Ethernet Connectivity
The D-Link® DUB-E100 is a high-speed USB 2.0 Fast Ethernet adapter for Windows/MAC/Linux desktop and notebook PCs. This adapter is designed to simply plug into an available USB port on your computer to connect you to a Fast Ethernet network without using a PCI or CardBus slot to add LAN connectivity
Easy To Install, Easy To Use

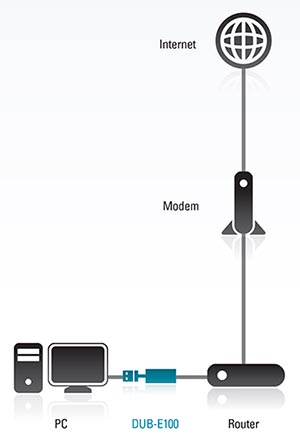

Plug-and-Play design makes installation and use straight forward. Set up the Fast Ethernet Adapter in minutes by simply installing drivers on the supplied CD, then connecting the DUB- E100 to a PC’s USB port and to your network via a switch or router. It is that simple to connect your computer to a wired Ethernet based network.
Energy Saving Suspend/Resume Function
The DUB-E100 supports USB energy saving suspend and resume function to minimize power consumption, which is especially useful for laptop users. Power is provided directly by the USB bus, eliminating the need for an external AC power adapter.
Slim and Light
For extra convenience, the USB connector on the DUB-E100 can be folded into the body. This compact and potable design makes it easy to fit in a laptop bag and carry it with you, wherever you go. Experience the convenience and reliability with the D-Link USB 2.0 Fast Ethernet Adapter while on the go.
What this product does
The DUB-E100 USB 2.0 Fast Ethernet adapter provides Fast Ethernet connectivity to your desktop or notebook PC. Its Plug-and-Play design makes installation and use straight forward.
Features:
Package Contents
- USB 2.0 Fast Ethernet Adapter
- CD withDriver and Manual6
- Quick Installation Guide
Minimum System Requirements
Computer with:
- Windows 7®4, Windows Vista®4, Windows®XP SP24
- MacOS® X 10.45 or Higher
- Linux 2.6 and above
- CD-ROM Drive
- Available USB Port1
- Atleast 32MB of memory
Features
- True 10/100Mbps network connectivity
- Easy Plug & Play Installation
- Hot Pluggable
- Supports half/full-duplex up to 200Mbps
- Auto-negotiation for half/full -duplex
- Bus Powered - no power adapterrequired
- 24/7 Basic Installation Support2
- 1-Year LimitedWarranty3
2 24/7 Basic Installation Support is available only in the USA for the first 30 days from date of original purchase.
3 1-Year Limited Warranty available only in the U.S.A and Canada.
4 Computer must adhere to Microsoft’s recommended System Requirements.
5 Computers must adhere to Apple’s recommended system requirements. Please contact Apple for details.
6 Latest software and documentation are available at http://support.dlink.com.
Technical Specifications:
| D-Link DUB-E100 Specifications | |
|---|---|
| Standards |
|
| Device Interfaces |
|
| Minimum System Requirements | Operating System: Microsoft Windows 7/Vista/XP SP2, Mac OS 10.4 to 10.7, and Linux |
| Configuration/Management | Advanced Power Management reduces power usage during idle or light traffic periods |
| LEDs |
|
| Power | Bus Powered 0.5 A, 5VDC |
| Power consumption | 150 mA, 3.3VDC |
| Dimensions | 2.87”x 0.84”x 0.79” (73 x 21.3 x 20 mm) |
| Weight | 0.05 lbs(22 g) |
| Operating Temperature | 32 ˚F to 104 ˚F (0 ˚C to 40 ˚C) |
| Storage Temperature | 14 ˚F to 158 ˚F (-10 ˚C to 70 ˚C) non-condensing |
| Operating Humidity | 5% to 95%, non-condensing |
| Storage Humidity | 0% to 95%, non-condensing |
| Certifications |
|
| Warranty | 1-Year Limited Warranty3 |
2 24/7 Basic Installation Support is available only in the USA for the first 30 days from date of original purchase.
3 1-Year Limited Warranty available only in the U.S.A and Canada.
4 Computer must adhere to Microsoft’s recommended System Requirements.
5 Computers must adhere to Apple’s recommended system requirements. Please contact Apple for details.
6 Latest software and documentation are available at http://support.dlink.com.
Documentation:
Download the D-Link DUB-E100 Datasheet (PDF).
