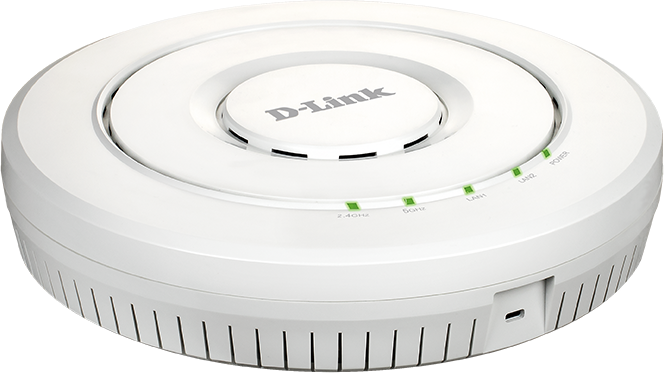

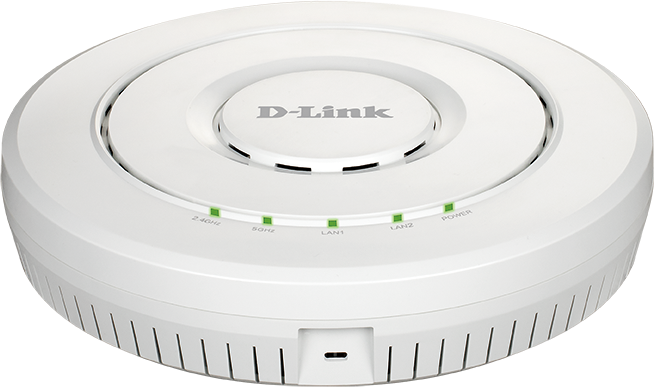

D-Link DWL-8620AP
Unified Wireless Dual-Band 4x4 Wave2 Access Point
Sorry, this product is no longer available, Please contact us for a replacement.
Click here to jump to more pricing!
Overview:
The D-Link DWL Wave 2 Series Unified AC Wave 2 Wireless Access Points are specially designed for small to medium businesses or enterprises, providing unparalleled bandwidth and flexibility for administrators looking to deploy a medium to large scale Wi-Fi network with manageable dual-band wireless LAN options and utilizing the cutting-edge speed of Wireless AC Wave 2. Not only can it operate in standalone mode, the D-Link Unified AC Wave 2 Wireless Access Points can also be centrally managed by D-Link Unified Wireless Controllers. Highly manageable and capable of blazing speeds, the Unified AC Wave 2 Wireless Access Points integrate seamlessly into any existing network infrastructure and can be easily scaled to meet future demands.
Greater Speed and Connectivity
The DWL Wave 2 Series Unified AC Wave 2 Wireless Access Points leverage the full potential of 802.11ac Wave 2 to provide unparalleled connectivity with ultra-high combined data rates. The DWL-6620APS and DWL-7620AP deliver a combined speed of up to 1,267 Mbps4 and 2,134 Mbps4 respectively, while the DWL-8620AP offers an even faster combined speed of up to 2,533 Mbps4. In addition, the DWL Wave 2 Series supports Link Aggregation3, which allows two Gigabit Ethernet ports to be linked together and act as a single port to double the available bandwidth and maximize the overall throughput of the access point.
MU-MIMO Technology
All models in the DWL Wave 2 Series support MU-MIMO (Multi-User Multiple Input Multiple Output), which enables the device to simultaneously communicate with multiple clients using multiple antennas. This allows the access point to utilize the spectrum more efficiently and significantly increase the network capacity. The DWL-6620APS & DWL-7620AP feature 2 x 2 MU-MIMO, while the DWL-8620AP supports 4 x 4 MU-MIMO to take full advantage of all streams to serve more wireless clients to dramatically improve wireless performance.
D-Link Smart Antenna
The DWL-6620APS features D-Link Smart antenna technology that helps to select the optimal radiation pattern for each client and uses digital beam forming to enhance the antenna gain and achieve optimal throughput. In addition, the D-Link Smart Antenna supports multiple radio patterns to dynamically adapt to different kinds of environments. Meanwhile, the fast channel and bandwidth selection features always look for the best channel with the least interference for smoother performance. With these capabilities, the DWL-6620APS ensures a reliable connection reliability and optimized wireless user experience.
Tri-Band Wi-Fi
The DWL-7620AP is equipped with tri-band wireless technology featuring one 2.4 GHz and two 5 GHz wireless bands to accommodate the increasing number of devices connecting to a single access point. By allowing older 802.11b/g/n devices to connect to the 2.4 GHz, the two 5 GHz bands can be dedicated to newer, faster wireless AC devices to enjoy seamless bandwidth intensive applications such as HD video streaming, VoIP, and file sharing. Thanks to intelligent band steering technology, the DWL-7620AP can also efficiently load balance the clients and traffic between the three wireless bands to ensure all wireless clients have better using experience in the environment with high density.
Centrally Managed
When working in conjunction with D-Link Unified Controllers, the Unified AC Wave 2 Wireless Access Points can be centrally managed. This allows for a large number of access points to be deployed and managed easily and efficiently. Once the APs are discovered by the controller, the administrator can push the configuration to them as a group, instead of configuring each access point individually. Additionally, Radio Frequency (RF) resource management allows wireless coverage to be managed centrally, providing the best coverage possible for wireless clients.
Easy to Install
The DWL Wave 2 Series can be ceiling mounted or wall mounted to meet the needs of any wireless application. For additional flexibility, all D-Link Unified AC Wave 2 Wireless Access Points have integrated Power over Ethernet (PoE) support, allowing the devices to be installed in areas where power outlets are not readily available.
Automatic Radio Frequency (RF) Management
When access points are deployed in close proximity to each other, there maybe interference between channels if RF management is not implemented. When a D-Link Unified AC Access Point senses a neighbor nearby, it will automatically select a non-interfering channel. This greatly reduces RF interference and will allow the administrator to deploy APs more densely. To further minimize interference, when a nearby AP is on the same channel, the D-Link Unified AC Wave 2 Access Point will automatically lower its transmission power2. When, for whatever reason, the nearby AP is no longer present, the access point will increase its transmission power to expand coverage.
Advanced Wireless Features
The D-Link Unified AC Wave 2 Wireless Access Points support 802.1p Quality of Service (QoS) for enhanced throughput and better performance of time-sensitive traffic like VoIP and streaming DSCP. All D-Link Unified AC Wave 2 Wireless Access Points support Wi-Fi Multimedia (WMM), so in the event of network congestion, time-sensitive traffic can be given priority ahead of other traffic. Furthermore, when a number of access points are in close proximity to each other, an access point will refuse new association requests once its resources are fully utilized, allowing the association request to be picked up by a neighboring unit, distributing the load over multiple APs. Band steering technology enables Unified AC Wave 2 Wireless Access Points to intelligently place clients on the optimal wireless band to avoid congestion and allows for smooth streaming of video, seamless browsing, and fast downloads for mobile devices. Airtime Fairness ensures that equal airtime is given to each client, providing increased performance even if slower devices are connected. 802.11k Fast Roaming2 is also supported, which allows the wireless client to roam seamlessly between access points.
Lifetime Warranty and NBD Replacement
D-Link offers a Lifetime Warranty and Next Business Day (NBD) hardware replacement on the DWL Wave 2 Series to further its commitment to product quality and long-term customer confidence.
Features:
Ideal for Businesses
- Multiple virtual access points can be created from a single access point
- Flexible QoS with WMM
- Power over Ethernet enables installation in hard to reach locations
- UL2043-certified chassis (Plenum-rated SKU)
High-Performance Connectivity
- Supports 160 MHz channel for doubled capacity1
- Band steering for efficient traffic management
- Airtime Fairness
- 802.11k Fast Roaming2
- Supports Link Aggregation3
Wireless Security Features
- WPA/WPA2 Personal
- WPA/WPA2 Enterprise
- MAC address filtering
- Rogue AP detection
Specifications:
General | |||
---|---|---|---|
Model Name | DWL-6620APS | DWL-7620AP | DWL-8620AP |
Hardware Version | A1 | ||
Wireless Interface | IEEE 802.11b/g/n 2.4 GHz wireless IEEE 802.11a/n/ac Wave 2 5 GHz wireless |
||
MIMO | 2 x 2 | 2 x 2 | 4 x 4 |
Data Rate4 | 2.4 GHz - Up to 400 Mbps 5 GHz - Up to 867 Mbps |
2.4 GHz - Up to 400 Mbps 5 GHz (1) - Up to 867 Mbps 5 GHz (2) - Up to 867 Mbps |
2.4 GHz - Up to 800 Mbps 5 GHz - Up to 1733 Mbps |
Antenna | Internal smart antennas 2.4 GHz: Up to 4 dBi (variable) 5 GHz: Up to 6 dBi (variable) |
Internal omnidirectional antennas 2.4 GHz: 3 dBi 5 GHz: 4 dBi |
Internal omnidirectional antennas 2.4 GHz: 3 dBi 5 GHz: 4 dBi |
Operating Frequency | 2400 to 2483.5 MHz 5150 to 5850 MHz |
||
Operating Channels | 1 to 13 channels for 2.4 GHz band (per country code) 36 to 165 channels for 5 GHz band (per country code) |
||

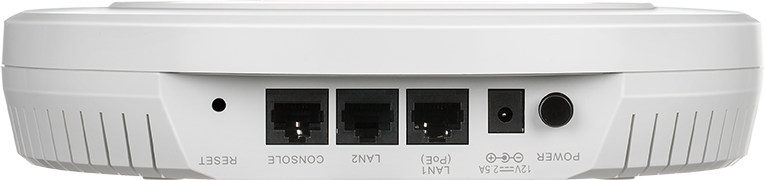

Ethernet Interface | 2 x 10/100/1000BASE-T LAN port | ||
Console Port | RJ-45 | ||
Functionality | |||
Model Name | DWL-6620APS | DWL-7620AP | DWL-8620AP |
Advanced Features | Auto Channel selection 802.1p Quality of Service (QoS) Wireless Mulimedia (WMM) Wireless Distribution System (WDS) Band steering Airtime Fairness Link Aggregation3 IEEE 802.11k Fast Roaming |
||
Management | |||
Model Name | DWL-6620APS | DWL-7620AP | DWL-8620AP |
Operating Mode | Standalone mode Managed mode - Centrally managed by D-Link Wireless Controller |
||
Management Interfaces | Web-based User Interface (Web UI) Telnet/SSH Command Line Interface (CLI) SNMP v1/v2c/v3 |
||
Security | |||
Model Name | DWL-6620APS | DWL-7620AP | DWL-8620AP |
SSID Security | Up to 32 SSIDs, 16 per radio 802.1Q VLAN Station Isolation |
Up to 48 SSIDs, 16 per radio 802.1Q VLAN Station Isolation |
Up to 32 SSIDs, 16 per radio 802.1Q VLAN Station Isolation |
Wireless Security | WPA/WPA2 Personal/ Enterprise AES TKIP |
||
Detection & Prevention | Rogue and Valid AP Classification | ||
Authentication | MAC Address Filtering | ||
Physical | |||
Model Name | DWL-6620APS | DWL-7620AP | DWL-8620AP |
Dimensions | 220 x 55.45 mm (8.66 x 2.18 in) | 220 x 47 mm (8.66 x 1.85 in) | 220 x 47 mm (8.66 x 1.85 in) |
Weight | 0.66 kg (1.46 lbs) w/o bracket 0.71 kg (1.57 lbs) w bracket |
0.70 kg (1.54 lbs) w/o bracket 0.74 kg (1.63 lbs) w bracket |
0.79 kg (1.75 lbs) w/o bracket 0.84 kg (1.85 lbs) w bracket |
Power Supply | External power adapter: 12 V DC 2 A Supports 802.3at PoE PD on LAN 1 Port |
External power adapter: 12 V DC 2.5 A Supports 802.3at PoE PD on LAN 1 Port |
External power adapter: 12 V DC 2.5 A Supports 802.3at PoE PD on LAN 1 Port |
Power over Ethernet | IEEE 802.3at | ||
Maximum Power Consumption | 16.32 W | 20 W | 24.24 W |
Enclosure | Bottom cover – plastic Top cover – plastic UL2043-certified chassis |
Bottom cover – plastic Top cover – plastic UL2043-certified chassis |
Bottom cover – plastic Top cover – plastic UL2043-certified chassis |
Temperature | Operating: 0 to 40 °C (32 to 104 °F) Storage: -20 to 65 °C (-4 to 149 °F) |
||
Humidity | Operating: 10% to 90% non-condensing Storage: 5% to 95% non-condensing |
||
MTBF | 925,606 hours | 753,019 hours | 463,255 hours |
Certifications | CE EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601-1-2 (Medical electrical equipment), EN301489-1, EN301489-17, EN300328, EN301893 FCC IC cUL+UL CB RCM NCC BSMI UL2043 |
CE EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601-1-2 (Medical electrical equipment), EN301489-1, EN301489-17, EN300328, EN301893 FCC IC cUL+UL CB RCM NCC BSMI UL2043 |
CE EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601-1-2 (Medical electrical equipment), EN301489-1, EN301489-17, EN300328 EN301893 FCC IC cUL+UL CB RCM NCC BSMI UL2043 |
Warranty | |||
Model Name | DWL-6620APS | DWL-7620AP | DWL-8620AP |
Warranty | Limited Lifetime Warranty5 |
Documentation:
Download the D-Link DWL-8620AP Datasheet (PDF).
1 Only supported on the DWL-8620AP.
2 This feature is available when Unified AP is used in conjunction with D-Link’s line of Unified Wireless Controllers.
3 The LACP (Link Aggregation Control Protocol) is only supported on the DWL-8620AP. The DWL-6620APS & the DWL-7620AP only support static Link Aggregation (LAG).
4 Maximum wireless signal rate derived from IEEE standard 802.11n and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
5 Lifetime Warranty available in USA only. Warranty void when not purchased from Authorized US D-Link reseller. Please visit us.dlink.com for list of authorized US resellers.
6 The 2 x 2 smart antenna supports up to 81 sets of radio patterns. The omni-directional mode is one such pattern.
