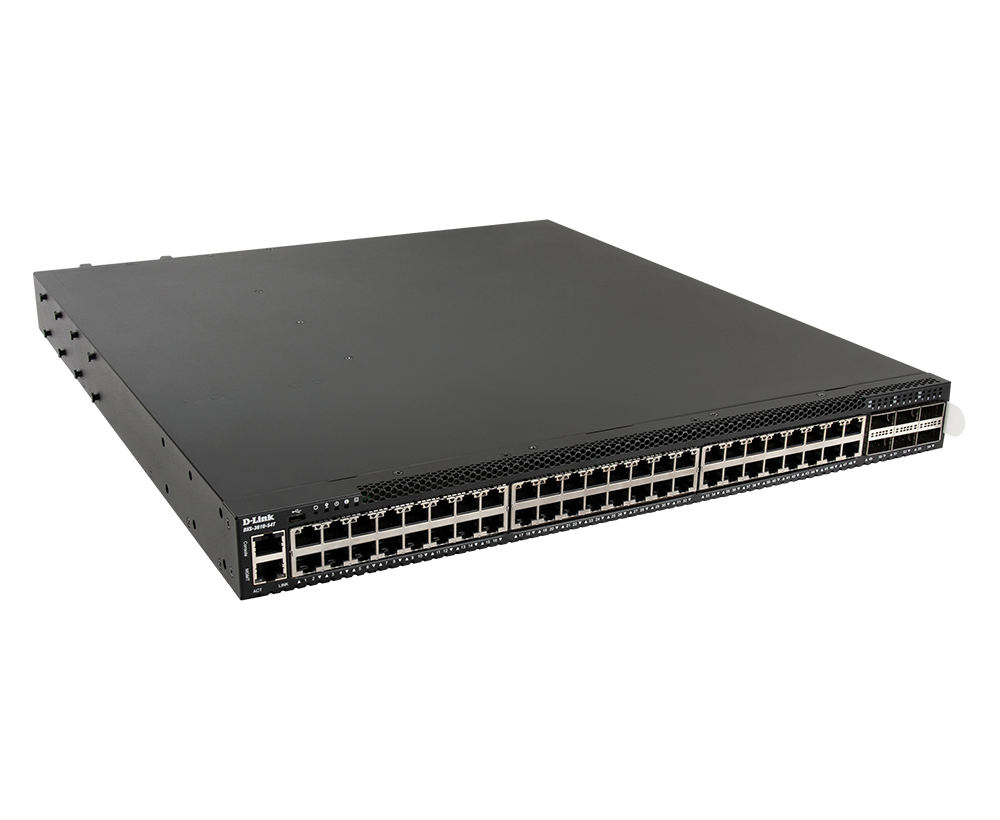

D-Link DXS-3610-54T
Layer 3 Stackable 10G / 100G Managed Switches
List Price:
Our Price: $1,064.94
Click here to jump to more pricing!
Overview:
The D-Link DXS-3610 Series Layer 3 Stackable 10G Managed Switches are a set of new, compact, high-performance switches that feature ultra-low latency, suitable for enterprise and campus, as well as service provider’s aggregation network environments. Available in two configurations, 48 x 10G Base-T or 10G SFP+ ports with 6 x 100G QSFP28 that can be used either uplink or stacking configurations. The DXS-3610 Series is available with standard as well as enhanced software images. The Standard Image features a wide range of Layer 2, VLAN, multicasting, Quality of Service (QoS), security, data center, and static routing protocols including RIP, VRRP and OSPF. The Enhanced Image features comprehensive IPv4/v6 routing, including BGP and L3 multicasting features such as IGMP, MLD, PIM-DM, SM, SDM, SSM, and DVMRP. The Enhanced Image also supports L2/L3 MPLS VPN, which enables the DXS-3610 Series to be deployed as the core router of an enterprise environment, or as an aggregation switch in an MPLS environment. Furthermore, the Switch Resource Management feature allows the hardware table size to be dynamically adjusted. The DXS-3610 Series also supports essential OpenFlow 1.3 features, enabling the switch to be managed through an OpenFlow controller.

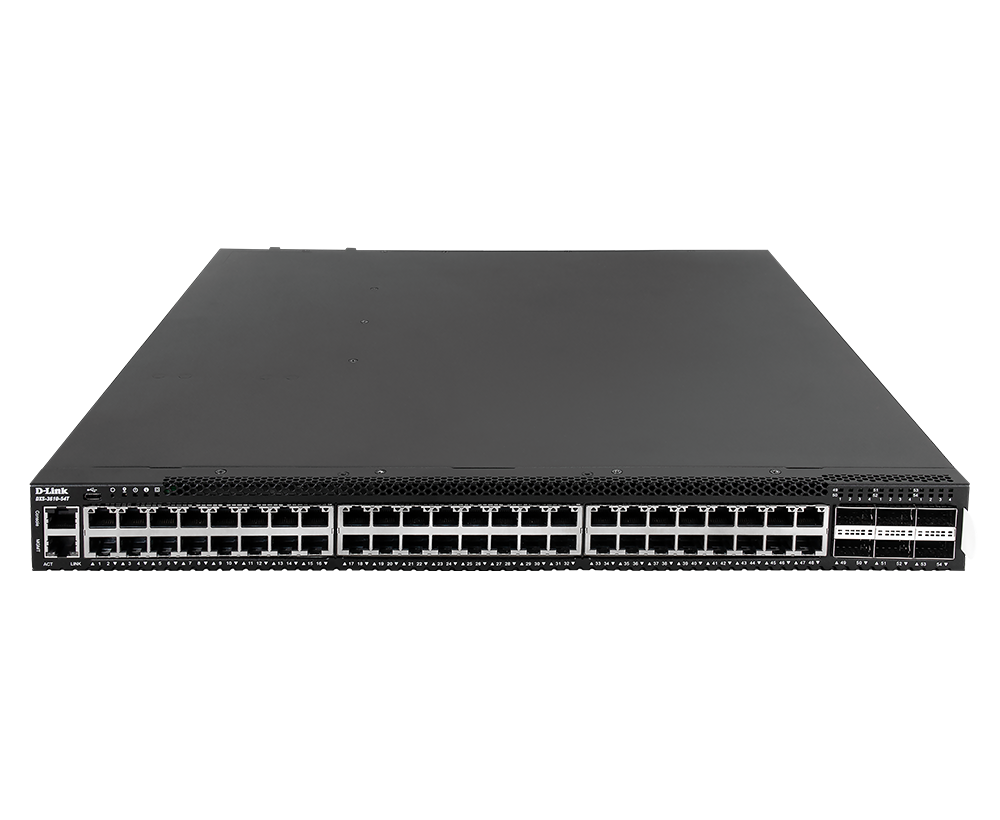

- High port density: 48 x 10 GbE Base-T ports, 6 x 100G QSFP+ ports
- Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)
- OpenFlow 1.3 compliance for SDN-enabled network compatibility
- Modular PSU (1+1) and fan (N+1) with load sharing capabilities
- Switch locator LED and ID tag for maintenance convenience
- Upgradable license for full L3 and MPLS applications
Highlights
High Performance
Future-proof your network with 100G uplink port speeds, forwarding rates up to 1607 Mpps, 32 MB packet buffer and 2.16 Tbps switching bandwidth
Reliable Systems
Redundancy features including hot-swappable power supplies and fan trays. Stack up to 12 switches to operate as a single module, providing fault tolerance and increasing network reliability
Flexible and Open Architecture
Support for multiple software images to fit the need in a datacenter or Enterprise/ISP network. Supports SDN Openflow v1.3 for an open networking setup
Features:
Simplified Deployment
Remotely activate the front panel LED indicator to rapidly locate the DXS-3610 in your data center or server room that requires extra attention.
Highly Scalable
License upgradable to MPLS, supports Switch Resource Management
High Performance
Powerful 100G uplink speed, 48 x 10G ports and Mac Table up to 288K
Hot-Swappable Redundancy
Multiple Fan Modules with Load-Sharing PSUs
SDN Compatible
OpenFlow v1.3 compliance for SDN environments
High Performance and Flexibility

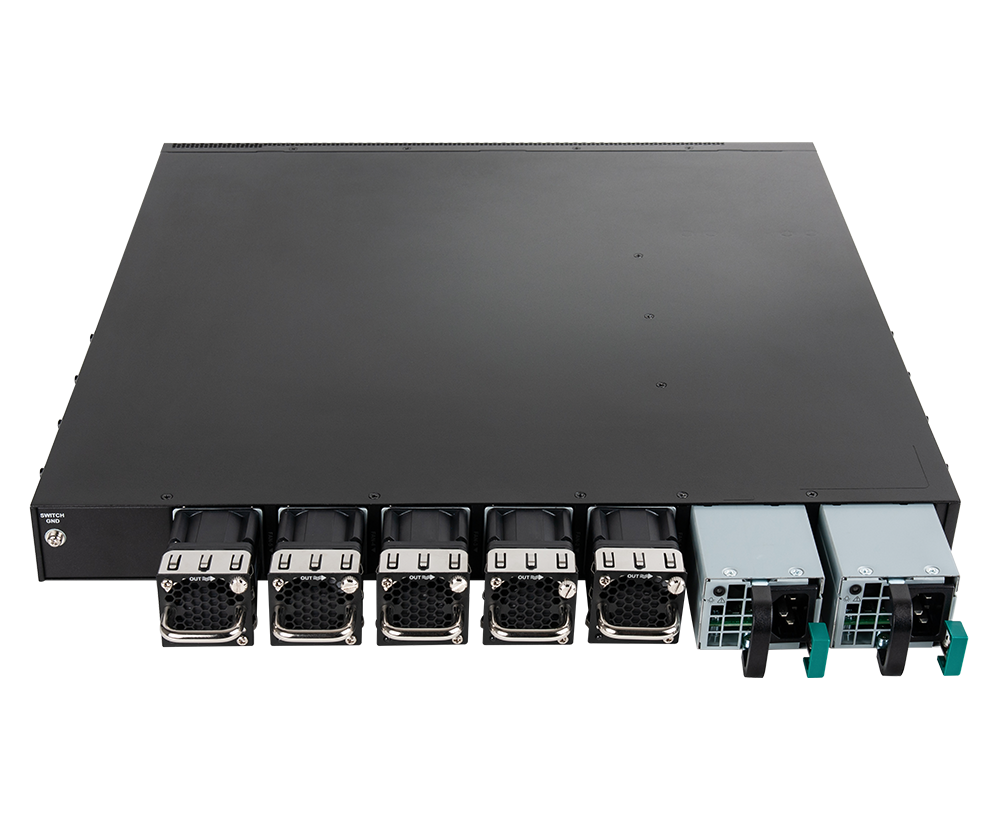

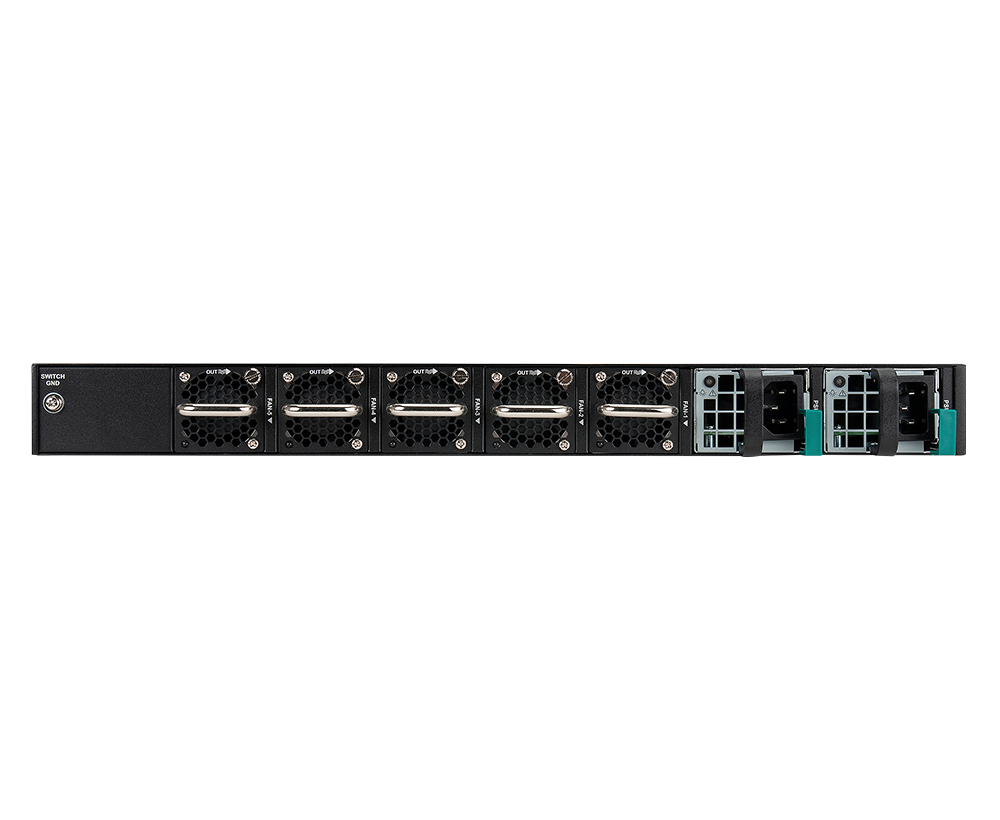

- Two hot-swappable power modules for 1+1 power redundancy and load sharing
- Hot-swappable fan trays with front-to-back airflow and N+1 cooling redundancy
- Up to 1200G stacking bandwidth with twelve devices functioning together as a single unit
Data Center Features
- IEEE 802.1Qbb Priority-based Flow Control (PFC)
Advanced Features
- MPLS
- ERPS (G.8032 v1/v2)
- MACSec1 (DXS-3610-54T 10G BASE-T port only)
- OpenFlow v1.3
OAM
- IEEE 802.3ah Ethernet link OAM
- IEEE 802.1ag
- ITU-T Y.1731
Accessible Management
- D-View, D-Link Network Assistant (DNA) utility, web-based GUI, Command Line Interface (CLI) through Telnet, SSH or RJ-45 Console/ Management Port
Specifications:
| DXS-3610-54S | DXS-3610-54T | ||
|---|---|---|---|
| General | |||
| Size | 19-inch, 1U rack-mount | ||
| Interfaces | 48 x 1/10GbE SFP/SFP+ ports 6 x 40/100GbE QSFP+/QSFP28 ports |
48 x 1/10GbE Base-T ports 6 x 40/100 GbE QSFP+/QSFP28 ports |
|
| Console Port | RJ-45 console port for out-of-band management | ||
| Management Port | 10/100/1000 BASE-T RJ-45 Ethernet for out-of-band remote management | ||
| USB Port | 1 x USB 2.0 Type A port | ||
| Performance | |||
| Switching Capacity | 2.16 Tbps | ||
| Max. Forwarding Rate | 1607.04 Mpps | ||
| Packet Buffer Memory | 32 MB | ||
| MAC Address Table
|
Up to 288K | ||
| IPv4 Routing Table
|
Up to 32K | ||
| IPv6 Routing Table
|
Up to 16K | ||
| IPv4 Forwarding Table
|
Up to 144K | ||
| IPv6 Forwarding Table
|
Up to 144k | ||
| Jumbo Frame Size | 9436 bytes | ||
| Physical | |||
| Power Input | 1 + 1 redundant power supply design Input: 100 to 240 V AC, 50/60 Hz |
||
| Maximum Power Consumption | 320.8 W | 330.2 W | |
| Standby Power Consumption | 120.6 W | 108.2 W | |
| Standby Power Consumption | 120.6 W | 108.2 W | |
| Heat Dissipation (Max.) | 1083 BTU/hr | 1126 BTU/hr | |
| Acoustics | Max: 79.4 dB(A) Min: 65.3 dB(A) |
Max: 76.6 dB(A) Min: 69.7 dB(A) |
|
| Fans | 5 x fans | ||
| Dimensions (W x L x H) | 441.0 x 487.44 x 43.5 mm | ||
| Weight | 9.80 kg | 9.88 kg | |
| Operating Temperature | 0 to 45 °C | ||
| Storage Temperature | -40 to 70 °C | ||
| Operating Humidity | 0% to 95% RH | ||
| Storage Humidity | 0% to 95% RH | ||
| MTBF | 94,262 hours | TBD | |
| Certifications | |||
| Safety | CB, cUL, LVD | ||
| EMI/EMC | FCC, CE, C-Tick, IC, VCCI | ||
Documentation:
Download the D-Link DXS-3610-54T Datasheet (PDF).
1microSD card not included. Supports capacity up to 256 GB.
