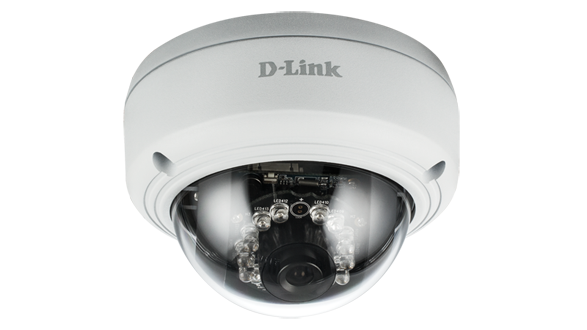

D-Link DCS-4603
Vigilance Full HD PoE Dome Network Camera

D-Link DCS-4603

Sorry, this product is no longer available, Please contact us for a replacement.


Click here to jump to more pricing!

VigilanceOverview:

The D-Link DCS-4603 Vigilance Full HD PoE Dome Network Camera is a high definition professional indoor surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 1/3” 3-megapixel progressive scan CMOS sensor with digital WDR image enhancement to deliver balanced video in varying lighting conditions. The compact design makes this camera ideal for deployment in a wide variety of surveillance applications. The unique design with 3-axis adjustment allows for precise positioning of the lens, supporting 340° Pan, 340° Rotation, and 60° Tilt.

Full HD Resolution

A high-resolution 3-megapixel sensor provides 1080p resolution while digital wide dynamic range (WDR) technology lets you capture the details you need, ensuring that you always get sharp, clear snapshots and videos.

Complete Day & Night Surveillance Solution

Keep watch over an area 24 hours a day - integrated IR LEDs and automatic IR cut filter provide clear video, even in complete darkness.

Incredibly Versatile

Supports Power over Ethernet (PoE) for power and data through a single cable.

High Quality Streaming & Recording

To maximize bandwidth efficiency and improve image quality, the DCS-4603 provides realtime video compression using the H.264 and MJPEG codecs, and supports separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.

Continuous Monitoring

The DCS-4603’s digital wide dynamic range (WDR) video enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify subjects that are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use all available light while the 3D noise reduction feature improves the image quality and compression savings by dramatically reducing noise. The DCS-4603 also has built-in IR LED illuminators with a 32 foot range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day.

D-ViewCam for Management

The DCS-4603 Vigilance Full HD PoE Dome Network Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras with a robust set of features, including multi-camera views and automated e-mail alerts to keep you informed of suspicious or unusual activities.

Features:

Camera

  • 1/3” 3 megapixel progressive CMOS sensor
  • Full HD resolution (2048 x 1536)
  • Fixed 2.8 mm lens, F2.0

Video

  • Motion detection
  • Digital Wide Dynamic Range (WDR)
  • 3D noise filter
  • H.264 and MJPEG compression
  • Multi-stream support
  • ePTZ for virtual PTZ operation
  • Privacy mask
  • Advanced event management

Versatile Installation

  • 3-axis adjustment allows for precise positioning of lens
  • Compatible with additional wall (DCS-37-1) and ceiling (DCS-37-2) mounts

Connectivity

  • Power over Ethernet (PoE) provides easy and flexible integration into your network
  • Supports 802.3x, QoS, CoS and SNMP
  • HTTPS encryption for web access
  • ONVIF compliant

Technical Specifications:

D-Link DCS-4603 Specifications
Camera
Hardware Profile
  • 1/3” 3 Megapixel Progressive CMOS Sensor
  • 32 ft IR Illumination Distance
  • Automatic Infrared-Cut Filter module for night viewing
  • 10x digital zoom
  • Minimum object distance: 8"
  • Focal length: 2.8mm
  • Aperture F2.0
  • Angle of view
    • (H) 92°
    • (V) 66°
  • Adjustment angle (non-motorized)
    • Pan: 340°
    • Tilt:  60°
    • Rotation: 340°
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • Configurable privacy mask zones
  • Configurable shutter speed, brightness, saturation, contrast, sharpness, digital WDR and 3D filter
Video Compression
  • Simultaneous H.264/MJPEG triple format compression
  • H.264 multicast streaming
  • JPEG for still images
  • MJPEG streaming
Video Resolution
  • 16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360
  • 4:3 - 1440 x 1080, 1280 x 960, 900 x 720, 800 x 592, 640 x 480 at up to 30 fps2
  • 4:3 - 2048 x 1536 at up to 15 fps2
Frame Rate
  • Up to 30 fps
  • Up to 15 fps = 4:3 - 2048 x 1536
External Device Interface
  • 10/100 BASE-TX Ethernet port with PoE (802.3af)
  • Optional 12VDC input jack
Network
Network Protocols
  • IPv6, IPv4, ARP, TCP, UDP, ICMP
  • DHCP client
  • NTP client (D-Link)
  • DNS client
  • DDNS client (D-Link)
  • SMTP client (SSMTP support)
  • FTP client
  • HTTP/HTTPS
  • Samba client
  • PPPoE
  • UPnP/UPnP port forwarding
  • RTP/RTSP/RTCP
  • IP filtering
  • CoS/QoS/DSCP
  • Multicast
  • SNMP
  • Bonjour
  • ONVIF compliant
Security
  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption
System Management
System Requirements for Web Interface
  • Browser: Internet Explorer 8 or above, Firefox or Safari
  • Operating System: Microsoft Windows 10/8/7 or Mac OS XS 10.7 or higher
Event Management
  • Motion detection
  • Event notification and uploading of snapshots/video clips via e-mail or FTP
  • Supports multiple SMTP and FTP servers
  • Multiple event notifications
  • Multiple recording methods for easy backup
Remote Management
  • Take snapshots/video clips and save to local hard drive
  • Configuration interface accessible via web browser
D-ViewCam System Requirements
  • Operating System: Microsoft Windows 8/7
  • Web Browser: Internet Explorer 7 or higher
  • Protocol: Standard TCP/IP
D-ViewCam Software Functions
  • Remote management/control of up to 32 cameras
  • Supports all management functions provided in web interface
  • Viewing of up to 32 cameras on one screen
  • Scheduled motion triggered, or manual recording options
General Specifications
Weight 1.16 lbs
Power over Ethernet 802.3af Class 2
Power Adapter (not included)
  • Input: 100 to 240V AC, 50/60 Hz
  • Output: 12V DC 1.5A
Power Consumption 5.6 Watts ±5%
Operating Temperature 32°F to 104°F (0°C to 40° C)
Storage Temperature -4°F to 158° F (-20°C to 70°C)
Operating Humidity 20% to 80% non-condensing
Storage Humidity 5% to 95% non-condensing
Certifications
  • CE
  • CE LVD
  • FCC
  • C-Tick
Dimensions 4.36 x 4.36 x 3.10 inches
Package Contents
  • Full HD PoE Dome Network Camera (DCS-4603)
  • Mounting Kit
  • Quick Installation Guide (QIG)
  • Manual & Software CD-ROM
Warranty
Warranty
  • 5-Year Limited Warranty4
  • For warranty and regulatory information, please visit http://support.dlink.com/warranty

1 Use of video equipment for recording the image of a person without their knowledge and consent is prohibited in certain states or jurisdictions. The end-user assumes all liability for compliance with applicable state, local and federal laws.
2 Frame rates when streaming video may vary depending on network conditions and method used.
3 Computer must adhere to Microsoft's recommended system requirements.
4 5-YearWarranty available only in the USA.

Product Views:

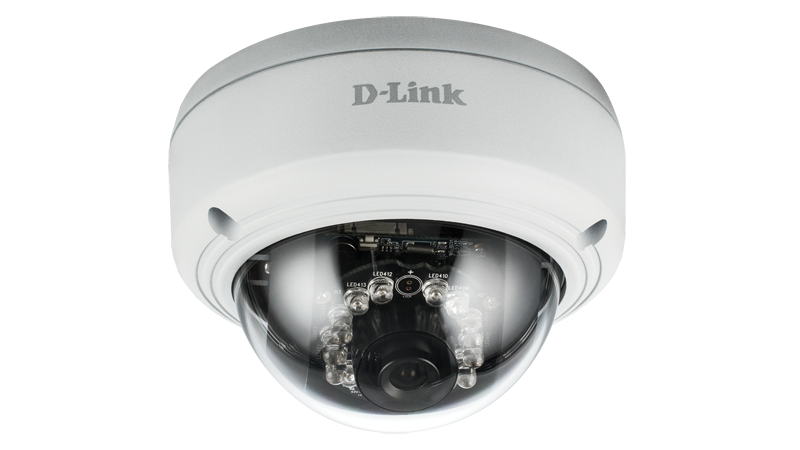

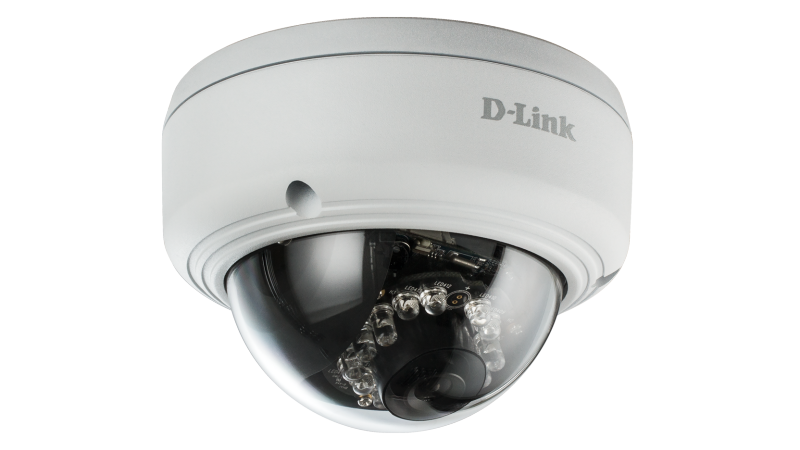

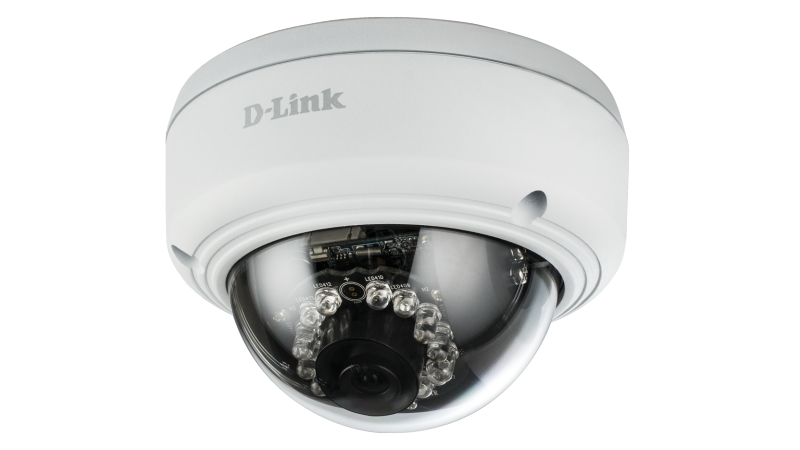

Front View Right Angle View Left Angle View
Front View Right Angle View Left Angle View

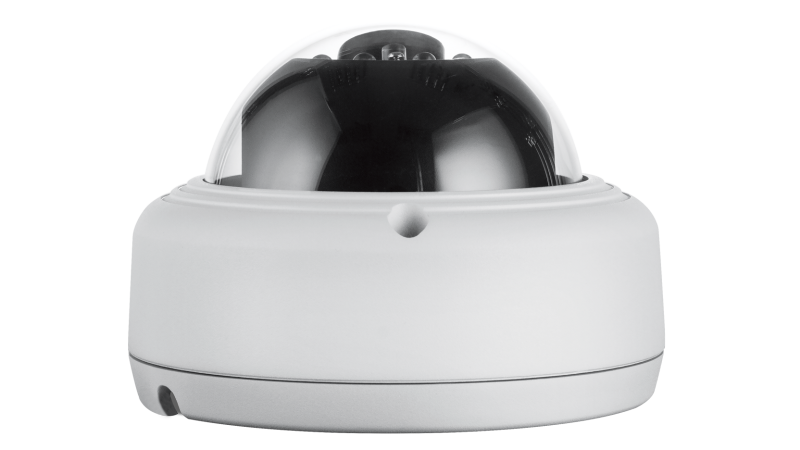

Back View With Cables
Back View With Cables

Documentation:

Download the D-Link DCS-4603 Datasheet (PDF).
