D-Link DCS-6315
1 MP HD Low Light Outdoor Dome IP Camera

D-Link DCS-6315

Sorry, this product is no longer available, Please contact us for a replacement.


Click here to jump to more pricing!

Overview:

The D-Link DCS-6315 is a high definition professional video surveillance and security solution suitable for small, medium and large enterprises. The camera uses a high-sensitivity megapixel progressive scan CMOS sensor with onboard WDR image enhancement to deliver quality video in all conditions. The all-in-one rugged design makes this camera extremely reliable and ideal for deployment in video surveillance applications without the need for additional accessories.

Enhanced Low Light Performance

Incorporating a highly sensitive CMOS sensor with LowLight+ technology, the DCS-6315 provides outstanding performance in low light-conditions, resulting in more detail regardless of the amount of light available. The noise reduction feature has been upgraded and enhanced to provide exceptional quality images with high levels of detail.

To maximize bandwidth efficiency and improve image quality, the DCS-6315 provides real-time video compression using the H.264, MPEG‑4 and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.

Continuous Monitoring

The DCS-6315’s WDR image enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify subjects that are backlit or in brightly lit areas. In low-light situations, the infrared-cut filter automatically slides out of the way to use all available light. The DCS-6315 also has built-in IR LED illuminators with a 45 feet range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable video surveillance camera capable of monitoring an area 24 hours a day.

Robust Management Software

The DCS-6315 includes D-ViewCam, a complete video surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

Flexible Connectivity

The DCS-6315 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling. In addition, the included digital input and output connector enables connections to external devices such as IR sensors, switches and alarm relays.

Features:

Exceptional Video Quality

  • 1/3” Megapixel progressive CMOS sensor with color night vision capability
  • HD resolution of 1280 x 720
  • Wide Dynamic Range image enhancement
  • H.264, MPEG-4, MJPEG codec support for streaming and recording
  • Motion detection
  • Privacy mask

Outdoor Placement

  • Built-in IR LED illuminator with a 45 feet range for use in dark areas
  • Range of mounting options for flexible placement
  • Rugged IP68 weatherproof housing
  • Weathershield for additional protection

Flexibility

  • microSD/SDHC/SDXC card slot for onboard storage of video and images
  • 10/100 Fast Ethernet port with PoE
  • DI/DO socket for connection to external devices
  • Audio in and out jacks can be connected to a microphone and speaker for 2-way communication
  • ONVIF compliant

Technical Specifications:

D-Link DCS-6315 Specifications
Camera
Hardware Profile
  • 1/3” Megapixel progressive CMOS sensor
  • 15 metre IR illumination distance
  • Built-in infrared-cut removable (ICR) filter module
  • Minimum illumination:
    • 0.1 lux colour mode
    • 0.02 lux black and white mode
    • 0 lux black and white mode with IR LED on
  • Minimum object distance 0.2 m
  • 2.8 to 12mm variable focal lens
  • Aperture F1.4
  • Angle of view (16:9)
    • (H) 90° to 28°
    • (V) 58.8° to 16°
    • (D) 103° to 33°
Camera Housing
  • IP-68 compliant weatherproof housing
  • IK-10 compliant vandal-proof housing
  • Included weathershield
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • Configurable privacy mask zones
  • Configurable exposure time, brightness, saturation, contrast, sharpness
Video Compression
  • Simultaneous H.264/MPEG-4/MJPEG format compression
  • H.264/MPEG-4 multicast streaming
  • JPEG for still images
Video Resolution
  • 16:9 - 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176 at up to 30 fps
  • 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at up to 30 fps
Audio Support
  • G.726
  • G.711
External Device Interface
  • 10/100 BASE-TX Ethernet port with PoE
  • 1 DI / 1 DO
  • DC12 V, 400 mA Output
  • microSD/SDHC/SDXC card slot, accepts cards up to 64 GB1
  • Audio input / output
Network
Network Protocols
  • IPv6
  • IPv4
  • TCP/IP
  • UDP
  • ICMP
  • DHCP client
  • NTP client (D-Link)
  • DNS client
  • DDNS client (D-Link)
  • SMTP client
  • FTP client
  • HTTP / HTTPS
  • Samba client
  • PPPoE
  • UPnP port forwarding
  • RTP / RTSP/ RTCP
  • IP filtering
  • QoS
  • CoS
  • Multicast
  • ONVIF compliant
  • SNMP
Security
  • Administrator and user group protection
  • Remote client access control
  • HTTP and RTSP authentication
System Management
System Requirements for Web Interface Browser: Internet Explorer 8 or higher, Firefox, Chrome, Safari
Event Management
  • Motion detection
  • Event notification and uploading of snapshots/video clips via e-mail or FTP
  • Supports multiple SMTP and FTP servers
  • Multiple event notifications
  • Multiple recording methods for easy backup
Remote Management
  • Take snapshots/video clips and save to local hard drive
  • Configuration interface accessible via web browser
OS Support (for setup utility) Windows 2000/XP/Vista/Windows 7/8/iPhone/iPad/Android
D-ViewCam System Requirements
  • Operating System: Microsoft Windows 8/7/Vista
  • Web Browser: Internet Explorer 8 or higher
  • Protocol: Standard TCP/IP
D-ViewCam Software Functions
  • Remote management/control of up to 32 cameras
  • Supports all management functions provided in web interface
  • Viewing of up to 32 cameras on one screen
  • Scheduled motion triggered, or manual recording options
General Specifications
Weight 1.112 kg (2.45 lbs)
Power
  • Input: 100 to 240 V AC, 50/60 Hz
  • Output:  12 V DC 1.5 A
Power Consumption 12.24 +/- 5% watts
Operating Temperature -30 to 50 °C (-22 to 124 °F)
Storage Temperature -20 to 70 °C (-4 to 158 °F)
Operating Humidity 20% to 80% non-condensing
Storage Humidity 5% to 95% non-condensing
Certifications
  • CE
  • CE LVD
  • FCC
  • C-Tick
Dimensions
  • Diameter: 5” (128 mm)
  • Heigth: 4.85” (123 mm)
Warranty
Warranty 5-Year Warranty1

1 5-YearWarranty available only in the USA.

Product Views:

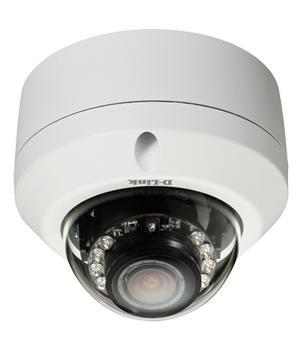

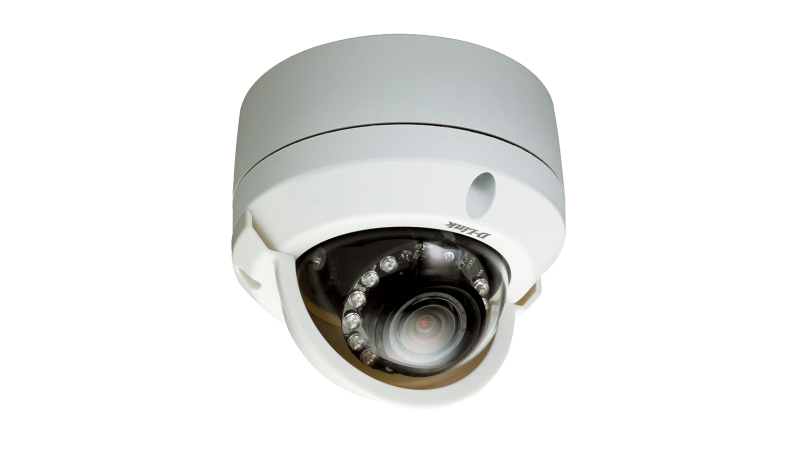

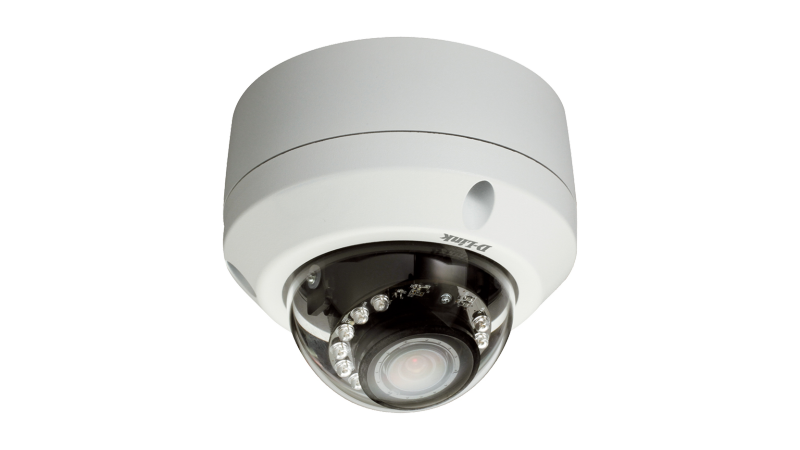

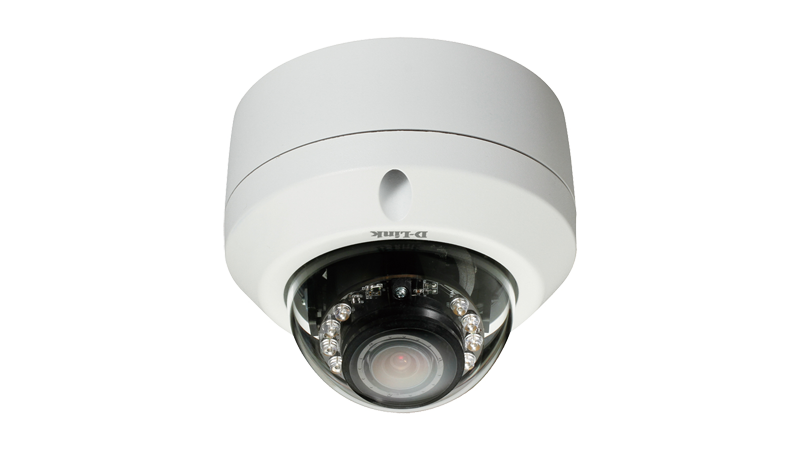

Front View Right Angle View Right Angle View with Cover
Front View Right Angle View Right Angle View with Cover

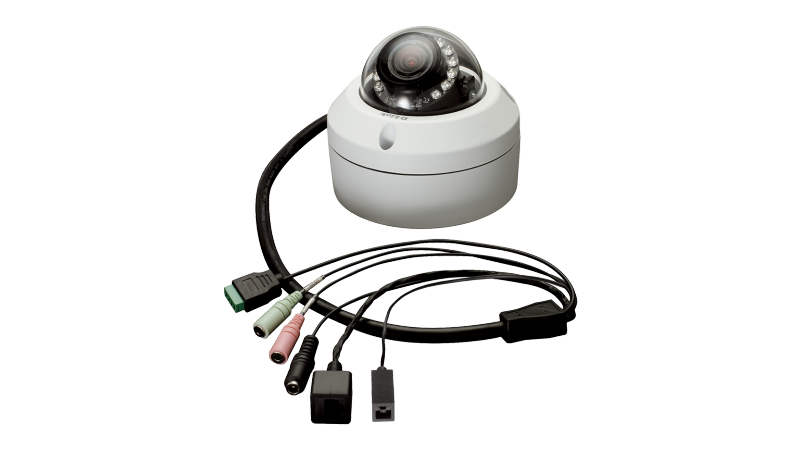

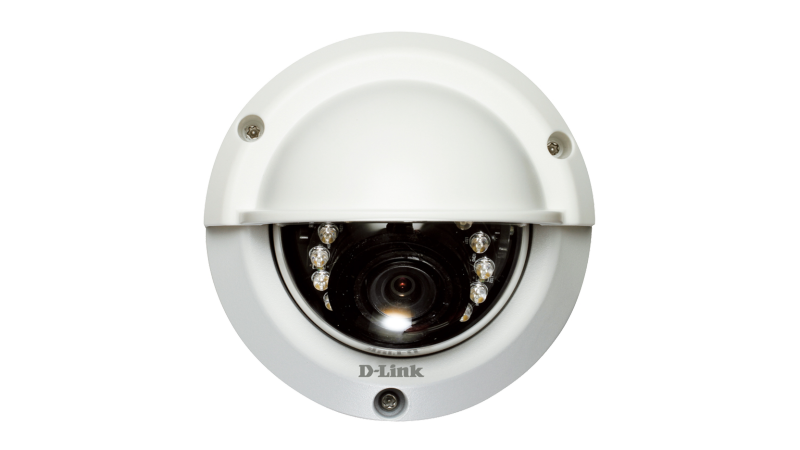

Top View With Cables
Top View With Cables

Documentation:

Download the D-Link DCS-6315 Datasheet (PDF).
