D-Link DCS-7513
Full HD WDR Outdoor Bullet IP Camera

D-Link DCS-7513

Click here to jump to more pricing!

Overview:

The D-Link DCS-7513 Full HD Day & Night WDR Outdoor Bullet Camera is a high-definition professional surveillance camera suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 2 megapixel progressive scan CMOS sensor to deliver high quality video under a wide range of lighting conditions. A remotely adjustable varifocal lens with P-Iris ensures you can get the proper field of view, even after installation. The all-in-one rugged design makes this camera ideal for reliable deployment in surveillance applications without the need for additional accessories. The included cable management bracket protects the cabling from both vandalism and weather conditions. The IP66 rating of the DCS-7513 ensures the camera is protected from not only rain but also from water jets used to wash down buildings.

24-Hour Surveillance

The DCS-7513 has an integrated mechanical IR filter and infrared LEDs to allow the viewing and recording of video even in complete darkness, up to 90 feet away from the camera.

P-Iris & Motorized Lens

Motorized control of the P-Iris lens gives finer contrast and much clearer image quality in difficult lighting environments and allows remote zoom and focus.

Wide Dynamic Range (WDR) Applications

The Wide Dynamic Range (WDR) function provides properly exposed video even under backlit conditions where the intensity of illumination can vary significantly, making the DCS-7513 ideal for high-contrast environments such as such as parking structures, alleyways, entryways and shipping docks.

Multiple Video Streams

The DCS-7513 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth efficient compression formats. H.264 produces a small file size, making it useful for extended recording with high detail or for use in low bandwidth networks. MJPEG delivers excellent file integrity, ideal for situations which require extensive image detail. The DCS-7513 supports multiple independent streaming profiles, each with its own resolution, frame rate and codec.

Flexible Connectivity

The DCS-7513 includes input and output ports for connectivity to external devices such as IR sensors, switches, and alarm relays. It also incorporate Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.

5-Year Warranty

D-Link stands behind the quality of the DCS-7513 with an industry leading 5-year limited warranty.*

Robust Management Software

D-ViewCam is a software program that allows you to view up to 32 cameras on a single computer screen from a central location. Motion detection and digital input devices trigger automated e-mail alerts that can instantly inform administrators of unusual activities.

*5-Year Warranty is for U.S. only

Features:

Exceptional Video Quality

  • 1/2.8” 2 megapixel progressive CMOS sensor
  • 3 - 9 mm motorized varifocal lens
  • Up to Full HD resolution of 1920 x1080 at 30 fps
  • Remote Zoom and Focus
  • P-Iris technology
  • Wide Dynamic Range
  • H.264, MPEG-4, MJPEG codec support for streaming and recording

Outdoor Placement

  • Built-in IR LED illuminator with a 90 feet range for use in dark areas
  • Built-in heating and cooling ensure the camera can work in a range of climates from -40° to 122 °F
  • Rugged cable management bracket
  • IP66 certified housing
  • Glare reducing sun shield

Flexibility

  • SD/SDHC Card slot for onboard storage
  • 10/100 Fast Ethernet port with PoE
  • Digital Input and Output connector for connections to external devices such as alarm relays
  • Audio in and out jacks can be connected to a microphone and speaker for 2-way communication

Technical Specifications:

D-Link DCS-7513 Specifications
Camera
Hardware Profile
  • 1/2.8" 2 Megapixel Progressive CMOS Sony Exmor Sensor
  • 90 feet IR illumination distance
  • Minimum illumination: 0 lux with IR LED on
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • Integrated IR LEDs
  • Lens: 3-9mm Motorized Varifocal with P-Iris
  • Aperture: F1.2
  • Angle of view (16:9)
    • (H) 121.2° to 38.1°
    • (V) 62.1° to 21.3°
    • (D) 148.4° to 43.8°
Camera Housing
  • IP66 compliant weatherproof housing
  • Rugged Cable management bracket
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • Configurable privacy mask zones
  • Configurable shutter speed, brightness, saturation, contrast, and sharpness
Video Compression
  • Simultaneous H.264/MPEG-4/MJPEG format compression
  • JPEG for still images
Video Resolution
  • 16:9 at 1920 x 1080 (up to 15 fps), 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps
  • 4:3 at 1440 x 1080 (up to 15 fps), 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240, 176 x 144 up to 30 fps
Audio Support
  • G.726
  • G.711
External Device Interface
  • 10/100 BASE-TX Ethernet port with PoE
  • 1 DI / 1 DO
  • DC12 V, 100 mA output
  • SD/SDHC card slot
  • Audio input/output
  • DI/DO connector 12 V DC output
Network
Network Protocols
  • IPv6
  • IPv4
  • TCP/IP
  • UDP
  • ICMP
  • DHCP client
  • NTP client (D-Link)
  • DNS client
  • DDNS client (D-Link)
  • SMTP client
  • FTP client
  • HTTP / HTTPS
  • Samba client
  • PPPoE
  • UPnP port forwarding
  • RTP / RTSP/ RTCP
  • IP filtering
  • QoS
  • CoS
  • IGMP
  • ONVIF compliant
Security
  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption
System Management
System Requirements for Web Interface Browser: Internet Explorer 8 or higher, Firefox, Chrome, Safari
Event Management
  • Motion detection
  • Event notification and uploading of snapshots/video clips via e-mail or FTP
  • Supports multiple HTTP, SMTP and FTP servers
  • Multiple event notifications
  • Multiple recording methods for easy backup
Remote Management
  • Take snapshots/video clips and save to local hard drive or NAS via web browser
  • Web Browser: Internet Explorer 7 or higher
  • Protocol: Standard TCP/IP
D-ViewCam System Requirements
  • Operating System: Microsoft Windows 7/Vista/XP
  • Web Browser: Internet Explorer 8 or higher
  • Protocol: Standard TCP/IP
D-ViewCam Software Functions
  • Remote management
  • Control and manage up to 32 cameras
  • View up to 32 cameras on one screen
  • Management functions provided in web interface
  • Scheduled motion triggered and manual recording triggers
General Specifications
Weight 4.42 lbs with bracket and sun shield (2.05 kg)
External Power Adapter
  • Input: 100 to 240 V AC, 50/60 Hz
  • Output: 12 V 1.25 A
Power Consumption 11 watts ± 5 %
Operating Temperature -40° to 122° F (-40° to 50° C)
Storage Temperature -4° to 158° F (-20° to 70° C)
Operating Humidity 20% to 80% non-condensing
Storage Humidity 5% to 95% non-condensing
Certifications
  • CE
  • CE LVD
  • FCC
  • C-Tick
Dimensions
  • Length: 8.8" (223.5 mm)
  • Width: 3.8" (97.5 mm)
  • Heigth: 2.1" (53mm)
Warranty
Warranty 5-Year Warranty1

1 5-YearWarranty available only in the USA.

Product Views:

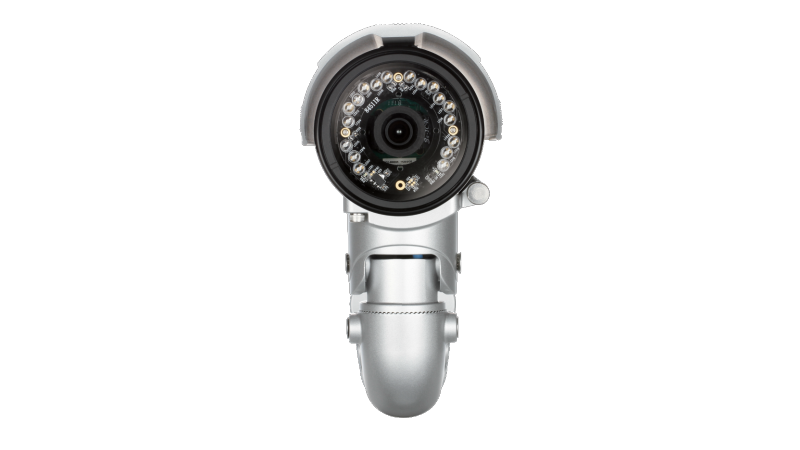

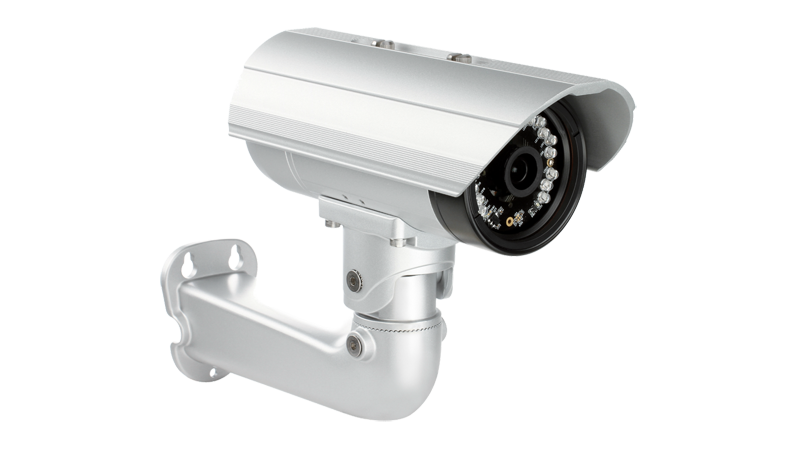

Front View Left Angle View Right Angle View
Front View Left Angle View Right Angle View

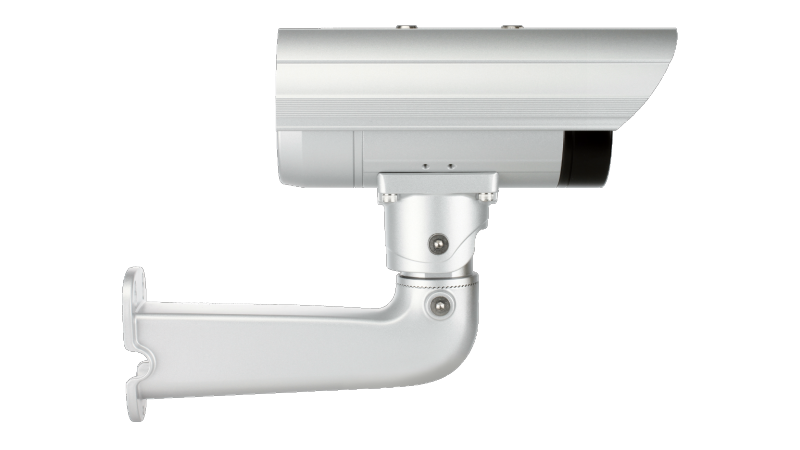

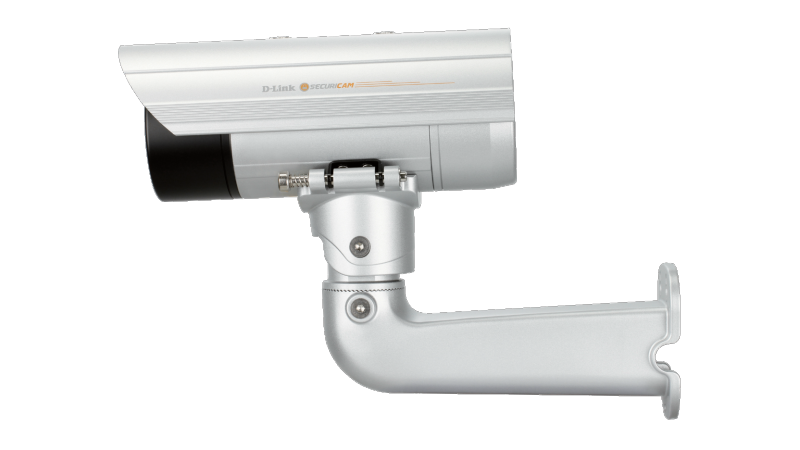

Left Side View Right Side View
Left Side View Right Side View

Documentation:

Download the D-Link DCS-7513 Datasheet (PDF).
