D-Link DGS-1100-08
8-Port Gigabit Smart Managed Desktop Switch


D-Link DGS-1100-08

Sorry, this product is no longer available, Please contact us for a replacement.


Click here to jump to more pricing!

Overview:

D-Link’s DGS-1100 Series Gigabit Smart Managed Switches provide an affordable solution for businesses of all sizes that require simple network management. The DGS-1100 switches consist of 5, 8, 10,16, 24 and 26 Gigabit port models with a wide variety of functions and features. The 5 and 8 port models come in compact metal desktop enclosures, while the 10, 16, 24 and 26 port models come in metal enclosures that support either desktop or rack mounting. Four models support 802.3af/at Power over Ethernet (PoE), with a range of PoE power budgets from 64W to 370W. There is also a PoE-powered model that has the ability to passthrough power to one or two PoE devices downstream.

D-Link Green/Power Saving Performance

Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), these switches consume less energy by cutting down on power consumption when port utilization is low. By deploying EEE devices, users can cut operating costs and reduce necessary cooling equipment, helping small and medium-sized businesses stay within their budgets. The DGS-1100 switches also feature D-Link Green Technology that helps save energy automatically. The switches monitor the link status of every port and reduce power consumption on the interface when there is no link or no network traffic detected.

Easy to deploy

The DGS-1100 switches support an intuitive client-based utility (D-Link Network Assistant Utility) and a web-based management interface. The client-based utility discovers all D-Link Smart Switches within the same Layer 2 network segment, making initial setup quick and easy. This allows extensive switch configuration and basic administration of discovered devices, including password changes and firmware upgrades. The web-based management interface provides a user-friendly way for network administrators to manage the switch down to the port level. The interface can be accessed from a web browser, allowing the switch to be controlled from any networkconnected PC.

Surveillance VLAN and Bandwidth Control

The DGS-1100 switches support Surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This also ensures security, and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance networking hardware. Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or might have high priority.

Advanced Features

The DGS-1100 Series switches are equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only. Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.

Easy Troubleshooting

The DGS-1100 Series switches feature Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Limited Lifetime Warranty

D-Link offers a Limited Lifetime Warranty on the DGS-1100 Series Gigabit Smart Managed Switches to further its commitment to product quality and long-term customer confidence.

Features:

D-Link Green Technology

  • Link Status detection
  • IEEE 802.3az Energy Efficient Ethernet compliant

Advanced L2 Switching Features

  • IGMP Snooping
  • Bandwidth Control
  • 802.1Q VLAN for traffic segregation
  • Port-based VLAN
  • 802.1p Quality of Service
  • Surveillance VLAN and Voice VLAN

Quality of Service

  • 802.1p
  • Auto Surveillance VLAN
  • Auto Voice VLAN

Easy Troubleshooting

  • Loopback Detection auto disables port when a loop is detected
  • Cable Diagnostics

Management Features

  • Client-based utility or Web-based GUI

Technical Specifications:

D-Link DGS-1100 Series Specifications
  DGS-1100-05 DGS-1100-05PD DGS-1100-08 DGS-1100-08P DGS-1100-16 DGS-1100-24 DGS-1100-24P
General
Hardware Version Rev. B Rev. B Rev. B Rev. B Rev. B Rev. B Rev. B
10/100/1000 Ports 5 5 8 8 16 24 24
Port Standard & Functions
  • IEEE 802.3, 802.3u, 802.3ab compliant
  • IEEE 802.3x Flow Control
  • IEEE 802.3az EEE compliant
  • IEEE 802.3af compliant (DGS-1100-05PD)
  • IEEE 802.3af/at compliant (DGS-1100-08P)
  • Half/Full-duplex operation at 10/100
  • Full-duplex operation at 1000Mbps
  • Auto-Negotiation for each port
  • Auto MDI/MDIX
Performance
Switching Capacity 10Gbps 10Gbps 16Gbps 16Gbps 32Gbps 48Gbps 48Gbps
Max. Forwarding Rate 7.4 Mpps 7.4 Mpps 11.9 Mpps 11.9 Mpps 23.81 Mpps 35.71 Mpps 35.71 Mpps
MAC Address Table 2K Entries 2K Entries 4K Entries 4K Entries 8K Entries 8K Entries 8K Entries
Packet Buffer 1 Mbits 1 Mbits 1.5 Mbits 1.5 Mbits 512KBytes 512KBytes 512KBytes
Flash Memory 2 Mbytes 2 Mbytes 2 Mbytes 2 Mbytes 8 MBytes 8 MBytes 8 MBytes
Power over Ethernet
PoE Standard - 802.3af - 802.3af/at - - 802.3af/at
PoE Capable Ports - Ports 1-2 (PSE)
Port 5 (PD)
- Ports 1-8 - - Ports 1-12
PoE Power Budget - 18W with 802.3at input power
8W with 802.3af input power
- 64W - - 100 W
Physical & Environmental
Power Input 100 to 240 VAC; 50 to 60 Hz External Universal Pwr Supply 802.3af/at PoE input only (no external Pwr Supply) 100 to 240 VAC; 50 to 60 Hz External Universal Pwr Supply 100 to 240 VAC; 50 to 60 Hz External Universal Pwr Supply 100 to 240 VAC, 50 to 60 Hz Internal Universal Power Supply
Max. Power Consumption 3.42 W 23.92 W (PoE on)
2.32 W (PoE off)
4.94 W 77.9 W (PoE on)
4.6 W (PoE off)
9.3 W 13.9 W 128.3 W (PoE on)
21.2 W (PoE off)
Standby Power Consumption 1.39 W 1.46 W 11.93 W 2.0 W 8.0 W 10.4 W 13.0 W
Ventilation Fanless Fanless Fanless Fanless Fanless Fanless One Fan
Acoustics 0 dB(A) 0 dB(A) 0 dB(A) 0 dB(A) 0 dB(A) 0 dB(A) 41.9 dB(A) rev B1
27.6 dB(A) rev B2
Heat Dissipation 11.67 BTU/hr N/A 16.85 BTU/hr 265.85 BTU/hr 31.8 BTU/hr 47.6 BTU/hr 437.9 BTU/hr
Operating 32˚F to 104˚F (0˚C to 40˚C)
Storage Temperature -40˚F to 158˚F (-40˚C to 70˚C)
Operating Humidity 0% to 90% non-condensing
Storage Humidity 0% to 95% non-condensing
Dimensions (W x D x H) 3.96” x 3.23” x 1.10”
(100.5 x 82 x 28 mm)
5.91” x 3.82” x 1.10”
(150 x 97 x 28 mm)
5.71” x 3.23” x 1.10”
(145 x 82 x 28 mm)
6.73” x 3.85” x 1.13”
(171 x 97.8 x 28.6 mm)
11” x 7.1” x 1.73”
(280 x 180 x 44 mm)
11” x 7.1” x 1.73”
(280 x 180 x 44 mm)
11” x 9.1” x 1.73”
(280 x 230 x 44 mm)
Weight 0.51 lbs (0.23 kg) 0.84 lbs (0.38 kg) 0.75 lbs (0.34 kg) 0.95 lbs (0.43 kg) 3.37 lbs (1.53 kg) 3.59 lbs (1.63 kg) 4.73 lbs (2.15 kg)
EMI Certifications FCC Class B, CE Class B, VCCI Class B, BSMI, CCC FCC Class A, CE Class A, VCCI Class A, BSMI, CCC
Safety cUL, CE LVD, CB, BSMI, CCC
MTBF 1,562,055 hours 2,346,941 hours 1,456,992 hours 786,841 hours 2,827,541 Hours 2,406,109 Hours 563,292 Hours
Software Features
VLAN
  • Port-based VLAN
  • 802.1Q Tagged VLAN
  • Surveillance VLAN
  • Voice VLAN
  • Management VLAN
  • Asymmetric VLAN
  • VLAN Group
    • Supports 32 static VLAN groups (DGS-1100-05/-05PD/-08/-08P)
    • Supports 128 static VLAN groups (DGS-1100-10MP/-16/ -24/ -24P/-26MP)
    • Max. 4094 VIDs
L2 Features
  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • Jumbo Frames up to 9216 Bytes
  • IGMP Snooping
    • IGMPv1/v2 Snooping
    • IGMPv3 Awareness
    • Supports 128 Groups (DGS-1100-05/-05PD/-08/-08P)
    • Supports 64 Groups (DGS-1100-10MP/-16/-24/-24P/-26MP)
  • 802.3ad Link Aggregation
    • 1 group, 2-4 ports per group (DGS-1100-05/-05PD)
    • 2 groups, 2-4 ports per group (DGS-1100-08/-08P)
    • 5 groups, 8 ports per group (DGS-1100-10MP)
    • 8 groups, 8 ports per group (DGS-1100-16)
    • 12 groups, 8 ports per group (DGS-1100-24/-24P)
    • 13 groups, 8 ports per group (DGS-1100-26MP)
  • G.8032 ERPS (DGS-1100-10MP/-26MP)
  • Loopback Detection
  • Cable Diagnostics
  • LLDP (DGS-1100-10MP/-16/-24/-24P/-26MP)
  • Port Mirroring
    • One-to-One
    • Many-to-One
  • Statistics
    • Tx Ok
    • Tx Error
    • Rx Ok
    • Rx Error
  • Spanning Tree Protocol
    • 802.1D STP
    • 802.1w RSTP
  • SNTP (DGS-1100-10MP/-16/-24/-24P/-26MP)
  • L2 Multicast
    • MLD Snooping (DGS-1100-10MP/-26MP)
QoS
  • 802.1p Quality of Service
    • 4 queues per port (DGS-1100-05/-05PD/-08/-08P/-16/-24/-24P)
    • 8 queues per port (DGS-1100-10MP/-26MP)
  • Queue Handling
    • Strict
    • Weighted Round Robin (WRR)
    • Deficit Rount Robin (DRR) (DGS-1100-10MP/-26MP)
  • Bandwidth Control
    • DGS-1100-05/-05PD/-08/-08P
      • Port Based
      • Ingress: minimum granularity 8 Kbps
      • Egress: minimum granularity 8 Kbps
    • DGS-1100-10MP/-16/-24/-24P/-26MP
      • Port Based
      • Ingress: minimum granularity 8 Kbps
      • Egress: minimum granularity 64 Kbps
Security
  • D-Link Safeguard (DGS-1100-10MP/-16/-24/-24P/-26MP)
  • Traffic Segmentation
  • Broadcast/Multicast/Unknown Unicast Storm Control
  • DoS Attack Prevention (DGS-1100-10MP/-16/-24/-24P/-26MP)
  • SSL (DGS-1100-10MP/-16/-24/-24P/-26MP)
  • Static MAC Address
    • Max. 32 entries (DGS-1100-05/-05PD/-08/-08P)
    • Max. 64 entries (DGS-1100-10MP/-16/-24/-24P/-26MP)
Management
  • Web-Based GUI:
    • Supports IPv4 (DGS-1100-05/-05PD/-08/-08P)
    • Supports IPv4/IPv6 (DGS-1100-10MP/-16/-24/-24P/-26MP)
  • D-Link Network Assistant Utility
Green Technolgy
  • Power Saving by:
    • Link Status (DGS-1100-10MP/-16/-24/-24P/-26MP)
    • LED Shut-off (DGS-1100-10MP/-16/-24/-24P/-26MP)
    • Port Shut-off (DGS-1100-10MP/-16/-24/-24P/-26MP)
    • System hibernation (DGS-1100-10MP/-16/-24/-24P/-26MP)
  • Compliant with Energy Efficient Ethernet (IEEE 802.3az)
  • RoHS Compliant
MIB/RFC Standards
(DGS-1100-05/- 05PD/08/08P)
  • RFC 768 UDP
  • RFC 791 IP
  • RFC 792 ICMP
  • RFC 793 TCP
  • RFC 826 ARP
  • IEEE 802.1p
  • RFC2236, IGMP Snooping
  • RFC1213 MIB II
  • RFC1215 MIB Traps Convention
MIB/RFC Standards
(DGS-1100-10MP/-16/- 24/-24P/-26MP)
  • RFC 768 UDP
  • RFC 791 IP
  • RFC 792 ICMP
  • RFC 793 TCP
  • RFC 826 ARP
  • RFC1213 MIB II
  • RFC1493 Bridge MIB
  • RFC1907 SNMPv2 MIB
  • RFC1215 MIB Traps Convention
  • RFC2233 Interface Group MIB
  • RFC2665 Ether-like MIB
  • RFC4363 IEEE 802.1p MIB
  • ZoneDefense MIB
  • Private MIB
  • RFC951 BootP client
  • RFC1542 BootP/DHCP client
  • RFC2236 IGMP Snooping
Warranty
Warranty Limited Lifetime1

1 Limited Lifetime Warranty available in U.S.A. only.
2 D-Link Network Assistant Utility Available for Hardware Rev. B only.
3 SmartConsole Utility Available for Hardware Rev. A only.

Product Views:

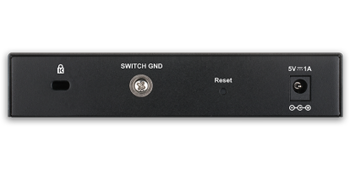

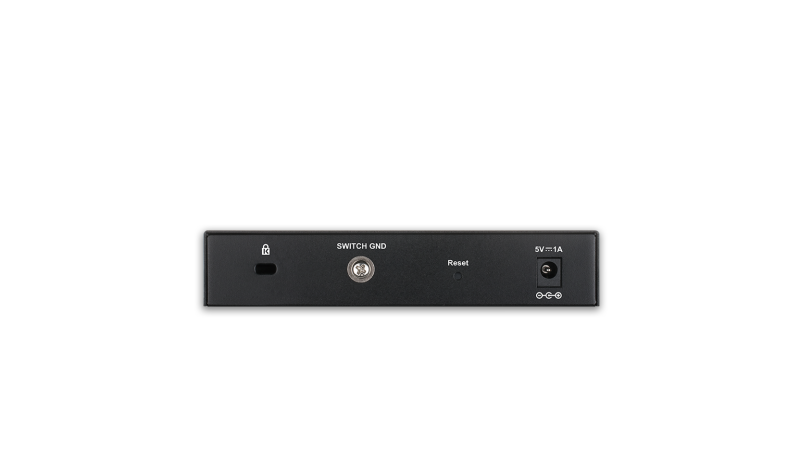

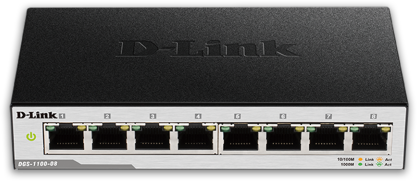

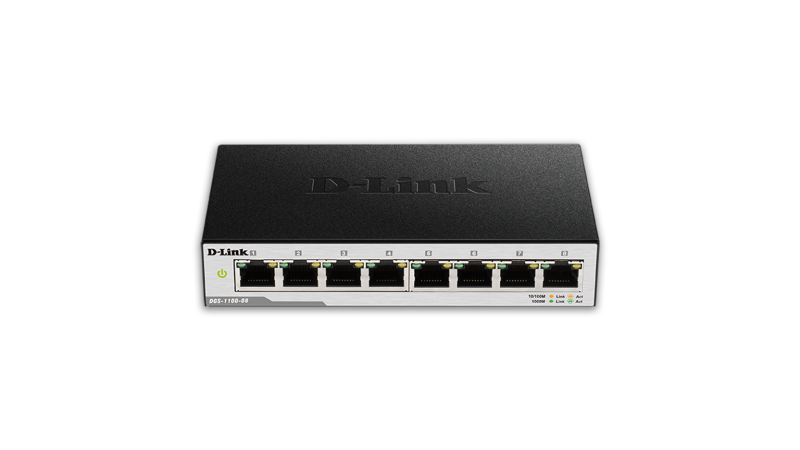

Front View Back View
Front View Back View

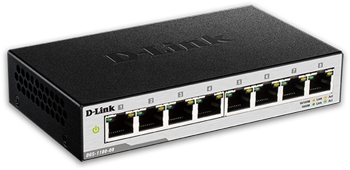

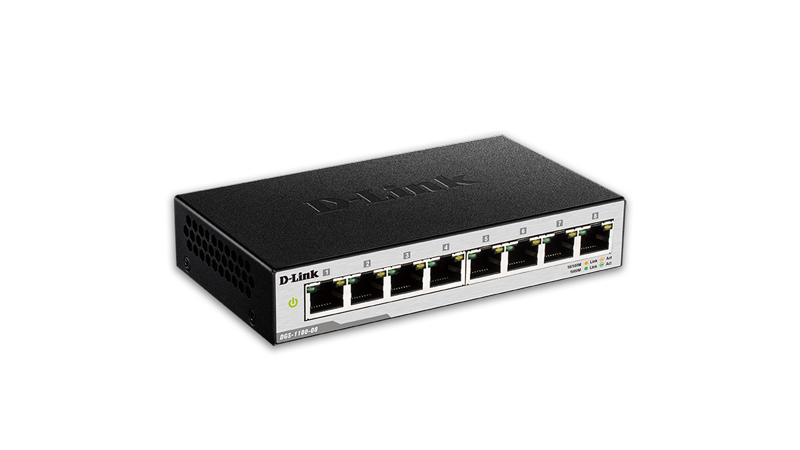

Right Angle View
Right Angle View

Documentation:

Download the D-Link DGS-1100 Series Datasheet (PDF).
