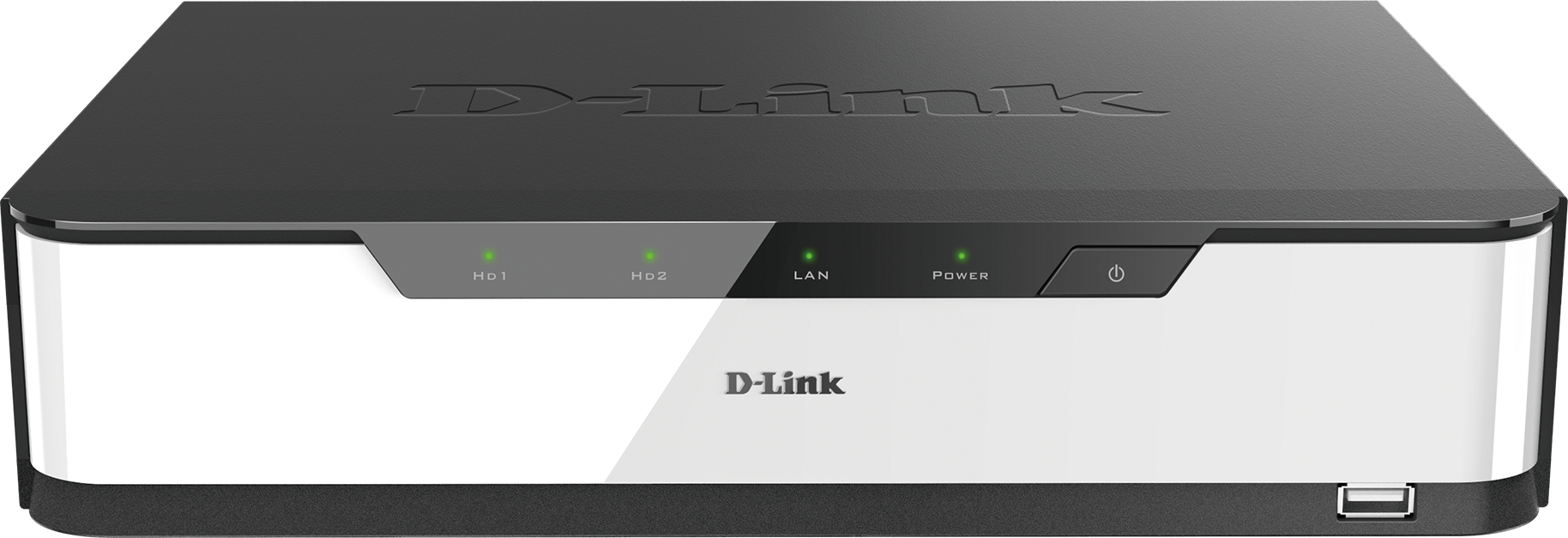

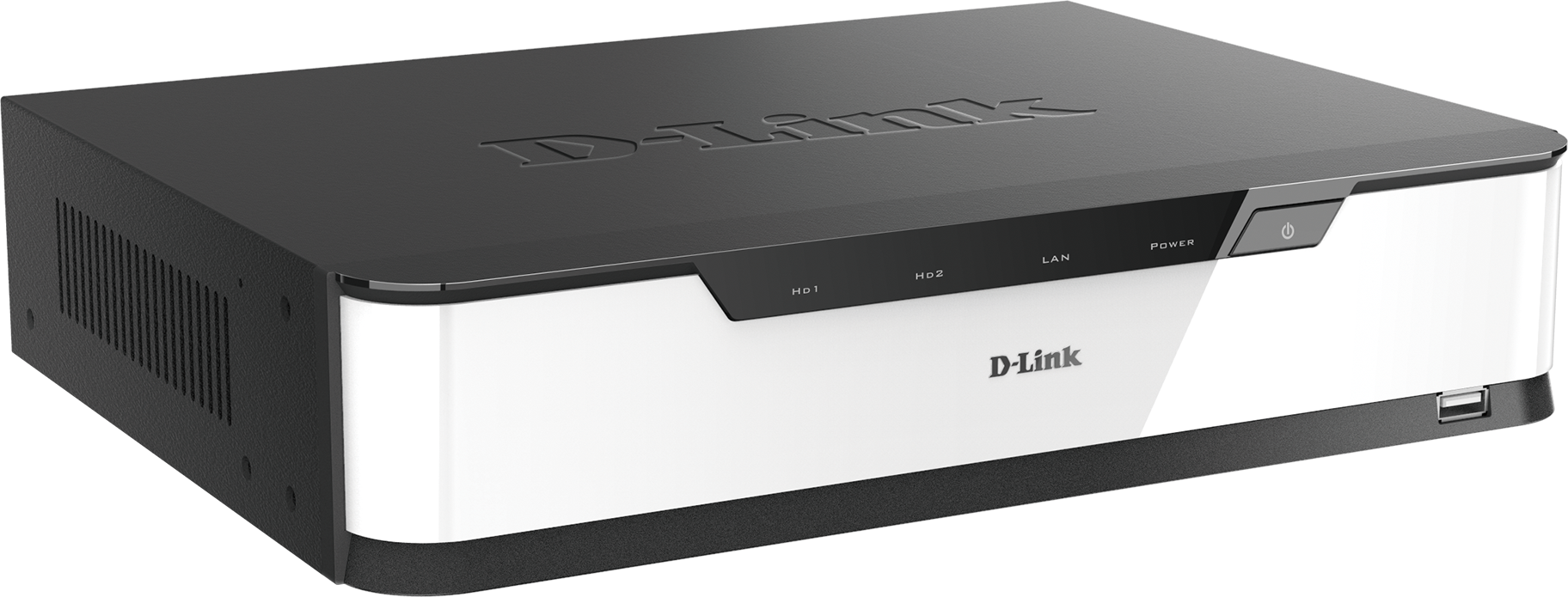

D-Link DNR-2020-04P
JustConnect 16-Channel PoE Network Video Recorder
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
The DNR-2020-04P JustConnect 16-Channel PoE Network Video Recorder is a standalone Network Video Recorder (NVR) that can record video from up to sixteen network cameras to its dual HDD storage1 without requiring users to turn on their PC. Featuring Power over Ethernet (PoE), the NVR supplies power to up to four PoE cameras, saving valuable time and electrical installation costs during setup. Powered by an embedded system, the DNR-2020-04P supports real-time remote monitoring and playback via a web browser using the NVR’s web GUI. Additionally, support for audio in/out, DI/DO triggering, and external USB 3.0 storage for video export and backups fill the needs of small businesses. Rounding out the package is the bundled video management software, making the DNR-2020-04P a convenient, versatile, and effective video recorder.
Versatile Monitoring
Users are provided with a variety of options for viewing and organizing camera footage onscreen. Featuring live viewing of multiple channels, users can simply drag and drop selected cameras to the viewing area. Users can also control pan/tilt/zoom (PTZ) functions from within the interface. A single camera may be viewed full-screen with two-way audio support. Optional Digital In/Digital Out (DI/DO) connections to triggers such as door and window sensors allow for easy event-based recording.
Extensive Recording Functionality
The DNR-2020-04P’s clear interface allows for easy configuration of many functions including compression, resolution, and frame rate for all connected cameras. Once the cameras have been set up, recordings can be made continuously, or according to a user-defined schedule. E-map support simplifies camera setup and management. The NVR also provides event recording based on specific triggers such as when motion is detected and notifications can be set so that an email will be sent to alert the administrator whenever an event occurs.
Features:
Trustworthy Surveillance
- Reliable network camera surveillance recorder for small business users
- View real-time and recorded video of all 16 cameras from anywhere in your home or office, or remotely via the Internet
- M-JPEG, MPEG-4 or H.264 video format
Convenient Interface
- Effortless network camera setup and management
- User-friendly interface provides 16 channels of simultaneous live view, recording, playback, and PTZ control
- Continuous, scheduled, or event recording with automatic overwrite function
Precision Technology
- Two-bay SATA 3.5” HDD interface, up to 16 TB of hard disk storage space for recorded video1
- Protects important surveillance files with automatic backups using RAID 1 technology
Flexible and Scalable
- Stand-alone device: Eliminates the need for a dedicated PC
- Supports D-Link network cameras5
- Power fail recovery recording
- One 10/100/1000 Mbps auto-MDIX Gigabit Ethernet port
Specifications:
| Channel Number | 16 Channels |
|---|---|
| Operating System | Embedded Linux |
| Configuration Backup & Restore | Yes |
| Multilingual list (A~O) | Chinese (Simplified), Chinese (Traditional), English, French, German, Italian |
| Multilingual | 7 Languages |
| Multilingual list (P~Z) | Portuguese, Spanish |
| Compression Format | H.264/ MPEG-4/ MJPEG |
| Recording Performance | First video profile: H.264 at 1080p at 480 fps Secondary video profile: H.264 at VGA at 240 fps |
| Display Mode (View Layout) | 1, 4, 6, 9, 10, 13, 16 Split Screen |
| Authorization (User Privilege) | Yes |
| PTZ Control (Mechanical/ Optical) | Yes |
| Auto Scan (Camera View Rotation) | Yes |
| Auto Pan | Yes |
| Digital PTZ Control | Yes |
| Preset Control | Yes |
| Auto Patrol | Yes |
| Full Screen | Yes |
| Snapshot | Yes |
| Two-way Audio | Two-way Audio |
| Camera OSD (On Screen Display) | Yes |
| Recording Type | Schedule/ Manual/ Event/ Motion |
| Audio Recording | Yes |
| Pre-recording/ Post-recording Period | Pre-rec: 60 sec/ Post-rec: 300 sec |
| Multiple View (Duplicate Camera) | Yes |
| Auto Recycling (Disk Capacity) | Yes |
| Edge Motion Detection (by Camera) | Yes |
| Scheduled Recycling (Days) | Yes |
| Simultaneously Playback Channel | 16 Channel |
| Playback Mode | Video Control (Play, Stop, Pause, Forward, Backward, Next, Previous) |
| Audio Control | Yes |
| Video Export File Format | AVI |
| Digital Zoom Ratio | 16x |
| Image Export File Format | BMP/ JPG |
| Video Search (Factor) | Yes (Time, Camera) |
| Smart/ Intelligent Search (Factor) | Yes |
| Tamper-Proof (Digital Watermark) | Yes |
| Event to Email | Yes |
| Event to Alarm | Yes |
| Event by Disk Full | Yes |
| Event by Signal Lost | Yes |
| I/O Control | Yes |
| Client Viewer | Browser/ JustConnect+ APP |
| Central Viewer | NVR CMS (DCS-260) |
| Playback Viewer | Browser/ Playback Manager |
| Secondary Streaming Profile | Yes |
| Remote Live View Channel (Max) | Maximum 6 users for 6 remote live viewers or 5 remote live viewers + 1 remote playback |
| Concurrent Channel per Client (Max) | 16 Channels |
| Remote Playback Channel (Max) | 16 Channels |
| E-Map Layer | 3 Layer |
| E-Map Indicator | N/A |
| E-Map Image Format | BMP/ JPG |
| Camera Preview | N/A |
| Supported Camera | D-Link/ONVIF Cameras |
| Auto Surveillance VLAN Support | Yes |
| HDD Bay | 2 x 3.5" SATA HDD, Max. 20TB |

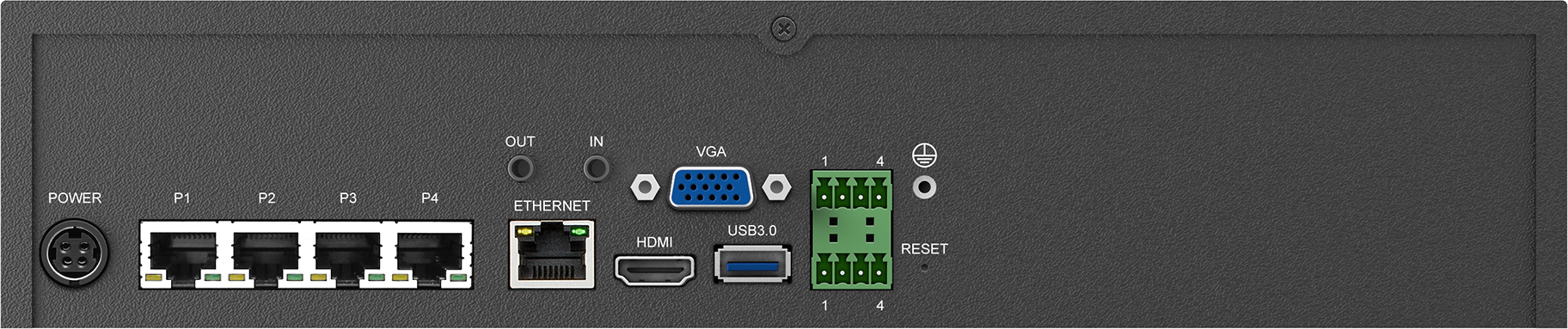

| Network Interface | 1 x Gigabit Port, 4 x 100BASE-T PoE port (802.3af ) |
| Auto Boot-Up (Power Recovered) | Yes |
| Dimensions (mm) | 300 x 225 x 63 (W x D x H) mm |
| Weight (g) | 2100 |
| Power Consumption (watts) | 90 (Max) 0.41 (Standby) |
| Operation Temperature | 0 to 40°C (32 to 104°F) |
| Playback System | Yes |
| Backup System (Video Clips) | Yes |
| Verification Tool (Digital Watermark) | Yes |
| NVR Search (Discovery) | Yes |
Documentation:
Download the D-Link DNR-2020-04P Datasheet (PDF).
