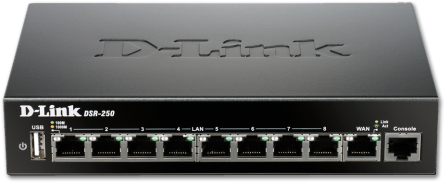

D-Link DSR-250
8-Port Gigabit VPN Router
Sorry, this product is no longer available, replaced by the DSR-250v2.
Overview:
The D-Link DSR Series VPN Routers provide secure, high-performance networking solutions to address the growing needs of small and medium businesses. The DSR series routers offer unparalleled performance and security to ensure employees can access their files securly from anywhere they are working. Next generation wireless performance is also available on the DSR-1000AC, which supports the IEEE 802.11ac wireless standard.
Web Authentication Capabilities
Captive Portal allows employees and guest users to be easily authenticated and authorized by accessing a customized landing page. Users can be authenticated by a local database, RADIUS, LDAP, Microsoft Windows Active Directory, NT Domain and POP3 server. A maximum of four servers can be configured at any one time.
Complete and Robust VPN Features
A fully featured virtual private network (VPN) provides your mobile workers and branch offices with a secure link to your network. The DSR series routers are capable of Secure Sockets Layer (SSL) VPN tunnels, as well as Generic Routing Encapsulation (GRE) tunnels, empowering your mobile users by providing remote access to a central corporate database. Site-to-site VPN tunnels use IP Security (IPSec) Protocol, Point-toPoint Tunneling Protocol (PPTP), or Layer 2 Tunneling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links. OpenVPN allows mobile users to connect to the corporate intranet via encrypted links with their PC, laptops, or mobile devices.
Static and Dynamic Web Content Filtering
The DSR series also provides a web content filtering feature to help administrators monitor, manage, and control employee Internet usage. Static web content filtering helps to remove malicious objects such as Java applets, ActiveX, and cookies, or to block URLs by keyword. Dynamic Web Content Filtering, which requires a license subscription, allows administrators to filter content from a list of categories. Multiple global index servers, with millions of URLs and real-time website data, enhance performance and maximize service availability. Dynamic Web Content Filtering trial period is free for the first three months.
Limited Lifetime Warranty
D-Link offers a Limited Lifetime Warranty on the DSR Series VPN Routers to further its commitment to product quality and long-term customer confidence.
Features:
High-Performance VPN
- Protocols
- IPSec, PPTP/L2TP, GRE, SSL, OpenVPN
- VPN Tunnels
- DES, 3DES, AES, Blowfish, Twofish, CAST128
- Hub and Spoke Enhanced Network S
Enhanced Network Service
- IPv6
- IEEE 802.11q VLAN
- Port Monitoring/Bandwidth Control
- IGMP Proxy, IGMP Snooping
- Web Content Filtering
- Web Authentication Capabilities
Green Ethernet D-Link Green Ethernet detects link status and cable length and adjusts power usage accordingly. |
Green WiFi2 The WLAN Scheduler shuts down the WLAN during off-peak hours to enhance network security and save power. |
Technical Specifications:
| DSR-150 | DSR-250 | DSR-500 | DSR-150N | |
|---|---|---|---|---|
| General | ||||
| Hardware Version | A2 | A2 | B1 | A1 |
| Ethernet Ports | 1 10/100 Mbps WAN 8 10/100 Mbps LAN |
1 10/100/1000 Mbps WAN 8 10/100/1000 Mbps LAN |
2 10/100/1000 Mbps WAN 4 10/100/1000 Mbps LAN |
2 10/100/1000 Mbps WAN 4 10/100/1000 Mbps LAN |
| Wireless Interface | N/A | N/A | N/A | 802.11b/g/n (Single Band) 2 internal 2dBi Omni-Directional Antennas |
| USB 2.0 | 1 | 1 | 1 | 1 |
| Console | RJ-45 | RJ-45 | RJ-45 | RJ-45 |
| System Performance | ||||
| Firewall Throughput | 95 Mbps | 750 Mbps | 950 Mbps | 950 Mbps |
| VPN Throughput | 40 Mbps | 50 Mbps | 200 Mbps | 200 Mbps |
| Concurrent Sessions | 20,000 | 20,000 | 50,000 | 100,000 |
| New Sessions (per second) | 200 | 200 | 500 | 1000 |
| Firewall Policies | 200 | 200 | 600 | 600 |
| Internet Connection Type | ||||
| Static/Dynamic IP | Yes | Yes | Yes | Yes |
| PPoE/L2TP/PPTP | Yes | Yes | Yes | Yes |
| Multiple PPoE | Yes | Yes | Yes | Yes |
| Firewall System | ||||
| Static Route | Yes | Yes | Yes | Yes |
| Dynamic Route | - | - | RIPv1, RIPv2, OSPF | RIPv1, RIPv2, OSPF |
| Dynamic DNS | Yes | Yes | Yes | Yes |
| Inter-VLAN Route | Yes | Yes | Yes | Yes |
| NAT, PAT | Yes | Yes | Yes | Yes |
| Web Content Filtering | Static URL, Keywords, Dynamic WCF (License is required) | |||
| Intrusion Prevention Systems (IPS) | - | Signature package included in Firmware | ||
| Web Content Filtering | Internal User Database, Radius, POP3, LDAP, AD, NT Domain | |||
| Networking | ||||
| DHCP Server/Client | Yes | Yes | Yes | Yes |
| DHCP Relay | Yes | Yes | Yes | Yes |
| IEEE 802.1q VLAN | Yes | Yes | Yes | Yes |
| VLAN (Port-Based) | Yes | Yes | Yes | Yes |
| IP Multicast | IGMP Proxy IGMP Snooping | |||
| IPv6 | Yes | Yes | Yes | Yes |
| Route Failover | - | - | Yes | Yes |
| Outbound Load Balancing | - | - | Yes | Yes |
| Wireless | ||||
| Multiple Service Set Identifier (SSID) | N/A | Yes | ||
| Service Set Identifier (SSID) to VLAN Mapping | N/A | Yes | ||
| Standards | N/A | 802.11 ac/a/b/g/n | ||
| Wireless Security | N/A | Wired Equivalent Privacy (WEP) Wi-Fi Protect Setup (WPS) Wi-Fi Protected Access – Personal (WPA-PSK) Wi-Fi Protected Access – Enterprise (WPA-EAP) Wi-Fi Protected Access version 2 – Personal (WPA-PSK) Wi-Fi Protected Access version 2 – Enterprise (WPA-EAP) |
||
| Virtual Private Network (VPN) | ||||
| VPN Tunnels (Total) | 36 | 75 | 95 | 155 |
| IPSec Tunnels | 10 | 25 | 35 | 70 |
| SSL VPN Tunnels | 1 | 5 | 10 | 20 |
| PPTP/L2TP Clients | 10 | 25 | 25 | 25 |
| GRE | 5 | 10 | 15 | 20 |
| Encryption Methods | DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL | |||
| SSL Encryption Methods | RC4-128, 3DES, AES | |||
| IPSec/PPTP/L2TP Server | Yes | Yes | Yes | Yes |
| IPSec NAT Traversal | Yes | Yes | Yes | Yes |
| Dead Peer Detection | Yes | Yes | Yes | Yes |
| IP Encapsulating Security Payload (ESP) | Yes | Yes | Yes | Yes |
| IP Authentication Header (AH) | Yes | Yes | Yes | Yes |
| Bandwidth Management | ||||
| Max. Bandwidth Contro | Yes | Yes | Yes | Yes |
| Priority Bandwidth Control | Port-Based QoS, 3 Classes | |||
| System Management | ||||
| Web-based User Interface | Yes | Yes | Yes | Yes |
| Command Line | Yes | Yes | Yes | Yes |
| SNMP | v1, v2c, v3 | v1, v2c, v3 | v1, v2c, v3 | v1, v2c, v3 |
| Physical & Environment | ||||
| Power Supply | External Power Supply Unit DC 12V/1.5A |
External Power Supply Unit DC 12V/2.5A |
External Power Supply Unit DC 12V/3A |
|
| Max. Power Consumption | 7.44W/10.5W | 11.8W/12.6W | 11.03W/13.1W | 20.69W/23.1W |
| Dimensions (L x W x H) | 8.19 x 4.68 x 1.38 in (208 x 118 x 35 mm) |
5.51 x 8.0 x 1.38 in (140 x 203 x 35 mm) |
7.09 x 11.02 x 1.73 in (180 x 280 x 44 mm) |
7.09 x 11.02 x 1.73 in (180 x 280 x 44 mm) |
| Operation Temperature | 32 to 104 °F (0 to 40 °C) | 32 to 104 °F (0 to 40 °C) | ||
| Storage Temperature | -4 to 158 °F (-20 to 70 °C) | -4 to 158 °F (-20 to 70 °C) | ||
| Operation Humidity | 5% to 95% Non-condensing | 5% to 95% Non-condensing | ||
| EMI/EMC | FCC Class B, CE Class B, C-Tick, IC | FCC Class B, CE Class B, C-Tick, IC | ||
| Safety | cUL, LVD (EN60950-1) | cUL, LVD (EN60950-1) | ||
| 3rd Party Certification | IPv6 Ready, VPNC, AES Interop, VPNC Basic Interop | |||
| MTBF | 240,000 hours | 250,000 hours | 260,000 hours | 360,000 hours |
| Warranty Information | ||||
| Warranty | Limited Lifetime1 | |||
1 Limted Lifetime Warranty available only in the USA.
Product Views:
 |
 |

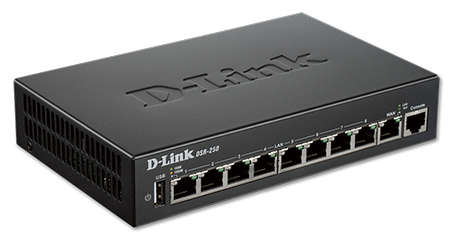

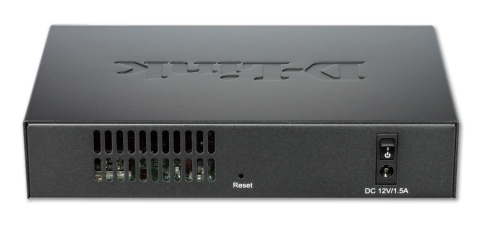

| Side View | Back View |
Deployments:
Supports on (DSR-150/250/500) or two (DSR-1000AC) USB 2.0 devices to extend functionality.
Documentation:
Download the D-Link DSR Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
12-months
List Price:
Our Price: $71.24
