D-Link GO-SW-8G
8-Port Unmanaged Gigabit Switch

D-Link GO-SW-8G

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Overview:

Think Green
The GO-SW-8G 8-Port Unmanaged Gigabit Switch is part of D-Link’s new series of SOHO devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter (EnergyStar Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.

Conserves Energy
The GO-SW-8G 8-Port Unmanaged Gigabit Switch helps you conserve energy automatically. The switch saves substantial amounts of power by cutting power usage for unused ports or ports connected to computers that have been shut down.

Environmentally Friendly
The GO-SW-8G 8-port Gigabit Unmanaged Switch was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.

Gigabit Connection for Home and SOHO
The GO-SW-8G offers an economical way for SOHO and small to medium businesses (SMB) to benefit from the increased bandwidth of Gigabit Ethernet. It provides five/eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.

Features:

  • Built-in D-Link Green Technology
  • Inexpensive Gigabit solution for Home/SOHO
  • Eight 10/100/1000 Mbps Gigabit ports
  • 10/16 Gbps switching fabric
  • Auto MDI/MDIX crossover for all ports
  • Secure store-and-forward switching scheme
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • IEEE 802.3x Flow Control
  • Supports 9,216 Byte Jumbo Frames
  • RoHS compliant
  • Plug-and-play installation

Package Contents

  • 8 port Gigabit Desktop Switch (GO-SW-8G)
  • Power Adapter
  • Quick Install Guide

Minimum System Requirements

  • Devices Supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet
  • Cat5 or better Ethernet Cable
  • Network Interface Card for each computer

Technical Specifications:

  GO-SW-5G GO-SW-8G
Switching Fabric 10 Gbps 16 Gbps
Standards
  • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x Flow Control
  • IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol CSMA/CD
Data Transfer Rat
  • Ethernet:
    • 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet:
    • 100 Mbps (half duplex), 200 Mbps (full duplex
  • Gigabit Ethernet:
    • 2000 Mbps (full duplex)
Topology Star
Network Cables
  • 10BASE-T:
    • UTP CAT 3, 4, 5/5e (100 m max.)
    • EIA/TIA-586 100-ohm STP (100 m max.)
  • 100BASE-TX:
    • UTP CAT 5/5e (100 m max.)
    • EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange Auto MDI/MDIX adjustment for all ports
LED Indicators
  • Per port: Link/Activity/Speed
  • Per device: Power
Transmission Method Store-and-forward
MAC Address Table 2K 8K
MAC Address Learning Automatic update
Packet Filtering/Forwarding Rates
  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port
  • Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer 128KB per device
Jumbo Frames 9,216 Bytes
General Specifications
DC Input External 5 V/1 A Level "V" Power Adapter
Power Consumption
  • DC input: 1.67 watts
  • AC input: 2.7 watts
  • DC input: 3.06 watts
  • AC input: 3.9 watts
MTBF 815,700 hours 412,433 hours
Operating Temperature 23º to 104º F (0º to 50º C)
Storage Temperature 14º to 158º F (-10º to 70º C)
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing
Dimensions 3.8 x 3.1 x 1.1 inches
(97 x 79 x 28 mm)
5.16 x 3.23 x .9 inches
(128 x 68.5 x 25.4 mm)
Weight 3.688 ounces (105 grams) 4.88 ounces (138.3 grams)
Certifications
  • FCC Class B
  • ICES-003 Class B
  • CE Class B
  • C-Tick Class B
  • VCCI Class B
  • cUL/UL
  • CCC
  • Anatel
  • LVD
Warranty
Warranty 3-Year Limited*

* 3-Year Limited Warranty available only in the USA and Canada.

Product Views:

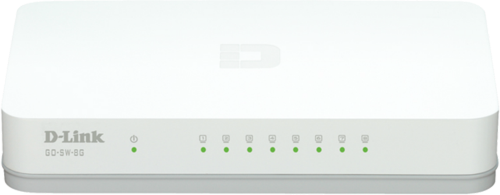

D-Link Go-SW-8G Front View

D-Link Go-SW-8G Rear View
D-Link Go-SW-8G Front View D-Link Go-SW-8G Rear View

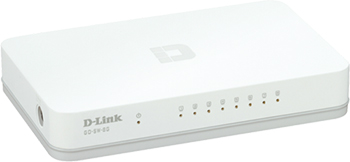

D-Link Go-SW-8G Right Angle View

D-Link Go-SW-8G Side View
D-Link Go-SW-8G Right Angle View D-Link Go-SW-8G Side View

Documentation:

Download the D-Link GO-SW-5G/8G Datasheet (PDF).
