D-Link DAP-1320
Wireless Range Extender

D-Link DAP-1320

Sorry, this product is no longer available, replaced with the DAP-1325-US. Please contact us for more information.

Overview:

Effortlessly extend coverage of your home network

The Wireless Range Extender (DAP-1320) extends your existing wireless network coverage with the push of a button, delivering up to 300Mbps for whole-home coverage. Ideal for hard-to-reach areas like basements, upstairs bedrooms or outdoor areas, the compact Wireless Range Extender gives you performance where you need it most.

Why D-Link Wireless N Is Better

This Wireless N Range Extender uses Wireless N technology with multiple intelligent antennas to maximize the speed and range of your wireless signal to significantly outperform previous-generation Wireless G devices1. The antennas make use of your home’s environment by bouncing multiple wireless signals off walls and ceilings to work around obstructions and help eliminate dead spots.

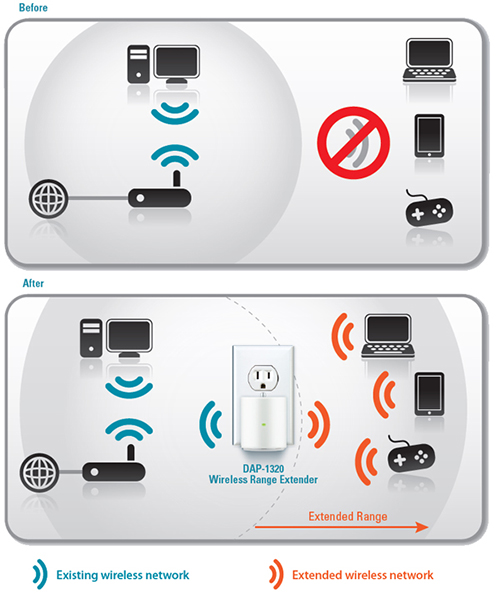

Extend your network to cover hard-to-reach areas of your home

Place the Wireless Range Extender (DAP-1320) between your wireless router and your wireless devices to create wall-to-wall coverage while eliminating dead zones

Extend your network to cover hard-to-reach areas of your home
Easy Push Button Setup

1 Maximum wirelesssignal rate derived from IEEE Standard 802.11g and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link. Maximum throughput based on D-Link 802.11n devices.

Features:

Package Contents

  • Wireless Range Extender (DAP-1320)
  • Quick Install Guide
  • Wi-Fi Configuration Note

Web Browser Setup Requirements

  • Internet Explorer v6 or higher, Mozilla Firefox, Google chrome or Safari

Features

  • IEEE 802.11n and 802.11g Compliant
  • Extend Internet access for wireless devices such as laptops, Smartphones, tablets and more
  • Supports Secure Wireless Encryption Using WPA or WPA2 Security
  • Wi-Fi Protected Setup (WPS) Push Button
  • 24/7 Basic Installation Support
  • 1-Year Limited Warranty

Technical Specifications:

D-Link DAP-1320 Specifications
Standards
  • IEEE 802.11n
  • IEEE 802.11g
Antenna Type 2 Internal Antennas
Security
  • Wi-Fi Protected Access (WPA, WPA2)
  • Wi-Fi Protected Setup (WPS)
Device Management
  • Web UI
  • Internet Explorer v6 or higher
  • Mozilla Firefox
  • Google Chrome
  • Safari
LEDs Power/Status
Certifications
  • FCC
  • Wi-Fi
Dimensions (L x W x H) 2.11” x 1.65” x 1.89” (53.5 x 42 x 48mm)
Weight 2.56 oz (72.57g)
Warranty 1-Year Limited Warranty*

* 1-Year Warranty available only in the U.S.A and Canada.

Product Views:

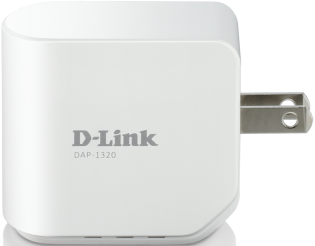

D-Link DAP-1320 Front View D-Link DAP-1320 Angle View
Front View Angle View

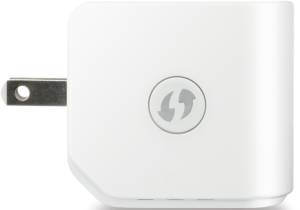

D-Link DAP-1320 Left Side View D-Link DAP-1320 Right Side View
Left Side View Right Side View

Documentation:

Download the D-Link DAP-1320 Datasheet (PDF).
