D-Link Nuclias Cloud-Managed AX3600 Access Point
Powerful & flexible Cloud networking solution for Small-to-Medium-Sized Businesses (SMBs/SMEs)


D-Link Products
D-Link Nuclias Business Cloud Access Points
Nuclias Cloud-Managed AX3600 Access Point
#DBA-X2830P
List Price: $579.99
Our Price: $550.99

Click here to jump to more pricing!

Overview:

The DBA-X2830P Nuclias Cloud-Managed AX3600 Access Point is deployed as a premanaged, zero-configuration access point (AP) controlled through the D-Link Nuclias Cloud. It is the best-in-class indoor access point designed specifically for enterprise environments. Featuring 802.11ax Wi-Fi 6 concurrent on both 2.4 GHz and 5 GHz bands, the DBA-X2830P Nuclias Cloud-Managed AX3600 Access Point offers high combined data rates to wireless clients. It provides lightning-fast access to bandwidth-intensive applications such as data, voice and video streaming, even in highly congested environments.

Harness the Power of Cloud Networking

This device is part of the Nuclias Cloud Solution. Businesses of any size and level of IT resources can reap all the benefits of Cloud Networking to boost productivity and enhance competitiveness.

  • Zero Touch Deployment
  • Hassle-Free Management
  • Unlimited Scalability

Wi-Fi 6 Hails The End of Slow Business

The DBA-X2830P is empowered with next generation Wi-Fi 6. Enhanced MU-MIMO with even more uplink and downlink streams serves more devices simultaneously. OFDMA dramatically increases transmission efficiency and 1024-QAM packs even more data, bringing unadulterated speed increases of a searing 25%. Wi-Fi 6 leverages all these features and more to create Wi-Fi with unparalleled performance.

Features To Supercharge Your Wi-Fi

The DBA-Series comes packed with features that boost throughput, handle more users more efficiently, and creates an overall simply better Wi-Fi experience.

  • Band Steering
    The 5 GHz band is the fast lane of your Wi-Fi. Band Steering automatically drives capable devices such as smart phones or tablets onto the 5 GHz band, delivering them a better experience, especially in situations such as HD video streaming or VoIP.
  • MU-MIMO
    This feature is the ultimate weapon in handling congestion by being able to support more simultaneous streams of data. Your Access Points can serve more people at the same time. That’s less waiting time all round.
  • Load Balancing
    Redress the balance with Load Balancing. Connections are shared out fairly to surrounding Access Points, avoiding any single point in your Wi-Fi becoming overwhelmed.
  • Beamforming
    Beamforming technology continuously optimizes the wireless signal, focusing and it towards receiving devices and following them. This adaptive beamforming enhances spectral efficiency and link quality.

Wi-Fi That Turbo Boosts Business Performance

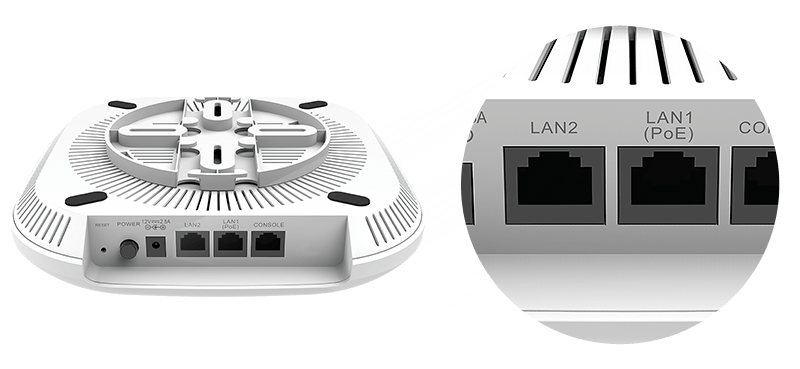

With the DBA-X2830 by your side, it’s all systems go. It is fully prepared to handle all day-to-day demands of SMBs. Equipped with Wi-Fi 6, there are massive performance improvements, as well as all the features of 11ac now available for the 2.4 GHz band too. Equipped with two LAN ports—a 2.5 Gbps and a 1 Gbps port—that support Link Aggregation, you have got exceptionally fast backhaul to the network.

Your Guests Online in No Time with a Captive Portal

With your dual-band Wi-Fi up and running, it is time to get everyone connected. A captive portal is an immensely easy method for getting users online quickly. Simplify further with Social Login so guests can get online whichever way suits them best. And not only does it also increase brand recognition, but businesses can collect valuable data to better understand users.

4 x 4 MU-MIMO is the Force Multiplier for your Network

The Achilles’ heel of any Wi-Fi network is many users all connecting simultaneously. Equipped with MU-MIMO with four spatial streams though, the DBA-X2830P can open four connections at once, transforming one high-speed connection into four. If you have lots of simultaneous users, MU-MIMO lays out the best coverage possible. There’s no slowdown and definitely no lag, no matter what users are doing.

It can be hard to look good while still being functional. Yet the DBA-Series strikes the balance just right. The smooth case in crisp white makes for an elegant design that can effortlessly fit into any setting.

Zero Touch Deployment for Simple Installation

The DBA-X2830P Nuclias Cloud-Managed Switch Series is deployed as a pre-managed, zero-configuration access point. No need to send out your most experienced engineer for every installation. With Nuclias' Zero-Touch Deployment, you can power-up the access points on site, plug them in, and remotely set up and manage them through Nuclias Cloud.

Zero Touch Deployment for Simple Installation

Complete Control over your Network’s Access

Complete control comes as standard with the DBA-3620P. Combined with the Nuclias Cloud management software, a variety of the latest in network security and management tools are at your fingertips. You can rest assured that the best of the best are hard at work keeping your network protected and hitch free.

  • Supports WPA3™ – the latest WiFi security for more protection
  • RADIUS – Eliminate shared passwords with unique credentials for each employee
  • Customizable Captive Portal – Separate guest and employee access
  • MAC Filtering – Limit what devices can connect
  • Rogue AP Detection – Guard against unauthorized Access Point installation
  • Wireless LAN Segmentation – Better bandwidth utilization
  • Wireless Isolation – Limit what users access on the local network
  • Wireless Broadcast Scheduling – Automate when your network is available
  • SSID Broadcast Disabling – Hide your wireless for an extra layer of security

Peak Performance and Discreet Deployment with Power over Ethernet (PoE)

The DBA-X2830P’s Power over Ethernet function allows for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.

Essential Network Management Tools At Your Fingertip

Manage your entire network using D-Link’s intuitive Nuclias Cloud Management platform. All aspects of your network are easy to reach through the highly powerful centralized platform. Tasks such as segmenting the network, managing multiple devices simultaneously, enforcing security policies, and monitoring live network statistics remotely can be done anytime, anywhere.

Perfect For Convention Centers

With hundreds or even thousands of attendees, users and all their devices can maintain ultra-high data speeds, no matter how busy it gets.

Features:

802.11ax Wi-Fi 6

  • Next-generation wireless standand with increased connection speeds
  • Up to 3.6 Gbps combined throughput
  • Better performance in highly congested areas
  • Increased client device battery life
  • Faster speeds on both 2.4 GHz and 5 GHz bands
  • Optimized encoding, packing more data into the same radio waves

Best-in-Class Built for Enterprise AP

  • Powerful management, monitoring and troubleshooting functionality with Nuclias Cloud
  • 4 x 4 MU-MIMO with 4 spatial streams
  • IEEE 802.3az Energy-Efficient Ethernet (EEE)
  • Integrated DHCP server
  • Remote access via web browser
  • Allows for a high number of concurrent users

Power over Ethernet (PoE)

  • Supports IEEE 802.3at PoE
  • Convenience of using one cord for both power and Internet access
  • Reduces installation and energy expenses
  • Flexibility to install the DBA-X2830P in places that don’t have access to electrical infastructure, such as the ceiling

Enterprise Security

  • Enterprise and Personal WPA3TM encryption (802.11i)
  • SSID/Guest/Station Isolation
  • IP/MAC address filtering
  • Captive Portal (Facebook, Google, Line, Weibo, E-mail auth.)
  • Supports RADIUS client and Cipher negotiation
  • Supports External Captive Portal and Walled Garden

Nuclias by D-Link:

Nuclias by D-LinkCloud Networking, Refreshed

The DBA-2820P Access Point (AP) is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of IT infrastructure as simple and hassle-free as possible.

Nuclias by D-Link is a complete cloud-managed networking solution for small to medium-sized organisations with one or more sites.

How it works

Wi-Fi coverage and network capacity are provided by high-performance Access Points and Managed Switches deployed on site, while configuration and ongoing management can be carried out remotely through a web browser or tablet.

Zero-touch provisioning and centralised cloud-based control make the network simpler to install and easier to manage. With Nuclias, network configurations and software updates are pushed to remote devices through the cloud, without the need to have specialised equipment or personnel onsite. SSL encrypted, out-of-band network monitoring and management ensures secure connectivity whilst minimising bandwidth requirement.

Main Features

  • Zero-touch provisioning
  • Role-based administration
  • Auditable change logs
  • Authentication via customisable captive portal, 802.1x and RADIUS server
  • Social login for Wi-Fi access supported
  • Advanced traffic report and data analysis
  • Intuitive web-based interface with multilingual support
  • Automatic monitoring and alerts
  • Over-the-web firmware upgrades
  • Searchable network-wide event log
  • Intuitive VLAN Configuration
  • Cloud based RF Optimisation

Specifications:


DBA-X2830P Specifications
General
Interfaces IEEE 802.11ax Wi-Fi 6
IEEE 802.11a/b/g/n/ac Wave 2 wireless
1 x 10/100/1000/2500 Mbps Ethernet Port
1 x 10/100/1000 Mbps Ethernet Port
1 x RJ45 Console port
Standards IEEE 802.11a/b/n/g/ac/ax
IEEE 802.3az Energy-Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet (PoE)
IEEE 802.3i/u/ab
IEEE 802.3x Flow Control
LEDs Power/Cloud
2.4 GHz
5 GHz
LAN 1
LAN 2
Antenna 4 x 4 Internal omni-directional antennas
» 2.4 GHz: 3.5 dBi
» 5 GHz: 5 dBi
Maximum Output Power 2.4 GHz: 20 dBm
5 GHz: 20 dBm
Data Signal Rate 2.4 GHz: Up to 1147 Mbps
5 GHz: Up to 2402 Mbps
Functionality
Security WPA2/WPA3 - Personal, Enterprise
MAC address filtering
RADIUS server authentication
SSID isolation
Guest isolation
Captive portal
Station isolation
Maximum SSIDs Supports up to 16 SSIDs per device
Up to 8 SSIDs per wireless band
Physical
Dimensions 22.45 x 22.39 x 5 cm (8.83 x 8.81 x 1.97 in)
Weight Without mount: 935 g (2.06 lbs
Power Input IEEE 802.3at Power over Ethernet (PoE) on LAN 1
Power adapter: 12 V DC, 2.5 A
Power Consumption PoE: 25.1 W
Power adapter: 27 W
Temperature Operating: 0 to 40 °C (32 to 104 °F)
Storage: -20 to 65 °C (-4 to 149 °F)
Humidity Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
Mean Time Between Failure (MTBF) 485,000 hours
Mounting Options Ceiling mount
Wall mount
Desktop (horizontal)
Certifications CE Class B
FCC Class B
UL-2043
IC Class B

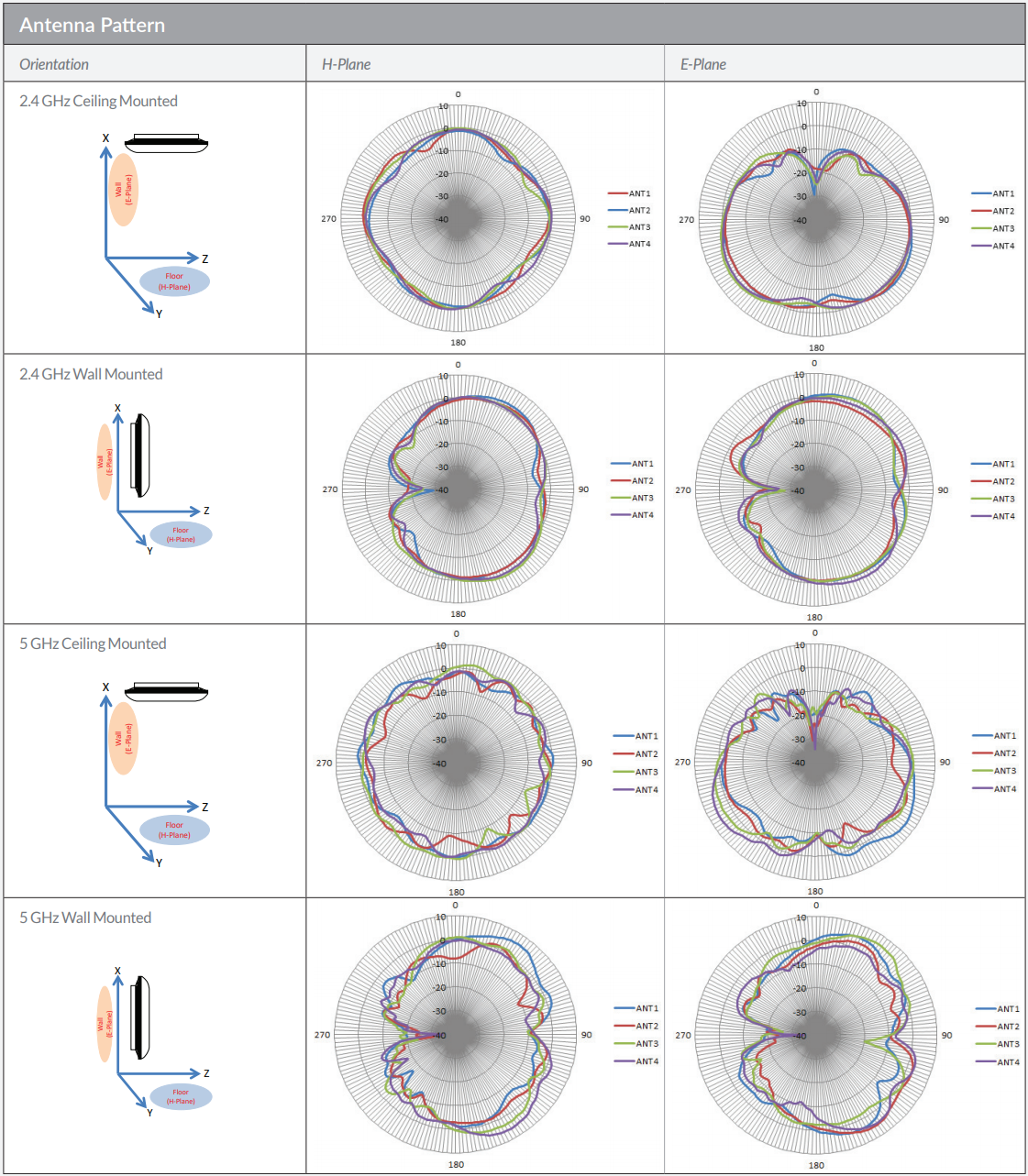

Antenna Pattern:

Antenna Pattern

Documentation:

Download the D-Link DBA-X2830P Datasheet (PDF).
