D-Link DAP-2680
Nuclias Connect AC1750 Wave 2 Dual-Band PoE Access Point


D-Link Products
D-Link Wireless Access Points
D-Link Wireless Nuclias Connect AC1750 Wave 2 Dual-Band PoE Access Point
#DAP-2680
Our Price: $267.99

Click here to jump to more pricing!

Overview:

The DAP-2680 Wireless AC1750 Wave 2 Dual-Band PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilising the cutting-edge speed of 802.11ac Wave 2. The DAP-2680 delivers maximum combined wireless signal rates of up to 1750 Mbps1 and supports MU-MIMO technology that allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. To maximise total return on investment, the DAP-2680 can be configured to optimise network performance based on any one of its multiple operation modes.

For centralise network management, administrators can use D-Link’s free Nuclias Connect software or Nuclias Connect Hub (DNH-100)5 to configure and manage multiple access points. In addition to streamlining the management process, Nuclias Connect provides network administrators with the means to verify and conduct regular maintenance checks remotely, eliminating the need to send personnel out to physically verify proper operation.

Preloaded with the Nuclias Connect Management Software

D-Link’s Nuclias Connect is a centralized management and analytics solution that brings convenience, control, customizability and cost-effective scaling to small to medium-sized business (SMB) networks. It enables network monitoring, management, and device configuration through a single, easy-to-use software interface.

What’s more – management software comes preloaded, and there are no licensing or support fees. Easily manage your network, anytime, anywhere.

Multi-Mode Makes the Most of your Network Capabilities

In order to achieve optimal network performance, the DAP-2680 has several operational modes tailored to best fit the individual needs of your network. Access Point, Wireless Client, WDS (Wireless Distribution System), and WDS with Access Point modes allow for flexible, customizable deployment whatever your requirements.

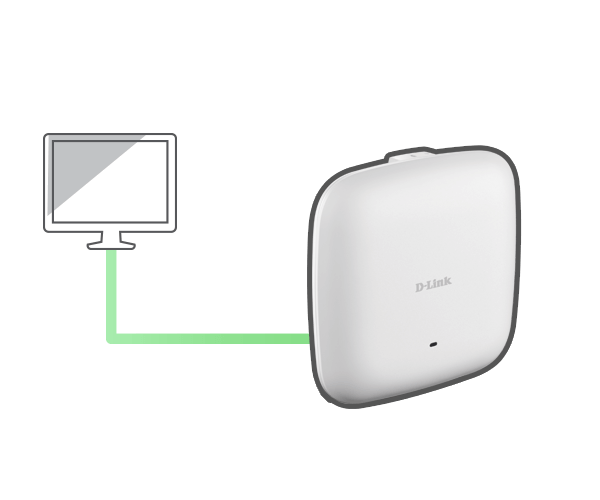

Access Point
Add wireless access to your existing wired network.

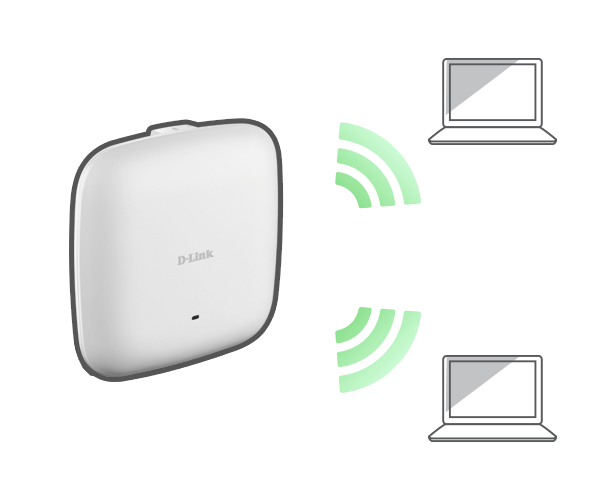

Wireless Client
Add wireless functionality to a device which does not have a Wi-Fi adapter.

*Note: this should only be 1 device connected to the DAP.

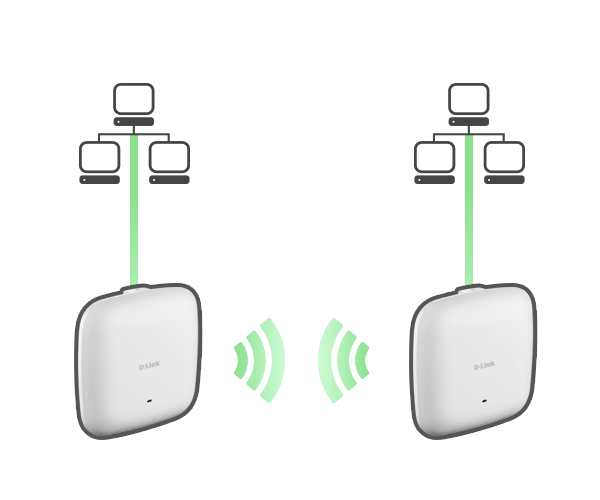

WDS
Wirelessly connect two separate networks.

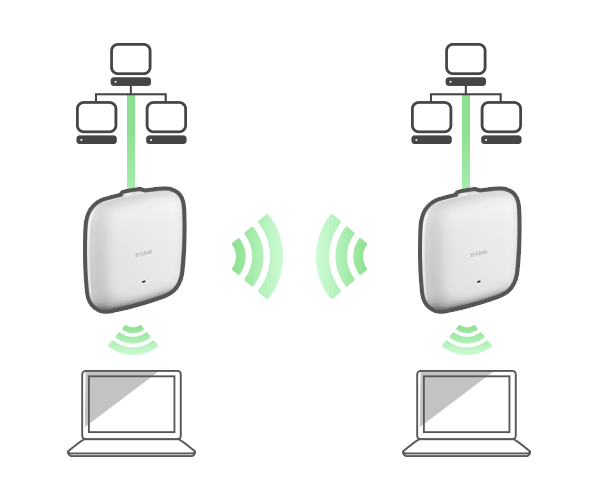

WDS with AP
Wirelessly connect two separate networks while also providing wireless access to both networks.


In a World Where Time is Money, Speed is Essential

Increase employee productivity with access to the data they require at speeds of up to 1750 Mbps while ensuring the same high-level throughput for your guest networks, too with MU MIMO technology’s multiple device connectivity. An added Gigabit LAN port allows for high-capacity backhaul to the wired network.

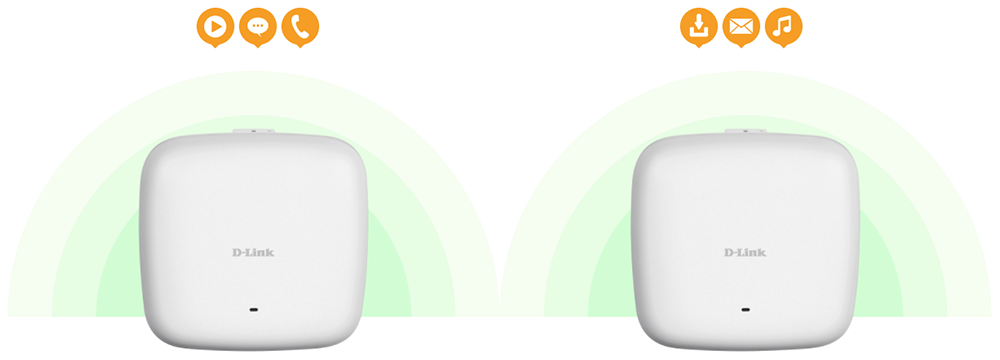

Take a Load Off and Let Your AP do the Hard Work

The DAP-2680’s Load Balancing feature spreads the work load between two or more Access Points to get optimal resource utilization, throughput and response time, while Airtime Fairness helps distribute equal amounts of air time to each connected client. Band Steering auto-connects devices such as smart phones and tablets to the higher-capacity 5 GHz band while allowing devices 2.4 GHz-ready to remain. The result is a steady, consistent connection for each user – the perfect balancing act.

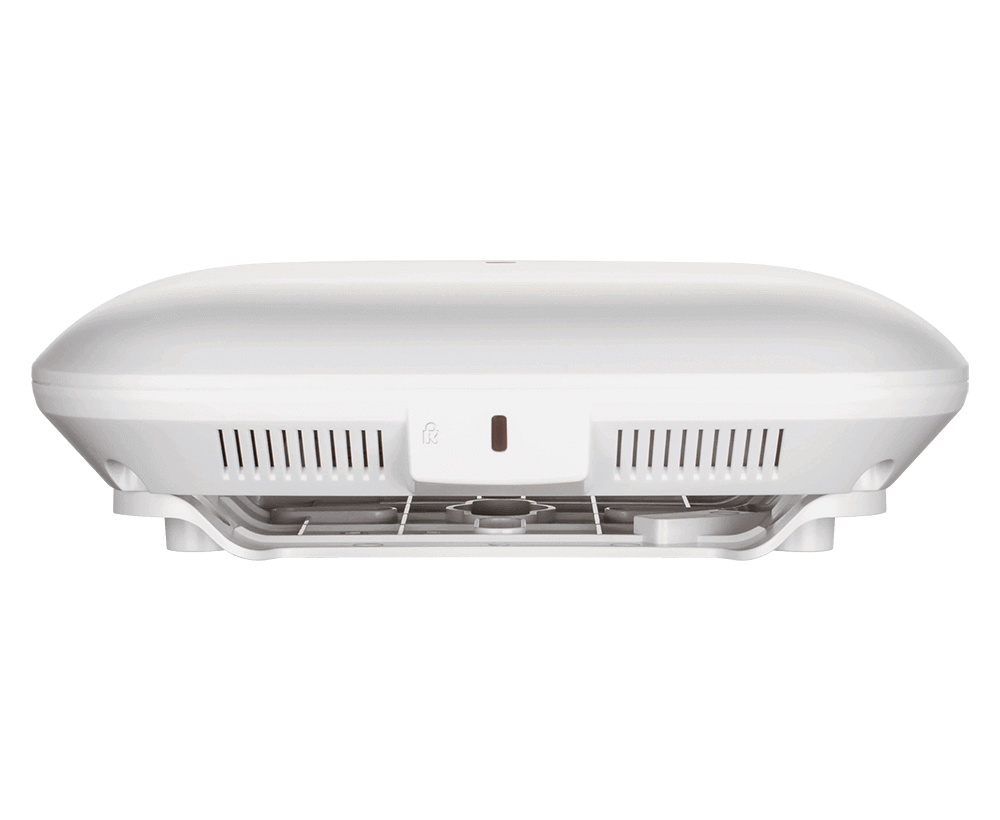

Industrial Design Redefined

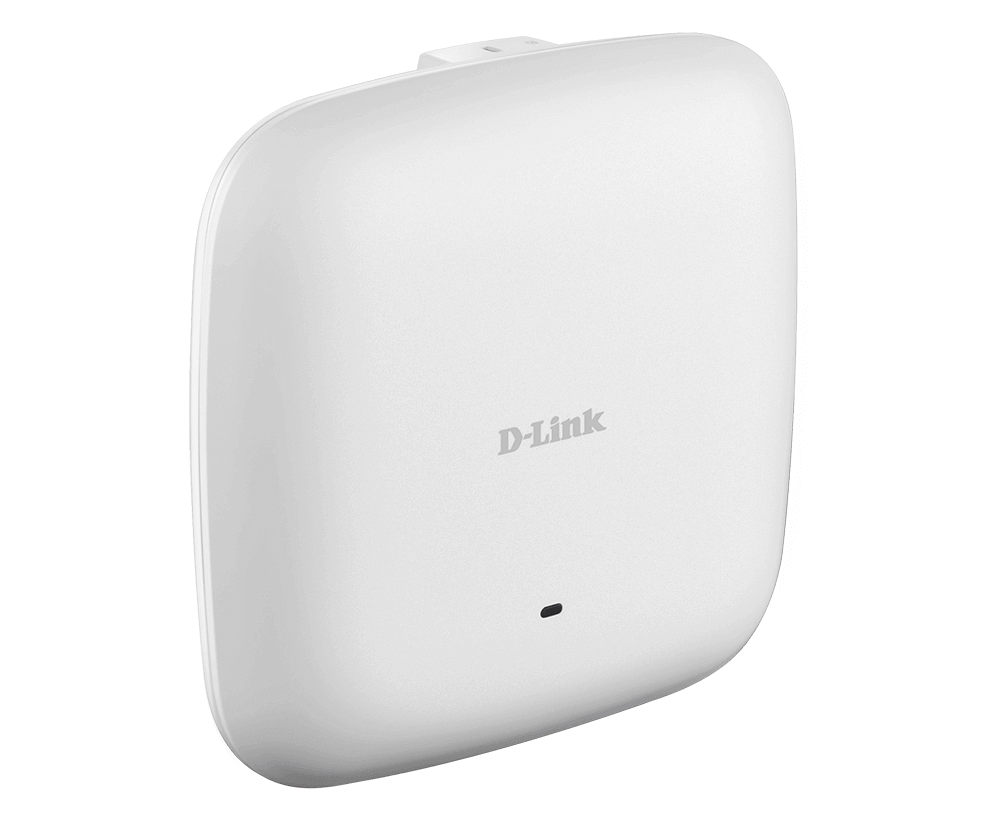

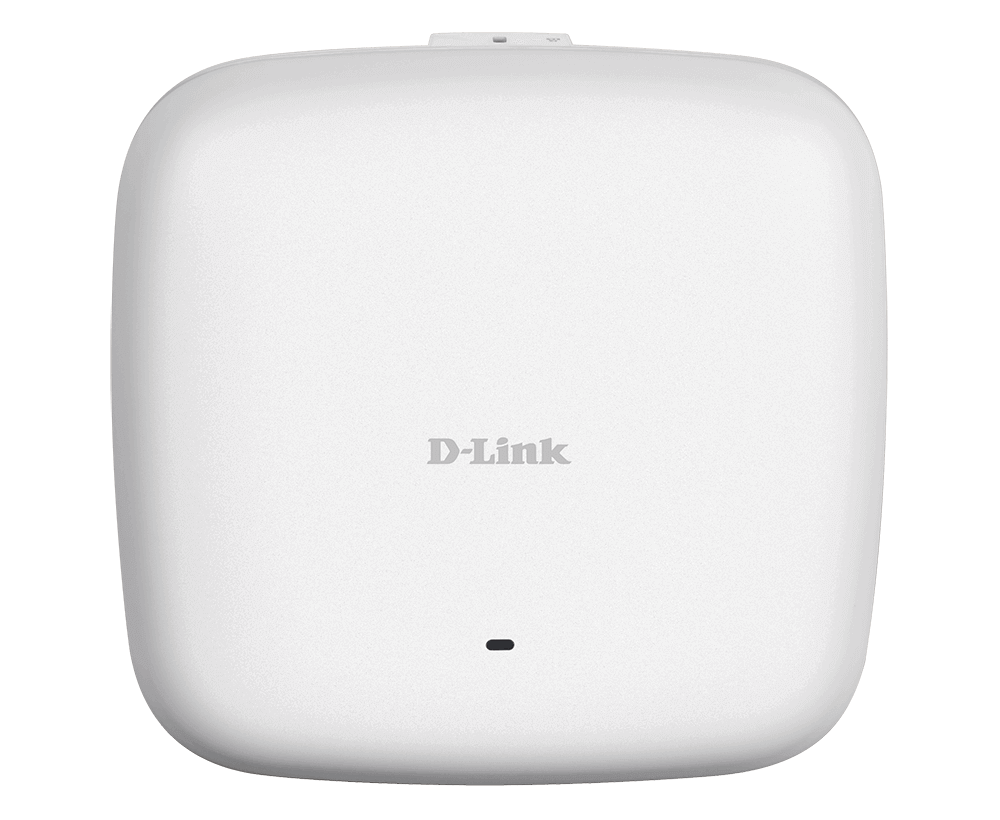

The DAP-2680 is designed with aesthetics in mind. Its fresh white housing blends well into any indoor space, while its soft, rounded corners ensure an elegant integration wherever it’s placed.

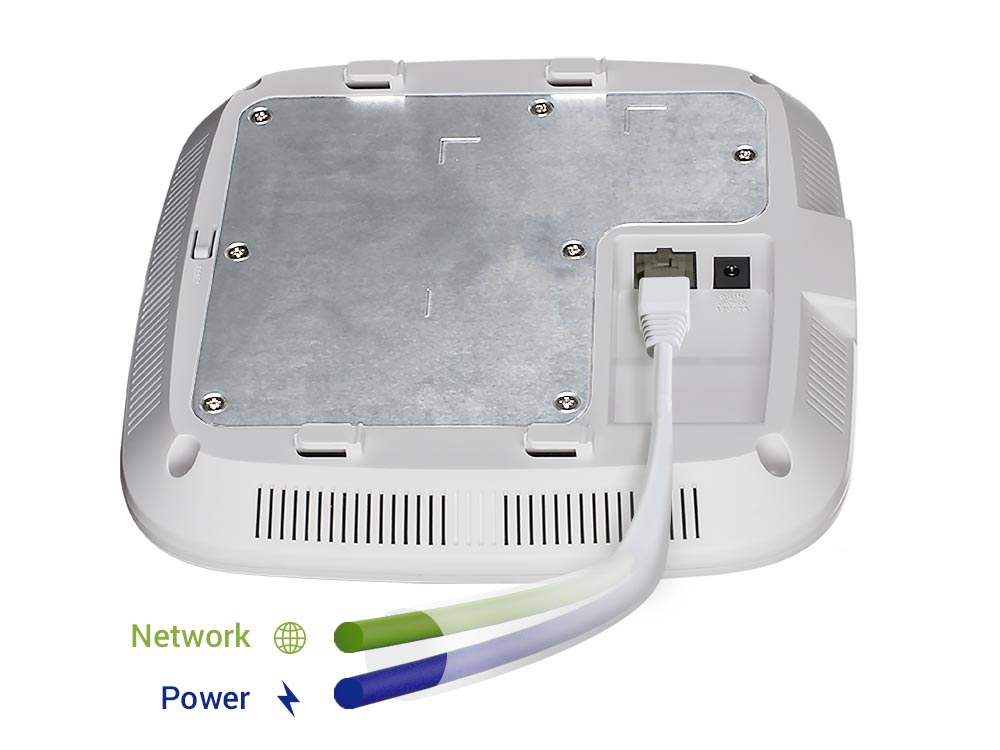

Peak Performance and Discreet Deployment with Power over Ethernet (PoE)

The DAP-2680’s PoE function allows for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.

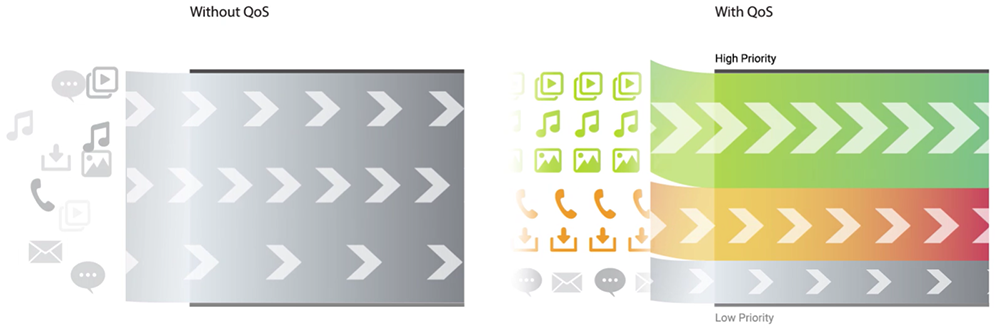

Make Every Second Count with Advanced Quality of Service (QoS)

The DAP-2680 not only delivers reliable wireless performance with combined signal rates of up to 450 Mbps in the 2.4 GHz band and 1300 Mbps in the 5 GHz band but, Wi-Fi Multimedia (WMM™) support enhances your network’s Quality of Service (QoS) by cleverly prioritizing different types of traffic. With the use of QoS, WMM ensures that applications such as, audio, video and voice, that require better throughput and more performance are placed in order of high-to-low priority for an all-round smoother, uninterrupted Wi-Fi experience.


Big Things Start Small

Networks big or small all have to start somewhere, with devices sometimes having to take on duties that would not normally be expected of them. For the DAP-2680 that is not a problem since its stand-alone capabilities mean it can take on multiple roles effortlessly. It can be deployed within a small office or classrooms, for example, to create or expand the capacity of a wireless network.

The Beating Heart of Your Network

At the heart of your network is the DNH-100 Wireless Controller, or ‘The Hub’. It centralizes all aspects of your Access Points’ provisioning and management, allowing them to work together as a team. Features such as self-organizing, self-optimizing and self-healing keep the network performing at its peak.


Features:

High-Performance Connectivity

  • IEEE 802.11ac Wave 2 wireless
  • Up to 1750 Mbps1 speed
  • MU-MIMO with beamforming
  • Band steering
  • Gigabit PoE-capable LAN port

Multiple Operation Modes

  • Access Point, Wireless Distribution System (WDS), WDS with AP, Wireless Client

Extensive Management

  • D-Link Nuclias Connect support for centralised and additional configuration options
  • Web, SSL, SSH and Telnet management
  • SNMP v1, v2c, v3

Trusted Security Features

  • WPA/WPA2 Personal/Enterprise
  • 64/128-bit WEP
  • MAC filter and WLAN partitioning
  • Local/POP3/RADIUS/PassCode/LDAP authentication for captive portal

Convenient Installation

  • Small form factor design for easy placement
  • Supports 802.3at Power over Ethernet for remote installation

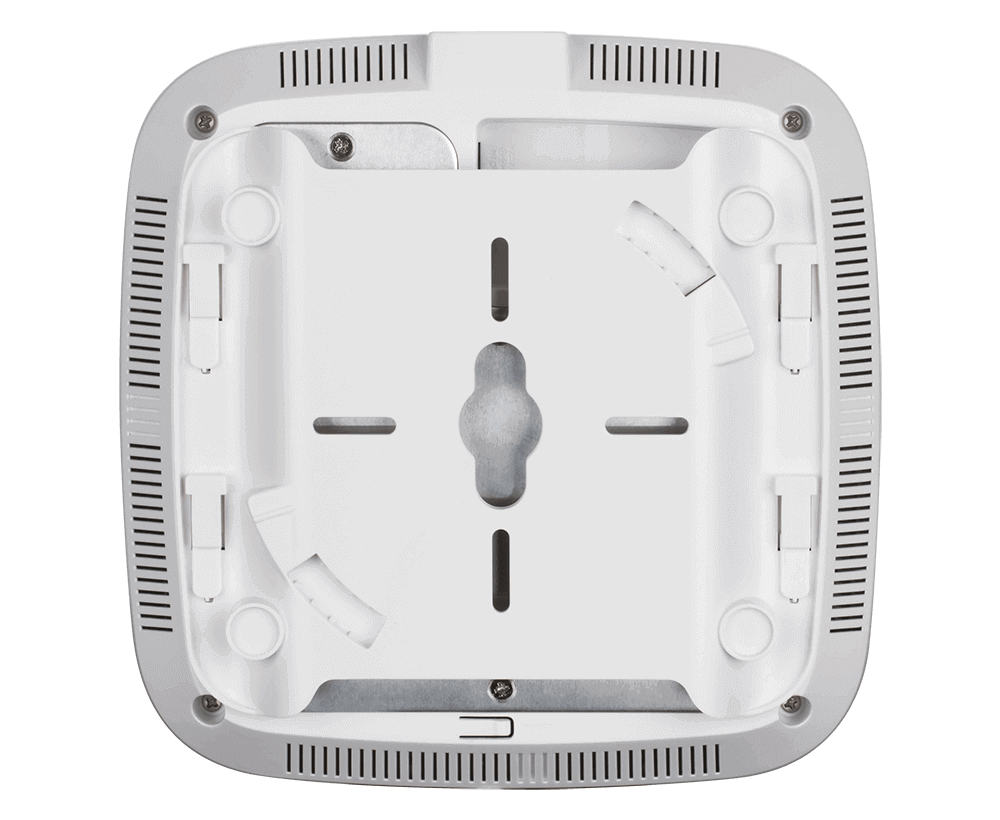

  • Wall and ceiling mountable

Technical Specifications:


D-Link DAP-2680 Specifications
General
Device Interfaces
  • IEEE 802.11a/b/g/n/ac1 Wave 2 wireless interface
  • 1 x Gigabit PoE-capable LAN port
Standards
  • IEEE 802.11a/b/g/n/ac1
  • IEEE 802.3i/u/ab
  • IEEE 802.3az Energy-Efficient Ethernet (EEE)
  • IEEE 802.3at Power over Ethernet
Antennas
  • 3 x internal dual-band antennas
  • 3.6 dBi at 2.4 GHz, 4.2 dBi at 5 GHz
Operating Frequency
  • 2.4 GHz band: 2.4 to 2.4835 GHz
  • 5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz
Maximum Output Power
  • 26.5 dbm for 2.4GHz
  • 26.5 dbm for 5GHz
Data Signal Rate
  • 2.4 GHz: Up to 450 Mbps1
  • 5 GHz: Up to 1300 Mbps1
Functionality
Security
  • WPA-Personal
  • WPA-Enterprise
  • WPA2-Personal
  • WPA2-Enterprise
  • WEP 64/128-bit encryption
  • SSID broadcast disable
  • MAC address access control
  • Network Access Protection (NAP)
  • Internal RADIUS server
Operating Modes
  • Access Point (AP)
  • WDS with AP
  • WDS/Bridge (No AP Broadcast)
  • Wireless Client
Network Management
  • Telnet
  • Secure Telnet (SSH)
  • Web (HTTP)
  • Secure Socket Layer (SSL)
  • Traffic control
  • SNMP v1/v2c/v3
  • Nuclias Connect Software
  • Nuclias Connect Hub5
LEDs Power/status
Physical & Environment
Dimensions 190 x 190 x 44.8 mm (7.48 x 7.48 x 1.76 in)
Weight 580 g (1.28 lbs) without mounting base
636.5 g (1.40 lbs) with mounting base
Power Supply External power adapter: 12 V/2 A (not included)
IEEE 802.3at PoE
Maximum Power Consumption 17.53 Watts
Temperature Operating: 0 to 40 °C (32 to 104 °F)
Storage: -20 to 65 °C (-4 to 149 °F)
Humidity Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
Meantime Between Failure (MTBF) > 30,000 hours
Certifications FCC, CE4, UL
Nuclias Connect Network Management Features
WLAN Management
Maximum APs per Installation6
  • 1,000 (large scale installations)
  • 100(small scale installaions)
WLAN Management Features
  • AP grouping
  • Multi-tenancy
  • Visualised topology
  • NAT pass-through
  • Setup wizard
  • AP discovery (layer 2 and layer 3)
  • Report system
User Authentication
Guest Portal Captive portal
Authentication Method
  • Local
  • POP3
  • RADIUS
  • LDAP
  • Voucher
Hotspot Features
  • Built-in support for voucher-based authentication
  • Built-in hotspot manager for voucher creation and guest management
  • Rate limiting and bandwidth control for guest and hotspot portal
Wireless Features
RF Management and Control
  • Auto Output Power Control
  • Auto Channel
  • Self-healing around failed APs
Multiple SSIDs per Radio(AP) 8
Advanced Wireless Features
  • Band steering
  • L2 roaming
  • Bandwidth optimisation
  • Airtime fairness
System Management
Management Interface Web-based user interface (HTTPS)
Scheduling
  • Firmware update
  • Configuration update
Supported Devices
Indoor Wireless N Access Points
  • DAP-2230 (Single-Band N300, F/W ver. 2.0)
  • DAP-2310 (Single-Band N300, F/W ver. 2.0)
Indoor Wireless AC Access Points
  • DAP-2360 (Single-Band N300, F/W ver. 2.0)
  • DAP-2610 (Dual-Band Wave 2 AC1300, F/W ver. 2.0)
  • DAP-2620 (Dual-Band Wave 2 AC1200, in-wall design)
  • DAP-2660 (Dual-Band AC1200, F/W ver. 2.0)
  • DAP-2662 (Dual-Band Wave 2 AC1200, WiFi4EU-ready)
  • DAP-2680 (Dual-Band AC1200, F/W ver. 2.0)
  • DAP-2695 (Dual-Band AC1750, F/W ver. 2.0)
Outdoor Access Points
  • DAP-3315 (Single-Band N300, F/W ver. 2.0)
  • DAP-3662 (Dual-Band AC1200, F/W ver. 2.0)
  • DAP-3666 (Dual-Band Wave 2 AC1200, WiFi4EU-ready)

1 Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
2 This unit is designed for indoor environments, you might violate local regulatory requirements by deploying this unit in outdoor environments.
3 Please note that operating frequency ranges vary depending on the regulations of individual countries and jurisdictions. The DAP-2680 may not support the 5.25 - 5.35 GHz and 5.47 - 5.725 GHz frequency ranges in certain regions.
4 For the EU region, this product is compliant with CE regulations and operates within the following frequency ranges: 2.4 - 2.4835 GHz, 5.150 - 5.250 GHz, 5.250 - 5.350 GHz, and 5.470 - 5.750 GHz.
5 Available Q4, 2019.
6 Number of wireless access points supported depends on the specification of the computer on which DNC is installed. To support 1000 APs, a computer with at least an Intel Core i7 with 16 GB RAM and 4 TB hard drive, and 20 Mbps uplink bandwith is recommended. To support 100 APs, a computer with at least an Intel Core i5 3.2GHz with 8 GB RAM and 2 TB hard drive, and 10 Mbps uplink bandwith is recommended.

Antenna Pattern:

Antenna Pattern

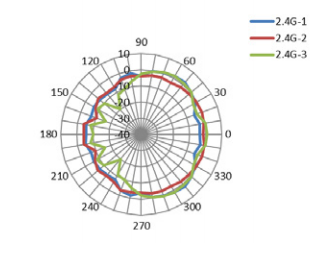

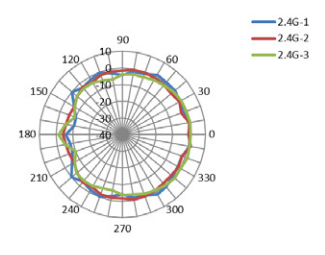

2.4 GHz Ceiling Mounted
Orientation
H-Plane
E-Plane

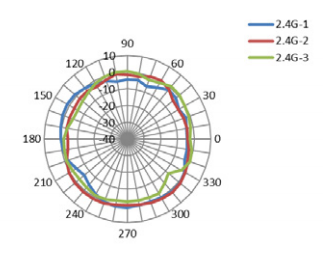

2.4 GHz Wall Mounted
Orientation
H-Plane
E-Plane

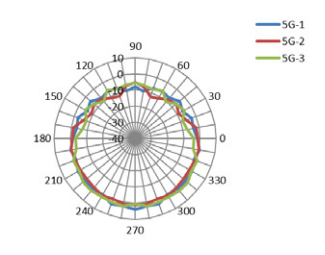

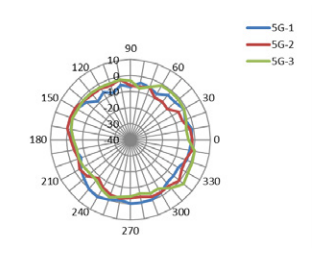

5 GHz Ceiling Mounted
Orientation
H-Plane
E-Plane
5 GHz Wall Mounted
Orientation
H-Plane
E-Plane

Documentation:

Download the D-Link DAP-2680 Datasheet (PDF).
