D-Link DXS-1210-28T
28-Port 10 Gigabit Ethernet Smart Managed Switch with 4 x 10G/25G ports

D-Link Products
D-Link Smart Gigabit Switches
DXS-1210 Series Smart Managed 28-Port 10GBASE-T Switch
Including 4 10G/25G ports
#DXS-1210-28T
List Price: $3,667.99
Our Price: $3,484.59

Click here to jump to more pricing!

Overview:

D-Link Green

The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10 Gigabit switches capable of servicing a range of network needs in any business environment. The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as either an aggregation/access switch in large enterprise environments or deployed at the core of an SMB network. With high performance and low latency, these 10G smart-managed switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.

The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time, inter-VLAN static routing helps by reducing the pressure of routers and backbone networks, improving overall network efficiency. The free D-Link Network Assistant utility allows multiple D-Link devices within the same L2 network to be discovered and managed. These switches also provide management through the multi-lingual web UI, a full command-line interface (CLI) through Telnet, a console port, as well as D-View 7 Network Management System.

Energy Saving

By incorporating D-Link Green technology, this series of switches is capable of saving power without sacrificing operational performance or functionality. The switches feature builtin smart fans with internal heat sensors that monitor and detect temperature changes and react accordingly by utilising different fan speeds for different temperatures. At lower temperatures, the fans will run slower, reducing the switch’s power consumption and noise. Link status drastically reduces power consumption by automatically putting ports without a link into a sleep mode. The DXS-1210 Series takes the approach to green IT one step further by incorporating a special chipset with advanced silicon technology for efficient use of energy.

Extensive Management and Layer 2 Features

The DXS-1210 Series comes with a complete line-up of L2 features, includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down difficult to diagnose switching loops. The cable diagnostic feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing hassle-free diagnostics and maintenance.

Quality of Service and Bandwidth Control

The DXS-1210 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology that consolidates data and surveillance video transmission through a single DXS-1210 Series switch, thus sparing businesses the expense of dedicated hardware and facilities. ASV also ensures quality real-time video monitoring and control without compromising the transmission of conventional network data. Auto Voice VLAN technology enhances the VoIP service by automatically placing voice traffic from IP phones to a designated VLAN. With a prioritised and segmented VLAN, this feature guarantees quality and security of VoIP traffic. The Differentiated Service Code Point (DSCP) markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with bandwidth control, network administrators can reserve bandwidth for important functions that require higher priority or more bandwidth.

Seamless Integration

The DXS-1210 Series comes with both RJ-45 and SFP+ ports capable of connecting to Cat. 6 and fiber for 10G Ethernet. The DXS-1210-10TS has 8 10GBASE-T ports and 2 SFP+ ports, the DXS-1210-12TC has an additional 2 10GBASE-T/SFP+ combo ports, while the DXS-1210-12SC has 10 10G SFP+ ports and 2 10GBASE-T/SFP+ combo ports. The DXS-1210-16TC also has 12 10GBASE-T ports, 2 SFP+ ports, and 2 10GBASE-T/SFP+ combo ports. This means the DXS-1210 Series can provide a flexible solution for upstream or downstream server connections, making network administration easy.

Secure your Network

D-Link’s innovative Safeguard Engine™ protects the switches against traffic flooding caused by malicious attacks. The DXS-1210 Series supports 802.1X port-based and host-based authentication, allowing the network to be authenticated through external RADIUS servers. The Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. The DXS-1210 Series also features Address Resolution Protocol (ARP) spoofing prevention, which protects from attacks on the network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages. To prevent ARP spoofing attacks, the switch uses packet control ACLs to block invalid packets that contain fake ARP messages. For added security, the DHCP server screening feature filters DHCP replies on unauthorised ports to prevent them from being assigned an IP address.

Versatile Management

The DXS-1210 Series comes with the D-Link Network Assistant (DNA) utility that simplifies the configuration of devices that support the D-Link Discovery Protocol. The D-Link Network Assistant utility easily allows customers to discover multiple D-Link Smart Managed Switches within the same L2 network segment and displays them on screen for instant access. With this utility, users do not need to change the IP address of their PC. This utility further allows for simultaneous configuration and basic setup of all discovered devices, including password changes and firmware upgrades. The DXS-1210 Series also supports D-View 7 and a full Command Line Interface (CLI) through Telnet. D-View 7 is a network management system that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security.

Features:

Green Technology

  • Power saving via the following features:
  • Link Status detection
  • LED Shut-Off
  • Port Shut-Off
  • System Hibernation

High Availability and Flexibility

  • 24 x 10GBASE-T or SFP+ ports
  • 4 x 25G SFP28 or 10GBASE-T uplink ports

Security Features

  • Access Control List
  • IP-MAC-Port Binding
  • Clientless MAC/Web access control
  • D-Link Safeguard Engine
  • Port Security
  • ARP Spoofing Prevention

Intuitive Management

  • D-Link Network Assistant Utility or Web-based GUI
  • Built-in SNMP MIB for remote NMS (D-View 7)
  • Full CLI through console and Telnet

Advanced Features

  • Auto Surveillance VLAN
  • Auto Voice VLAN
  • Loopback Detection
  • Cable Diagnostics
  • Static Route
  • LLDP/LLDP-MED

Technical Specifications:

D-Link DXS-1210 Specifications
  DXS-1210-28T DXS-1210-28S
General
Interfaces
  • 24 x 10GBASE-T ports
  • 4 x 10/25G SFP28 ports1
  • 24 x 10G SFP+ ports
  • 4 x 10GBASE-T ports
Console Port RJ-45 console port
Port Standard & Functions
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3az Energy Efficiency Ethernet (EEE)
  • IEEE 802.3an 10GBASE-T 10 Gigabit Ethernet
  • IEEE 802.3ae 10GbE over fiber
  • IEEE 802.3z 1000BASE-X
  • Auto MDI/MDIX support for 1000/10GBASE-T
Network Cables for 10GBASE-T
  • CAT-6 (30 m max)
  • CAT-6A or CAT-7(100 m max)
Media Interface Exchange Auto MDI/MDIX adjustment for all twisted-pair ports
Performance
Switching Capacity 680 Gbps 560 Gbps
Maximum Packet Forwarding Rate 505.92 Mpps 416.64 Mpps
Transmission Method Store-and-forward
MAC Address Table Up to 32,000 entries per device
Physical & Environmental
Acoustic
  • Fan at high speed: 51.9 dB(A)
  • Fan at low speed: 40.0 dB(A)
  • Fan at high speed: 52.3 dB(A)
  • Fan at low speed: 40.2 dB(A)
Fan 2 x Smart Fan
AC Input 100 to 240 VAC
Maximum Power Consumption 87.3 watts 85.7 watts
Standy Power Consumption 33 watts 27.7 watts
Operating Temperature -5 to 50 °C (23 to 122 °F)
Storage Temperature -20 to 70 °C (-4 to 158 °F)
Operating Humidity 0% to 95% non-condensing
Storage Humidity 0% to 95% non-condensing
Dimensions (W x D x H) 441 x 209.5 x 44 mm (17.36 x 8.28 x 1.73 in)
Weight 3.07 kg 3.27 kg
Diagnostic LEDs
  • Link/Activity/Speed (Per 10GBASE-T port)
  • Link/Activity/Speed (Per 10G SFP+ port)
  • Power
  • Console
  • Fan error
Certifications CE Class A, FCC Class A, VCCI Class A, IC, BSMI
Safety UL, CB, BSMI
Software Features
L2 Features
  • MAC Address Table
    • Up to 32K entries
  • Static MAC Addresses
    • 256
  • IGMP Snooping
    • IGMP v1/v2/v3 Snooping
    • Supports 512 groups (shared between dynamic and static, with a max of 128 static)
    • Per VLAN IGMP Snooping
    • Support host-based fast leave
    • Report Suppression
  • MLD Snooping
    • MLD v1/v2 Snooping
    • Support 1000 groups
    • Supports 256 groups (shared between dynamic and static, with a max of 128 static)
    • Support host-based fast leave
  • LLDP
  • LLDP-MED
  • Spanning Tree Protocol
    • 802.1D STP
    • 802.1w RSTP
    • 802.1s MSTP
  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • Port Mirroring
    • One-to-One
    • Many-to-One
    • Supports Mirroring for Tx/Rx/Both
  • 802.3ad Link Aggregation:
    • Maximum of 8 groups/8 ports per group
  • Jumbo Frame
    • Up to 12,288 Bytes
  • Loopback Detection
VLAN
  • 802.1Q VLAN
  • Port-based VLAN
  • Configurable VID
    • 1~4094
  • Voice VLAN
  • Auto Surveillance VLAN
  • Asymmetric VLAN
  • 4K VLAN Groups
QoS (Quality of Service)
  • CoS based on
    • Switch port
    • 802.1p Priority Queues
    • Outer 802.1p priority
    • DSCP
    • ToS
    • IPv6 Traffic Class
    • TCP/UDP port
    • MAC Address
    • Ether Type
    • IP Address
    • Protocol Type
    • IPv6 Flow Label/ Traffic Class
  • 802.1p Priority Queue
  • 8 queues per port
  • Queue Handling
    • Strict Priority Que (SPQ)
    • Weighted Round Robin (WRR)
  • Bandwidth Control
    • Port-based (Ingress/Egress, min. granularity 64 Kbps)
    • Queue-based (Egress, min. granularity 64 Kbps)
L3 Features
  • IP Interface
    • Supports 4 IPv4/v6 interfaces
  • ARP
    • 384 Static ARP
  • Default Route
  • IPv6 Neighbor Discovery (ND)
  • Static Route
    • Max. 128 IPv4 entries
    • Max. 64 IPv6 entries
Access Control List (ACL)
  • Max. 1536 ingress ACL entries
  • Max. 1024 egress ACL entries
  • Max. 1024 Access List Numbers
  • ACL based on
    • IPv4 address: Source/destination IP Address mask, IP preference/ ToS mask, DSCP mask, Protocol
    • MAC address: 802.1p priority mask, VID mask, Source/ destination MAC address mask, Ether type mask
    • IPv6 address: Source/destination IP Address mask, DSCP mask, Protocol type mask, TCP/UDP port number mask, IPv6 traffic class mask, IPv6 flow label mask
Security
  • Broadcast/Multicast/Unicast Storm Control
  • D-Link Safeguard Engine
  • DHCP Server Screening
  • IP-MAC-Port Binding
    • DHCP Snooping
    • DHCPv6 Guard
    • IPv4/v6 Source Guard
    • Dynamic ARP Inspection
    • IPv6 ND Inspection
    • IPv6 Route Advertisement (RA) Guard
    • Duplicate Address Detection (DAD)
  • Broadcast/Multicast/Unicast Storm Control
    • Min. granularity per port: 16 Kbps
  • Traffic Segmentation
  • SSH1
    • Support v1/ v2
    • Support IPv4/ IPv6
  • SSL
    • Support TLS 1.0/1.1/1.2
    • Support IPv4/IPv6
  • ARP Spoofing Prevention2
    • Max. 128 entries
  • DoS Attack Prevention
  • Port Security
    • Supports up to 64 MAC addresses per port
  • Duplicate Address Detection
Authentication, Authorization, and Accounting (AAA)
  • 802.1X Authentication
    • Support Dynamic VLAN Assignment
    • Supports local/RADIUS database
    • Supports Port-based access control
    • Supports Host-based access control
    • Supports EAP, TLS, TTLS, PEAP
  • Support IPv4/IPv6 RADIUS Server
  • Guest VLAN
  • Trusted Host
    • Support IPv4/v6 host
    • Trusted host for Telnet, HTTP, HTTPS, SSH, Ping
Operations, Administration, and Management (OAM) Cable Diagnostics
Management
  • Web-based GUI
  • D-Link Network Assistant Utility
  • Full CLI
  • Telnet Server
  • TFTP Client
  • Configurable MDI/MDIX
  • SNMP
    • Supports v1/v2c/v3
  • SNMP Trap
  • Smart Wizard
  • LLDP
  • LLDP-MED
  • ICMP v4
  • DHCP Relay
  • DHCP Auto-image
  • System Log
  • BootP/DHCP Client
  • SNTP
  • ICMP v6
  • IPv4/v6 Dual Stack
  • DHCP Auto Configuration
  • RMON v1/v2
  • Dual Images
  • Dual Configurations
  • DNS Client
Green V3.0 Technology
  • Power Saving by:
    • LED Shutoff
    • System Hibernation
    • Port Shutoff
MIB/RFC Standards
  • RFC 783/1350 TFTP Client
  • RFC 951/1542/2131 BootP/DHCP Client
  • RFC 1213 MIB II
  • RFC 1215 MIB Traps Convention
  • RFC 3612 Power-Ethernet MIB
  • RFC 3418 SNMPv2-MIB
  • RFC 2863 Interface Group MIB
  • RFC 3635 Ethernet-Like MIB
  • RFC 4293 IP-MIB
  • RFC 2819 RMON v1
  • RFC 4502 RMON2-MIB
  • RFC 4188 Bridge MIB
  • RFC 4363(6) P-Bridge-MIB
  • RFC 4363(7) Q-Bridge-MIB
  • RFC 4668 RADIUS Authentication Client MIB
  • RFC 4292 IP Forward MIB
  • RFC 4836 MAU MIB
  • RFC 4133 Entity MIB
  • RFC 4560(80) PING-MIB
  • RFC 4560(81) Traceroute-MIB
  • RFC 3411 SNMP-Framework-MIB
  • RFC 3414 SNMP-User-Based-MIB
  • RFC 3412 SNMP-MPD-MIB
  • RFC 3413(12) SNMP-Target-MIB
  • RFC 3413(13) SNMP-Notification-MIB
  • RFC 3415 SNMP-View-Based-ACM-MIB
  • RFC 3584 SNMP-Community-MIB
  • D-Link Private MIBs
  • LLDP MIB
  • Zone Defense MIB
Warranty Information
Warranty Limited Lifetime

1 On DXS-1210-20T, ports 25-28 must operate at the same speed. i.e., either at 10G or 25G.
2 DXS-1210-28T only

Product Views:


DXS-1210-28T Front View

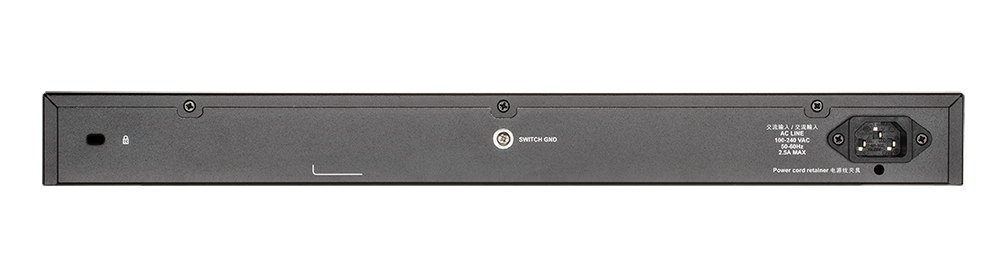

DXS-1210-28T Back View

Documentation:

Download the D-Link DXS-1210 Series Datasheet (PDF).
