D-Link DGS-1005P
5-Port Gigabit Unmanaged Desktop Switch with 4 PoE Ports

D-Link Products
D-Link Products
5-Port Gigabit Unmanaged Desktop Switch with 4 PoE Ports
#DGS-1005P
List Price: $94.99
Our Price: $90.24

Click here to jump to more pricing!

Overview:

The DGS-1005P features four 10/100/1000BASE-T ports that support the IEEE 802.3af and IEEE 802.3at PoE protocols, supplying up to 30 W on each PoE port and providing a total power budget of 60 W. You can connect compatible devices to the DGS-1005P without using an additional power supply. This allows you to save on cabling and to install devices in locations without immediate access to power outlets.

Green Technology

The DGS-1005P features green technology such as IEEE 802.3az Energy-Efficient Ethernet (EEE), link status detection, and cable length detection. EEE adjusts the power consumption of the switch based on network utilization, reducing the cost of ownership during periods of inactivity. Link status detection powers down ports when no links are detected, saving power when connected devices are shut down or disconnected. Cable length detection adjusts the power output of the port based on the cable length, reducing the power requirements of the switch.

Compact and Silent

The compact design of the DGS-1005P allows placement in most locations, including those where space is at a premium. The desktop form factor provides everything you need to set up a new network or expand an existing network, while the fanless design ensures silent operation even in noise-sensitive areas such as workstations and meeting rooms.

Limited Lifetime Warranty

D-Link offers a Limited Lifetime Warranty on the DGS-1005P to further its commitment to product quality and long-term customer confidence1.

Features:

High-Speed Networking

  • Five 10/100/1000 Mbps Gigabit Ethernet ports
  • Full/half-duplex for Ethernet/Fast Ethernet and full-duplex for Gigabit Ethernet speeds

Reliability

  • IEEE 802.3x flow control
  • Store-and-forward switching scheme
  • RoHS-compliant

Easy Setup

  • Plug-and-play installation
  • Auto MDI/MDI-X crossover on all ports

Stylish Design

  • Compact lightweight chassis
  • Noise-free operation

PoE Functionality

  • Four PoE ports
  • IEEE 802.3af/at compliant
  • 60 W total power budget
  • Up to 30 W power output per PoE port

Specifications:

Technical Specifications

General

Hardware version = A1

Size
• Desktop

Interfaces
• 5 10/100/1000BASE-T ports

Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3x flow control
• IEEE 802.1p QoS
• ANSI/IEEE 802.3 NWay auto-negotiation

Media Interface Exchange
• Auto MDI/MDI-X adjustment on all ports

Performance

Switching Fabric
• 10 Gbps

Transmission Method
• Store-and-forward

Data Transfer Rates
• Gigabit Ethernet
• 2000 Mbps (full-duplex)
• Fast Ethernet
• 100 Mbps (half-duplex)
• 200 Mbps (full-duplex)
• Ethernet
• 10 Mbps (half-duplex)
• 20 Mbps (full-duplex)

Packet Filtering / Forwarding Rates
• 7.44 Mpps

MAC Address Table
• 2K entries per device

RAM Buffer
• 64 KB per device

PoE

PoE Standards
• IEEE 802.3af
• IEEE 802.3at

PoE-Capable Ports
• Ports 1 to 4

Power Budget
• 60 W (30 W max. per PoE port)

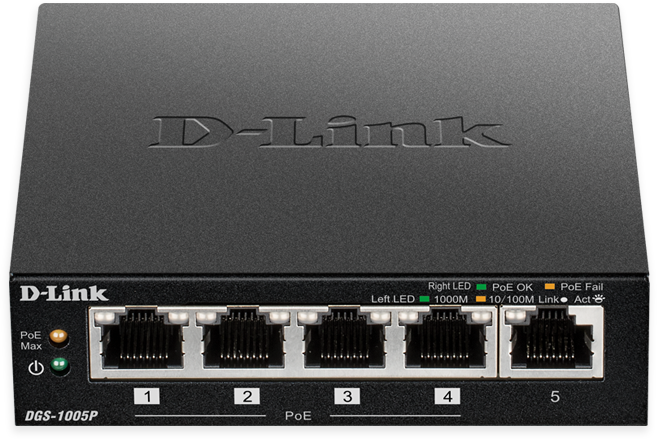

LEDs

• Power
• Power / PoE Max (per unit)
• Power / Status (per port)
• Activity / Link and Speed (per port)

Physical

Weight
• 0.26 kg (9.17 oz)

Dimensions
• 100 x 98 x 28 mm (3.94 x 3.86 x 1.10 in)

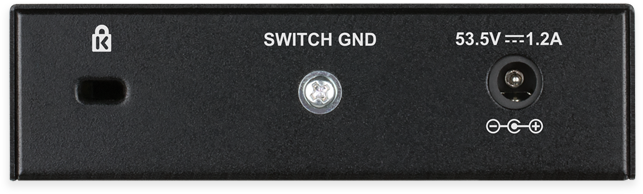

DC Input
• External 53.5 V / 1.2 A power adapter

Power Consumption
• 64.5 W maximum (PoE on)
• 3.08 W maximum (PoE off)
• 0.54 W (standby)

Temperature
• Operating: 0 to 40 ˚C (32 to 104 ˚F)
• Storage: -10 to 70 ˚C (-40 to 158 ˚F)

Humidity
• Operating: 0% to 95% RH non-condensing
• Storage: 0% to 95% RH non-condensing

Certifications

Safety
• cUL
• CB
• LVD
• BSMI

EMI/EMC
• CE
• BSMI
• FCC
• VCCI
• RCM

Documentation:

Download the D-Link DGS-1005P Datasheet (PDF).

1 Limited Lifetime Warranty available in USA only.
