D-Link Nuclias Business Cloud AC2600 Wave2 Access Point
Powerful & ﬂexible Cloud networking solution for Small-to-Medium-Sized Businesses (SMBs/SMEs)

D-Link Products

D-Link Nuclias Business Cloud Access Points

Nuclias Business Cloud AC2600 Wave2 Access Point

#DBA-2820P
List Price: ~~$514.99~~
Our Price: $489.24

Click here to jump to more pricing!

Overview:

The DBA-2820P Nuclias Wireless AC2600 Wave 2 Cloud-Managed Access Point is a highperformance indoor access point designed specifically for SMB, retail, hospitality, campus, as well as managed service providers. It offers high combined data rates of up to 2,533 Mbps over 2 dedicated wireless bands and enhanced WPA3 wireless security.

The DBA-2820P can be easily deployed with zero-touch provisioning and controlled through the D-Link Nuclias Cloud Management1 . This allows network administrators to focus more on providing reliable connectivity and services and spend less time managing devices.

Centralized Management With D-Link Nuclias

Designed to be managed through the D-Link Nuclias Cloud Management1 , the DBA-2820P is easily set up with the help of the intuitive D-Link Nuclias web-browser portal or the Nuclias mobile app for tablets. Centralised cloud-based management enables zero-touch provisioning, allowing for plug-and-connect deployment without the need for additional configuration. The DBA-2820P connects to the D-Link Nuclias cloud to automatically retrieve its configuration settings, enabling deployment at remote locations without an on-site network administrator. With D-Link Nuclias, businesses can now more effectively organise their entire wireless network, manage multiple APs simultaneously, and monitor live network statistics.

Fast And Efficient Wireless AC Wave 2 Performance

The DBA-2820P delivers reliable, high-speed wireless AC Wave 2 performance with maximum wireless signal rates of up to 2,533 Mbps2 . Load-balancing optimisation effectively eliminates the need for the dedicated hardware and RF expertise typically required to tune a wireless network. The D-Link Nuclias cloud tunes the DBA-2820P’s channel selection, transmit power, and maximum client connections for optimal performance under the most challenging RF conditions.

Enterprise-Grade Security

To help maintain a secure wireless network, the DBA-2820P supports both Personal and Enterprise versions of WPA, WPA2 and the latest WPA3, with support for a back-end RADIUS server. The DBA-2820P also supports MAC address filtering, wireless LAN segmentation, SSID broadcast disabling, and wireless broadcast scheduling to further help protect the wireless network. The DBA-2820P includes support for up to 16 virtual access points to further help segment users on the network using multiple SSIDs. In addition, the DBA-2820P features wireless client isolation, which allows administrators to limit direct client-to-client communication.

Versatile Deployment

The DBA-2820P allows network administrators to deploy a highly manageable and extremely robust wireless network with optimal wireless coverage. For deployment flexibility, the DBA-2820P can be mounted on a ceiling, wall, or placed on a desktop to meet any wireless demands. It also supports 802.3at Power over Ethernet (PoE), allowing the device to be installed in areas where power outlets are not readily available.

Features:

D-Link Nuclias Cloud Management (1-year license included)

Centralised cloud-based management
Zero-touch deployment
Unlimited scalability with no limitation on the number of supported APs
Intuitive web and app-based interface
Real-time at-a-glance network information
Management of multiple sites and devices through single pane of glass
Over-the-air firmware updates through the cloud
Instant alerts and notifications

Best-in-class Built for Enterprise Access Point

IEEE 802.11ac Wave 2 wireless
4 x 4 MU-MIMO with four spatial streams
Up to 2,533 Mbps2 throughput
Supports IEEE 802.3at Power over Ethernet (PoE)
Integrated DHCP server
WPA/WPA2-Personal/Enterprise Support
WPA3 Support
Supports RADIUS client and Cipher negotiation
Supports Link Aggregation

Nuclias by D-Link:

Cloud Networking, Refreshed

The DBA-2820P Access Point (AP) is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of IT infrastructure as simple and hassle-free as possible.

Nuclias by D-Link is a complete cloud-managed networking solution for small to medium-sized organisations with one or more sites.

How it works

Wi-Fi coverage and network capacity are provided by high-performance Access Points and Managed Switches deployed on site, while configuration and ongoing management can be carried out remotely through a web browser or tablet.

Zero-touch provisioning and centralised cloud-based control make the network simpler to install and easier to manage. With Nuclias, network configurations and software updates are pushed to remote devices through the cloud, without the need to have specialised equipment or personnel onsite. SSL encrypted, out-of-band network monitoring and management ensures secure connectivity whilst minimising bandwidth requirement.

Main Features

Zero-touch provisioning
Role-based administration
Auditable change logs
Authentication via customisable captive portal, 802.1x and RADIUS server
Social login for Wi-Fi access supported
Advanced traffic report and data analysis
Intuitive web-based interface with multilingual support
Automatic monitoring and alerts
Over-the-web firmware upgrades
Searchable network-wide event log
Intuitive VLAN Configuration
Cloud based RF Optimisation

Specifications:

Dimensions	224.5 x 223.85 x 50 mm
Environment	Indoor
2.4GHz Speed	800Mbps
5GHz Speed	1733Mbps
MU-MIMO and Tx beamforming	Yes
Maximum Output Power	2.4GHz: 26dBm 5GHz: 26dBm

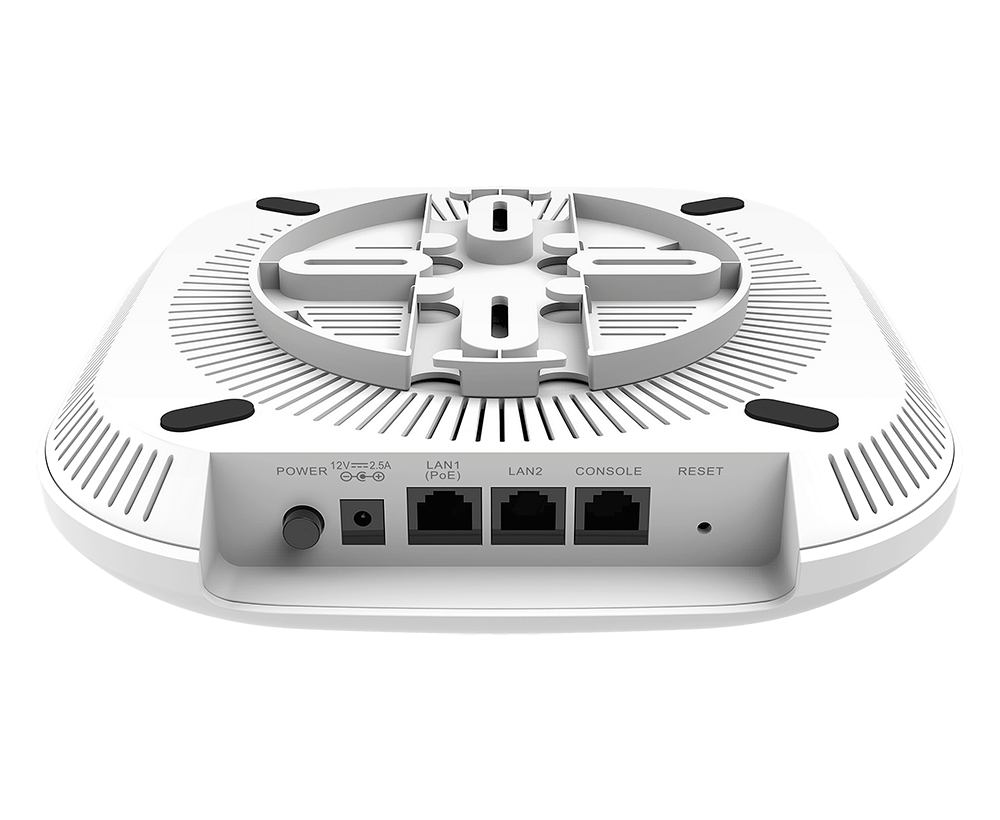

Interface	2 x 10/100/1000 Mbps Ethernet port (LAN1 support PoE); 1 x 10/100/1000 Mbps serial console port; IEEE 802.11a/b/g/n/ac Wave 2 wireless
Mounting	Wall/Ceiling
PoE Mode	802.3at
Console port	Yes

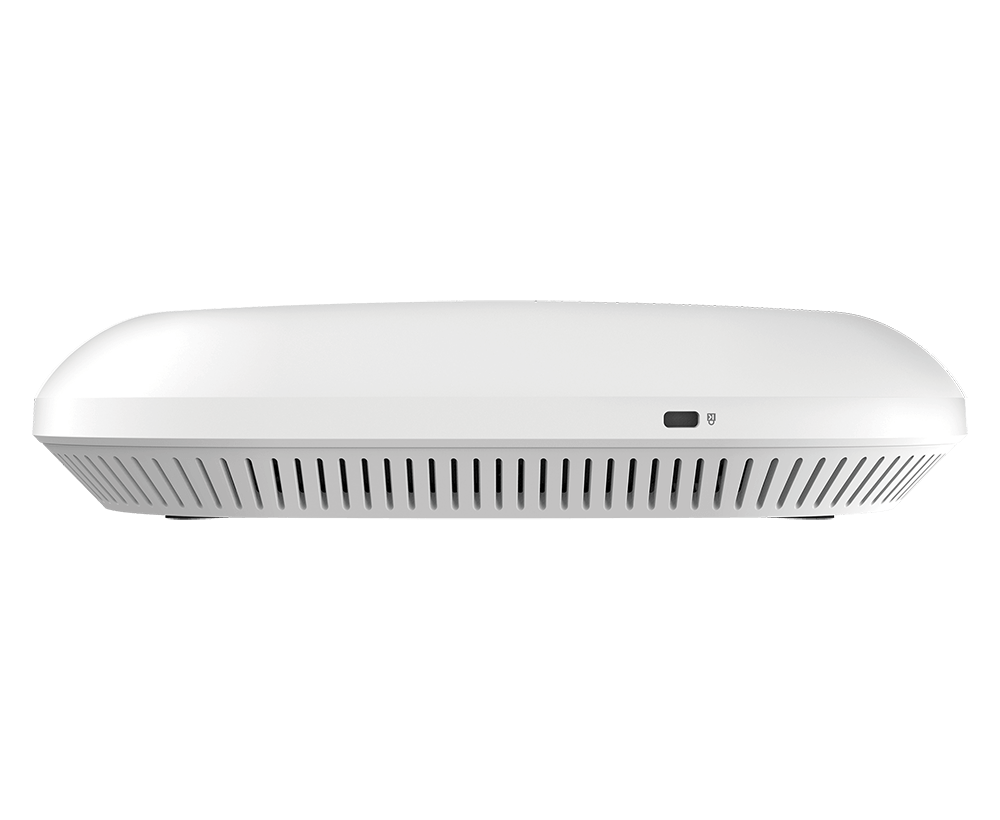

Lock options	Kensington Security Slot

Documentation:

Download the D-Link DBA-2820P Datasheet (PDF).

Pricing Notes:

Pricing and product availability subject to change without notice.
