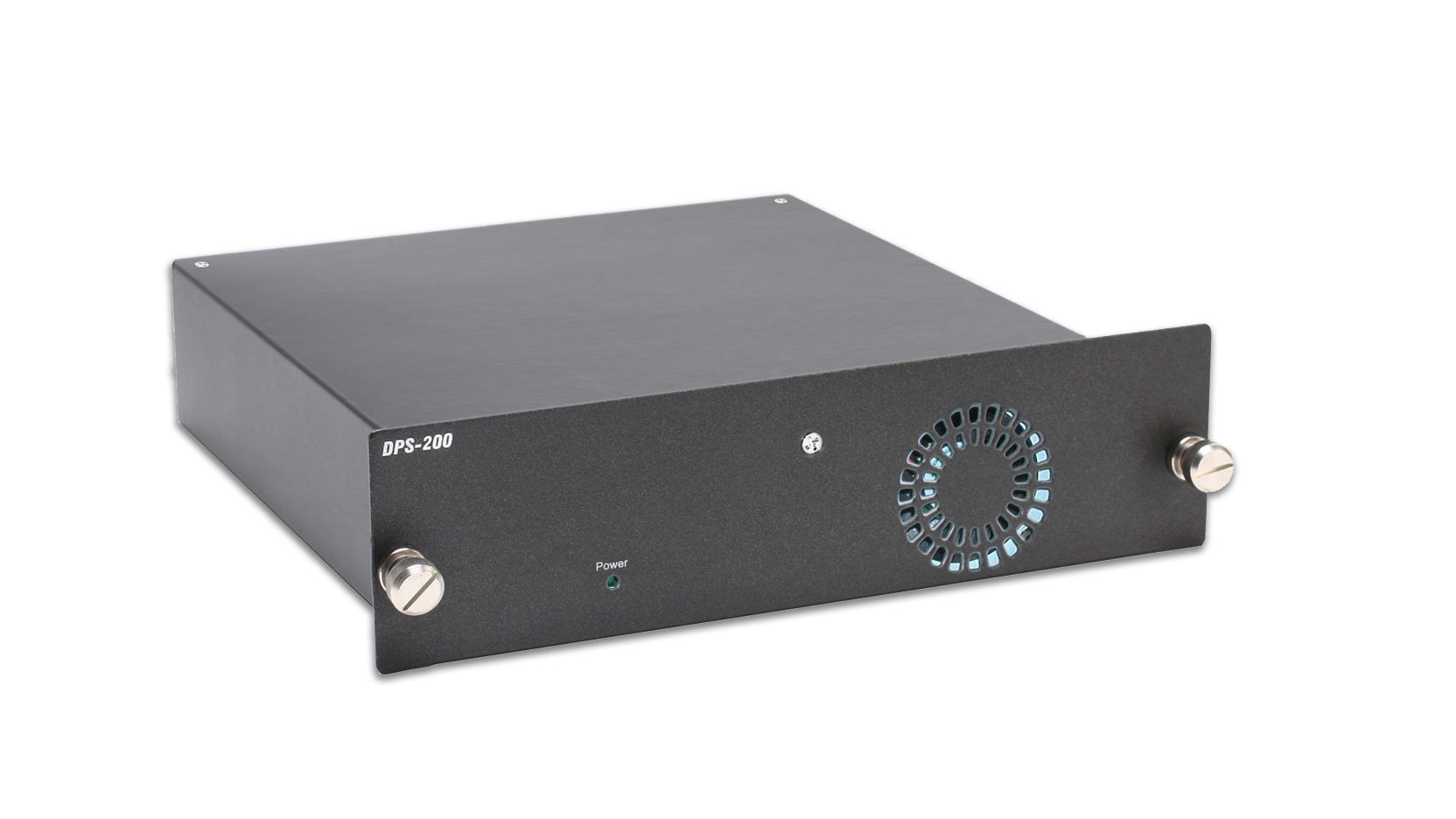

D-Link DPS-200
60 Watt Redundant Power Supply for D-Link Managed Switches

D-Link DPS-200

Sorry, this product is no longer available, replaced by the DPS-200A.


Accessories are still available below


Overview:

The DPS-200 redundant power supply (RPS) is designed to conform to the wattage requirements of D-Link’s Fast Ethernet and Gigabit switches. It provides a low-cost, simple solution to the problem of a failure of the internal power-supply of an Ethernet switch, which can result in the shutdown of that switching device, the devices attached to its ports, or an entire network. Supporting full output power for the switch, the DPS-200 can maximize the availability of the switching device.

The DPS-200 can be used on a benchtop/desktop, or rack mounted using either the DPS-800 or DPS-900 rack mount chassis.

The DPS-200 is compatible with the following D-Link switches:

• DES-3326SRM
• DES-3350SR
• DES-3526
• DES-3528
• DES-3550
• DES-3552
• DES-3828
• DGS-3100-24
• DGS-310024P
• DGS-3100-48P
• DGS-3120-24TC
• DGS-3200-24
• DGS-3212SR
• DGS-3312SR
• DGS-3612
• DWS-3160-24TC

The DPS-200 can be installed in the DPS-800 or DPS-900 rack mount chassis.

Technical Specifications:

Input Voltage Range
• 85VAC to 264VAC

Input Frequency Range
• 47 Hz to 63 Hz

Maximum Input Current
• 1.6A max. for 115VAC
• 0.8A max. for 230VAC

Maximum In-rush Current
• 30A @ 115VAC, 60Hz
• 60A @ 230VAC, 50Hz

Leakage Current
• 3.5mA max.

Output Voltage
• +12VDC

Total Output Power
• 60 watts

Efficiency
• 75% min. @ max. load and 115VAC input

Over Voltage Protection
• 13.5V to 17V for +12V output

Physical & Environmental

LED Status
• On: RPS good
• Off: RPS failed

Dimensions
• 5” x 3” x 1.46”
(127 x 76 x 37mm)

Weight
• 0.83 kg

Operating Temperature
• 0° to 50°C

Storage Temperature
• -20° to 80°C

Operating Humidity
• 5% to 95% RH

Storage Humidity
• 5% to 95% RH

Safety Standards
• UL 60950 3rd Edition
• CSA 22.2 NO.234
• EN 60 950

Safety Approvals
• UL
• CSA

EMI
• FCC Class B
• EN55022 (CISPR22) Class B

MTBF
• 71,713 hours

Documentation:

Download the D-Link DPS Series Datasheet (PDF).
