D-Link DNH-100
Nuclias Connect Hub


D-Link Products
Nuclias Connect Hub
D-Link DNH-100 Nuclias Connect Hub
#DNH-100
List Price: $236.99
Our Price: $182.99

Click here to jump to more pricing!

Overview:

The Nuclias Connect Hub is a standalone controller pre-loaded with the Nuclias Connect centralised network management software. Designed to support small-to-medium business and larger enterprise environments, the Nuclias Connect Hub provides network administrators with the capability to manage up to 100 access points through one single device. It features a comprehensive set of network management, security, monitoring and troubleshooting functionalities as well as multiple access management tools (captive portal, payment gateway integration and front desk ticket management).

The Nuclias Connect Hub is compatible with a wide range of indoor and outdoor wireless access points, including support for PoE and the latest 802.11ac Wave 2 standard. Multiple Nuclias Connect Hubs can be centrally managed through the single sign-on portal, which can be accessed through the dedicated mobile app or via a web browser.

Preloaded with the Nuclias Connect Management Software

D-Link’s Nuclias Connect is a centralized management and analytics solution that brings convenience, control, customizability and cost-effective scaling to small to medium-sized business (SMB) networks. It enables network monitoring, management, and device configuration through a single, easy-to-use software interface.

What’s more – management software comes preloaded, and there are no licensing or support fees. Easily manage your network, anytime, anywhere.

Flexibility to Meet Your Needs

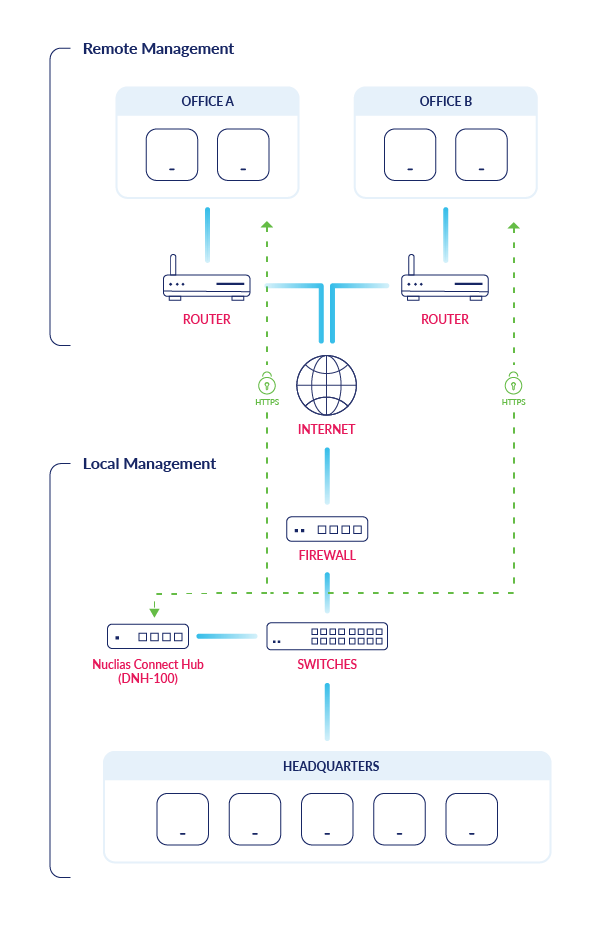

Nuclias Connect Hub offers centralised monitoring and management of all wireless APs on your network. Network management is customisable, and enables control and analytics of a broad or fine granularity, presentable in a variety of formats. Additionally, network administrators can provide and manage multiple Nuclias Connect Hubs in distributed deployments through the Single-Sign On access, including the option to configure settings and admin accounts in a specific manner for each deployment. Nuclias Connect Hub gives you the financial and technical flexibility to expand from a small network to a larger one (up to 100 APs), while retaining a robust and centralised management system.

Insights at a Glance

Gain an extensive understanding of your network through usage analytics and status reports which can be viewed at a glance. Insights derived from traffic data can create business value. Traffic can be viewed across the entire network, to the level of a single AP.

A Refreshing Take on Network ManagementNetwork Security & Data Privacy

Nuclias Connect balances the need for access convenience with the need for security. All communications over the system are encrypted, with your user data never leaving your possession. Additional security measures (such as firewalls) can also be added to your network, without undue technical difficulty.

A Refreshing Take on Network Management

The D-Link DNH-100 Wireless Controller is a centralized wireless LAN manager developed specifically for our Nuclias Connect management solution and is suitable for small to medium-sized business (SMB) IT infrastructure. It comes preloaded with Nuclias Connect network management software, which is a key asset for businesses where IT skills are limited by financial or other constraints.

Tasks can be centralized and automated, meaning the DNH-100 is highly suited for remote deployment where either dedicated onsite staff are unavailable, or servers, PCs and other devices that can run the software might not be viable.

Better-Than-Expected Performance at a Smaller-Than-Expected Price

The DNH-100 is unbeatable value for money, delivering real value at a lower-than-expected price. Its backwards compatibility with a variety of legacy AP’s means no need to unnecessarily replace older but still functioning hardware, better for your wallet and the planet.

With the ability to support up to 100 APs and a variety of business tools including Captive Portal, Payment Gateway Integration and Front Desk Ticket Management. Accordingly, all these top-notch capabilities can all be centralized thanks to the Nuclias Connect management software to reduce admin cost and fulfil most of SMBs networking and day-to-day demands.

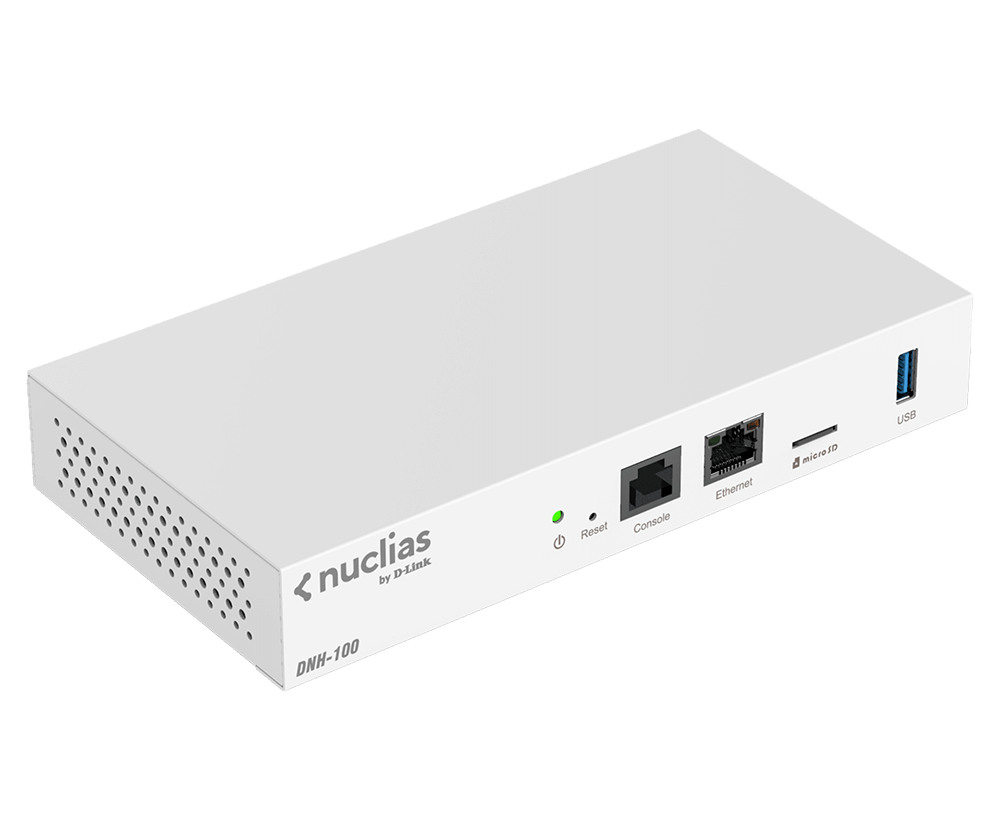

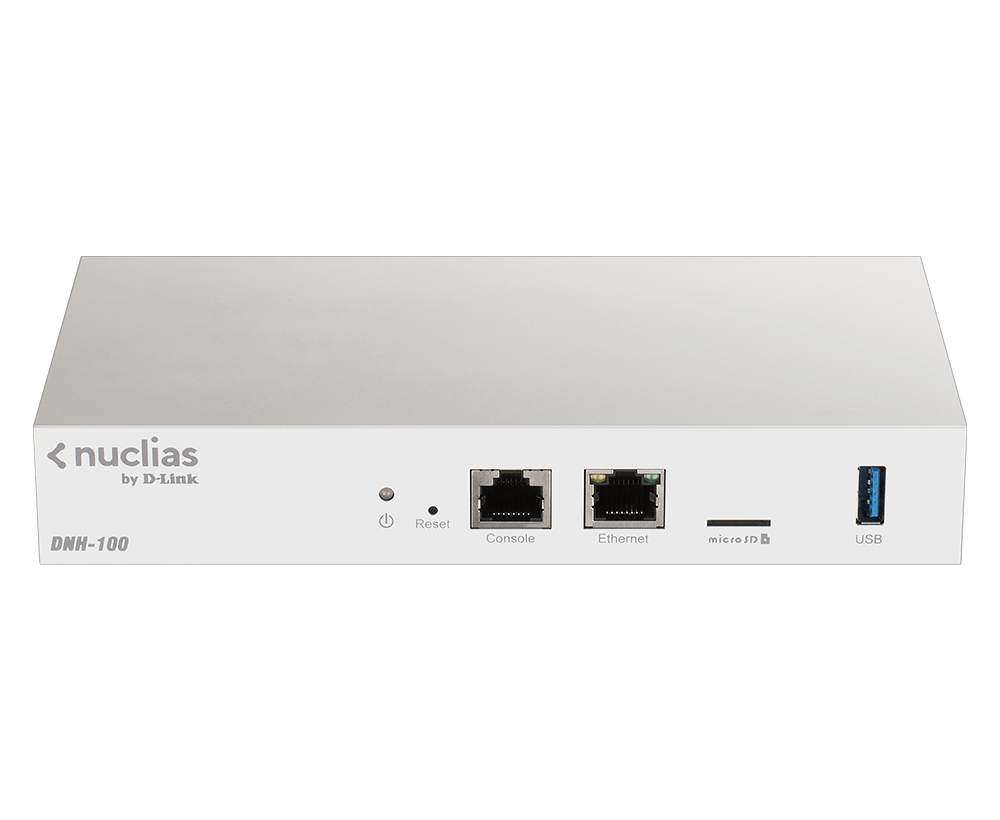

Big Things Come in Small Packages

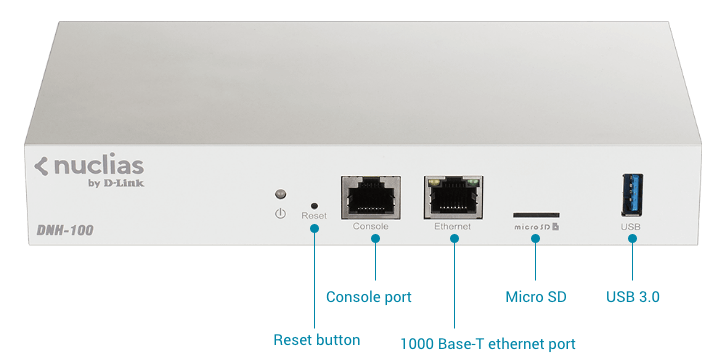

Despite its modest size, the DNH-100 offers the same Nuclias Connect management functionality. With a 1000Base-T Ethernet port, a USB 3.0 port, a Micro SD slot as well as support for IEEE 802.3ab/u/x, it’s fully equipped for all occasions. Furthermore, manage up to 100 APs at one time, create and configure AP profiles, multiple SSID settings, access control, VLANs, time-based rules, bandwidth and performance. Control ranges from all-encompassing down to a single AP, so that fine-tuning your network via the connect software is effortlessly simple.


A Network That Can Look Out for Itself

The DNH-100 features self-organizing and self-optimizing capabilities such as interval-based radio scanning and analysis, self-management of radio frequency, as well as L2/L3 AP discovery and output power. Combined with other self-healing capabilities, it can maintain stability and continue operating at optimal levels even during peak usage times, so you can rest assured users are getting the best service possible.

Keeping Security Tight

The DNH-100 Nuclias Connect Wireless Managed Controller was designed for businesses where security and privacy are paramount, and for companies with policies requiring data ownership, Nuclias Connect ensures that user data never leaves your possession. All communications between Nuclias Connect Access Points and the DNH-100 are securely encrypted with SSL/HTTPS

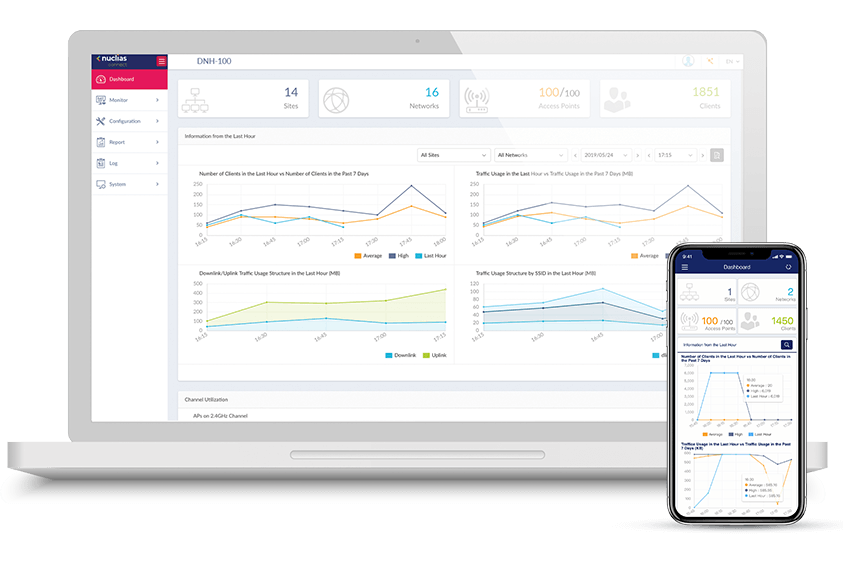

Real-Time Analytics & Reporting, All on an Intuitive Interface

Nuclias Connect enables an extensive understanding of your network and its users through traffic analytics and status reports, which can be viewed at a glance. Insights derived from this data provide actionable intelligence which businesses can use to create business value. Traffic can be viewed across the entire network, down to the level of a single AP. Capacity and growth can be evaluated, as well as any irregularities that may arise, allowing for easier troubleshooting.

An End to an Endless Number of Accounts

Nuclias Connect enables an extensive understanding of your network and its users through traffic analytics and status reports, which can be viewed at a glance. Insights derived from this data provide actionable intelligence which businesses can use to create business value. Traffic can be viewed across the entire network, down to the level of a single AP. Capacity and growth can be evaluated, as well as any irregularities that may arise, allowing for easier troubleshooting.

Features:

Simple and Cost-Effective

  • Discover, manage, configure, and monitor up to 100 APs per controller
  • Cost-effective; no extra server needed for access point management
  • Simply add more controllers when you want to scale up your network

Versatile Installation

  • Rack-mountable
  • Small form-factor for easy placement
  • Integrated hardware controller and selfcontained application server in one device

Nuclias Connect Centralised Management

  • Powerful management, monitoring, and troubleshooting functionalities
  • Local and multi-site access point management
  • Reports system in place to administer and monitor wireless network
  • Single sign-on (SSO) portal for centralised remote management of multiple Nuclias Connect Hubs
  • Accessible through the downloadable app or standard web browser

Technical Specifications:


D-Link DNH-100 Specifications
General
Device Interfaces
  • 1 x Gigabit LAN
  • 1 x USB 3.0 (offers 5V / 1A power)
  • 1 x MicroSD Slot
  • 1 x RJ45 Console
Standards
  • IEEE 802.3u/ab
  • IEEE 802.3x Flow Control
Functionality
Network Management
  • D-Link Nuclias Connect
  • Telnet
  • Web (HTTPS)
  • Secure Telnet (SSH)
LEDs
  • Power/status
  • LAN
Physical & Environment
Dimensions 190 x 100 x 31 mm (7.48 x 3.94 x 1.22 in)
Weight 529 g (1.16 lbs) without mcroSD card

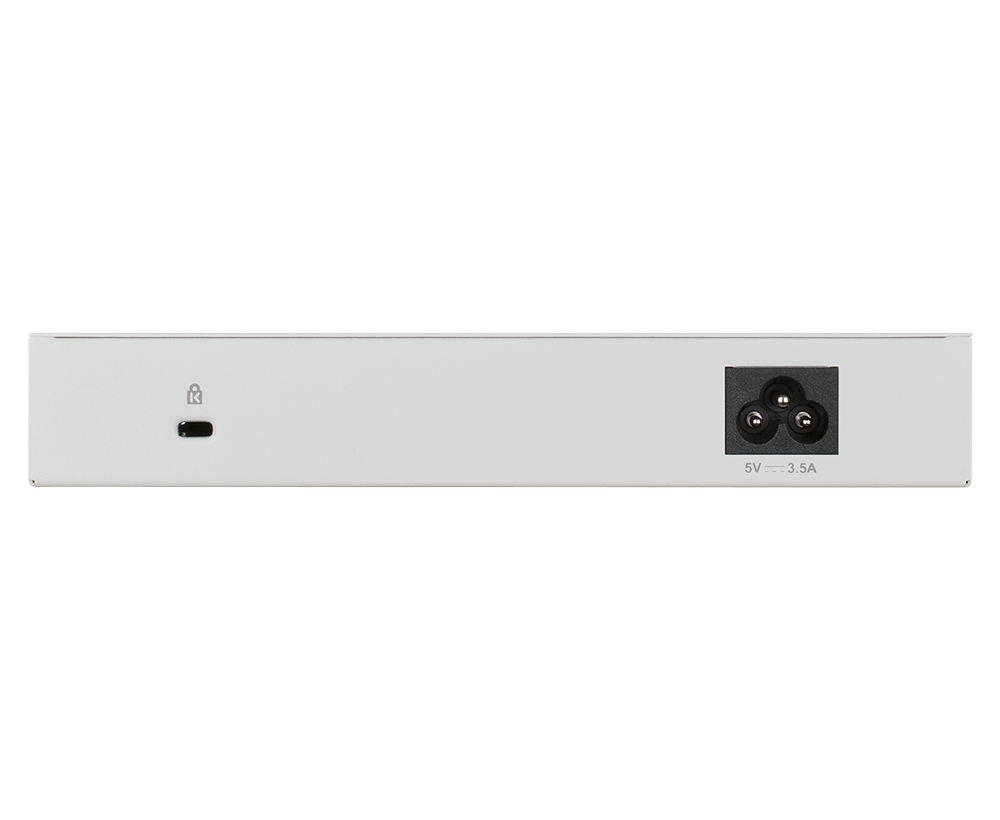

Power Supply Internal power supply
Maximum Power Consumption 6.5 Watts
Temperature Operating: 32 to 104 °F (0 to 40 °C)
Storage: -4 to 149 °F (-20 to 65 °C)
Humidity Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
Meantime Between Failure (MTBF) > 30,000 hours
Certifications FCC, IC, CE, UL, BSMI
Nuclias Connect Network Management Features
WLAN Management
Maximum APs 100
WLAN Management Features
  • AP grouping
  • Multi-tenancy
  • Visualised topology
  • NAT pass-through
  • Setup wizard
  • AP discovery (layer 2 and layer 3)
  • Report system
User Authentication
Guest Portal Captive portal
Authentication Method
  • Local
  • POP3
  • RADIUS
  • LDAP
  • Voucher
Hotspot Features
  • Built-in support for voucher-based authentication
  • Built-in hotspot manager for voucher creation and guest management
  • Rate limiting and bandwidth control for guest and hotspot portal
Wireless Features
RF Management and Control
  • Auto Output Power Control
  • Auto Channel
  • Self-healing around failed APs
Multiple SSIDs per Radio(AP) 8
Advanced Wireless Features
  • Band steering
  • L2 roaming
  • Bandwidth optimisation
  • Airtime fairness
System Management
Management Interface Web-based user interface (HTTPS)
Scheduling
  • Firmware update
  • Configuration update
Supported Devices
Indoor Wireless N Access Points
  • DAP-2230 (Single-Band N300, F/W ver. 2.0)
  • DAP-2310 (Single-Band N300, F/W ver. 2.0)
Indoor Wireless AC Access Points
  • DAP-2360 (Single-Band N300, F/W ver. 2.0)
  • DAP-2610 (Dual-Band Wave 2 AC1300, F/W ver. 2.0)
  • DAP-2620 (Dual-Band Wave 2 AC1200, in-wall design)
  • DAP-2660 (Dual-Band AC1200, F/W ver. 2.0)
  • DAP-2662 (Dual-Band Wave 2 AC1200, WiFi4EU-ready)
  • DAP-2680 (Dual-Band AC1200, F/W ver. 2.0)
  • DAP-2695 (Dual-Band AC1750, F/W ver. 2.0)
Outdoor Access Points
  • DAP-3315 (Single-Band N300, F/W ver. 2.0)
  • DAP-3662 (Dual-Band AC1200, F/W ver. 2.0)
  • DAP-3666 (Dual-Band Wave 2 AC1200, WiFi4EU-ready)

Documentation:

Download the D-Link DNH-100 Datasheet (PDF).
