D-Link DAP-1520
Wi-Fi AC750 Dual Band Range Extender

D-Link DAP-1520

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

The DAP-1520 Wireless AC750 Dual Band Range Extender is a portable Wireless Range Extender that lets you expand an existing wireless network’s coverage area. You can place it anywhere in your home to increase the range of your wireless network. It’s unobtrusive,compact design provides flexible placement and next generation AC750 wireless performance.

Extend Your Wireless Network

Increase the coverage of your home Wireless AC network with the sleek and easy-to-use DAP-1520 Wireless AC750 Dual Band Range Extender. Dual-band technology helps reduce interference from nearby wireless signals in the home and also provides backward compatibility with older wireless allowing you to enjoy a reliable wireless connection.

Easy to Set Up, Easy to Use

Setting up the Wireless AC750 Dual Band Range Extender is simple. You can use one-touch configuration by pushing the WPS push-button on the DAP-1520 and on the router or AP you want to extend, and the DAP-1520 will automatically configure itself for you. Alternatively, you can use the supported QRS Mobile app on your iOS or Android mobile device to set up the DAP-1520 easily or the built-in setup wizard that lets you configure it wirelessly with a PC using any supported browser.

Compact, Convenient Design

The DAP-1520 is a compact device that is ideal for use at home or a small office. Its diminutive design easily plugs into a power outlet without blocking other outlets and saves you from the hassle of dealing with a power cord. Its sleek, unobtrusive appearance blends easily into the decor of your home or office.

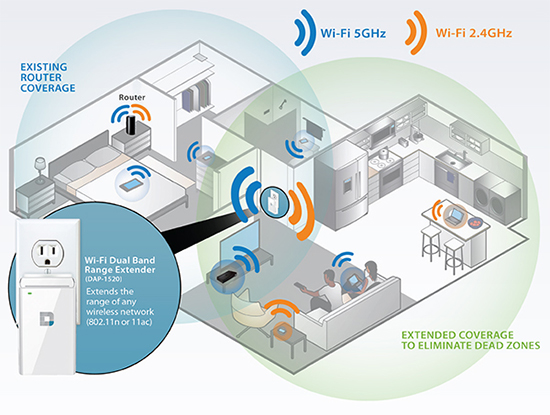

Router Coverage

Features:

Connectivity

  • Wireless AC gives you high-speed wireless connectivity for your devices
  • Wireless 802.11n/g/b/a backward compatibility
  • Wireless speeds of up to 750 Mbps1 (300 2.4Ghz/433 5Ghz)
  • Dual-band connectivity for greater flexibility and reduced interference

Easy to Use

  • Wall plug design is compact, portable and does not require additional power cables
  • Built-in setup wizard and QRS Mobile app for mobile devices guide you through installation

Security

  • WPA2/WPA wireless encryption to keep your wireless connection secure
  • Wi-Fi Protected Setup (WPS) for secure setup with the simple press of a button
1 Maximum wireless signal rate derived from IEEE Standard 802.11ac (draft), and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.

Technical Specifications:

D-Link DAP-1520 Specifications
General
Device Interfaces
  • 802.11ac/n/g/b/a wireless LAN
  • WPS button
  • Reset button
LEDs Status/WPS
Standards
  • IEEE 802.11ac (draft)
  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.11b
  • IEEE 802.11a
Antennas Two internal antennas
Plug Type Region dependent
Functionality
Wireless Security
  • Wi-Fi Protected Access (WPA/WPA2)
  • WEP 64/128-bit encryption
  • WPS (PBC)
Advanced Features D-Link One-Touch Extender Setup
Device Management
  • Supports QRS Mobile app for iPhone, iPad, iPod Touch, and Android mobile devices
  • Web UI
Physical
Dimensions 3.62 x 2.28 x 1.35 inches (92 x 58 x 34.2 mm)
Weight 3.67 ounces (104 grams)
Power Input: 110 to 240 V AC, 50/60 Hz
Temperature
  • Operating: 32 to 104 °F (0 to 40 °C)
  • Storage: -4 to 149 °F (-20 to 65 °C)
Humidity
  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing
Certifications
  • FCC
  • IC
  • CE
  • C-Tick
  • EMI/EMC
  • UL
  • Wi-Fi Certified

Product Views:

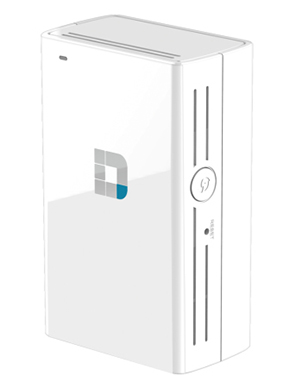

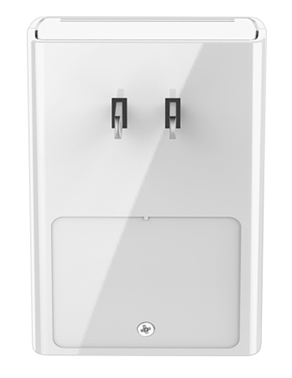

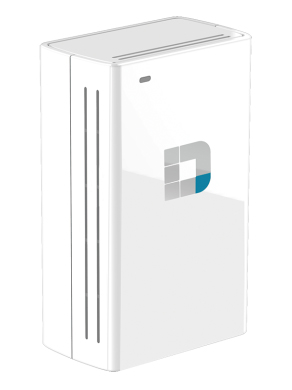

D-Link DAP-1520 Side Right View D-Link DAP-1520 Back View
D-Link DAP-1520 Side Right View D-Link DAP-1520 Back View

Documentation:

Download the D-Link DAP-1520 Datasheet (PDF).
