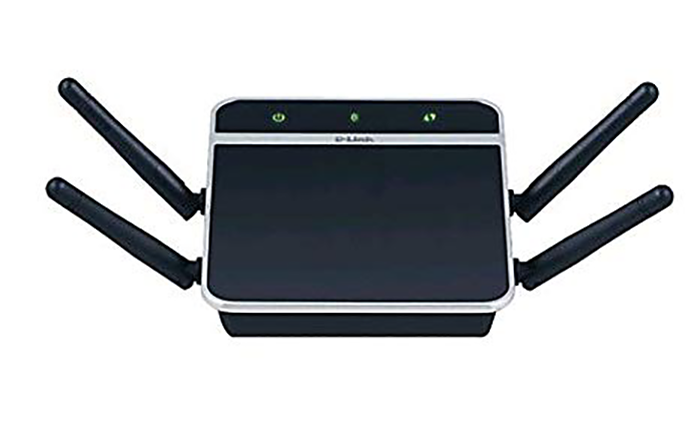

D-Link DAP-1562
Media Streaming Kit Selectable Dual Band, 11n, 600Mbps
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
The D-Link Media Streaming Adapter (DAP-1562)enables you to easily upgrade any router to support streaming of High-Definition (HD)multimedia content over a wireless connection. This device lets you create a ‘bridge’ between two different physical media types. This versatile kit transforms your wired device into a wireless one without the added hassle of installing Ethernet cables.
True 4x4 Spatial Streaming
The DAP-1560 is the first true 4x4 spatial streaming WLAN on the market, it uses all four of its antennas to send out multiple data streams simultaneously, boosting the data rate up to 600 Mbps.
Dual Band Technology
Selectable Dual Band technology enables you to stream HD videos and enjoy lag free gaming with less interference on the 5GHz band or chat, email and surf the web on the 2.4GHz band.
Versitle Functions
- The best wireless technology available for viewing High-Definition (HD) videos
- Wirelessly connect a device in your entertainment center to your network and Internet
- Upgrades your wireless network and is backwards compatible with previous 802.11 wireless technologies
- Easy to install, upgrade or add to any home network
Features:
High-Definition Performance
The D-Link Media Streaming Kit (DAP-1562) includes two Media Streaming Adapters (DAP-1560) and enables you to easily upgrade any router to support streaming of High-Definition (HD) multimedia content over a wireless connection. Connect any Ethernet-enabled device in your entertainment center like your game consoles, Digital Video Recorder (DVR) or Digital Media Adapters (DMA) to the DAP-1560 to upgrade your network and enable dual-band wireless streaming.
Faster Speed and Performance
The DAP-1560 is the first true 4x4 spatial streaming WLAN on the market, it uses all four of its antennas to send out multiple data streams simultaneously, boosting the data rate up to 600 Mbps¹, providing you with faster speed and performance to enhance your gaming and HD video streaming experience. The DAP-1560 also uses Intelligent Antenna technology to transmit multiple streams of data by bouncing multiple wireless signals off of walls and ceilings to work around obstructions and help eliminate dead spots, enabling you to receive wireless signals in the farthest corners of your home.
Better Wireless Experience
Selectable dual band (2.4GHz or 5GHz) enables you to select the wireless signal that best fits your network usage. With speeds up to 600Mbps¹, you can use the clearer 5GHz band to stream High-Definition movies and other media, and enjoy lag-free gaming, with less interference, giving you a better wireless experience with the fastest speeds possible.
Quality Of Service
The DAP-1560 is equipped with Quality of Service (QoS), which helps organize and prioritize the data streams in your network so your VoIP, HD Video streaming, and gaming runs smoother over your wireless network.
Green Ethernet Technology
The DAP-1560 is a D-Link Green product, which means it helps you conserve energy. It saves power by detecting cable length and adjusts it’s power consumption so that the energy is efficiently used. Any unused ports automatically enter power-saving mode to keep energy use to a minimum without sacrificing performance.

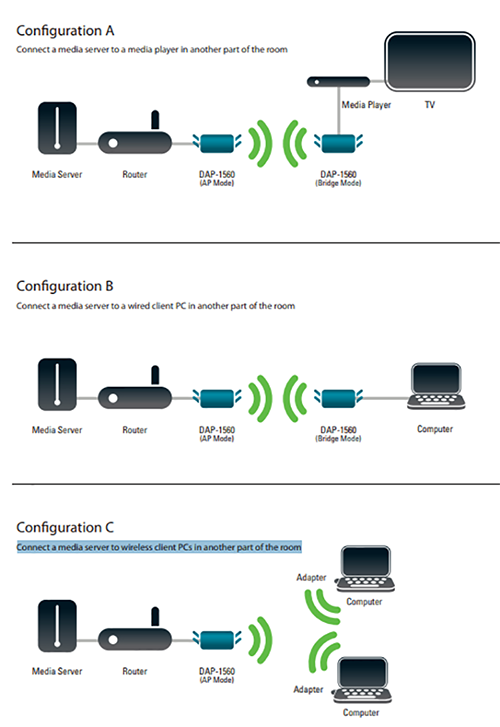

Configurations:
Technical Specifications:
| D-Link DAP-1562 Technical Specifications | |
|---|---|
| Standards | IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.3 IEEE 802.11u IEEE 802.11ab |
| Device Interfaces | Wi-Fi Protected Setup™ (WPS) Button 1 x 10/100/1000 LAN Port |
| Operation Modes | AP Bridge |
| Antenna Type | 4 x 2dBi @ 2.4GHz & 5GHz dipole antenna |
| Security | 64/128-bit WEP Wi-Fi Protected Access™ (WPA™-PSK, WPA2™-PSK) Wi-Fi Protected Setup (WPS) |
| LEDs | Power Status: Wireless LAN Status: WPS |
| Certifications | FCC CE IC C-Tick Wi-Fi WMM |
| Temperature | Operating: 32°F to 104°F (0°C to 40°C) Storage: -4°F to 149°F (-20°C to 65°C) |
| Humidity | Operating: 10% - 90% Non-condensing Storage: 5% - 95% Non-condensing |
| Dimensions (L X W X H) | Item: 5.27” x 4.96” x 1.38” (134mm x 126mm x 35mm) Packaging: 2.95” x 8.86” x 5.91” (75mm x 225mm x 150mm) |
| Weight | Item: 0.29 lbs (118grams) Packaging: 1.16 lbs (526.2grams) |
| Warranty | 1-Year Limited |
Documentation:
Download the D-Link DAP-1562 Datasheet (PDF).
