D-Link DCS-2210L
Full HD PoE Day/Night Network Camera

D-Link DCS-2210L

Sorry, this product is no longer available, please contact us for more information.

Overview:

The D-Link DCS-2210L Full HD PoE Day/Night Network Camera is a versatile camera perfect for monitoring low-light environments in your home or business. It combines a high definition sensor with a built-in IR LED to help you keep watch over areas in complete darkness. Additionally, the DCS-2210L is mydlink™-enabled, which makes it easy to setup and accessible from anywhere through the Internet using the free mydlink Lite app on your smartphone or tablet, or through any web browser on a computer. The DCS-2210L includes support for Power over Ethernet (PoE), so the camera can be placed in areas where no power outlet is nearby. The DCS-2210L also offers simple installation, an intuitive web-based interface, remote monitoring and motion detection features for a complete and cost-effective home security solution.

24/7 Video Surveillance

The DCS-2210L is built with a 2-megapixel image sensor to give you sharp, high quality snapshots and videos with resolutions up to Full HD 1080p (1920 x 1080), allowing you to see clearer details on objects of interest. The DCS-2210L features a built-in IR LED and IR cut filter, making it suitable for both day and night applications. A Power over Ethernet (PoE) port allows you to connect the DCS-2210L to your network and power it through a single cable, simplifying deployment and doing away with the need for a nearby power outlet.

High Performance Video Streaming

The DCS-2210L supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. Additionally, the DCS-2210L supports multicast H.264 and MPEG-4 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.

Instant Anywhere Access with mydlink Cloud Service

The DCS-2210L is mydlink-enabled, which means that you can view and configure your camera remotely, no matter where you are. With a mydlink service enabled camera, see your camera’s live view through the mydlink website, or download the free mydlink Lite mobile app and view your camera directly on your smartphone or tablet. Keep an eye on your home while you’re at work, or check on the office when you’re out on the road; mydlink makes it all possible.

A Complete, Expandable Surveillance Solution

The DCS-2210L is a self-sufficient surveillance solution, capable of recording snapshots and video to a microSD card without requiring a PC or network storage device. If you want to expand your surveillance options, D-ViewCam™ management software is also included, giving you the ability to manage up to 32 cameras with a robust set of features, including multi-camera views and automated e-mail alerts to keep you informed of suspicious or unusual activities.

Features:

High Definition Day & Night Video

  • 1/2.7” 2-megapixel 1080p CMOS sensor
  • Real-time H.264, MPEG-4 and Motion JPEG compression
  • Full HD resolution up to 1920 x 1080 @ 30 FPS
  • Fixed lens 2.8 mm F1.8 provides wide angle 103° view
  • Built-in mechanical IR filter for day/night use
  • Integrated IR LED for environments with minimum or no illumination
  • PIR (Passive Infrared) sensor for enhanced motion detection
  • Simultaneous multi-stream support
  • Privacy mask

Connectivity and Flexibility

  • microSD card slot supports up to 64GB
  • 2-way audio support with built-in microphone and speaker
  • 1 Digital Input / 1 Digital Output
  • Power over Ethernet (PoE) for simple single cable installation
  • mydlink cloud support with remote apps
  • Built-in Samba client for recording to NAS
  • ONVIF compliant for compatibility with 3rd party VMS and NVR

Technical Specifications:

DCS-2210L Front
DCS-2210L Back

D-Link DCS-2210L Specifications
Camera
Hardware Profile
  • 1/2.7" 2 Megapixel CMOS Sensor
  • IR Illumination distance: 15 feet
  • Minimum Illumination: 0.12 lux
  • Built-in Mechanical Infrared-Cut (ICR) Filter Module
  • 10x Digital Zoom
  • Lens Focal Length: 2.8 mm
  • Aperture: F1.8
Field of View (H) 103° / (V) 55° / (D) 118°
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • 3 Configurable privacy masks zone
  • Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness
Video Compression
  • H.264/MPEG4/MJPEG compression (simultaneous operation)
  • JPEG for still images
Video Resolution
  • 16:9 - Up to 30 frames per second at 1920 x 1080, 1280 x 720, 800 x 450, 640 x 360, 480 x 270
  • 4:3 - Up to 30 frames per second at 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240
Audio Support
  • MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
  • G.711 audio encoding, bit rate: 8 kbps to 64 kbps
  • Built-in microphone and speaker
External Device Interface
  • microSD card slot (supports up to 64GB card, SDXC)
  • 10/100 BASE-TX Ethernet port
  • 802.3af PoE
  • DI/DO socket for connection to external devices
Network
Network Protocols IPv6/IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, Bonjour, HTTP/HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP/RTSP/RTCP, IP filtering, QoS, CoS, Multicast, IGMP, ONVIF Compliant
Security
  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption
System Management
System Requirements for Web Interface
  • Operating System: Microsoft Windows 8/7 (32/64-bit)/Vista (32/64-bit)/XP, Mac OS X 10.5 or above
  • Web Browser: Internet Explorer 7, Firefox 12, Safari 7 or above
  • Protocol: Standard TCP/IP
Event Management
  • Motion detection, Periodic, Digital Input, System Boot, Network Lost, PIR Motion Sensor
  • Event notification and saving/uploading of snapshots/video clips via e-mail, FTP, network storage, or microSD card
  • Multiple event notifications
  • Supports multiple SMTP and FTP servers
  • Multiple recording methods for easy backup
Remote Management
  • Configuration accessible via web browser
  • Take snapshots/video clips and save to local hard drive or NAS via web browser
Mobile Support mydlink app for iOS and Android mobile devices
D-ViewCam System Requirements Operating System: Windows 8/7 (32/64-bit)/Vista (32/64-bit)/XP
D-ViewCam Software Functions
  • Remote management control of up to 32 cameras
  • Scheduled motion triggered, or manual recording options
  • Supports all management functions provided in web interface
  • Viewing of up to 32 cameras on one screen
General Specifications
Weight 2.8 oz (80 grams)
Power Input 12V DC 1.2 A, 50/60 Hz, PoE
Power Consumption 3.5 watts
Operating Temperature 32 to 104° F (0° to 40° C)
Storage Temperature -4° to 158° F (-20° to 70° C)
Humidity 20% to 80% non-condensing
Certifications
  • CE
  • CE LVD
  • FCC
  • C-Tick
Dimensions
  • Width: 2.28" (58 mm)
  • Height: 3.75" (96 mm)
  • Depth: 1.65" (42 mm)
Warranty
Warranty 1-Year Warranty

Product Views:

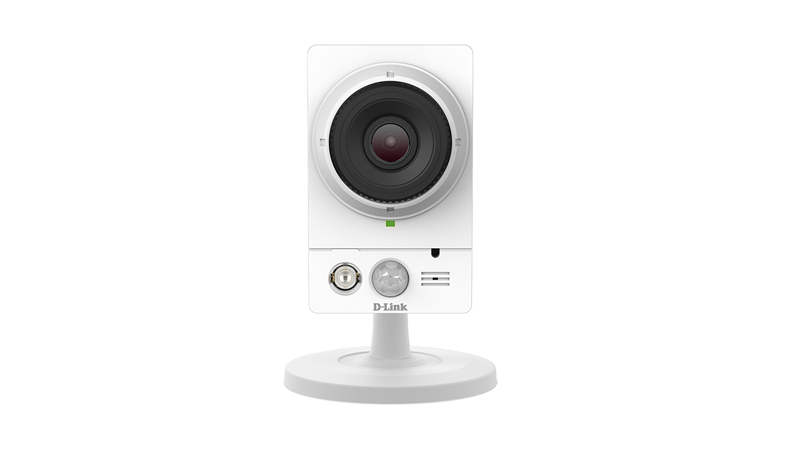

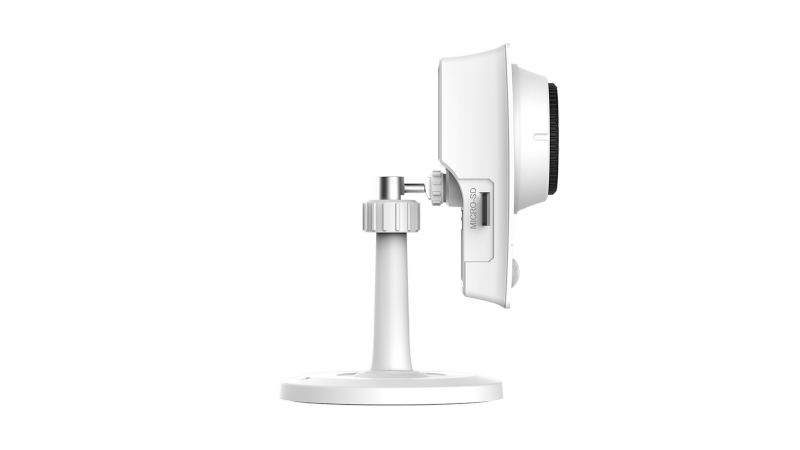

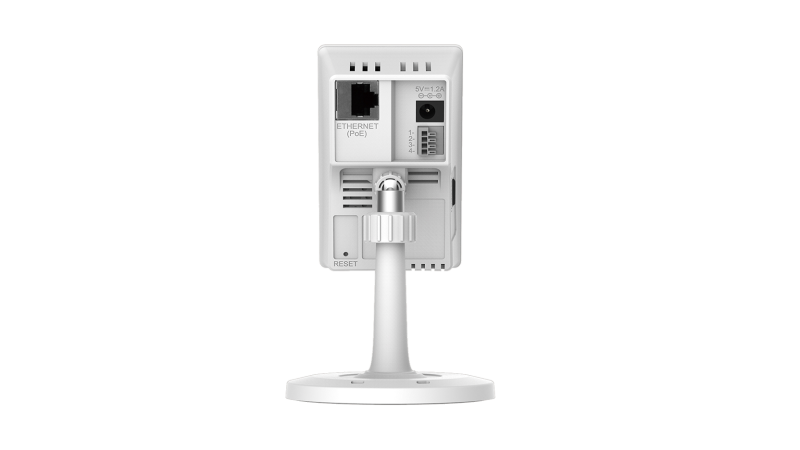

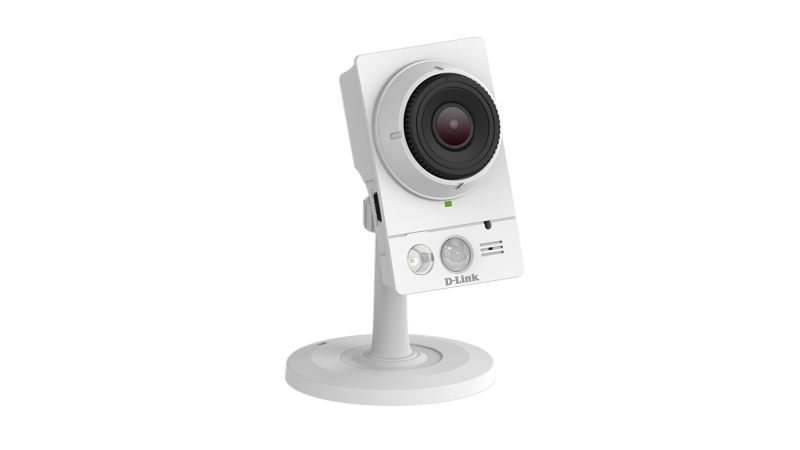

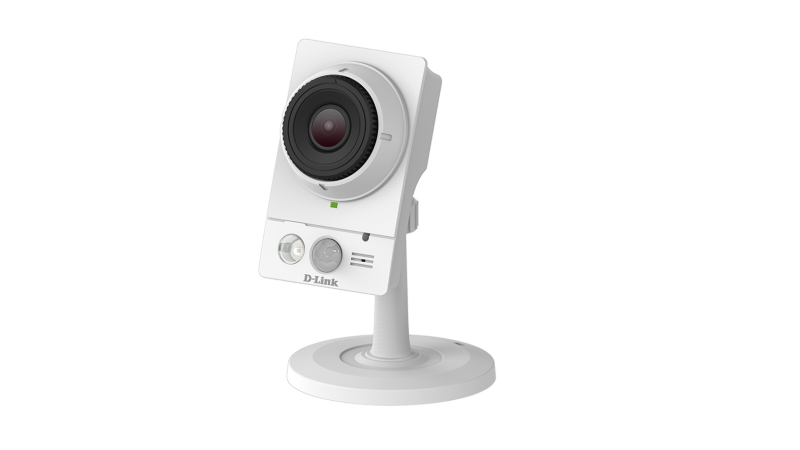

Front View Back View Side View Left Angle View Right Angle View
Front View Back View Side View Left Angle View Right Angle View

Documentation:

Download the D-Link DCS-2210L Datasheet (PDF).
