D-Link DCS-2330L
Outdoor HD Wireless Network Cloud Camera

D-Link DCS-2330L

Sorry, this product is no longer available. Please contact us for more information.

Overview:

The D-Link (DCS-2330L) is an Outdoor HD Wireless Network Camera, with an outdoor-ready design, wireless connectivity for easy setup and flexible placement, HD 720p surveillance recording, and Cloud Services-enabled remote management, the Cloud Camera provides a perimeter of protection so you can keep an eye on what matters most.

Outdoor-Ready Coverage

D-Link’s Outdoor HD Wireless Network Camera is outdoor-ready with a IP65 resistant casing equipped to handle dust and water contact. It also features a versatile -13°F to 113°F operating temperature range so you can keep an eye on the bigger picture–whatever the weather, whatever the season.

720p HD for Superior Image Quality

The D-Link Outdoor HD Wireless Network Camera (DCS-2330L) delivers the confidence of 720p HD video clarity, ensuring rich detail and crisp image quality for your surveillance recording. And with integrated night-vision and PIR motion-sensing technology, the DCS-2330L remains vigilant 24 hours a day, whether you’re there or not.

Industry-Leading Remote Viewing with mydlink™

With the free mydlink™ mobile app, you can monitor your home or business on your iPhone, iPad, Android device or Windows® phone and experience the peace of mind that comes from having round-the-clock surveillance at your fingertips. Check in on your home while you’re at work, or monitor your business when you’re out of the office – with mydlink, you can keep an eye on what matters, whenever and wherever you want.

Make Easy Setup Even Easier – With Zero Configuration⁶

Connecting your D-Link camera with any router is easy – make it even easier with your D-Link Cloud Router. Zero Configuration automatically configures and intelligently syncs your D-Link camera to your mydlink account – it’s as easy as connect and view!

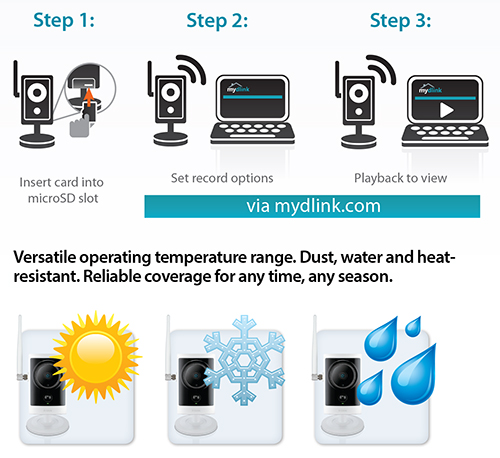

Record Directly to microSD Card⁸

The camera features a microSD card slot for hassle-free recording and playback. No additional PC, network video recorder, or other device is needed. Enjoy the easy and efficient alternative for recording and storing video.

⁶ Zero Configuration requires mydlink-enabled Cloud Router.
⁸ microSD card not included

Features:

Features

Remotely Monitor Your Home or Office Over the Internet
Wireless 802.11 Compliant with Push Button Wi-Fi Protected Setup™ (WPS)
HD resolution 1280x720
Supports H.264/MJPEG Video Codec
Built-In 5M IR LED for Viewing Dark Environments
Built-In PIR Sensor for Enhanced Motion Detection
Recording Directly to microSD Card⁸
Motion Detection to Trigger Recording and Send E-mail Alerts
Privacy Mask Support
Digital Pan/Tilt/Zoom
SupportforiPhone®, iPad®, Android® & Windows® Phone Apps²
mydlink.com Portal for Easy Viewing and Management
Administrator/User Password Protection
UPnP Support for Network Setup & Configuration
IP65 Weatherproof
Operating Temperature: -13°F - 113°F (-25°C - 45°C)
24/7 Basic Installation Support³
1-Year Limited Warranty⁴

Minimum System Requirements

Computer with:
- 1.3GHz Processor
- 128MB Memory
- Windows® 8⁵ Windows® 7⁵, Windows Vista®⁵ and Windows® XP SP3®⁵, or MacOS X (10.5 and above, Intel Processor)
- Internet Explorer v7, Mozilla Firefox v3.5, Google Chrome 8.0, or Safari v4
For Internet Access:
- Cable or DSL Modem
- Subscription with an Internet Service Provider (ISP)

Package Contents

Outdoor HD Wireless Network Camera (DCS-2330L)
Ethernet Cable
Power Adapter
Quick Install Guide

¹ Use of audio or video equipmentforrecording the image of a person withouttheir knowledge and consentis prohibited in certain states or jurisdictions.The end-user assumes all liability for compliance with applicable state, local and federal laws.
² The inclusion of a specific product or manufacturer does not imply its endorsement of D-Link or the D-Link product.
³ 24/7 Basic Installation Support is available only in the USA for the first 30 daysfrom date of original purchase.
⁴ 1-Year Limited Warranty available only in the USA and Canada.
⁵ Computer must adhere to Microsoft’s recommended System Requirements.
⁶ Zero Configuration requires mydlink-enabled Cloud Router.
⁷ Frame rates when streaming video may vary depending on network conditions and method used.
⁸ microSD card not included

Technical Specifications:

D-Link DCS-2330L Specifications
Camera
Hardware Profile	1/4” Megapixel progressive CMOS sensor 5 meter IR illumination distance Minimum illumination: 0 lux with IR LED on Built-in Infrared-Cut Removable (ICR) Filter module Built-in PIR sensor (5 meter) Built-in microphone and speaker 10x digital zoom Focal length: 3.45 mm Aperture: F2.0
Field of View	(H) 57.8°, (V) 37.8°, (D) 66°
Camera Housing	IP65 compliant weatherproof housing
Image Features	Configurable image size, quality, frame rate, and bit rate Time stamp and text overlays Configurable motion detection windows Configurable privacy mask zones Configurable shutter speed, brightness, saturation,contrast, and sharpness
Video Compression	H.264/MPEG-4/MJPEG simultaneousformat compression JPEG for still images
Video Resolution	16:9 - 1280 x 800, 1280 x 720, 800 x 450, 640 x 360,480 x 270, 320 x 176, 176 x 144 up to 30 fps recording 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360,320 x 240, 176 x 144 up to 30 fps recording
Audio Support	G.726 G.711
Network
Network Protocols	IPv6 IPv4 TCP/IP UDP ICMP DHCP client NTP client (D-Link) DNS client DDNS client (D-Link) SMTP client FTP client HTTP / HTTPS Samba client PPPoE UPnP port forwarding RTP / RTSP/ RTCP IP filtering QoS CoS
Security	Administrator and user group protection Password authentication HTTP and RTSP digest encryption
System Management
System Requirements for Web Interface	Browser: Internet Explorer, Mozilla Firefox, or Google Chrome
Event Management	Motion detection Event notification and upload snapshots/video clipsvia email or FTP Supports multiple SMTP and FTP servers Multiple event notifications Multiple recording methods for easy backup
Remote Management	Configuration accessible via web browser Take snapshots/video clips and save to local hard drive or NAS via web browser
Mobile Support	Windows 8/ 7/Vista/XP system, Pocket PC, or mobile phone mydlink™ mobile app for iOS and Android mobile devices
D-ViewCam™ System Requirements	Operating System: Microsoft Windows 8/7/Vista/XP5 Web Browser: Internet Explorer 7 or higher Protocol: Standard TCP/IP
D-ViewCam™ Software Functions	Remote management/control of up to 32 cameras Viewing of up to 32 cameras on one screen Supports all management functions in web interface Scheduled motion triggered or manual recording options
General Specifications
Power	5 V DC, 1.2 A through external power adapter External Power Adapter Input:100 to 240 V AC, 50/60 Hz
Max. Power Consumption	5.5 watts max.
Operation Temperature	-13° to 113° F (-25° to 45° C)
Storage Temperature	-4° to 158° F (-20° to 70° C)
Operation Humidity	20% to 80% non-condensing
Storage Humidity	5% to 95% non-condensing
Dimensions	2.6” x 5.53” x 3.66” (66mm x 140.5mm x 93mm)
Weight	8.99oz (255 grams)
Certifications	FCC Class B CE CE LV D C-Tick
Warranty
Warranty	1-Year Limited Warranty¹

¹ 1-Year Limited Warranty available only in the USA and Canada.

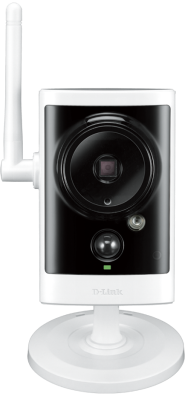

Product Views:

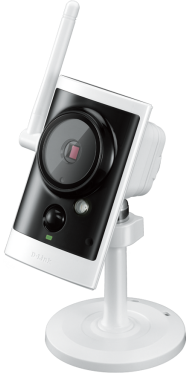

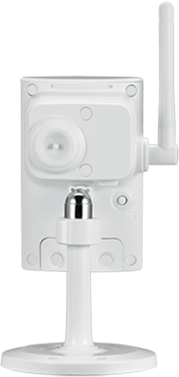

*D-Link DCS-2330L Left Angle View*	*D-Link DCS-2330L Back View*

Documentation:

Download the D-Link DCS-2330L Datasheet (PDF).
