D-Link DCS-2530L
Full HD 180-Degree Wi-Fi Camera
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
The Full HD 180-Degree Wi-Fi Camera (DCS-2530L) with an ultra-wide 180o lens lets you keep a vigilant eye on your home and provides crisp HD 1080p video to watch your kids, pets or small office with wall-to-wall coverage. Night vision allows you to see up to 16 feet clearly in total darkness and with the built-in microphone and motion sensor, you can be notified whenever sound or motion is detected. With the microSD card slot you can record scheduled or triggered video clips and access them all easily from the free mydlink app so you never miss a moment. The Full HD 180-Degree Wi-Fi Camera also features a Wi-Fi signal locator LED which helps you determine optimum Wi-Fi connection when deciding where to place your camera, ensuring reliable Full HD 1080p video streaming and recording.
Monitor Your Home with Fewer Cameras
The Full HD 180-Degree Wi-Fi Camera delivers the confidence of 1080p video clarity,
ensuring rich detail and crisp image quality for your surveillance streaming and
recording. The DCS-2530L’s 180o
ultra-wide angle lens uses unique hardware with
de-warping technology to maximize the video quality with less distortion, letting you
see more of your home at a glance. Avoid other costly recording solutions and use the
Full HD 180-Degree Wi-Fi Camera’s microSD/SDXC card slot to record up to 128 GB of
video footage3
or simply add a mydlink Camera Recorder (DNR-202L) to locally record
up to 4 D-Link Wi-Fi Cameras for a scalable alternative for recording and storing video.
Convenient Access Anytime, Anywhere with mydlink®
Access your camera through the free mydlink mobile app or website to view and
manage your camera through your tablet, mobile phone, laptop or desktop, no
matter where you are. There’s no cost to use, no need for a base station and no limit
on users or amount of products per account! mydlink is an easy to use, intuitive app,
perfect for your remote monitoring needs.
Technical Specifications:
Camera Hardware Profile
- 1/3" 2-megapixel progressive CMOS sensor
- 16 ft night vision with infrared LEDs
- Minimum illumination: 0 lux with IR LEDs on
- Built-in microphone
- 10x digital zoom
- Focal length: 1.7 mm
- Aperture: F2.5
- Angle of view:
- (H) 180°
- (V) 86°
- (D) 180°
External Device Interfaces
- 802.11n wireless
- Power/status LED
- Reset button
- WPS button
- microUSB power connector
- microSD/SDHC/SDXC card slot
- Wi-Fi Signal Locator LED
Image Features
- Adjustable image size, quality, frame rate and bit rate
- Adjustable brightness, saturation, contrast, sharpness and exposure time
- Configurable motion and sound detection
- Time stamp and text overlays
- Wide Dynamic Range (WDR)
- 3D filtering
- Configurable privacy mask zones
Video Compression
- Simultaneous H.264/MJPEG format video compression
- JPEG for still images
- H.264 multicast streaming
Video Resolution
- 1920 x 1080 at up to 15 fps
- 1280 x 720 at up to 30 fps
- 800 x 448 at up to 30 fps
- 640 x 360 up to 30 fps
Audio Support
- AAC
- G.711
Mobile Support
- mydlink Lite app available for iOS, Android devices, and Windows Phones
- mydlink + app available for iOS, and Android devices
- Check your device's app store for compatibility and OS requirements
Network
Network Protocols
- IPv6, IPv4, ARP, TCP, UDP, ICMP
- DHCP Client
- NTP Client (D-Link)
- DNS Client
- DDNS Client (D-Link)
- SMTP Client
- HTTP Server
- UPnP port forwarding
- HTTPs for configuration
- RTP/RTSP/RTCP
- ONVIF
- Bonjour
Security
- Administrator and user group protection
- Password authentication
- HTTP and RTSP digest encryption
Physical
Dimensions (H x W x D)
- 4.3 x 2.4 x 2.4 inches
Weight
- 0.23 lbs (camera only)
Power Input
- 5 V DC / 1.2 A, 50/60 Hz through power adapter
Temperature
- Operating: 0 to 40 °C (32 to 104 °F)
- Storage: -20 to 70 °C (-4 to 158 °F)
Humidity
- Operating: 20% to 80% non-condensing
- Storage: 5% to 95% non-condensing
Certifications
- CE
- CE LVD
- FCC Class B
- ICES
Product Views:
|
 |

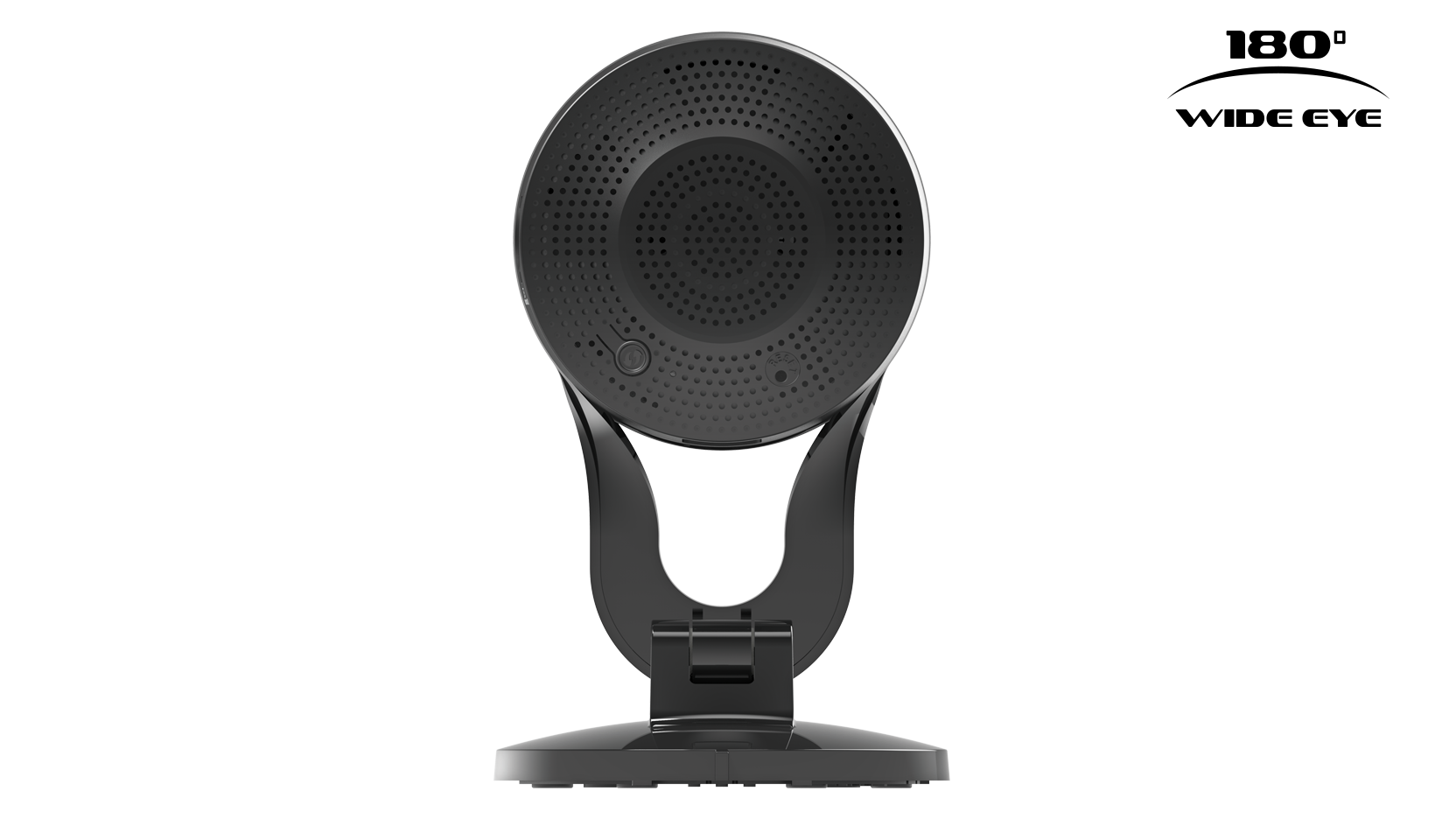

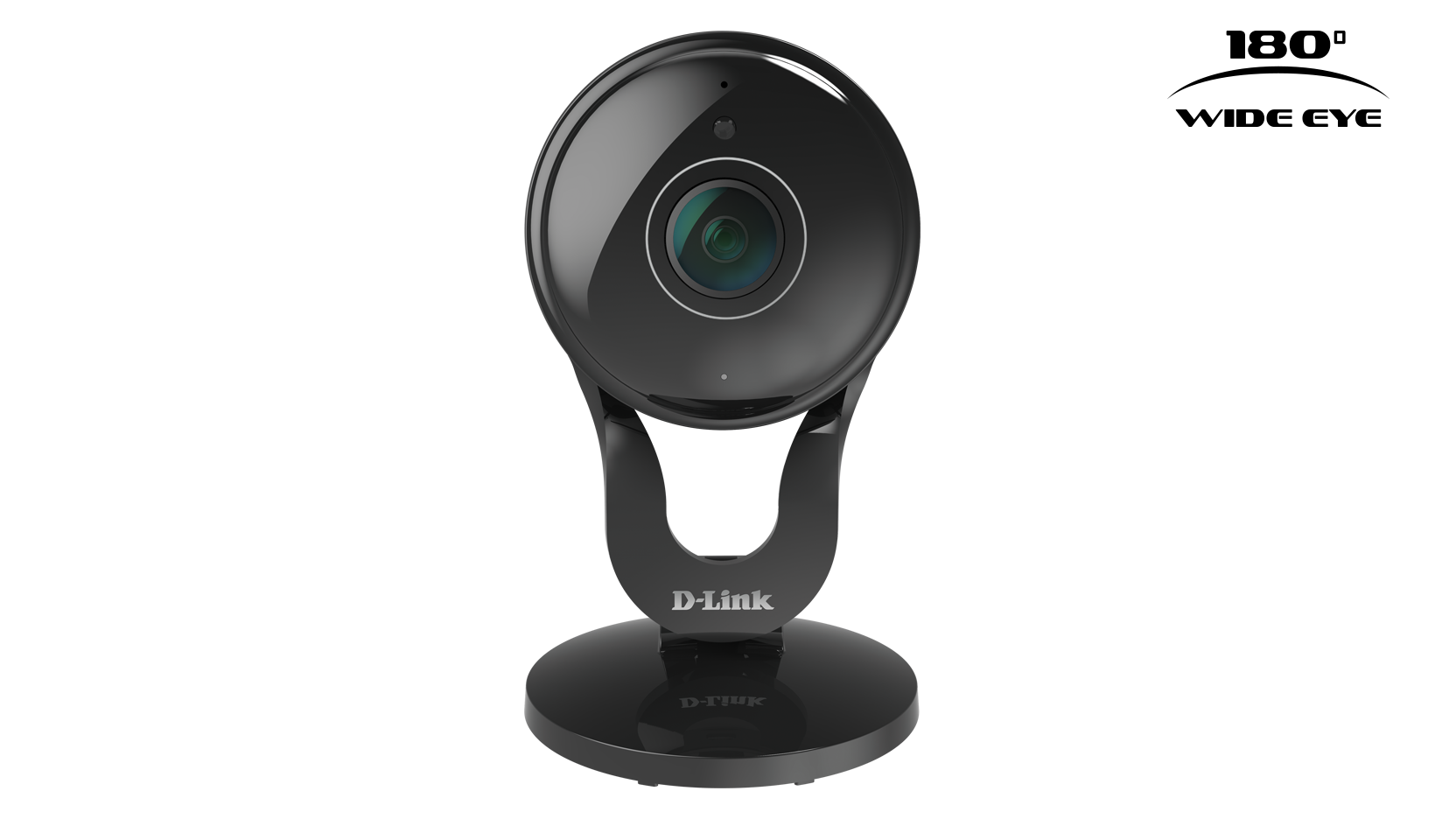

| D-Link DCS-2530L Front View | D-Link DCS-2530L Back View |
 |
 |

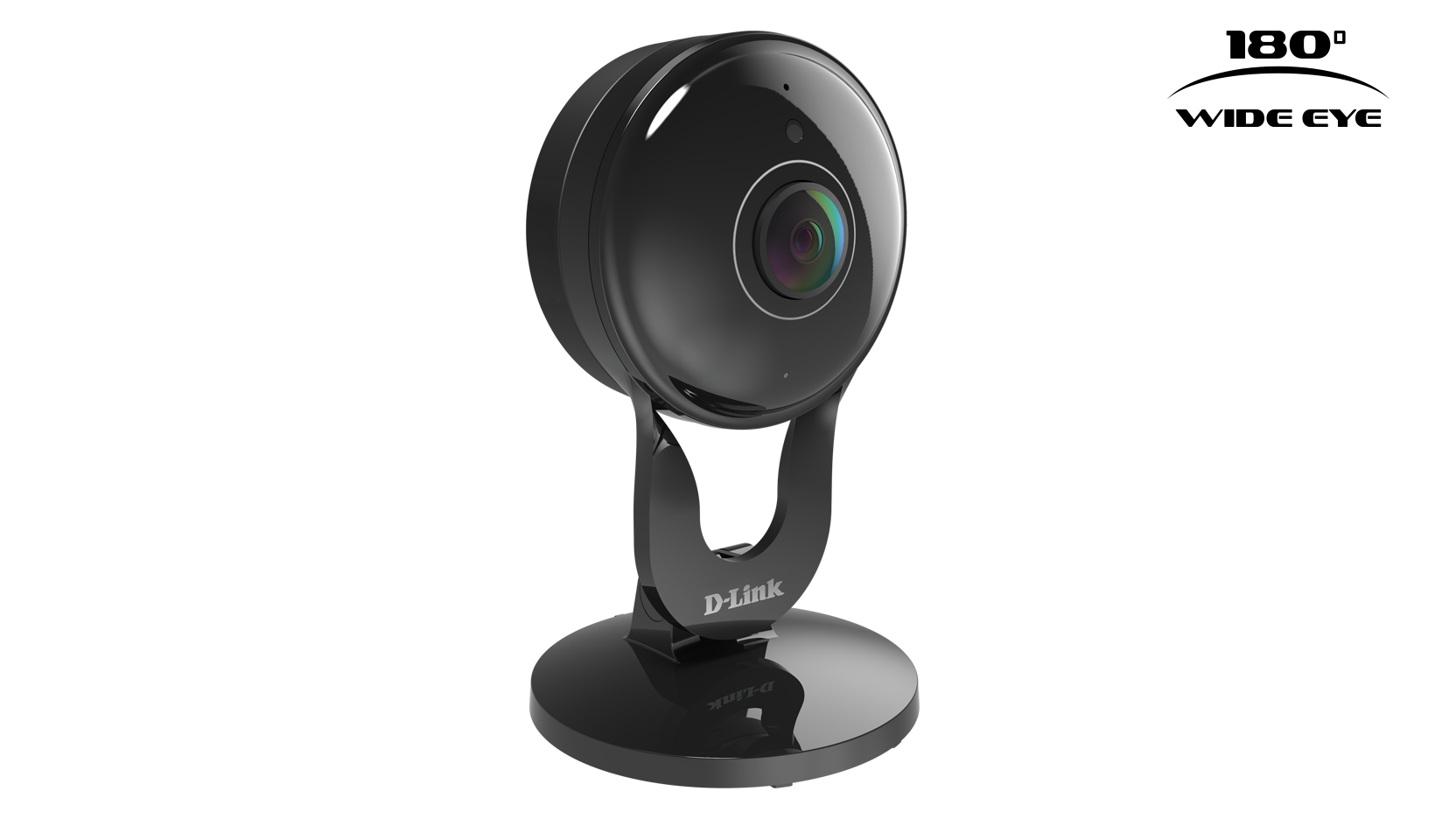

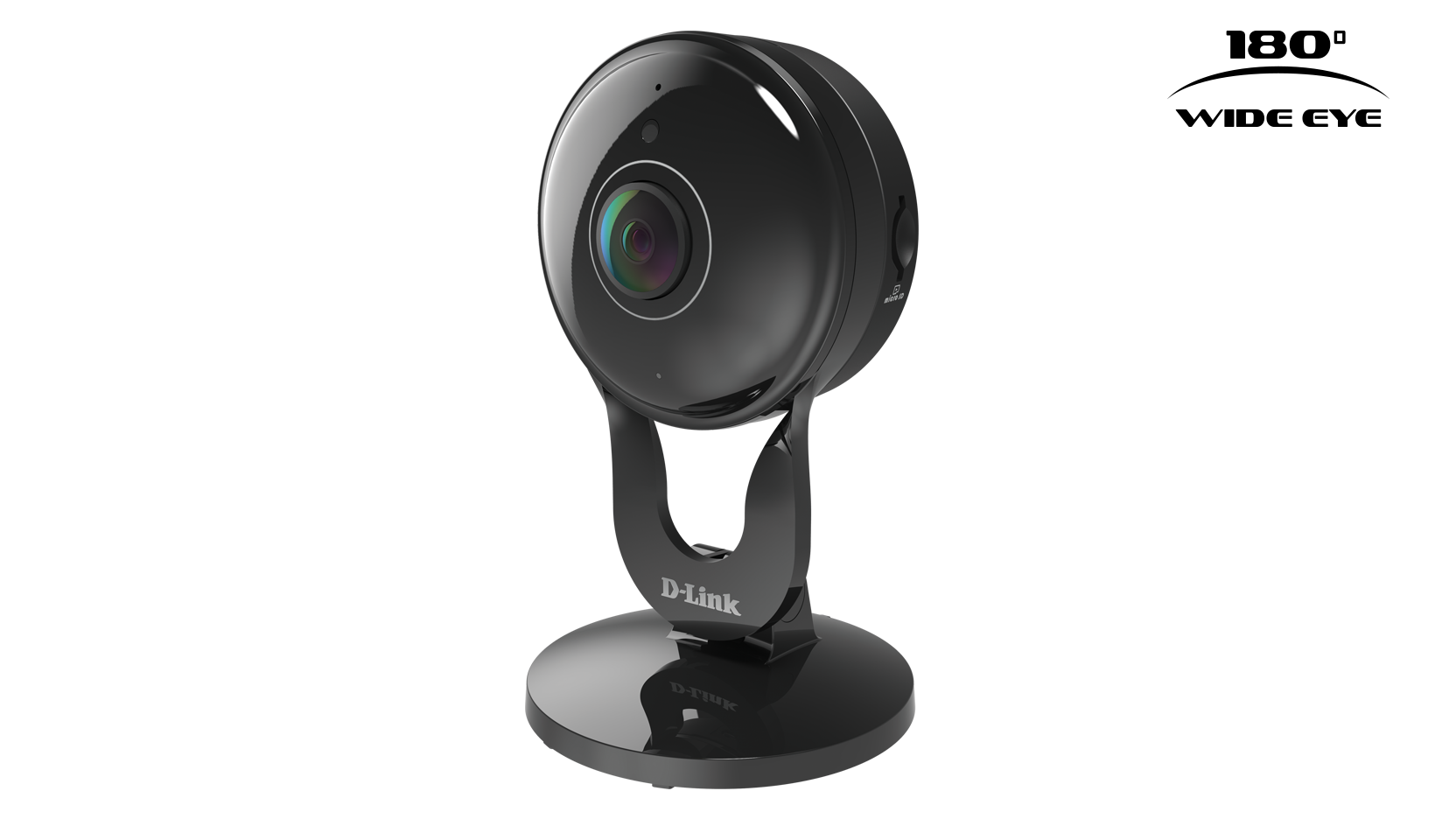

| D-Link DCS-2530L Right View | D-Link DCS-2530L Left View |
Documentation:
Download the D-Link DCS-2230 Datasheet (PDF).
