D-Link DCS-2630L
Full HD 180-Degree Wi-Fi Camera

D-Link DCS-2630L

Sorry, this product is no longer available, please contact us for a replacement.

Overview:

The Full HD 180-Degree Wi-Fi Camera (DCS-2630L) with 180° Wide Eye lens keeps a vigilant eye on your home and provides crisp HD 1080p video to watch your kids or pets with wall-to-wall coverage. Night vision allows you to see in total darkness and with 2-way audio and PIR sensor, you can be notified when sound or motion is detected. With the microSD card slot you can record video directly from the camera so you never miss a moment. Stream live HD 1080p video to your smartphone or tablet with the free mydlink Lite app for remote monitoring.

Monitor Your Home with Fewer Cameras

The Full HD 180-Degree Wi-Fi Camera delivers the confidence of HD 1080p video clarity, ensuring rich detail and crisp image quality for your surveillance streaming and recording. The DCS-2630L’s 180° Wide Eye lens uses unique hardware with de-warping technology to maximize the video quality with less distortion, letting you see more of your home at a glance. And with built-in Wireless AC, it takes advantage of the latest Wi-Fi technology to give you a high bandwidth connection to your router for streaming 1080p HD video from your camera². The Wi-Fi camera is also backwards compatible and will work seamlessly with your existing wireless devices. Record footage to a microSD/SDXC card for hassle-free recording and playback¹ or easily add a mydlink Camera Recorder (DNR-202L) to locally record up to 4 D-Link Wi-Fi Cameras for a scalable alternative for recording and storing video³.

Convenient Access Anytime, Anywhere with mydlink®

Access your camera through the free mydlink mobile app or website to view and manage your camera through your tablet, mobile phone, laptop or desktop, no matter where you are.

¹ A microSDXC Class 6 card or above is recommended (not included). Supports card capacities up to 128GB. ² Use of audio or video equipment for recording the image or audio of a person without their knowledge and consent is prohibited in certain states or jurisdictions. The end-user assumes all liability for compliance with applicable state, local and federal laws. ³ Please check http://us.dlink.com for camera compatibility

Features:

Features

Audio Detection Alerting
Enhanced Motion (PIR)
Motion Detection Alerting
Night Vision (IR LEDs)
On Camera Recording
1080p Full HD
180 Wide Eye lens
2-Way Audio

Premium Resolution and Visibility

Full HD 1080p resolution image quality
3 Megapixel progressive CMOS sensor
See up to 16 feet in complete darkness with built-in IR LEDs
Supports H.264/M-JPEG video codecs
180° (H) Field of View for wider camera coverage
8x digital zoom for close-up viewing

Security

PIR sensor for enhanced motion detection
Sound and motion detection with e-mail/push alert notifications
microSD/SDXC card slot for local recording continuously, based on event triggers or according to a schedule¹
Built-in microphone and speaker for 2-way communication²

Ease of Use

Uses Wireless AC technology so you can install the camera virtually anywhere with ease
Backwards compatible with 802.11n/g
WPS support for easy wireless connection

Convenient Control with mydlink® Support

mydlink app support for iPhone, iPad, Android devices and Windows phones
View and manage remotely using just your mobile device

¹ A microSDXC Class 6 card or above is recommended (not included). Supports card capacities up to 128GB. ² Use of audio or video equipment for recording the image or audio of a person without their knowledge and consent is prohibited in certain states or jurisdictions. The end-user assumes all liability for compliance with applicable state, local and federal laws.

Technical Specifications:

D-Link DCS-2630L Specifications
Camera
Hardware Profile	1/3” 3 megapixel progressive CMOS sensor 16 feet IR illumination distance Minimum illumination: 0 lux with IR LEDs on Built-in Infrared-Cut Removable (ICR) Filter module 8x digital zoom Focal length: 1.72 mm Aperture: F2.0 Angle of view: (H) 180° (V) 112° (D) 180° Minimum object distance: 17 inches Built-in microphone and speaker
Image Features	Adjustable image size, quality, frame rate and bit rate Adjustable brightness, saturation, contrast, sharpness and hue Time stamp and text overlays Flip & mirror Anti-flicker (on/off ) Configurable motion detection windows
Video Compression	Simultaneous H.264/MJPEG format compression JPEG for still images
Video Resolution	1920 x 1080 at up to 30 fps 1280 x 720 at up to 30 fps 640 x 352 at up to 30 fps 320 x 176 at up to 30 fps
Audio	AAC PCM ADPCM
External Device Interface	Power LED WPS Button Reset Button microUSB Power Connector
Network
Network Protocols	IPv4, ARP, TCP, UDP, ICMP DHCP Client NTP Client DNS Client DDNS Client (D-Link) SMTP Client FTP Client HTTP Server Samba Client PPPoE UPnP Port Forwarding LLTD HTTPS (for configuration) Bonjour
Security	Administrator and user group protection Password authentication HTTP and RTSP digest encryption
Wireless Connectivity	802.11ac/n/g wireless with WEP/WPA/WPA2 encryption Operates on 2.4GHz and 5GHz frequency bands
Recording
microSD Card Slot	Supports microSD/SDHC/SDXC Up to 128 GB
mydlink Camera Recorder (DNR-202L)	Supports 2 external USB hard drives up to 4 TB each Records up to 4 D-Link Wi-Fi Cameras DNR-202L and USB hard drives sold separately
System Integration
System Requirements for Web Interfaces	Operating system: Microsoft Windows 8/7⁴, XP⁴, Vista⁴, 2000⁴ or Mac OS X (10.6 and above) Browser: Internet Explorer 8, Firefox 13, Safari 5.0 and Chrome 19 or higher
Event Management	Event notification and uploading of snapshots/video clips via e-mail (SMTP) or FTP Motion detection Sound level detection
Remote Access
Remote Management	Configuration accessible via web browser
General
Weight	0.76 lbs
Power	5 V DC 1.5 A, 50/60 Hz microUSB
Power Consumption	3.5 watts
Temperature	Operating: 32 to 104° F (0 to 40° C) Storage: -4 to 158° F (-20 to 70° C)
Humidity	Operating: 20% to 80% non-condensing Storage: 20% to 80% non-condensing
Certifications	CE CE LVD FCC Class B ICES
Dimensions	3.37 x 3.37 x 5.53 inches
Package Contents	Full HD 180-Degree Wi-Fi Camera (DCS-2630L) microUSB power adapter Mounting screws Quick install guide
Warranty	1 Year Limited
Order Information
Part Number	Description
DCS-2630L	Full HD 180-Degree Wi-Fi Camera

¹ 1-Year Limited Warranty available only in the USA and Canada. ² Use of audio or video equipment for recording the image or audio of a person without their knowledge and consent is prohibited in certain states or jurisdictions. The end-user assumes all liability for compliance with applicable state, local and federal laws. ³ Please check http://us.dlink.com for camera compatibility ⁴ Computer must adhere to Microsoft’s recommended system requirements

Product Views:

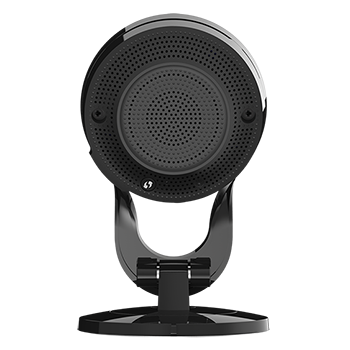

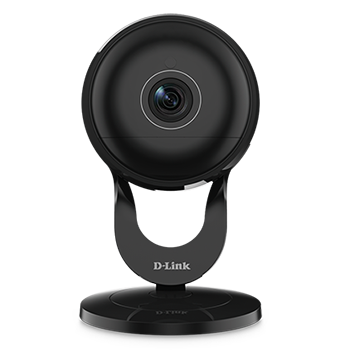

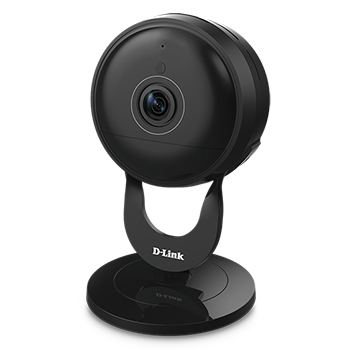

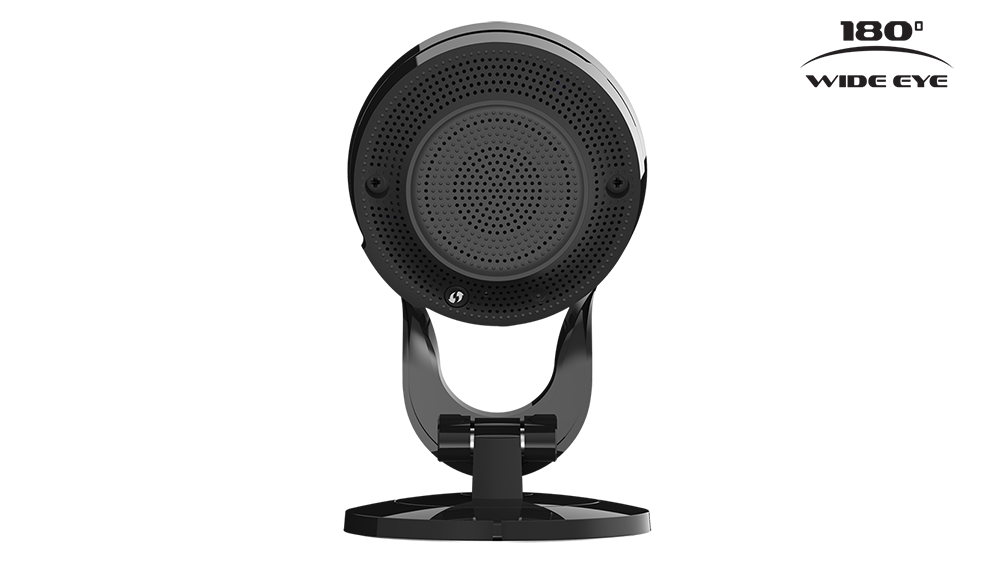

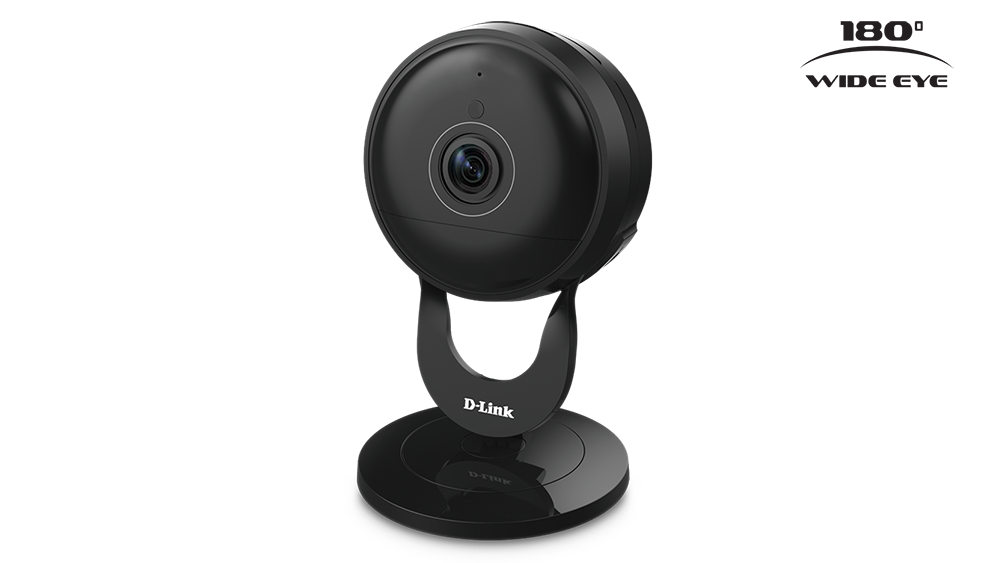

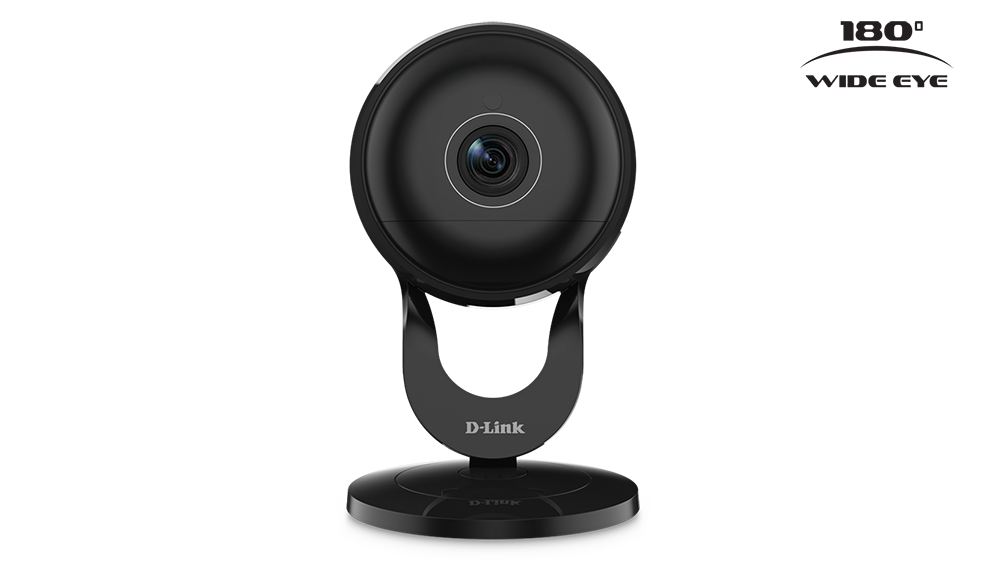

*D-Link DCS-2630L Front View*	*D-Link DCS-2630L Left Side View*	*D-Link DCS-2630L Back View*

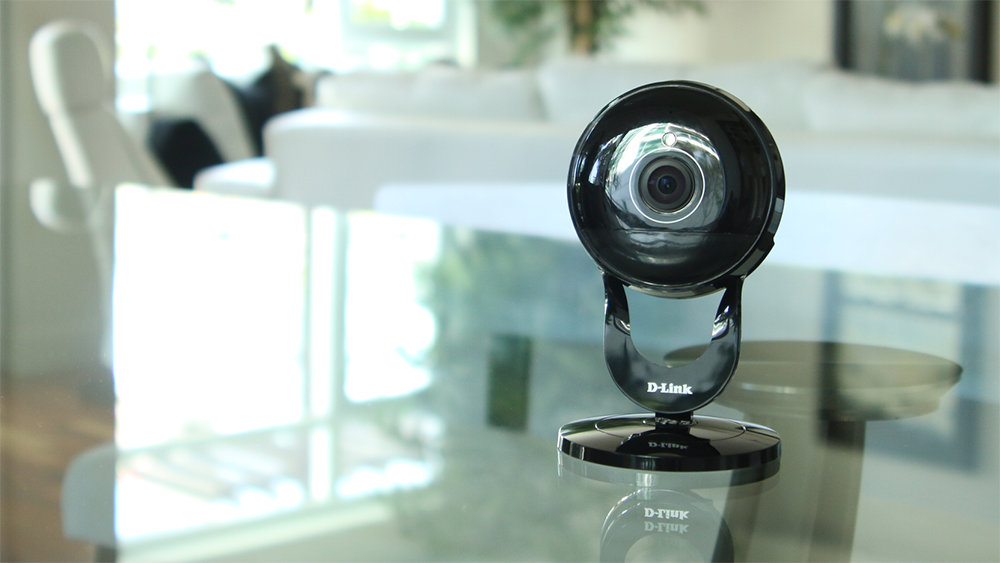

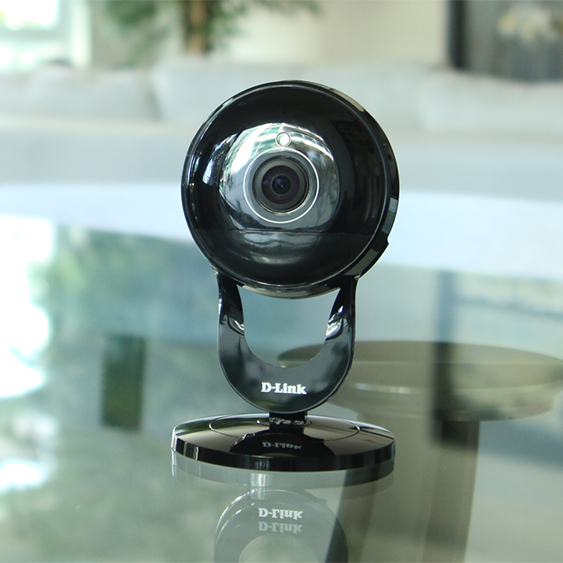

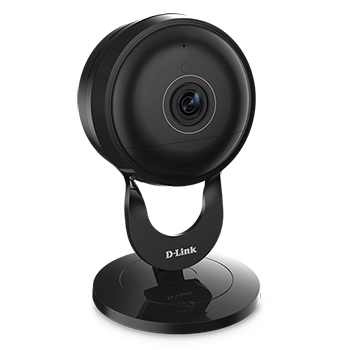

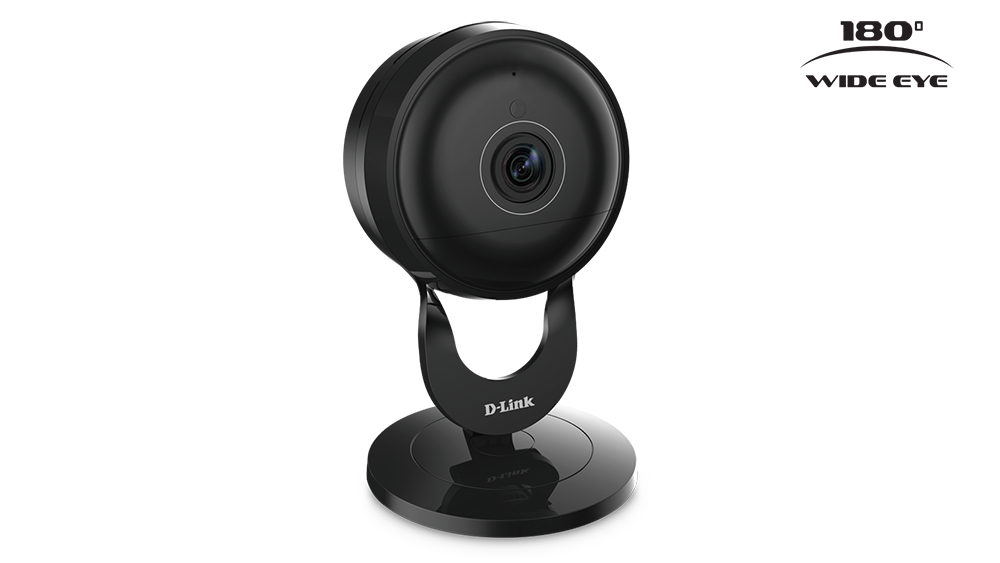

*D-Link DCS-2630L Right Side View*	*D-Link DCS-2630L Display View*
