D-Link DCS-3511
HD PoE Day/Night Network Camera

D-Link DCS-3511

Sorry, this product is no longer available, please contact us for a replacement.

Overview:

The D-Link DCS-3511 HD PoE Day/Night Network Camera is a full featured entry level HD network camera equipped with 1 Megapixel Progressive Scan CMOS sensor and 2.8 to 12 mm DC iris varifocal lens. The cameras can capture HD video at resolutions of up to 1280 x 800 with frame rates up to 30 fps. Video can be saved to a network drive, onboard storage with its built-in microSD card slot or to an NVR (network video recorder) or VMS (video management software).

High Definition Surveillance

The DCS-3511 is built with a megapixel image sensor to give you high-quality video with resolutions up to 720p HD. Get a closer look with ePTZ, which lets you digitally zoom, pan and tilt across your camera’s video so you can survey a large area easily. A Power over Ethernet (PoE) port allows you to connect the DCS-3511 to your network and power it through a single cable, simplifying deployment and doing away with the need for a nearby power outlet.

Imaging Flexibility

The DCS-3511 includes a 4x optical zoom varifocal lens for field of view flexibility. If you need an extreme wide angle or telephoto view, the DCS-3511 is compatible with thousands of 3rd party CS-mount lenses.

High Speed Access To Multiple Video Streams

The DCS-3511 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. Additionally, the DCS-3511 supports multicast H.264 and MPEG-4 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.

Video Management Software

The DCS-3511 HD PoE Day/Night Network Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

Flexible Connectivity

The DCS-3511 has a built-in 802.3af compliant PoE module that simplifies installation by providing low voltage power and networking connectivity with a single cable. Use with any 802.3af compatible PoE switch or midspan.

Five Year Warranty

D-Link stands behind the quality of the DCS-3511 with an included limited 5-year warranty. An optional extended warranty doubles the warranty to 10 years and adds next business day hardware replacement.*

*microSD card not included

Technical Specifications:

D-Link DCS-3511 Specifications
Camera
Hardware Profile	1/4” 1 Megapixel Progressive CMOS Sensor Minimum illumination 0.1 Lux Color mode 0.05 Lux Black and White mode Automatic Infrared-Cut Filter module for night viewing Shutter speed 1/5 to 1/10,000 sec. 2.8 - 12 mm F1.4 DC iris varifocal lens 4x optical zoom (manual) 10x digital zoom Aperture F2.0 Angle of view 78° - 23° horizontal 53° - 15° vertical Minimum object distance: 8"
Image Features	Configurable image size, quality, frame rate, and bit rate Time stamp and text overlays Configurable motion detection windows Configurable privacy mask zones Configurable shutter speed, brightness, saturation, contrast, sharpness
Video Compression	Simultaneous H.264/MPEG-4/MJPEG format compression H.264/MPEG-4 multicast streaming JPEG for still images
Video Resolution	16:9 - 1280 x 800, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176 up to 30 fps 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240 up to 30 fps
External Device Interface	10/100 BASE-TX Ethernet port Supports 802.3af PoE DI/DO socket for connection to external devices RS-485 for external PTZ connection microSD/SDHC card slot External Audio input/output Optional 12VDC input jack
Network
Network Protocols	IPv4 IPv6 TCP/IP UDP ICMP DHCP client NTP client (D-Link) DNS client DDNS client (D-Link) SMTP client FTP client HTTP / HTTPS 802.1x Samba client PPPoE UPnP port forwarding RTP / RTSP/ RTCP IP filtering QoS CoS Multicast IGMP ONVIF compliant SNMP v1/v2/v3
Security	Administrator and user group protection Password authentication HTTPS encryption for web access HTTP and RTSP digest encryption
System Management
System Requirements for Web Interface	Browser: Internet Explorer, Firefox, Chrome
Event Management	Motion detection Event notification and uploading of snapshots/video clips via HTTP, email or FTP Supports multiple HTTP, SMTP and FTP servers Multiple event notification Multiple recording methods for easy backup
Remote Management	Take snapshots/video clips and save to local hard drive or NAS via web browser Configuration interface accessible via web browser
OS Support	Windows 2000/XP/Vista/Windows 7/iPhone/iPad/Android
D-ViewCam System Requirements	Operating System: Microsoft Windows 8/7/Vista Web Browser: Internet Explorer 7 or higher Protocol: Standard TCP/IP
D-ViewCam Software Functions	Remote management/control of up to 32 cameras Viewing of up to 32 cameras on one screen Supports all management functions in web interface Scheduled motion triggered, or manual recording options
JustConnect+ App	Remote viewing app for Android and iOS
General Specifications
Weight	5.3 ounces (150 g) ± 5%
Power Requirement	PoE (802.3af) 12V DC 1.5 A
Power Consumption	2.9 watts ± 5% (PoE)
Operating Temperature	32° to 104° F (0° to 40° C)
Operating Temperature (in DCS-57 enclosure)	-40 to 122° F
Storage Temperature	-4° to 158° F (-20° to 70° C)
Operating Humidity	20% to 80% non-condensing
Storage Humidity	5% to 95% non-condensing
Certifications	CE CE LVD FCC C-Tick
Dimensions	Diameter: 4.6" (116 mm) Heigh: 2.25" (57 mm)
Warranty
Warranty	5-Year Limited Warranty

¹ 5-YearWarranty available only in the USA.

Product Views:

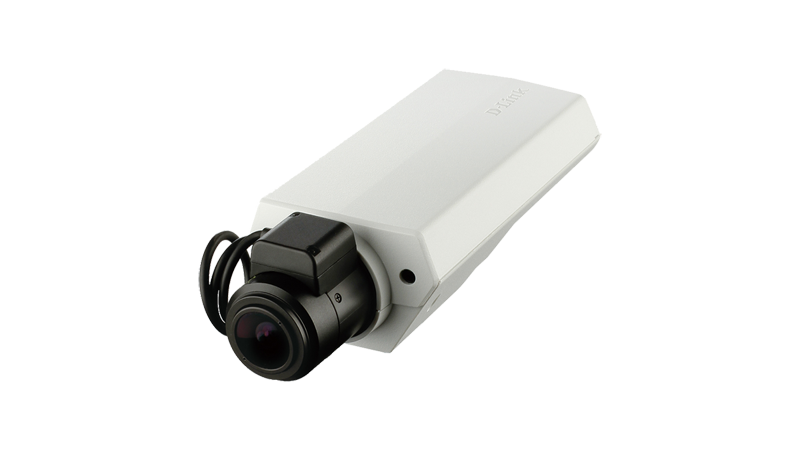

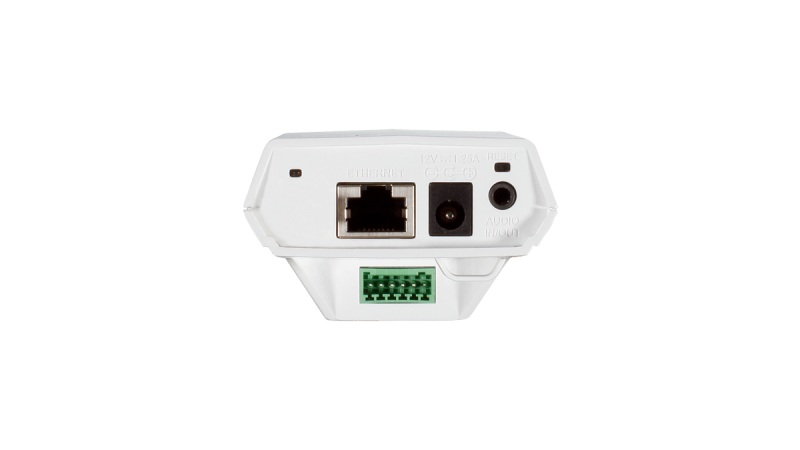

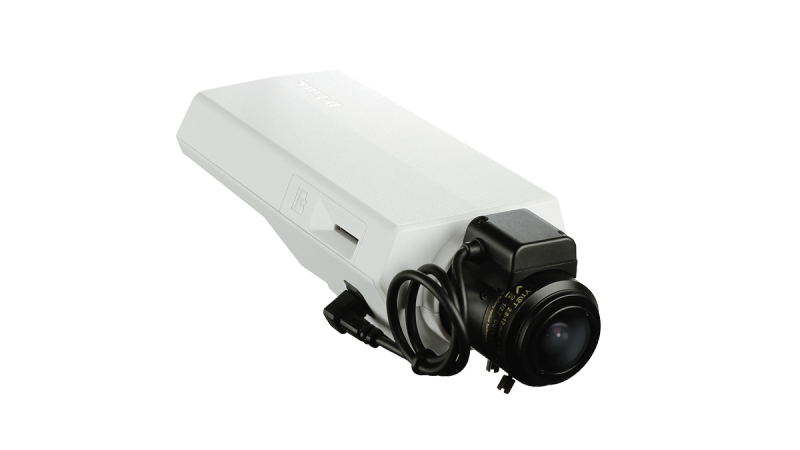

*Left Angle View*	*Right Angle View*	*Back View*

Documentation:

Download the D-Link DCS-3511 Datasheet (PDF).
