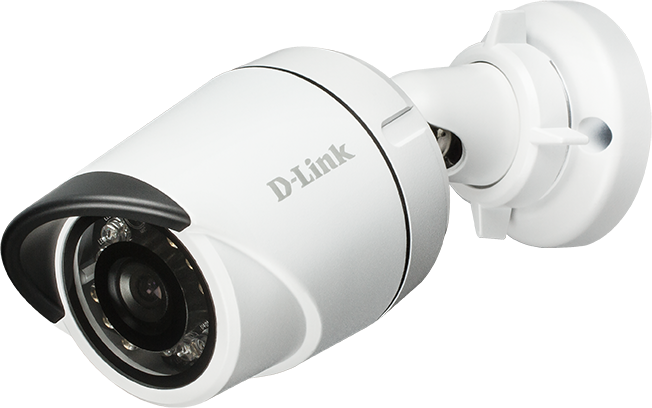

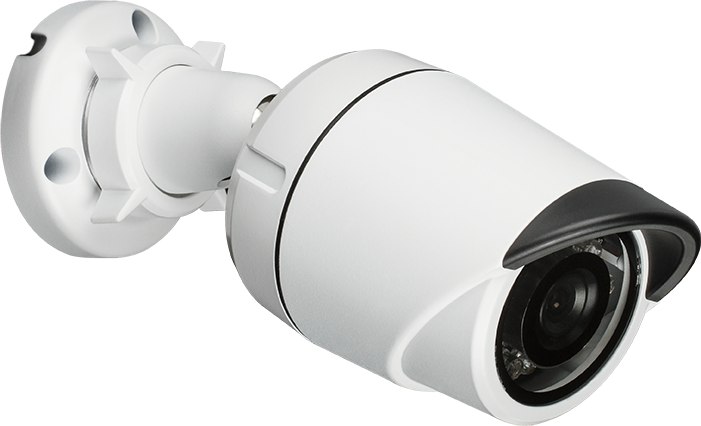

D-Link DCS-4701E-VB1
Vigilance HD Outdoor Mini Bullet Camera

Sorry, this product is no longer available, Please contact us for a replacement.



VigilanceOverview:

The D-Link DCS-4701E Vigilance HD Outdoor Mini Bullet Network Camera is a high definition professional surveillance camera suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 1/3” megapixel progressive scan CMOS sensor with digital WDR image enhancement to deliver balanced video in varying lighting conditions. The compact rugged design makes this camera ideal for deployment in a wide variety of surveillance applications without the need for additional accessories.

Enhanced LowLight+ Video

Incorporating a highly sensitive CMOS sensor, the DCS-4701E provides outstanding performance in low light conditions, rendering more vibrant color details. The 3D noise reduction feature improves the image quality and compression savings in low light by dramatically reducing noise.

Continuous Monitoring

The DCS-4701E’s digital wide dynamic range (WDR) video enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify subjects that are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use all available light. The DCS-4701E also has built-in IR LED illuminators with a 90 foot range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day.

Video Management Software

The DCS-4701E Vigilance Full HD Outdoor Dome Network Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

Flexible Connectivity

The DCS-4701E has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling.

Five Year Warranty

D-Link stands behind the quality of the DCS-4701E with an included limited 5-year warranty. An optional extended warranty doubles the warranty to 10 years and adds next business day hardware replacement.*

*5-Year Warranty is for U.S. only

Features:

720p HD Video

  • 1/3” 1.3 megapixel progressive CMOS sensor
  • 2.8 mm F2.0 Lens with 96° Field of View
  • Up to 1280 x 720 at 30 FPS
  • LowLight+ for enhanced low light performance
  • Digital Wide Dynamic Range
  • H.264 & MJPEG codec support for streaming and recording

Outdoor Placement

  • Built-in IR LED illuminator with a 90 foot range for use in dark areas
  • 3-axis cable management bracket for flexible secure mounting options
  • Rugged IP66 weatherproof housing
  • Glare-reducing sun shield
  • 3D filtering reduces image noise in low-light environments

Network

  • Power over Ethernet (PoE) provides easy and flexible integration into your network

Technical Specifications:

D-Link DCS-4701E Specifications
Camera
Hardware Profile
  • 1/3” 1.3 Megapixel Progressive CMOS Sensor
  • 90 ft IR Illumination Distance
  • Minimum illumination
    • 0.2 Lux Color mode
    • 0.1 Lux Black and White mode
    • 0 Lux Black and White mode with IR LED on
  • Automatic Infrared-Cut Filter module for night viewing
  • 10x digital zoom
  • 2.8mm F2.0 fixed focal length lens
  • Aperture F2.0
  • Angle of view
    • 96° horizontal
    • 54° vertical
    • 108° diagonal
  • Minimum object distance: 8"
Camera Housing IP66 compliant weatherproof housing
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • Configurable privacy mask zones
  • Configurable exposure time, brightness, saturation, contrast, contrast, sharpness, digital WDR and 3D filter
Video Compression
  • Simultaneous H.264/MJPEG format compression
  • H.264 multicast streaming
  • JPEG for still images
Video Resolution
  • 16:9 - 1280 x 720, 800 x 448, 640 x 360, 480 x 272, 320 x 176 up to 30 fps
  • 4:3 - 960 x 720, 800 x 592, 640 x 480, 480 x 352, 320 x 240 up to 30 fps
External Device Interface
  • 10/100 BASE-TX Ethernet port with PoE (802.3af)
  • Optional 12VDC input jack
Network
Network Protocols
  • IPv6
  • IPv4
  • ARP
  • TCP/IP
  • UDP
  • ICMP
  • DHCP client
  • NTP client (D-Link)
  • DNS client
  • DDNS client (D-Link)
  • SMTP client
  • FTP client
  • HTTP / HTTPS
  • Samba client
  • PPPoE
  • UPnP port forwarding
  • RTP / RTSP/ RTCP
  • IP filtering
  • QoS/DSCP
  • CoS
  • Multicast
  • ONVIF compliant
Security
  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption
System Management
System Requirements for Web Interface Browser: Internet Explorer 8 or higher, Firefox, Chrome, Safari
Event Management
  • Motion detection
  • Event notification and uploading of snapshots/video clips via e-mail or FTP
  • Supports multiple SMTP and FTP servers
  • Multiple event notifications
  • Multiple recording methods for easy backup
Remote Management
  • Take snapshots/video clips and save to local hard drive or NAS via web browser
  • Configuration interface accessible via web browser
OS Support Windows 2000/XP/Vista/Windows 7/iPhone/iPad/Android
D-ViewCam System Requirements
  • Operating System: Microsoft Windows 8/7/Vista
  • Web Browser: Internet Explorer 7 or higher
  • Protocol: Standard TCP/IP
D-ViewCam Software Functions
  • Remote management/control of up to 32 cameras
  • Supports all management functions provided in web interface
  • Viewing of up to 32 cameras on one screen
  • Scheduled motion triggered, or manual recording options
General Specifications
Weight 0.98 lbs (445 grams) ±5%
Power Requirement
  • PoE (802.3af)
  • 12V DC 1.5 A
Power Consumption 4.7 Watts ±5%
Operating Temperature -22° to 124° F (-30° to 50° C)
Storage Temperature -4 to 158° F (-20° to 70° C)
Operating Humidity 20% to 80% non-condensing
Storage Humidity 5% to 95% non-condensing
Certifications
  • CE
  • CE LVD
  • FCC
  • C-Tick
Dimensions
  • Length: 6.48” (164.7 mm)
  • Heigth: 2.36” ( 60 mm)
Warranty
Warranty 5-Year Warranty1

1 5-YearWarranty available only in the USA.

Documentation:

Download the D-Link DCS-4701E-VB1 Datasheet (PDF).
