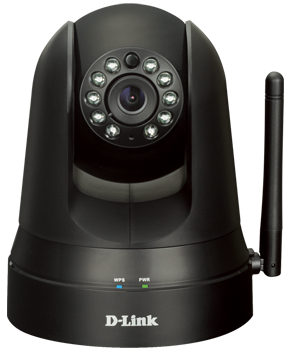

D-Link DCS-5009L
Pan & Tilt Day/Night Wi-Fi Network Cloud Camera

D-Link DCS-5009L

Sorry, this product is no longer available, replaced by DCS-5020L. Please contact us for more information.

Overview:

View more, do more, and protect more with the clarity and mobile control of D-Link's Pan & Tilt Day/Night Wi-Fi Network Cloud Camera (DCS-5009L). Download the free mydlink app and monitor your home or business – anywhere, anytime – on your smartphone or tablet. Experience confi dent clarity and total control with the ultra-smooth pan/tilt and digital zoom functionality. Integrated motion-sensing and night-vision technology provides around-the-clock surveillance. With simple installation, you'll have an eff ective, aff ordable home or business surveillance solution up and running in no time.

Home and Small Business Surveillance Camera

The DCS-5009L provides the performance of a professional home or business surveillance solution at a fraction of the cost. Monitor and protect what matters most – anywhere, anytime – using the free mydlink web portal or mydlink Lite mobile app on your iPhone, iPad, Android or Windows device. Ultra-smooth pan/tilt and zoom functionality lets you monitor with precision and confi dence from your mobile device. Why wait for a costly technician to install your system? With the DCS-5009L, installation is fast, easy, and fl exible. The integrated night vision and motion-sensing technology gives you peace of mind and around-the-clock surveillance. Whether you're looking for a superior home surveillance solution or a versatile way to monitor your small business, D-Link's DCS-5009L lets you see more of what matters.

Pan & Tilt

Your Home is Your Castle. Protect More of It.

View more, do more and protect more of what you value most with the clarity and mobile control of the DCS-5009L. Monitor your home or small business from your smartphone or tablet with the free mydlink app.

Pan & Tilt

With sharp, responsive pan & tilt movement and 4x digital zoom, you can quickly scan a wide area and zoom in to see more details.

Motion Detection with Smart Alerts

Advanced motion sensing technology will detect movement and automatically send an email or push alert to your mobile device.

Night Vision Technology

The Pan & Tilt Wi-Fi Camera provides around-the-clock surveillance with night vision capability, allowing you to see up to 26 feet in complete darkness.

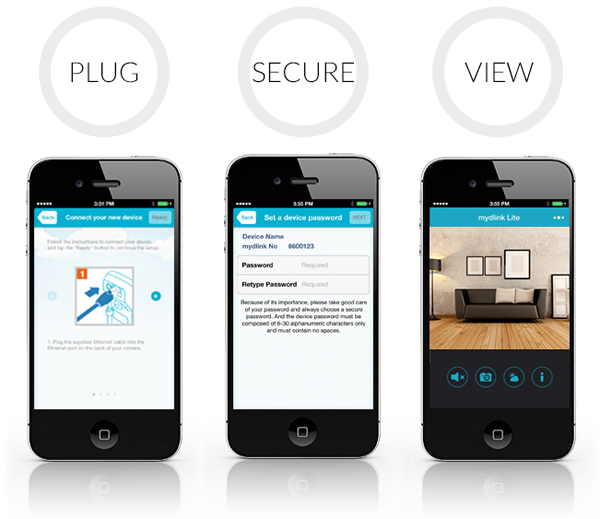

Easy Installation and Flexible Placement

Setting up your Pan & Tilt Wi-Fi Camera is easier than ever with our app-enabled installation wizard. And with the included mounting base, you can place your camera virtually anywhere, connect and view instantly!

Easy Installation and Flexible Placement
MyDlink

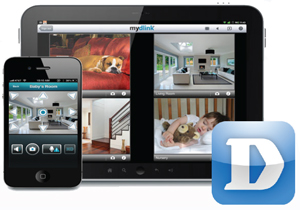

Anywhere Access with mydlink

With the mydlink™ Lite app, you can quickly and easily see your camera feed from anywhere with a Wi-Fi, 3G or 4G connection.

  • Remotely monitor your Wi-Fi Cameras from anywhere
  • No monthly service fees
  • Remote pan and tilt live video
  • Receive email/push alerts when movement is detected
  • Pinch-zoom for a closer look
  • mydlink™ Lite app available for iOS, Android and select Windows mobile devices

Features:

Full Control and Visibility

  • Pan & tilt live video from your mobile device
  • Supports H.264/M-JPEG video codecs
  • See up to 26 feet in complete darkness with built-in IR LEDs
  • 4x digital zoom for close-up viewing

Alert Notifications

  • Motion detection to send e-mail/push alerts

Convenient Control With mydlink Support

  • mydlink app support for iPhone, iPad, Android and Windows phone
  • mydlink portal for easy viewing and management
  • Pan & tilt control via the mydlink app or mydlink portal
Features
D.I.Y. No Installation No monthly Charges

Technical Specifications:

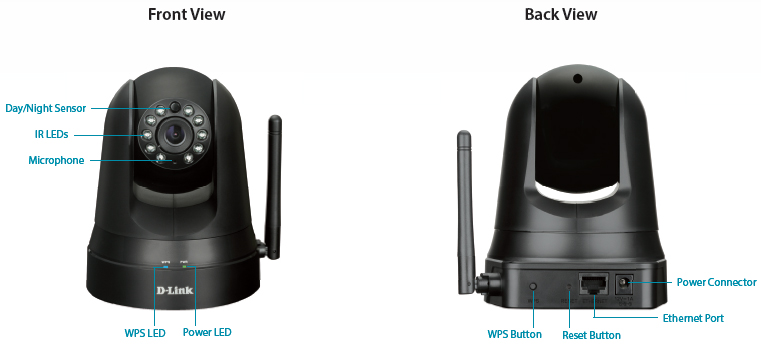

DCS-5009L Front and Back View
D-Link DCS-5009L Specifications
Camera
Hardware Profile
  • 1/5" VGA progressive CMOS sensor
  • 26 feet IR illumination distance
  • Minimum illumination: 0 lux with IR LEDs on
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • 4x digital zoom
  • Focal length 2.2 mm
  • Aperture: F2.0
  • Angle of view:
    • (H) 66.22°
    • (V) 49.08°
    • (D) 77.04°
  • Exposure time: 1/15 to 1/15,000 sec.
  • Built-in microphone
Image Features
  • Adjustable image size, quality, frame rate and bit rate
  • Time stamp and text overlays
  • Flip and mirror
  • Configurable motion detection
  • Adjustable brightness, saturation and contrast
Video Compression
  • Simultaneous H.264/MJPEG format compression
  • JPEG for still images
Video Resolution
  • 640 x 480 at up to 15 fps
  • 320 x 240 at up to 15 fps
  • 160 x 112 at up to 15 fps
Audio Compression PCM
Built-in Protocol
  • 10/100 BASE-TX Ethernet port
  • 802.11n/g/b WLAN
External Device Interface
  • 10/100 BASE-TX Ethernet port
  • Power LED
  • WPS LED
  • Reset button
  • WPS button
  • Power connector
3A Control
  • AGC (Auto Gain Control)
  • AWB (Auto White Balance)
  • AES (Auto Electronic Shutter)
Memory
  • SDRAM: 64 MB
  • Flash: 8 MB
Pan & Tilt
Pan Range -170° to +170° (total 340°)
Tilt Range -25° to +95° (total 120°)
Angular Velocity 16° per second
Network
Network Protocols
  • IPV4, ARP, TCP, UDP, ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • DDNS Client (Dyndns and D-Link)
  • SMTP Client
  • FTP Client
  • HTTP Server
  • PPPoE
  • UPnP Port Forwarding
  • LLTD
Security
  • Password authentication
  • HTTP digest encryption
Wireless Connectivity
  • 802.11n/g/n wireless with WEP/WPA/WPA2 security
  • WPS
System Requirements for Web Interfaces
  • Operating system: Microsoft Windows 8/7, XP SP2, Vista or Mac OS X (10.5 and above)
  • Cable or DSL modem with an internet connection
  • Browser: Internet Explorer 7, Firefox 13 or above, Safari 4.0 or above, Chrome 20 or higher with Java enabled
Advanced Features
Event Management
  • Event notification and uploading of snapshots/video clips via e-mail (SMTP) or FTP
  • Motion detection
Remote Access
Remote Management Configuration accessible via web browser
Mobile Support
  • mydlink Lite app for iOS, Android and Windows
  • mydlink+ app for iOS and Android
General
Weight
  • Device: 0.64 lbs
  • Stand: 0.13 lbs
Power
  • Input: 100-240 V AC, 50/60 Hz
  • Output: 12 V DC, 1 A
Power Consumption 8.64 watts
Temperature
  • Operating: 32 to 104 °F (0 to 40 °C)
  • Storage: -13 to 158 °F (-25 to 70 °C)
Humidity
  • Operating: 20% to 85% non-condensing
  • Storage: 5% to 95% non-condensing
Certifications
  • CE
  • CE LVD
  • FCC Class B
  • C-Tick
Dimensions
  • Camera only: 4.03 x 3.99 x 5.26 inches
  • With mounting bracket: 4.03 x 3.99 x 9.06 inches
Package Contents
  • Pan & Tilt Day/Night Wi-Fi Network Cloud Camera (DCS-5009L)
  • Mounting kit
  • Power adapter
  • Ethernet cable
  • Quick install guide
1 The mobile device must have a mobile or WiFi data connection. Non-iOS/Android playback devices must be equipped with 3G video playback software such as RealPlayer™ or PacketVideo™. 2 Computer must adhere to Microsoft's recommended system requirements.

Product Views:

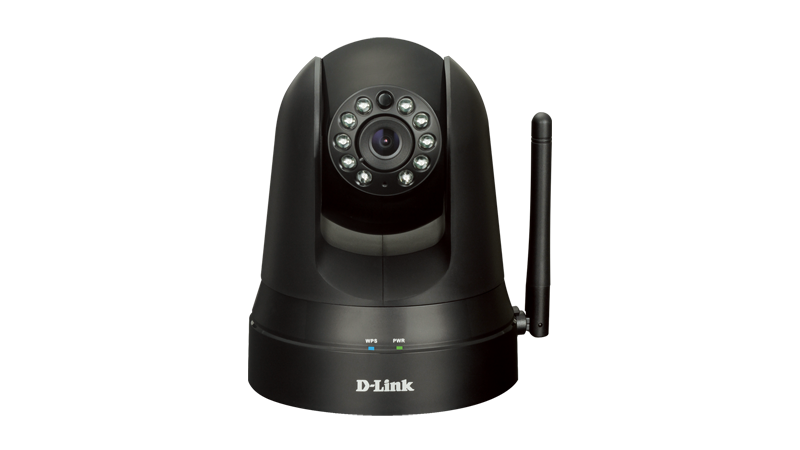

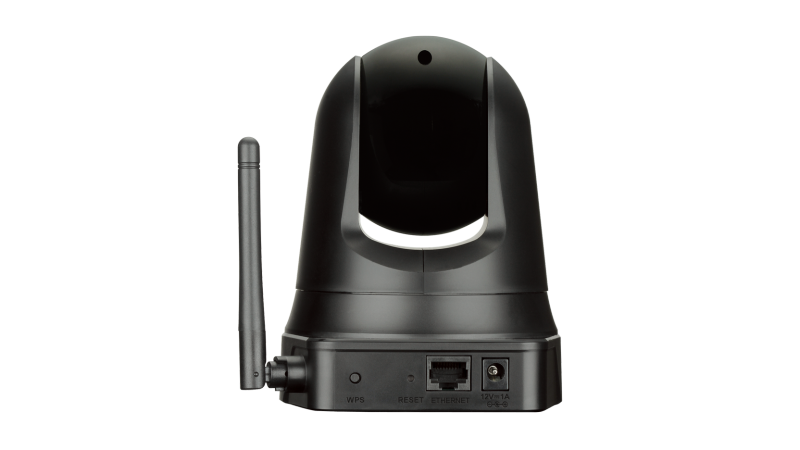

DCS-5009L Front View DCS-5009L Back View
DCS-5009L Front View DCS-5009L Back View

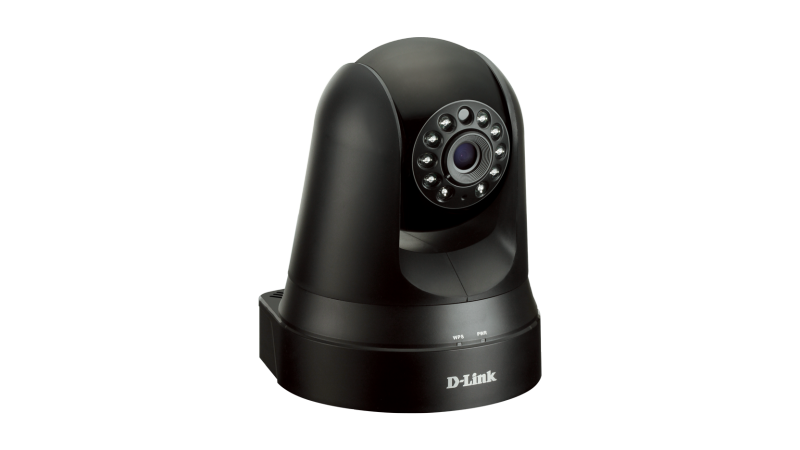

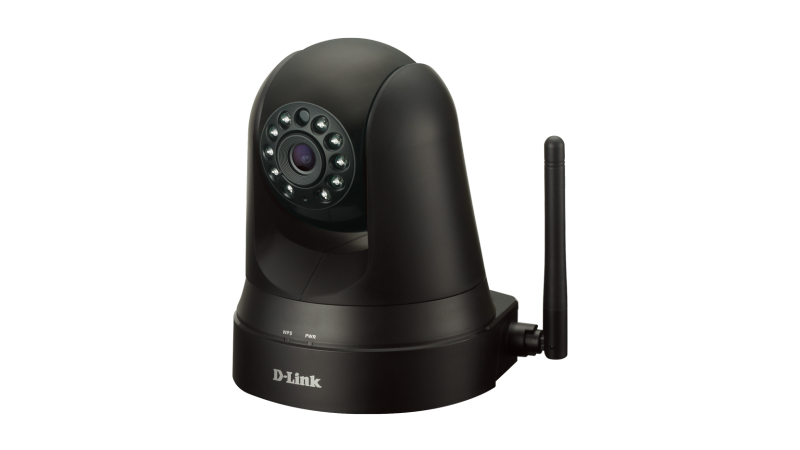

DCS-5009L Left View DCS-5009L Right View
DCS-5009L Left View DCS-5009L Right View

Documentation:

Download the D-Link DCS-5009L Datasheet (PDF).
